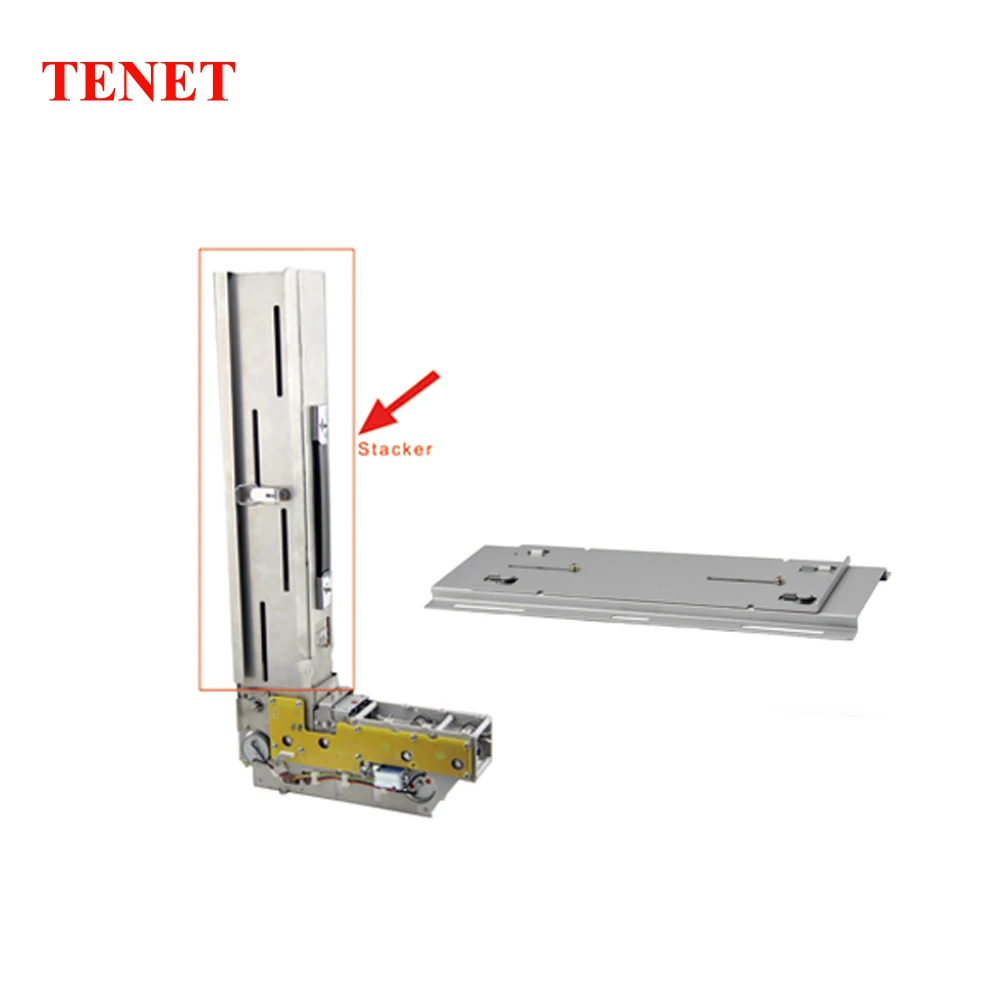

Card Dispensing Module for Parking System Vending Machine

Product Overview

Description

Card Dispensing Module for Parking System Vending Machine





Estelle Zhou      Skype:live:2355271221

                              whatsapp:+8613510326491

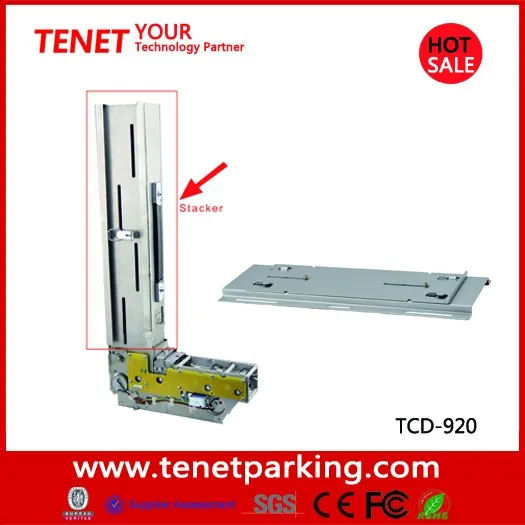

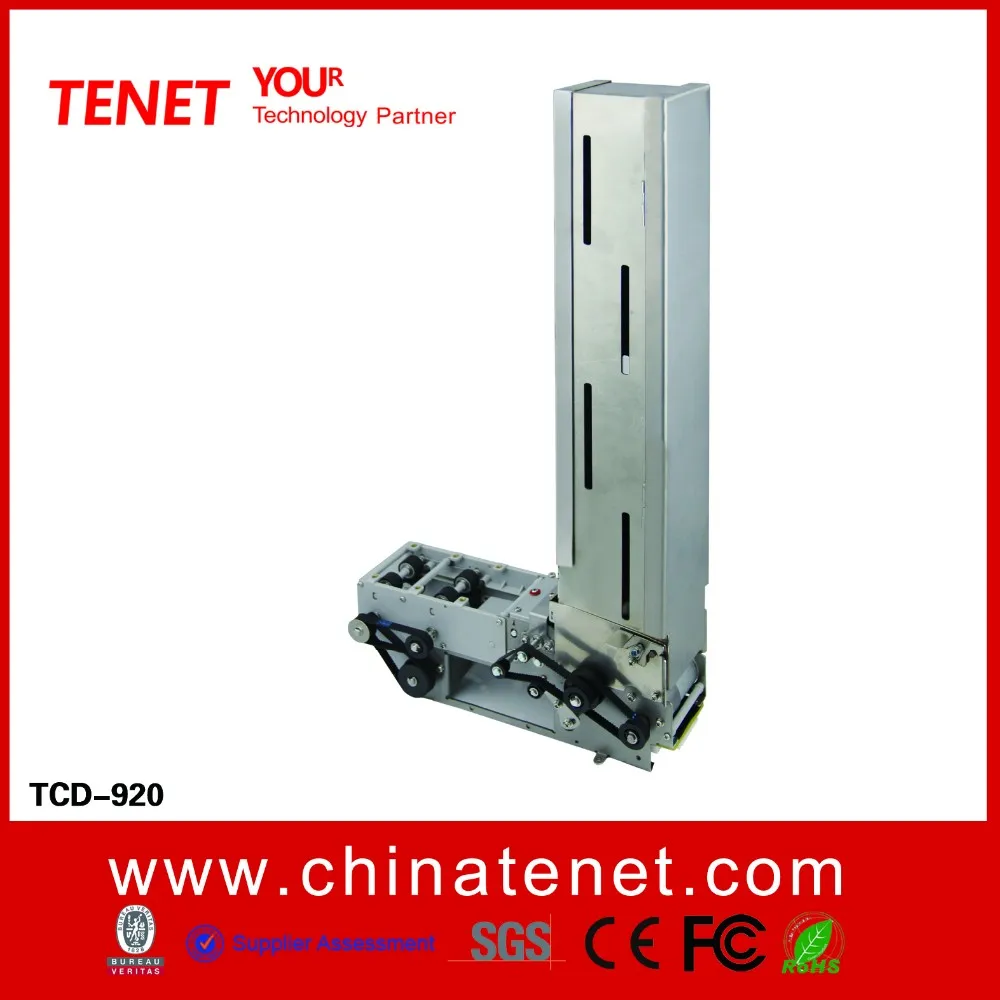

Card Dispenser-TCD 920



 Technical Parameters

l Operating voltage: 24VDC (max current 2A, static current 0.1A)

l Operating temperature: -20 to 85 degree

l Operating humidity: 30-90 percent (comparatively)

l Use condition: install in bin

l Card available: width: 54+/-0.5mm

                             Length: 85+/-0.5mm

l Thickness: 0.3-2.5mm (adjustable)

l Card material: Paper or Polyester card

l Net weight : 2.0kg (including the briquette)

l Time of issuing: max0.5s

l Capacity of stacker: 150pcs (0.8mm), 100pcs available when an extra stacker is needed.



 Main Features

l Industrial design, adjust to high temperature and other bad environments;

l Simulated manpower friction card issuers ,better adaptability to various deformed cards;

l Watchdog of hardware and embedded operating system to ensure properly running;

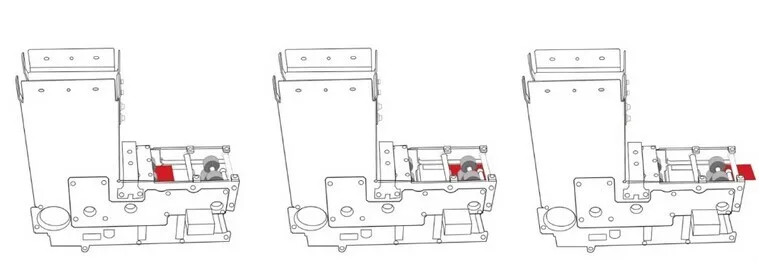

l Pre-dispense function accelerate dispensing speed;

l Connectable with the vehicle detector to achieve card issuing and “one car, one card”;

l Automatic buzzer alarm when no cards, fewer cards or failure.

l Provide both RS232 and I/O voltage control interface;

l Automatic buzzer alarm when errors occur, automatic reset after 100 seconds alarm;

l Capacity of card stacker is more than 40pcs, automatic buzzer alarm when the withdrawing stacker is full;

l Slide card stacker with a capacity of 40pc;

l Adjustable of card stacker with a capacity of 120pc each;

l Automatic withdrawal to prevent card lost (only for TCD800F series

l Slide design to make installation and disassembling easier;

l Molded production to ensure high consistency of precision and quality.
