supermarket shelf wire mesh welding machine/automatic wire emsh welding machine/pneumatic type wire mesh welding machine

Product Overview

Description

supermarket shelf wire mesh welding machine/automatic wire emsh welding machine/pneumatic type wire mesh welding machine ,Bird cage wire emsh welding machine,Mesh welding machine,CE approved high speed wire mesh welding machine,wire mesh welding machine,fence mesh welding machine



Features:

1. Direct type pressurized structure, good dynamic performance, is fast welding speed

——Guidance department adopts the special material of small friction, solenoid valve directly connected with the cylinder , to speed up the action response speed, dot to improve speed, and can reduce the wastage of the air flow



2. Long service life, low noise

——Have pressure speed adjustment function can be arbitrary adjustment pressure head drop speed, easing the impact to be soldering when pressure. Have increased buffer adjustment function, can be arbitrary adjust rise buffer speed; Decrease the mechanical impact to improve the service life of the cylinder body, and to reduce the noise



3. Safe and easy to use

——High-performance gas path system filtering cup with cover, can prevent the glass broken splinters, can also be protected from the outside under the impact of collision. Cups and shield can be loading and unloading, easy to examine and repair



4. Adopt water-saving type forced cooling mode

——Adopts the circulating cooling water, avoid the waste of water, greatly reduce the amount of cooling water.



 5. High solid strength of body structure

——The characteristics of impact resistance and vibratory rigidity, can prevent electrodes from slide when it is pressurized, to realize the stable welding



6. Upper insulating simple and practical

——Secondary conductor using the ways of upper insulation, it can avoid short circuit accident of insulating parts when the conductive scrap iron is adhered or the base is assembled to weld.



7. Main circuit adopts the high-power SCR non-contact switch

——Main circuit adopts thyristor component of water cooling and high power, output power is strong, stable and good stability.



8. High conductivity and low power loss

——During secondary current circuit, The main transformer on the secondary output using multi-layer and high toughness, high conductivity copper belt, and show v-shaped connection; Greatly increased service life, and next output using the one-piece directly connecting mechanism, the power loss to a minimum.



Use:

Wire mesh welding machine is a machine that used to weld galvanized wire,black wire and steel wire for wire mesh.



There are seven types wire mesh machinein our factory : reinforcing steel wire mesh machine,fence mesh machine,storage cage wire mesh machine,supermarket shelf mesh machine,animal cages mesh machine,construction mesh machine. The wire diameter is range from 2.2-12mm.Because we are wire mesh machine factory and the machines are customized also.



The durable machine is pneumatic resistance welding mesh machine



Model	Welding transformer	welding electrode	pressure cylinder	jack up cylinder	welding width	welding wire	welding speed	automatic feed
TN-150*2-12	AC150KVA*2	12	Φ80mm double layer cylinder	Φ160mm	1200mm	5+5mm	3s/row	stepper/ servo
TZ-150*2-12	DC100KVA*2	12	Φ80mm double layer cylinder	Φ160mm	1200mm	5+5mm	3s/row	stepper/ servo
TIT-100*2-12	IF100KVA*2	12	Φ80mm double layer cylinder	Φ160mm	1200mm	5+5mm	3s/row	servo
TIT-150*2-16	IF100KVA*2	16	Φ80mm double layer cylinder	Φ120mm	1600mm	5+5mm	3s/row	servo
TIT-300*2-12	IF100KVA*2	16	Φ80mm three layer cylinder	Φ200mm	1600mm	5+5mm	3s/row	servo

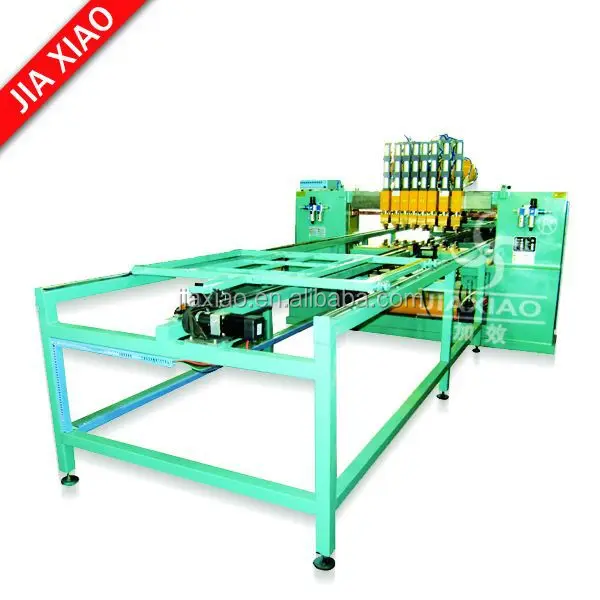

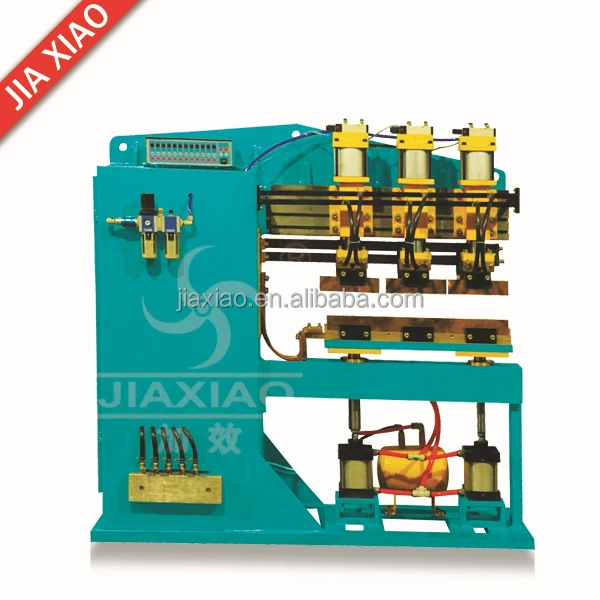

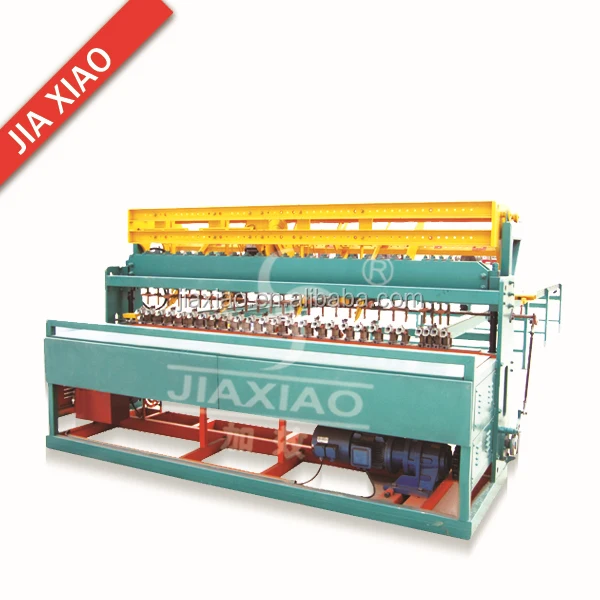

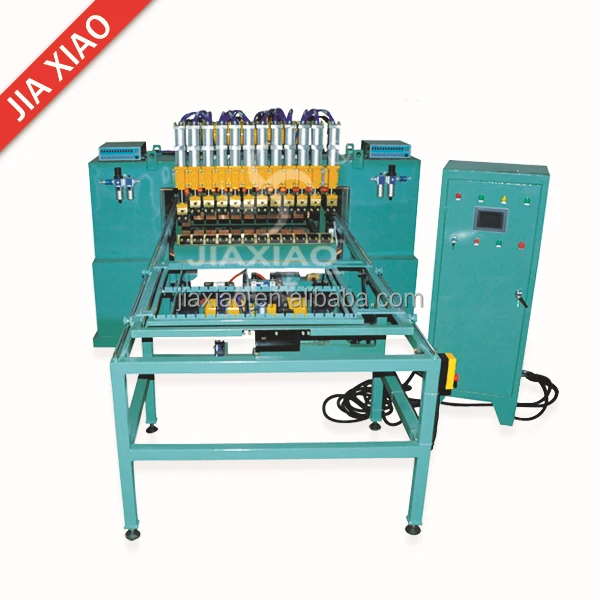

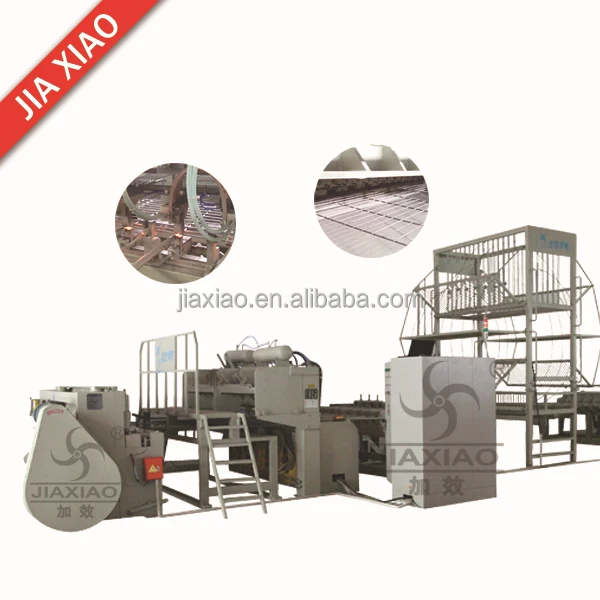

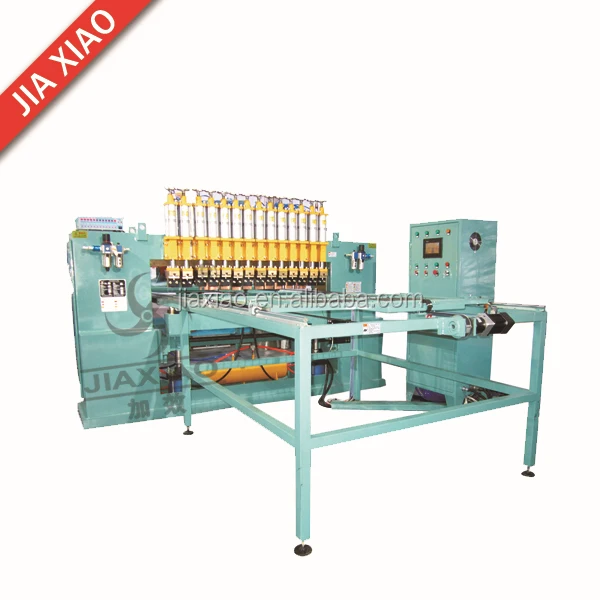

Machine picture



Welding effect

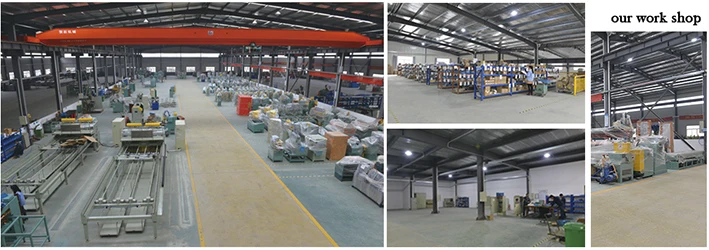

Factory introduce

Why choose jiaxiao product?

1. About product Purpose

A.The pursuit of quality, advocating the best services

B. For customers to reduce costs and improve efficiency



2. About Factory:

Over 26 years OEM & ODM experience on specialized resistance welding machines. Excellent service on before-sale, on-sale and after-sale:

Quick Response, all your questions will be answered within 48 hours. Our motto is: "Quality first, Customer utmost".

We have professional sales team, who is not only a replier but also a problem solver, we always give customers the most feasible marketing suggestions according to their own market mode.



3. About Market:

Our products are widely accepted all over the world, such as USA, Mexico, Peru, Algeria, Brazil , Germany, South Africa, Middle East, Southeast Asia, India etc.



4.Why choose jiaxiao?

(1) OEM services are welcome, welcome to visit our factory firstly before you place an order.

(2) High Quality Control

(3) 26 years mechanical manufacturer

(4) Cooperate with many foreign customers

(5) Committed to the standardization of machinary market, we make great efforts to the production of high quality and durable machine with the technological innovation.

(6) Our products with Best price and quality.

(7) Our mission is to help our customers reduce costs and improve efficiency!



5.Shipping:

(1) Sea transportation, Land transportation, Air transportation, the express transport and so on.

(2) Please choose your convenient shipping method according your detail requirement.

(3) The shipping discount is different in different season and depend different weight; we will choose the cheapest and safest way according your detail quantities.



6.Delivery:

(1) Delivery time is 10-15 working days after confirm contract

(2) OEM 15-30 days after all info confirmed.

(3) Depends on order quantity

(4) Special product to discuss



7.Warranty:

Warranty: one year warranty. the Seller shall supply the free replacement spare parts (but NOT including the mould, wearing parts and the items of wrong using).
