DYEGOO Cheap black small vehicle GPS Tracker GT02A with realtime tracking android & ISO APP for car truck platform

 Specification

Feature

  1.For vehicle

  2.Work voltage:9V-36V

  3.LED instructions

  4.Side key function

  5.GPS Blind memory to 1000points

  6.Auto poweron

  7.Platform free use for 1 year

  8.APP for Android and Apple portable device

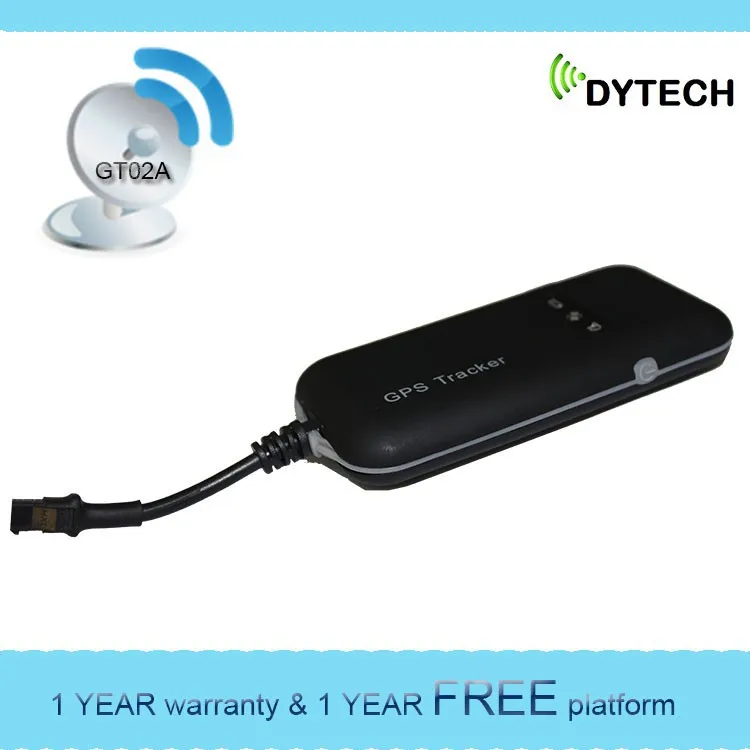

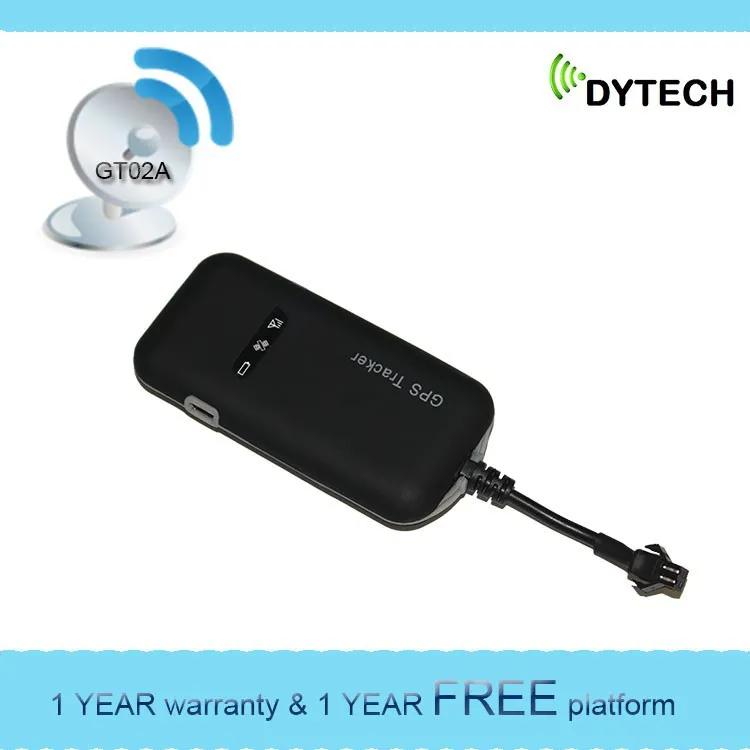

Picture of Tracker

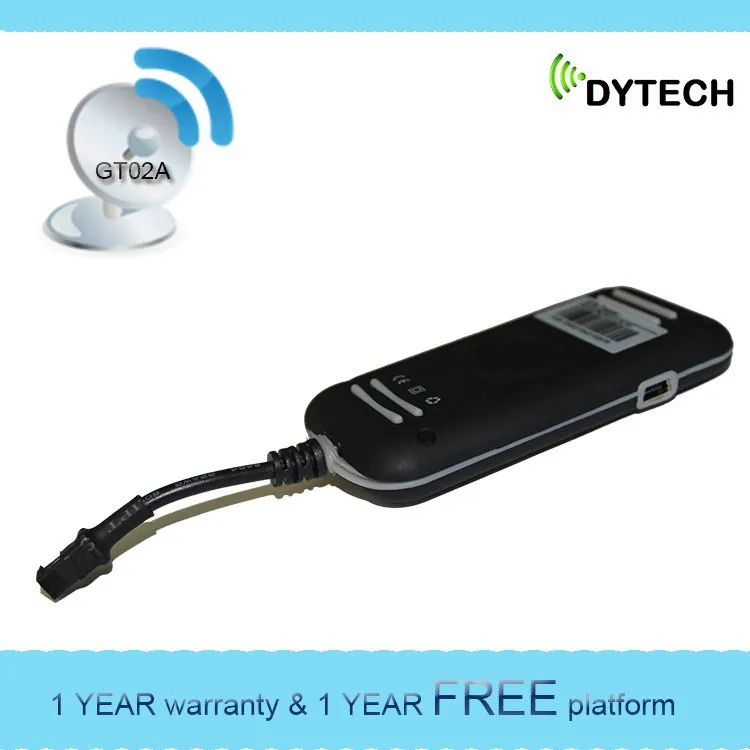

Picture of details

 Remarks

1.GPS\\GSM antennas are built-in design,it can be artistic but unaffected.

2.3 colours status indicator lamp,are uesd to show the GSM status,GPS status and power working status.

3.Power onnector,it works as a line to connect the engine and the tracker,offering orginal supply to tracker.

4.IMEI code is exclusive and applied to identity the tracker.

5.GPS mode is adapted to u-blox  7020 chip, its position accuracy reaches to 5m.

6.GSM mode is adapted to MTK MT6260D chip,has dual core, can transmit data by TCP and SMS.

7.DC-DC circuit can convert the voltage 9~36V of engine to 5V for tracker to work normally.

8.GSM chip can support SIM card of worldwide bands of 850/900/1800/1900MHZ.

Places for installation

Application of platform

1.Platform

//www.19gps.net

2.GPRS Setting

For use platform,please set the GT02A as follow:

Example:

server,666666,0, 118.193.48.237,7018,0#; set platform IP, port apn,666666,cmnet# set APN

If in the country need APN user Name,APN user password,the setting as follow:

Example:

server,666666,0, 118.193.48.237,7018,0#; set platform IP, port APN,666666,internet.fido.ca,fido,fido#

set APN Example for use our platform:

3.Login

Remarks:

You can use your cellphone to scan the QR Codes to download the APP as below:

Choose language

Choose login ways

Login as:

0+IMEI last 11bit numbers

Example:

IMEI:355227042128041 Login as:027042128041 The default Password: 123456

Remarks:

1.The platform free use for 1 year.

2.Another platform is //www.20gps.net , the way is same to //www.19gps.net.
