Hengchuan Economic Sand Gold Suction Dredger with High Pressure Water Pump for Jet Head

Product Overview

Description

  Hengchuan Economic Sand Gold Suction Dredger with High Pressure Water Pump for Jet Head



1. Working Principle of Hengchuan Economic Sand Gold Suction Dredger with High Pressure Water Pump for Jet Head

Jet Suction Sand Dredger,equipped with high pressure water pump,washes sand up, and then sand pump conveys the sand to the destination through the pipe. This dredger is novelly designed,easy to operate and of high efficiency,which is applied to rivers dredging,lakes and ponds desilting,land reclaimation,ports cleaning and sand pumping,etc.

Put the gold separating machine on the jet suction sand dredger is Jet Suction Gold Mining Dredger.

 gold panning equipment|gold dredger|gold detector|machine gold digger|gold and diamond|mini dredge for gold mining|gold machine|dredge for gold mining|diamond mining equipment|gold mining equipment|gold suction dredge boat for sale|small sand dredging machine|floating barge|gold dredge pontoons|machine for gold mining|gold extractor machine

2. Main Parameter of Hengchuan Economic Sand Gold Suction Dredger with High Pressure Water Pump for Jet Head

Hengchuan Jet Suction Gold Dredger
NO.	Item	Specification
1	Model	HCPM-100-10 (8/8inches)
2	Total size	11.00×5.50×0.85m
3	Center Cabin	2.25m*5.00m*1.10m
4	Mean Draft	0.40m
5	Standard Suction depth Max. Suction Depth	8.00m 10.00m
6	Gold sluice box Size(L*W)	5.50m*1.0m*2 sets(adjustable)
7	Recoil water tank (L*W*H)	1.80m*0.76m*0.76m
8	sand pump	Model:8/8;  Water Flow Capacity:400cbm/h;
9	Main Diesel engine	Model: WeifangR6105 Power: 82KW
10	Auxiliary diesel engine	Model: Weifang  Power: 24hp
11	Jet water pump	Model :6/6inches; Water Flow Capacity:100cbm/h
12	ZQ250 Lift winch	One set
13	Mooring anchor	ZQ150*2sets
14	Steel Wire Rope(Dia*Length)	10mm*150m
15	Suction Mouth	Dia.200mm   Length: 4.00m
16	Spiral Rubber Suction hose	Dia.200mm   Length: 8m*1 set             4m*1set
17	Spiral Rubber Hose	Dia.159mm  Length: 8m*1 Set
18	Thickness of anti-skidding deck	3mm
19	Thickness of gold sluice box	5mm
20	Thickness of bottom(side) plate	5mm
21	Life saving equipment	One set
22	Firefighting equipment	One set
23	Working Capacity	80-100M3/h
24	Gold recovery rate	75%-85%
25	Total Weight	10t

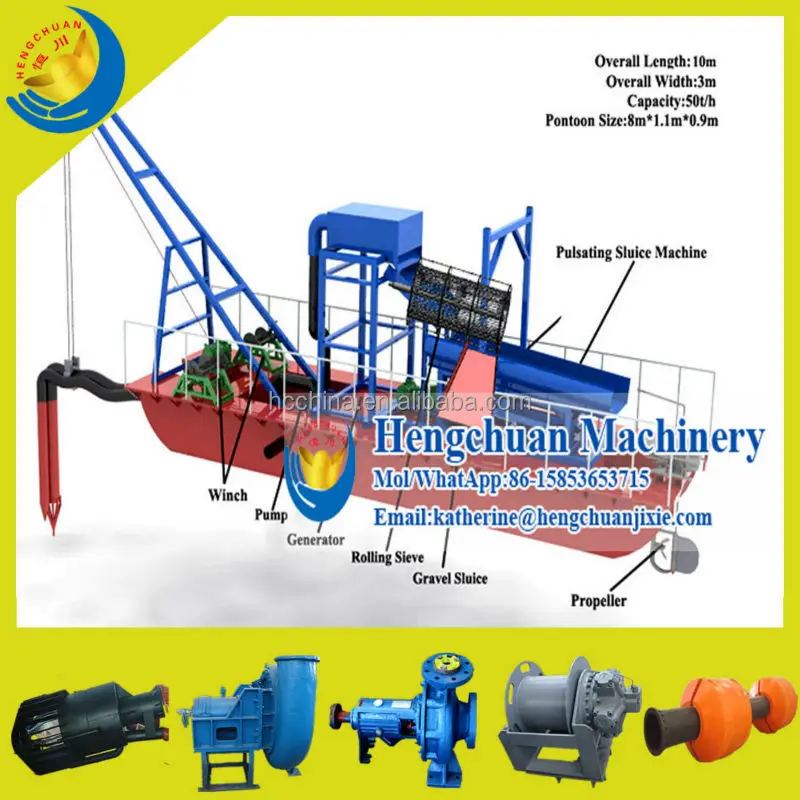

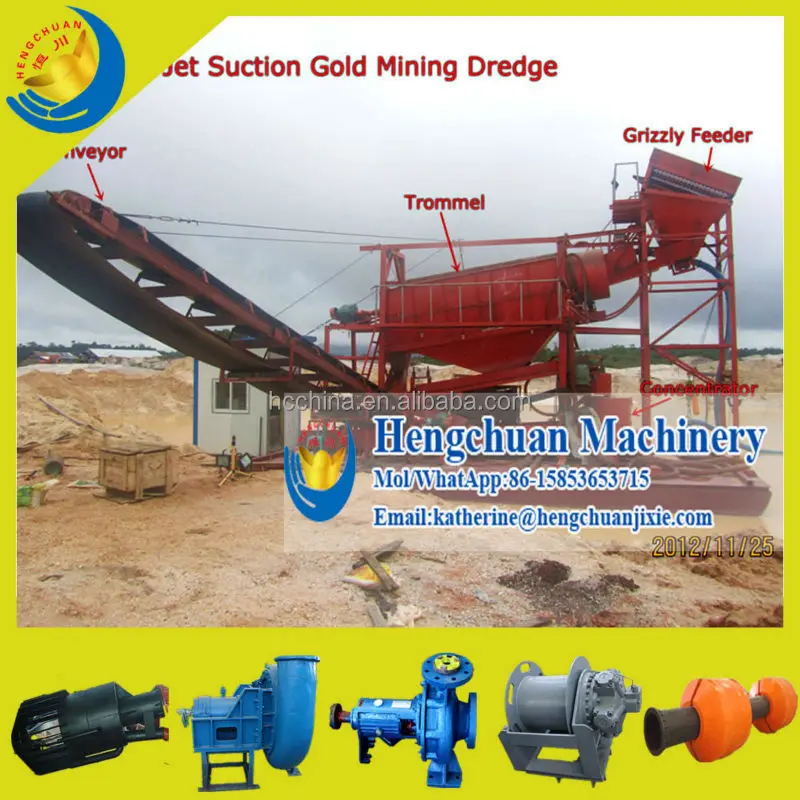

3. Products Show of Hengchuan Economic Sand Gold Suction Dredger with High Pressure Water Pump for Jet Head

gold panning equipment|gold dredger|gold detector|machine gold digger|gold and diamond|mini dredge for gold mining|gold machine|dredge for gold mining|diamond mining equipment|gold mining equipment|gold suction dredge boat for sale|small sand dredging machine|floating barge|gold dredge pontoons|machine for gold mining|gold extractor machine|bucket chain gold mining dredger|dredging bucket wheel|sand dredgers|hopper barges for sale|watermaster dredger sale|small sand dredging machine|floating barge|sand dredger for sale|river sand dredgingmachine|suction hopper dredger|river sand extraction machine|mini sand barge

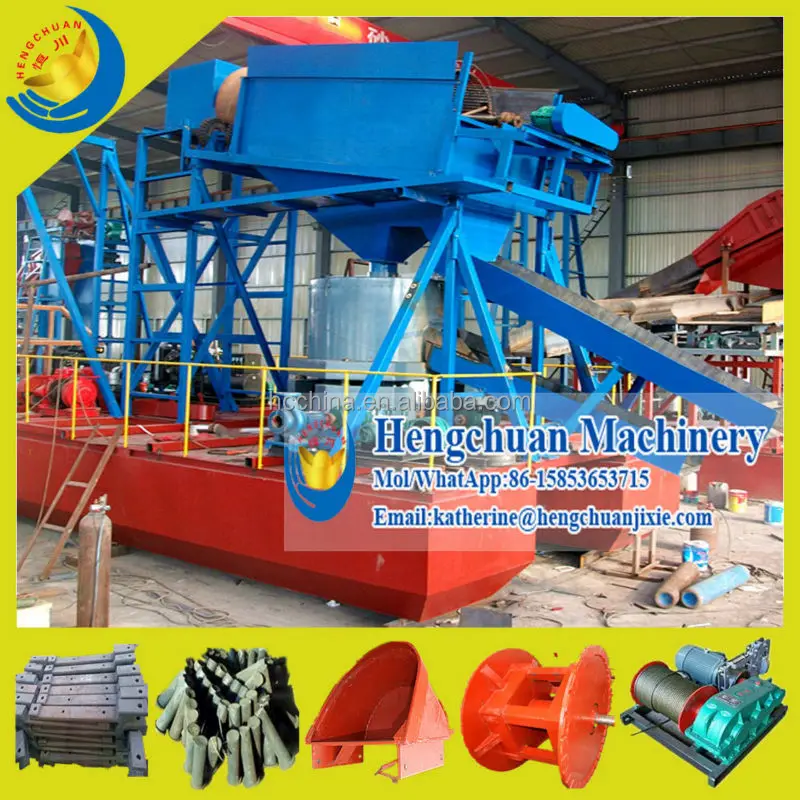

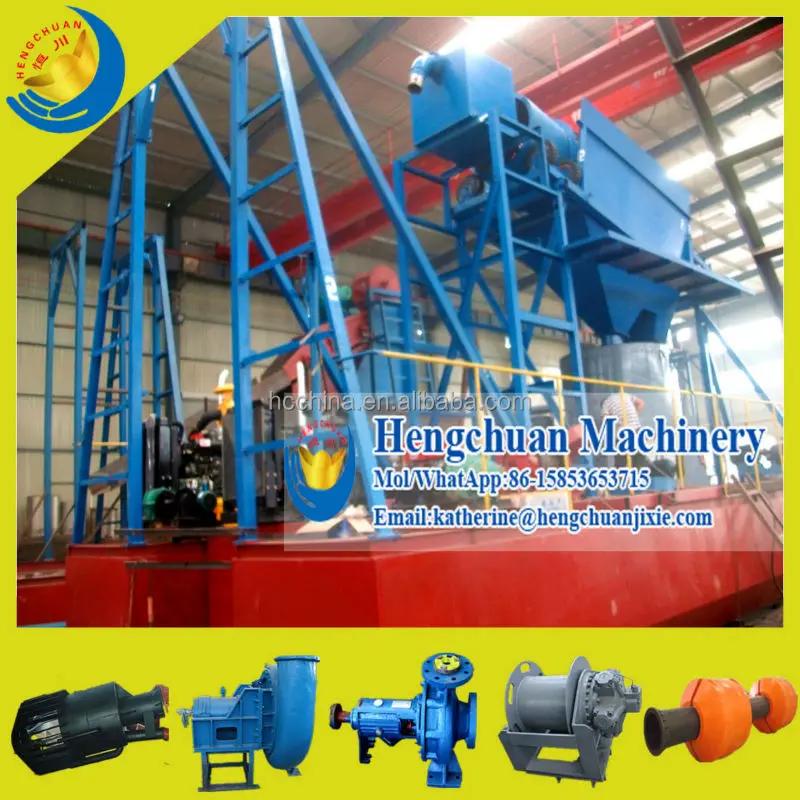

4. Details of Hengchuan Economic Sand Gold Suction Dredger with High Pressure Water Pump for Jet Head

gold panning equipment|gold dredger|gold detector|machine gold digger|gold and diamond|mini dredge for gold mining|gold machine|dredge for gold mining|diamond mining equipment|gold mining equipment|gold suction dredge boat for sale|small sand dredging machine|floating barge|gold dredge pontoons|machine for gold mining|gold extractor machine|bucket chain gold mining dredger|dredging bucket wheel|sand dredgers|hopper barges for sale|watermaster dredger sale|small sand dredging machine|floating barge|sand dredger for sale|river sand dredgingmachine|suction hopper dredger|river sand extraction machine|mini sand barge

5. Shipping of Hengchuan Economic Sand Gold Suction Dredger with High Pressure Water Pump for Jet Head

gold panning equipment|gold dredger|gold detector|machine gold digger|gold and diamond|mini dredge for gold mining|gold machine|dredge for gold mining|diamond mining equipment|gold mining equipment|gold suction dredge boat for sale|small sand dredging machine|floating barge|gold dredge pontoons|machine for gold mining|gold extractor machine|bucket chain gold mining dredger|dredging bucket wheel|sand dredgers|hopper barges for sale|watermaster dredger sale|small sand dredging machine|floating barge|sand dredger for sale|river sand dredgingmachine|suction hopper dredger|river sand extraction machine|mini sand barge

6.Other Type Mining dredger

1).Bucket Type Gold Mining Dredger

2).Cutter Suction Gold Mining Dredger
