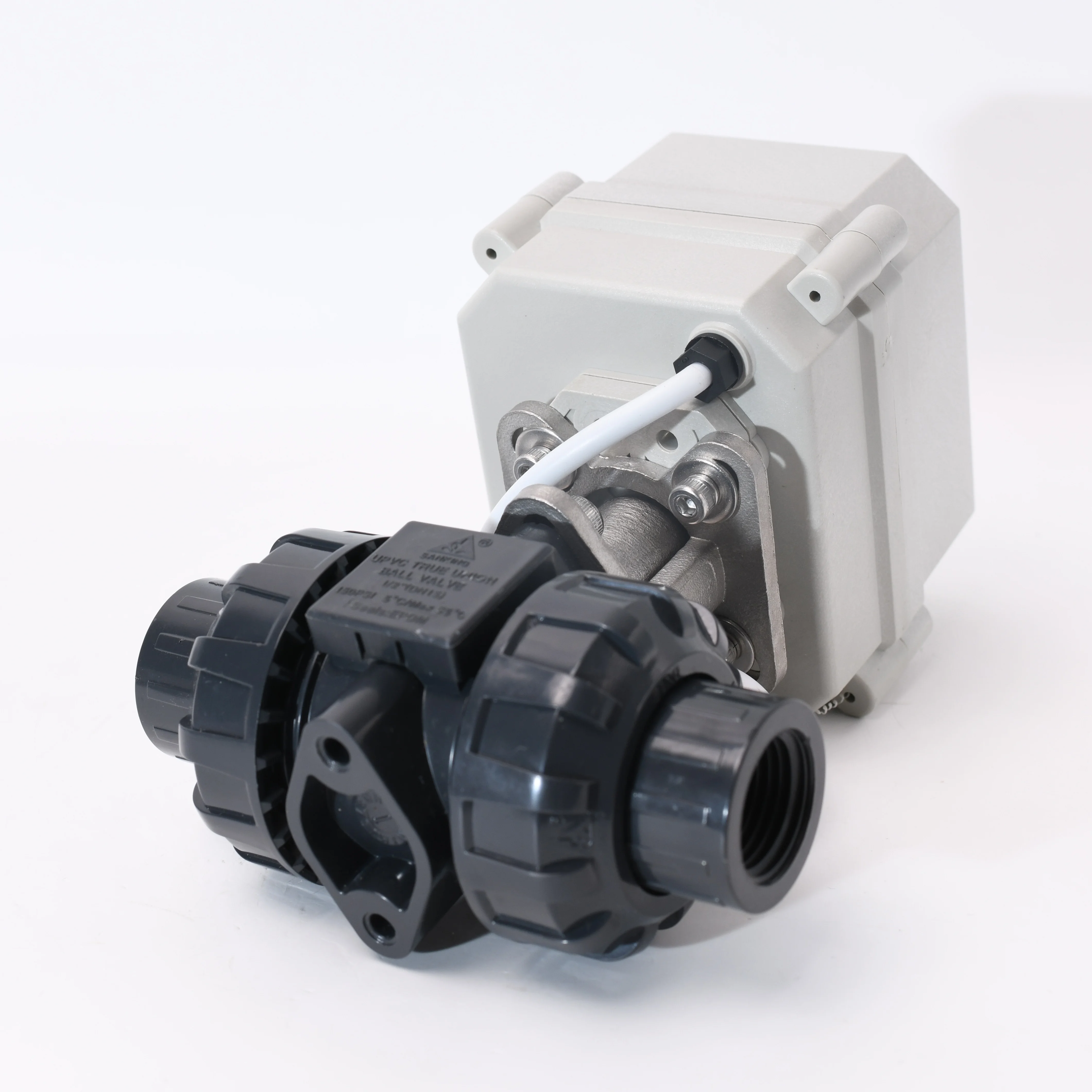

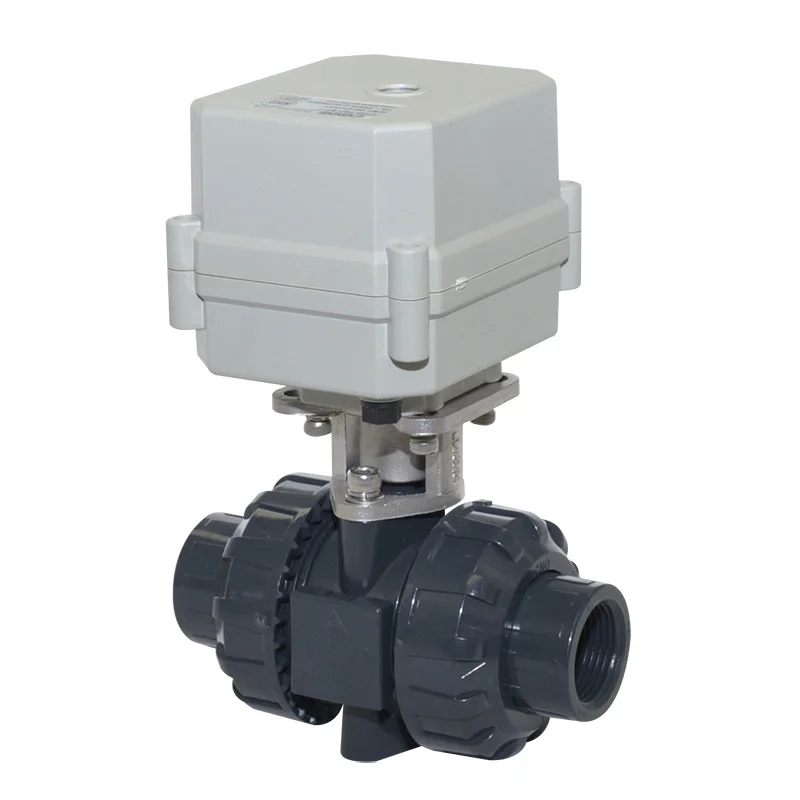

2 way 12V 24V 220V DN25 PVC motorized electric plastic valve

Tonhe 2 way 12V 24V 220V DN25 PVC motorized electric plastic valve

Pls confirm the two details when you order them.

                                   Wiring diagram

CR201 wiring diagram

RD connect with positive, the BK connect with negative, the valve closed, the actuator automatically power off after in place , the valve remains fully closed position .

BK connect with positive, the RD connect with negative, the valve open, the actuator automatically power off after in place, the valve remains fully open position .

Suitable Working Voltage: DC12V, DC24V

Exceeding the working voltage is forbidden

CR501 wiring diagram  ( with feedback signal)

RD connect with positive, the BK connect with negative,the valve closed, the actuator automatically power off after in place .

BK connect with positive, the RD connect with negative,the valve open, the actuator automatically power off after in place .

GR & WT are connect when the valve open fully, YW & WT are connect when the valve closed fully.

Suitable Working Voltage: DC12V, DC24V

Exceeding the working voltage is forbidden!

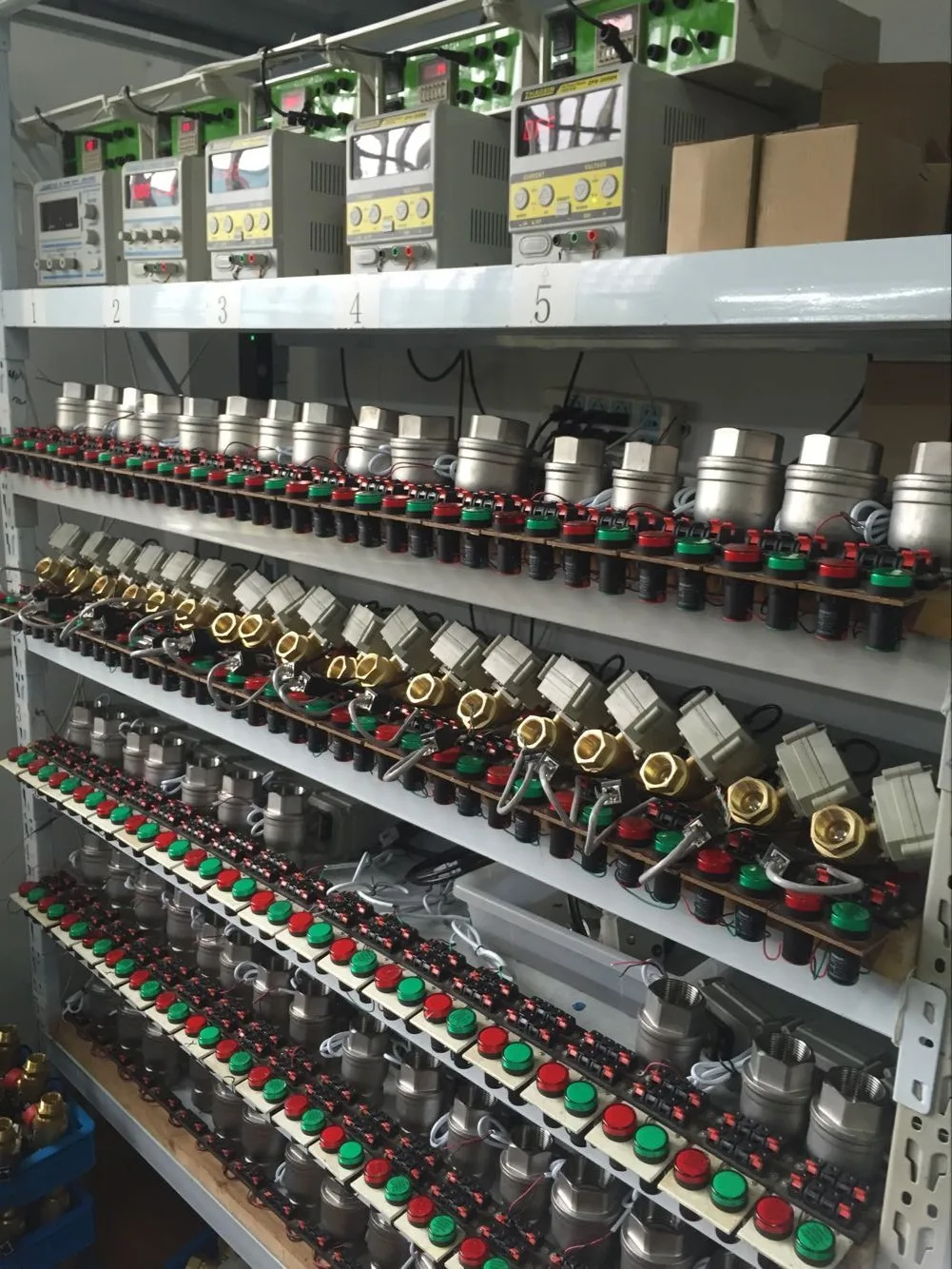

Workshop Process

Packaging: PP bag, carton size of foreign trade in accordance with customerrequirements.

For occasions

1 IC card water meter, heat meter.

2 Air-conditioning fan coil, fire sprinkler.
3 Solar energy drain valve, high efficiency water-saving.
4 Automatic control systems, university water system, small-scale industrial automation  equipment,  environmental protection
