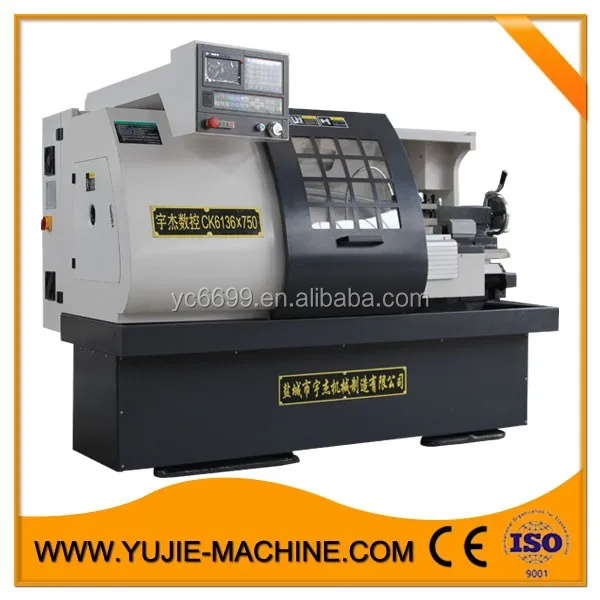

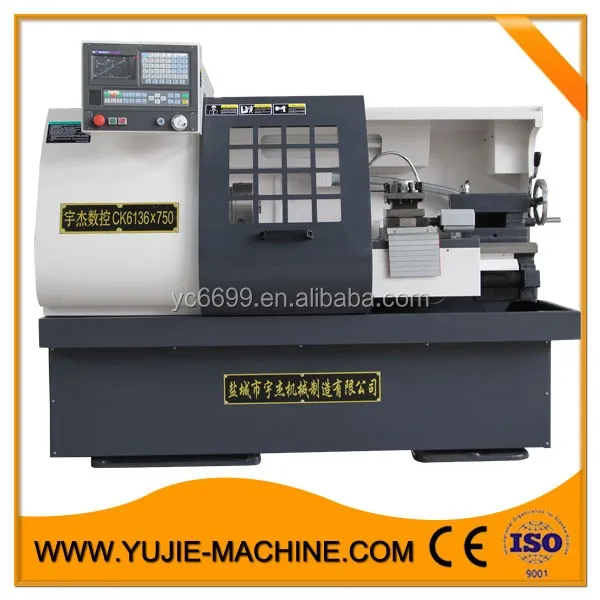

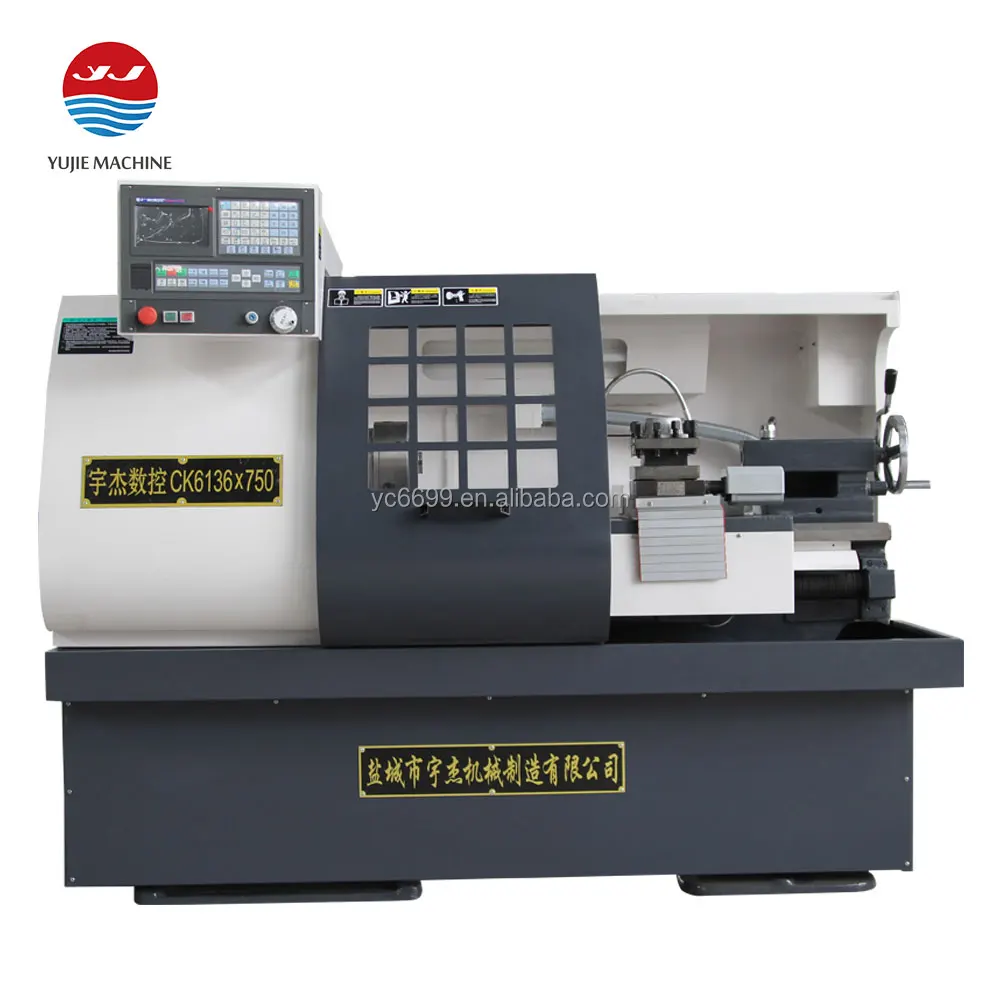

siemens cnc controller lathe machine Crystal cnc lathe brand CK6136A
- Category: >>>
- Supplier: Yancheng Yujie Machine Co. Ltd.
Share on (60288358845):
Product Overview
Description
Product Description
Specification
Parameters As Following
Specifications of CNC Lathe CK6136 | |||
Items | Unit | CK6136 | |
Capacity | Max.swing over bed | mm | 360 |
Max.swing over carriage | mm | 218 | |
Max turning length | mm | 750/1000/1500 | |
Bed width | mm | 360 | |
Travel | X axis | mm | 210 |
Z axis | mm | 680/980/1480 | |
Spindle | Spindle speed range | mm | 40-1600(or 8steps 40-1200) |
spindle nose | mm | C6 | |
spindle taper | mm | MT6# | |
Spindle bore diameter | mm | 52 | |
Turret | Tool number | No. | 4 or 6 |
Tool shank size | mm | 25×25 | |
Change tool times | sec | 2.0 | |
Feeds | X -axis rapid traverse | mm/min | 4000 |
Z -axis rapid traverse | mm/min | 6000 | |
Cutting feed(Xand Z axis) | mm/r | 0.005-100 | |
Tailstock | Taper of tailstock sleeve | MT | 4# |
Diameter of tailstock sleeve | mm | 65 | |
Travel of tailstock sleeve | mm | 120 | |
Motor | Main motor power | kw | 4 |
X and Z axis torque | N.M | 4&6 | |
Overall dimension(L*W*H)and Weight of CNC Lathe CK6136 | |||
Center Distance | 750mm | 2150*1250*1600mm/1350kg | |
1000mm | 2300*1250*1600mm/1550kg | ||
1500mm | 2800*1250*1600mm/1750kg | ||
CNC Lathe CK6136 Accessories | |
Standard Accessories | Optional Accessories |
GSK980TB2 controller | GSK928TD-L/ GSK980TDc controller |
Φ250mmManual 3 jaws chuck | Φ250mm Hydraulic/Pneumatic /Collect chuck |
4 position tool turret | 6 position tool turret/Hydraulic turret |
Manual Tailstock | Hydraulic/Pneumatic Tailstock |
X&Z axis AC servo motor | X&Z axis stepping motor |
Pump & working lamp | Hydraulic station |
Automatic lubricant pump | Automatic bar feeder |
Product Features
Features As Below
1.Spindle adopts HRB high precision double ball bearing, low noise, high precision, good stability.
2.The ultrasonic frequency quenched guide ways have a good wear-resistance.
3.Electric four position turret adopts precision gear position, high repetitive positioning accuracy.
4.The tail frame has the advantages of fast cam clamping device, high work efficiency.
5.Can choose the hybrid stepping motor or AC servo motor drive.
Company Information
Packaging & Shipping
Our Services
24 hours technical support by e-mail or mobile, free instruction and problem solving.
User manual ( English version) and detailed video.
On-the-spot training and installation can be met if required.
12 months warranty period, any quality problem, please contact us.
