PE PVDF wood grain marble look various color coating aluminum sheet

1

Alloy:

A1100, A1050, A1060,A3003, A3004, A3005, A3105 , A5052, , A5754, A6061

2

Temper:

H14, H16, H18, H24 etc.

3

Thickness:

1.0mm - 5.0mm

4

Width:

900mm - 1700mm

5

Color:

chromic,white,metallic and so on(Customized, choose from RAL color chart or refer to customers' counter sample.)

6

Coating:

Polyester(mainly),Fluorocarbon(mainly),polyurethane and epoxy coating etc.

7

Coating thickness:

PVDF≥25 micron; PE≥16 micron.

8

Surface Quality:

free from Oil Stain, Dent, Inclusion, Scratches, Stain, Oxide Dicoloration, Breaks, Corrosion, Roll Marks, Dirt Streaks and other defects.

9

Mechanical Property:

Chemical Composite and Mechanical Property are met with GB/T, ASTM, ENAW Standard.

10

Interior diameter:

105mm, 405mm, 505mm

11

Coating hardness:

(pencil hardness) more than 2H

12

Impact resistance:

no cracking and peeling(≥50kg/cm)

13

Flexibility(T-bend) :

≤ 2T

14

MEK resistance:

more than 100

15

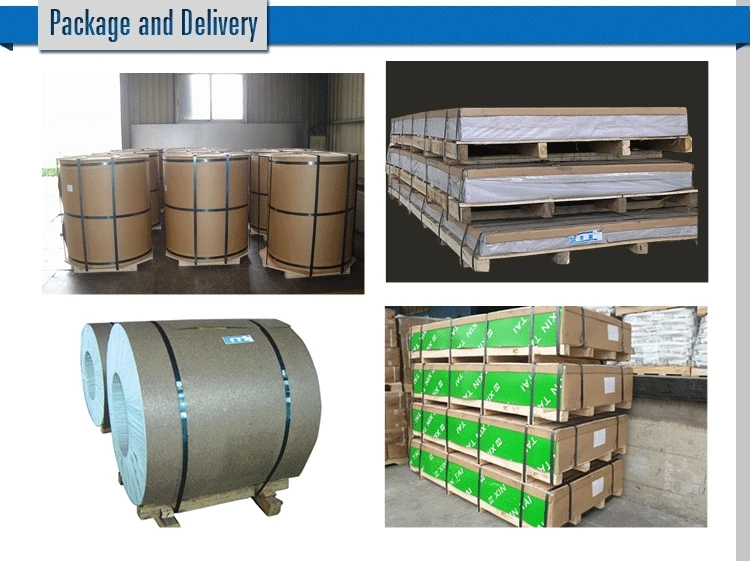

Packaging Detail:

standard export packing in carton and wooden pallet

16

Payment Detail:

1. 30% downpayment by T/T, 70% balance payment against B/L copy.

2. 100% irrevocable L/C at sight insured by first-class bank.

17

Delivery Detail:

about 10-30 days.

18

Application:

roofing, facade cladding, ceiling, aluminum curtain wall, composite panel, pipe wrap, signboards, instrument panels, and other usage.
