Fluroplastic fep tubing pfa tubing 200C fep tube 260C pfa tubes

Product Overview

Description

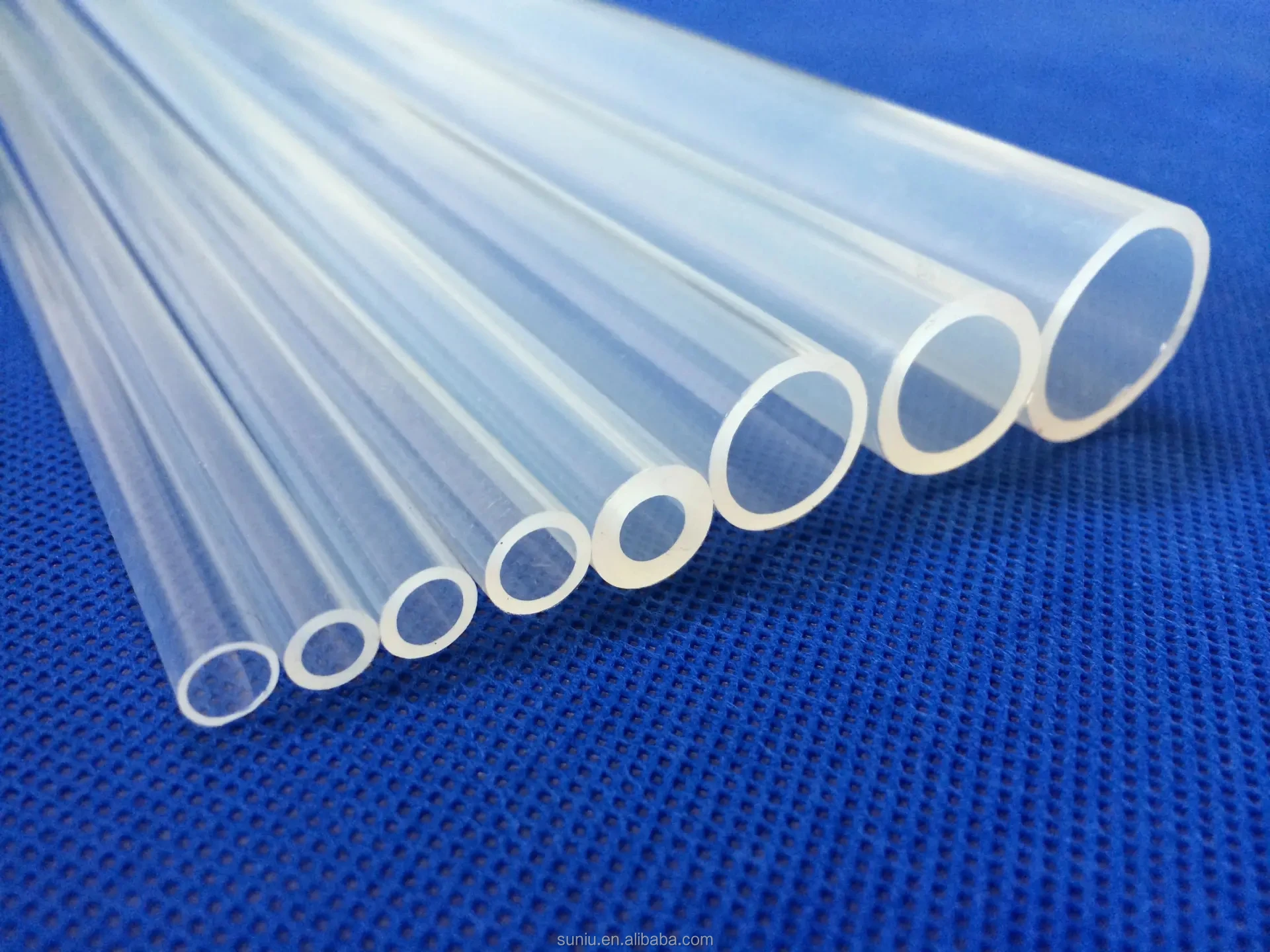

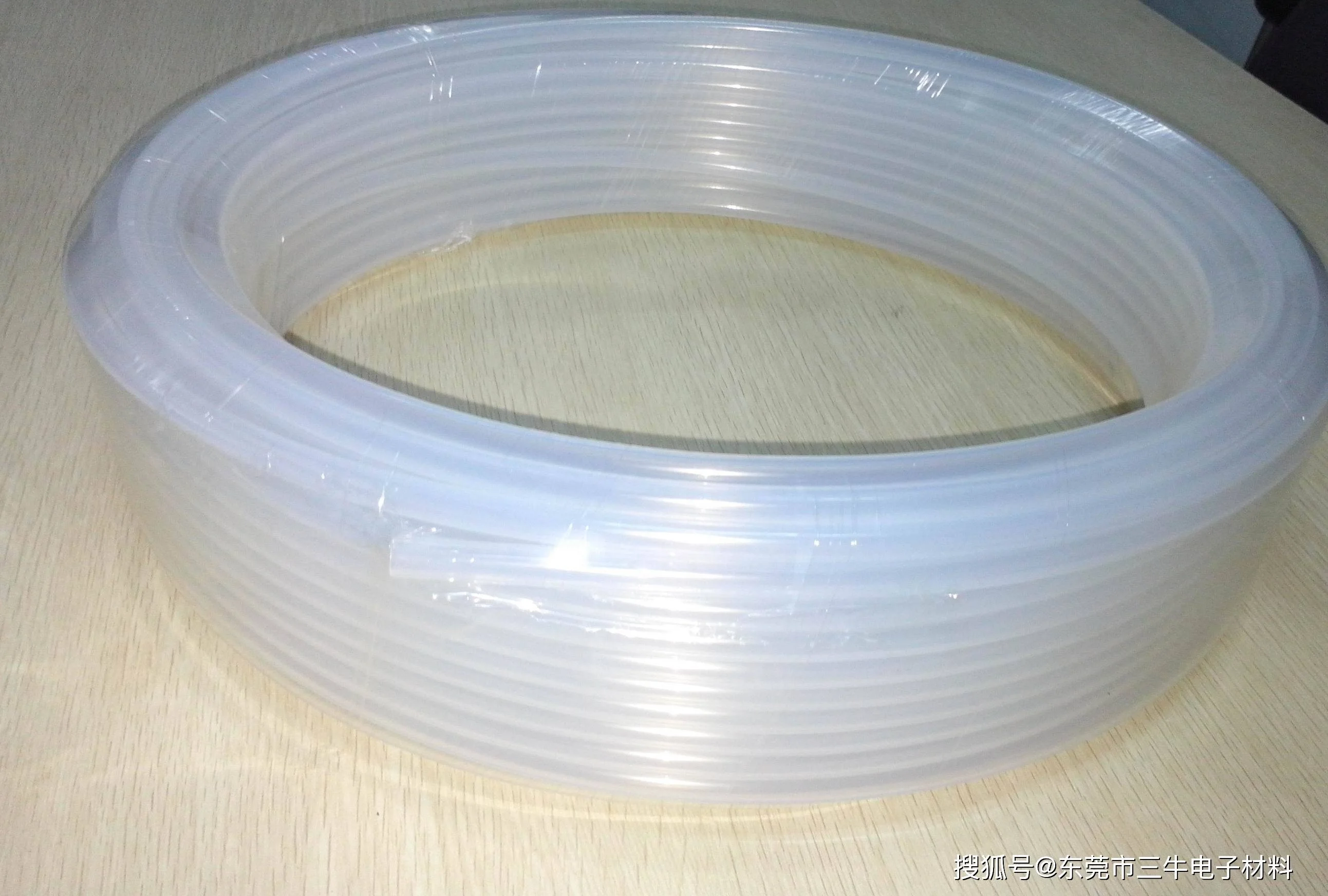

Sunin factory manufacture 200℃ FEP tubing and 260℃ PFA tubing, narual color and colorfull color.



FEP tubing specifications(Customized sizes available):

Metric sizes:  ID from 1mm to  20mm ;OD from3mm to 25mm

Inch Size: 1/16" ~ 1"



PFA tubing specifications(Customized sizes available):

Inch Size: 1/16" ~ 1"

Metric sizes:  ID from 1mm to  20mm ;OD from3mm to 25mm







Stable fep/ pfa tubing sizes control:

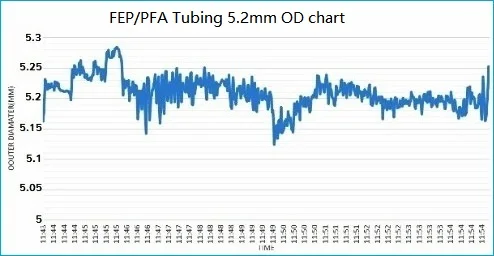

Suniu factory use Laser Diameter Measurement(abbr. LDM) to monitor outer diameters of fep tubing & pfa tubing, besides, pin guage is used to test inner diameter. LDM continuously measures tubing OD (outer diameter) during production. It also tells ovality in LDM display, with high accuracy to keep OD remain within setted specification. The LDM will alarms if size exceed setted specification.



Suniu key advantage:

Suniu factory is  equiped with advanced fep tubing extruder that many parts are imported from Japan. So our pfa/fep tubing are more flexible, with stable accurate sizes.  We buy  Gas Chromatography to analyze chemical components and cleaness of fep tubing.

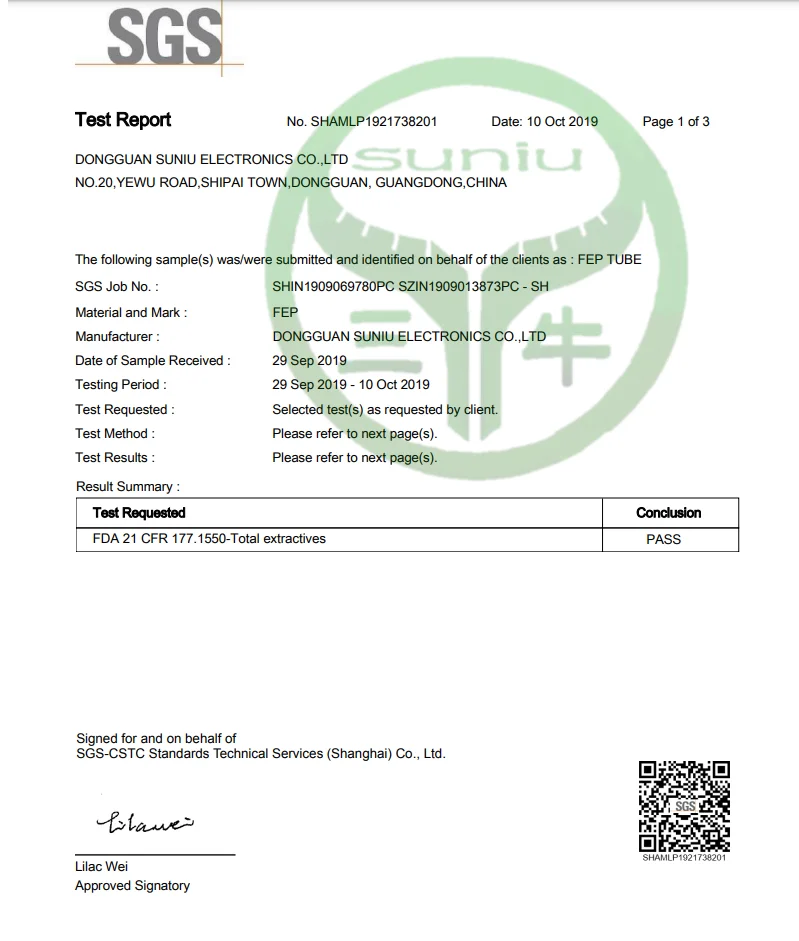

Suniu FEP Tubing passes F.D.A. 21 CFR 177.1550:







FEP Tubing property:

Suniu Co.,Ltd offers a wide range of FEP Tubing sizes as well as the ability to produce custom Metric FEP Tubing. FEP Tubing is very useful in applications where clarity and chemical resistance are key. Teflon FEP Tubing is also key for applications where long runs of tubing are needed in  the larger  internal diameters. Fluid Transfer and Chemical Processing are two industries that greatly benefit from the use of clear FEP Tubing.

FEP Tubing Characteristics :

Ø  FEP Tubing offers the best in chemical and electrical product protection.

Ø  FEP temperature range :  -454° F (–270° C) to 400° F (204° C)

Ø  Teflon FEP Tubing is chemically inert & Self lubricating.

Ø  FEP Tubing has excellent UV pass through.

FEP Tubing Certification:

Ø  Resin is F.D.A.-compliant (21 CFR 177.1550)

Ø  USP Class VI
