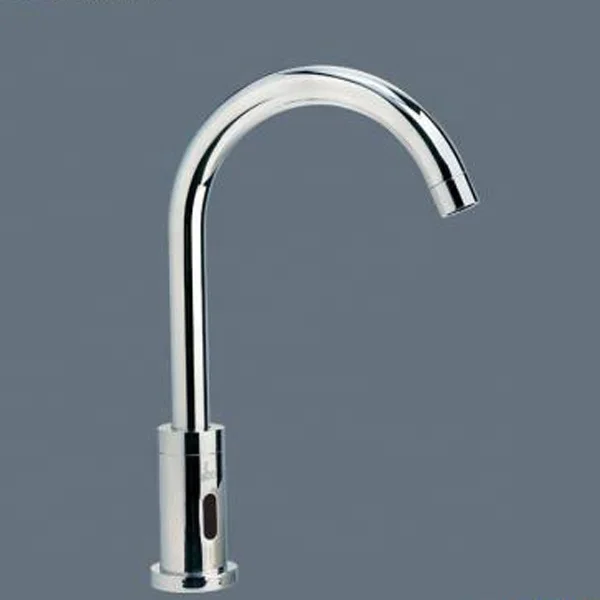

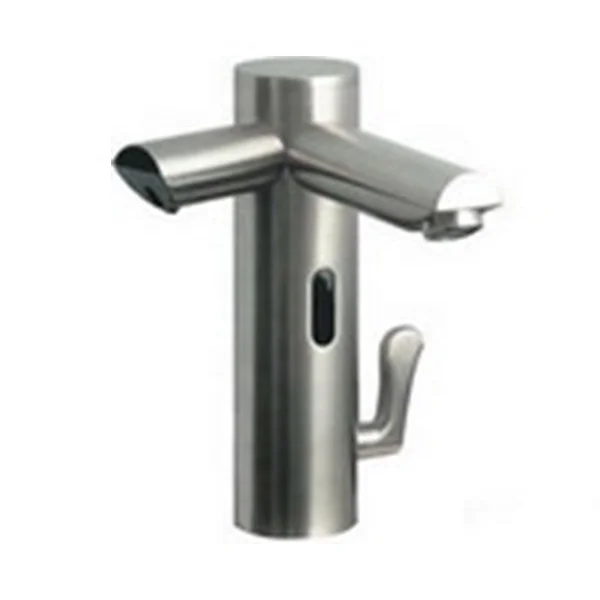

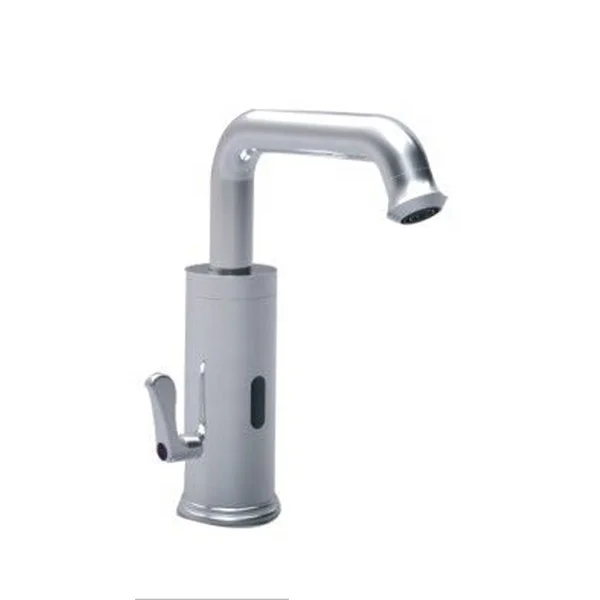

NZMAN 2023 Solid Brass Automatic mixer infrared adapter tap water wash saver tap touchless sensor faucet for bathroom basin sink

Product Overview

Description

NZMAN OFFER 7/24/365 CUSTOMER SUPPORT

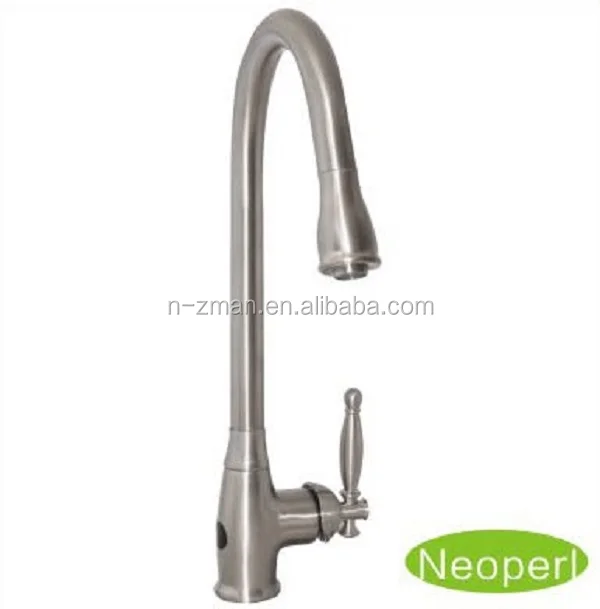

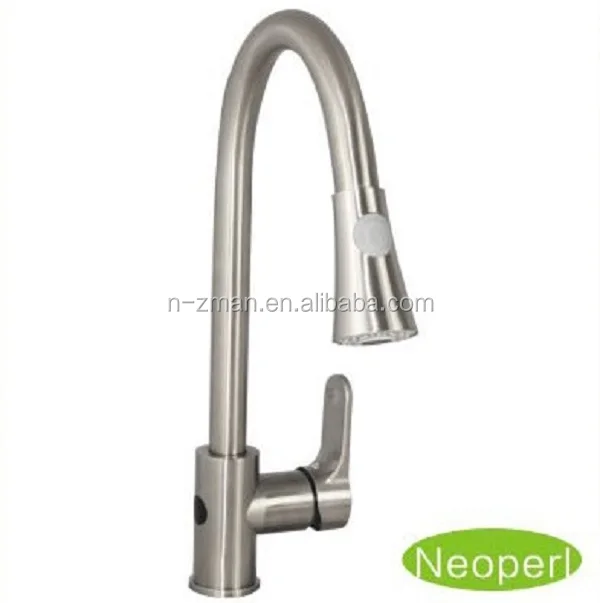

Automatic Sensor Kitchen Faucet #BF-9102AD

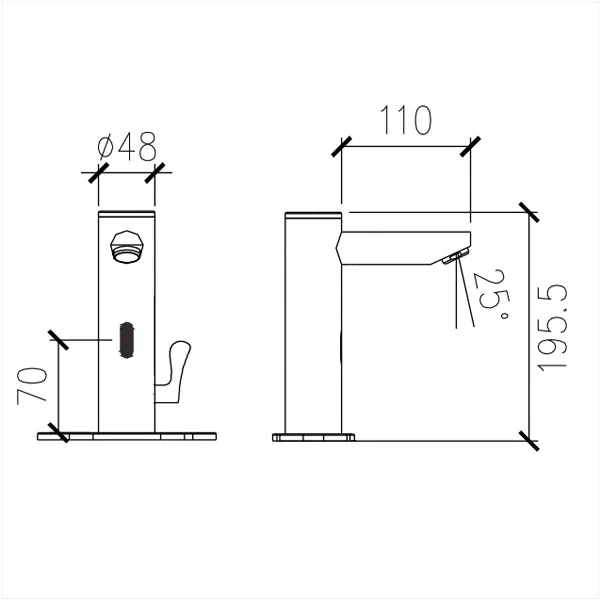

Size: 48x134x196mm

Sensing distance: 30±2cm(Based on standard white paperboard)

Diameter of inlet: DN15(G1/2")

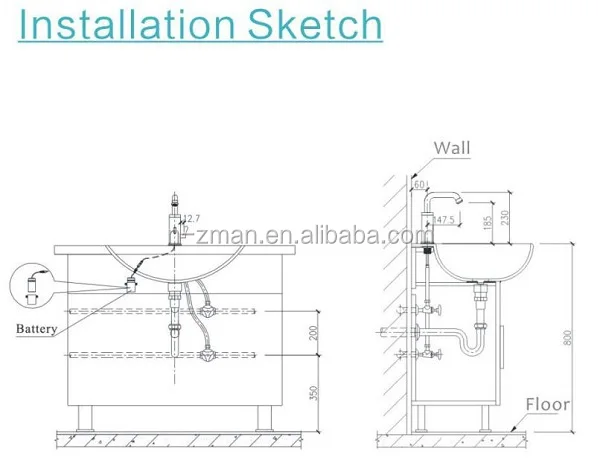

Mounting dimension: Ø35-45mm

Waterproof: IP56



1.Intelligent water saving:When the hands reach in the sensor range,the water is turn on,and the water will be turn off when the hands leave from the sensor range.On-off water time would be less than 0.7s.

2.Hygiene and convenient: Touchless sensor type for the water,Effectively prevent bacterial cross-infection, hygiene and convenient.

3.Remote control for distance adjustment: The sensing distance can be adjusted by remote control, it’s with storage function, the sensing distance will not be reseted after power failure.

4.Timeout protection: Washing time is set for 1min for both sensors. It means the sensor will automatically stop water flow if water continously flows for 1min,to avoid the water waste caused by the sensing from something else without people.

5.Intelligent power saving: Low power consumption chip control, built-in power saving working mode, ultra-low energy consumption, more effective in power saving (DC type product use 4pcs AA alkaline batteries).

6.Power-off protection:When the voltage is less than 4.6V for DC battery type product, the red indicator will flash to remind people to replace the batteries.When power-off happens suddenly during the use,people could also stop the water.

7.Power options: AC,DC or AC&DC dual-use for option, AC and DC type could be switched freely for AC&DC dual-use type.

8.High standard faucets: The body of the faucets is made of national standard 59-1 brass,chrome surface could pass 24hours CASS test.

9.Check valve: For Hot&Cold water type or optional mixer,to avoid hot and cold water running away from each other.

10.Anti-charging protection: AC&DC dual-use products, microcomputer control the dual power supply which could automatic switch freely, and prevent AC power supply from charging to the batteries.

11.Long service time:Bistable solenoid valve,could pass the endurance test at 800,000 times and closure test at 16 bars.

12.Super waterproof: Waterproof design for the connector, solenoid valve and sensor module, with waterproof level IP56.

13.High standard manufacturing: Strictly in accordance with and beyond the new national standard CJ/T194-2014 manufacturing.Comprehensive beyond in water-saving efficiency, power consumption and service life.

14.Water saving:Pass China water-saving product certification.

power consumption and service life.

15.Five years quality warranty: This product have long free warranty period for 2 years and 5 years quality warranty.







CERTIFICATES:

CUPC File No.:7968
NSF File No.:N-7969

You can check above certificate on the site:www.iapmo.org

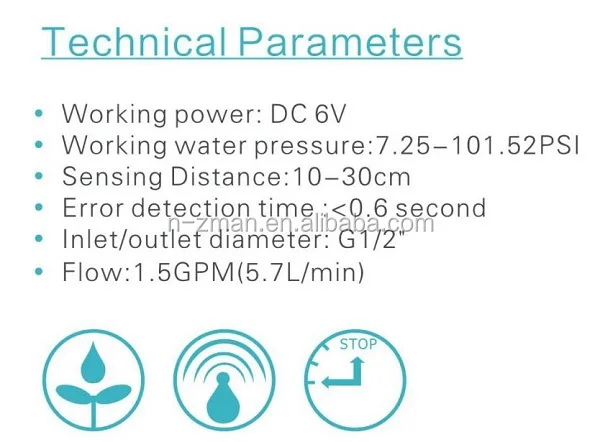

Specifications:

1 AC220V/DC6V
2 Sensing distance:10-30cm
3 Working water pressure:7.25- 101.52psi
4 Error detection time:<0.6 second
5 Inlet/outlet diameter:G1/2" or 3/8" or other size
6 Flow:1.5GPM(5.7L/min)

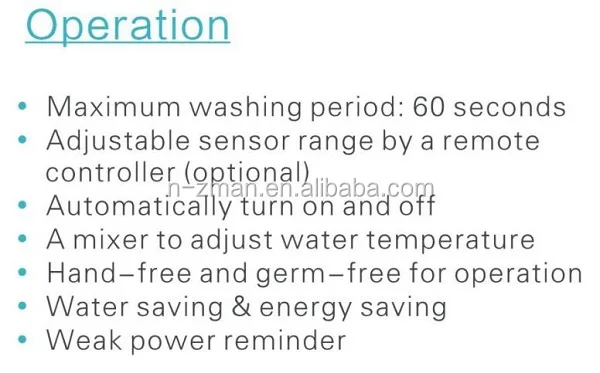

7 Maximum washing period:3 mins.
8 A mixer to adjust the temperature.
9 Adjustable sensor range by a remote controller(need additional cost)
10 Hands free & germ-free for operation.
11 Water saving & energy saving.
12 Weak power reminder.















Description:

1 Faucet automatically supplys water as soon as possiable when hands are withine the sensor range.
2 Faucet automatically stops supply water when hands are out of the sensor range.
3 Water will turn off automatically after 60 seconds when water come out without any stop.
4 It support cold & hot water supply.

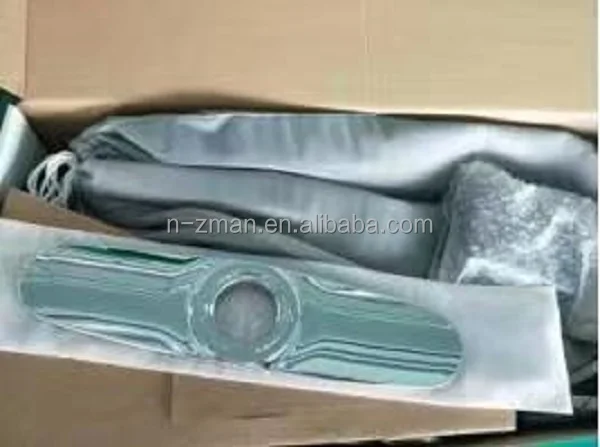

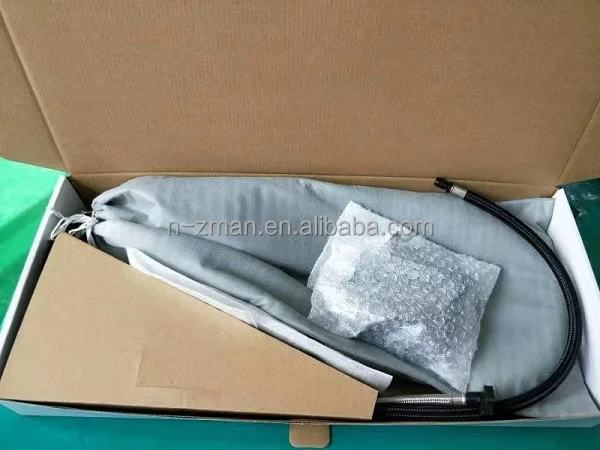

PACKAGING:
