Ship/Marine Ku Band Satellite Dish Antenna
- Category: >>>
- Supplier: Bochi Corporation
Share on (60288606849):
Product Overview
Description
Ship/Marine Ku Band Satellite Dish Antenna
Product Description
Size:
KU band:33,45,60,90,120,150,180CM
C band:90,120,150,180CM
product usage
A600P is a three-axis tracking antenna with automatic tracking and GPS module
program that can be used for any satellite tracking linear polarization,
as intelsat 11 satellites, is also receiving an arbitrary linear polarization
satellite internationally. The system is suitable for luxury yachts, large bulk carriers,
major international maritime routes boats, boating worldwide have regional fixed
route in real time to watch live satellite TV programs
Technical Information
Automatic Track A600P antenna device parameters
Diameter of parabolic antenna | 600mm | antenna size | φ700 (D) mmx 758mm (H) |
Antenna weight | 22kg | cover color | white |
Antenna cover | ASA/ FRP | Minimum EIRP | 47dbw |
Frequency range (ku band) | 10.7~12.75GHz | L.O. frequency | 10.75GHz |
Polarization type | Vertical& horizontal | antenna gain | 35dbi |
Input voltage | 220VAC | static power | 18W |
Ambient temperature | -20 ℃ ~+ 70 ℃ | Humidity | 0 ~ 95% |
RF connector | F female 2PCS | Stability mechanism | three axis tracking system |
Package size | 810mm(L)*810mm (W)*1080m(H) |
|
|
Automatic Track BMMNCTA-001 antenna tracking system parameters
tilt tracking range | -5 ° ~ 95 ° | tilt tracking speed | ≥100 ° / s |
Roll tracking range | ± 25 ° | roll tracking speed | ≥100 ° / s |
Level tracking range | 0 ° ~ + 680 ° | horizontal tracking speed | ≥100 ° |
The initial satellite lock time | ≤30S | polarization tracking | automatic linear polarization |
Lock satellite signal recovery time | ≤5S |
|
|
Equipment list
No. | name | model | quantity |
1 | Automatic Track marine satellite TV antenna | A600P | 1pcs |
2 | antenna control box | RA-series | 1pcs |

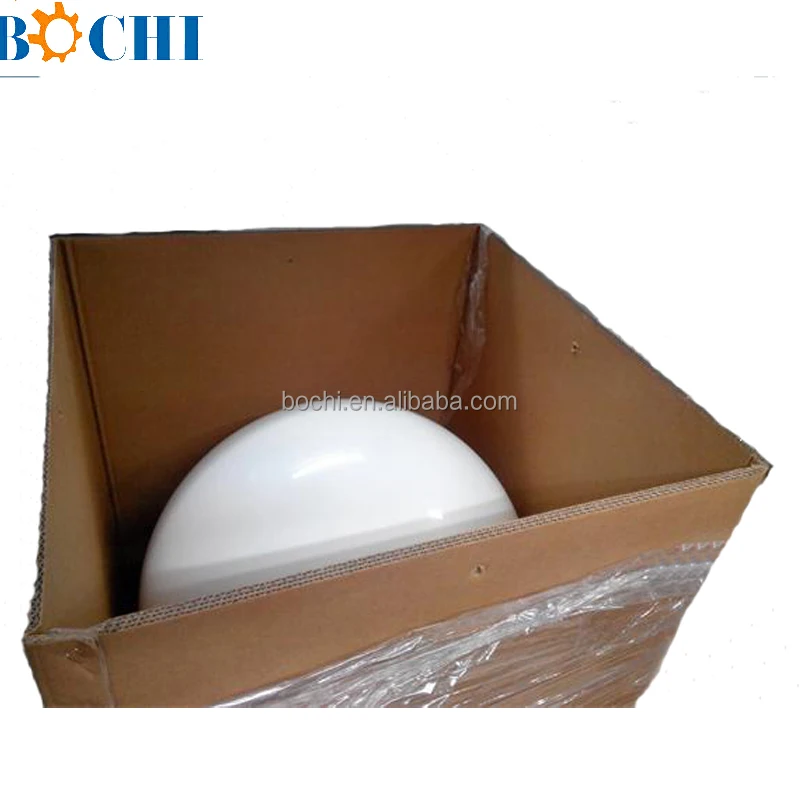

Packaging & Shipping
Installation Picture
Company Information
We are one of the suppliers of marine equipments in China. Located in Chongqing,
which is among the largest industrial and commerical cities in China
Navigation&communication equipment can supply all kinds of marine equipments like gps, ais,sounder,radar,satellite tv antenna.vhf etc.
