F2000 35~35 Degree Celsius Capillary Thermostat for Fridges
- Category: >>>
- Supplier: Dongguan TOPRO Electrical Technology Co. Ltd.
Share on (60288607869):
Product Overview
Description
Product Descriptions

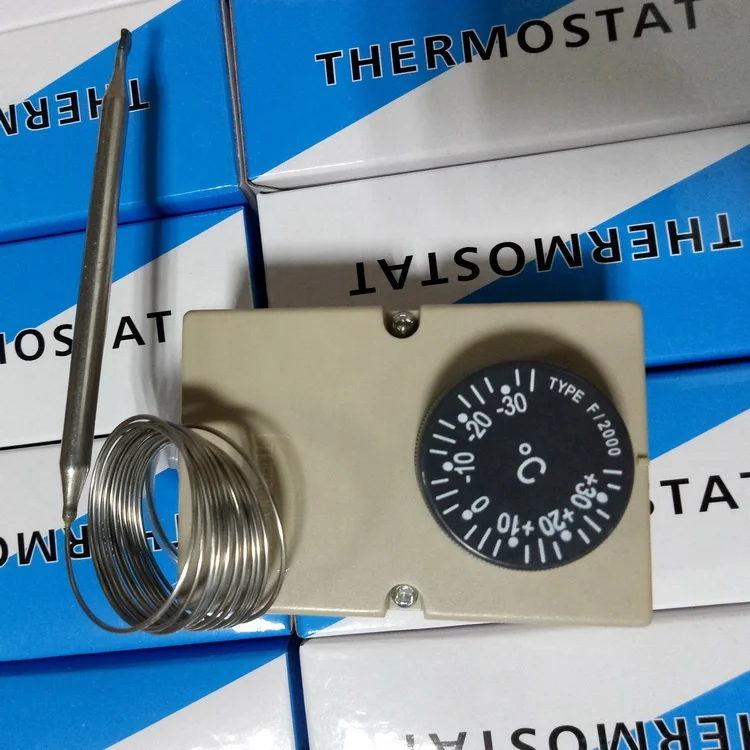

F2000 -35~35 Degree Celsius Capillary Thermostat for Fridges
The capillary thermostats are used in electric heater, industrial iron, sterilizer, electric water heater, washer, electric oven, frying pan, ice machines, fish ponds, etc.
Capillary thermostats work under the principle of liquid expansion by heating. The thermostat consists of bulb, conductive capillary tube and elastic elements.When the bulb is heated to the set temperature value, the temperature sensing liquid get expanded to push the microswitch to break the circuit and stop the heating, till the temperature drops below the set value, thus getting a constant temperature control. The electric parameter of thermostat is 380VAC 16A, 250VAC 16A.
Specifications of Capillary Thermostat :
1. Precise to 0.1 degrees
2. Good material, accurate temperature
Capillary thermostat used for refrigerators, freezers, air conditioners
The thermostat has the following advantaes:
1. Good material
2. Accurate temperature
3. Reliable
4. Rating voltage: 250V 50HZ
5. Service life for operation : 100,000 cycles
6. Used for refrigerators, freezers, air conditioners
7. Good quality, competitive price
8. This product series is best applicable for frozen case and rdfrigerators. If the temperature exceeds the temperature for starting machine by a certain number, the signal puts through and the alarm signal emerges.
9. Temperature range: -35°C ~ +300°C,
10. Temperature control scope:≤25°C
11.Differential: 5 ~ 14°C
12.Production Group: Capillary Thermostat
* Product Size: Contact us for dimension drawings of the specific thermostats you need.
| MODEL | Temperature Range | Difference | Sensitivity | Capillary length(mm) | Thermometer Bulb Length(mm) |
| WHB-40E | 0-40°C | ≤4.5°C | ±5°C | 400-1800 | (110) |
| WHB-85E | 30-85°C | ≤4.5°C | ±5°C | 400-1800 | (50) |
| WHB-93E | 30-93°C | ≤4.5°C | ±5°C | 400-1800 | (45) |
| WHB-110E | 30-110°C | ≤4.5°C | ±5°C | 400-1800 | (40) |
| WHB-250E | 50-250°C | ≤8°C | ±8°C | 500-1500 | Φ3×170 |
| WHB-320E | 50-350°C | ≤10°C | ±8°C | 500-1500 | Φ3×130 |
Packaging & Shipping

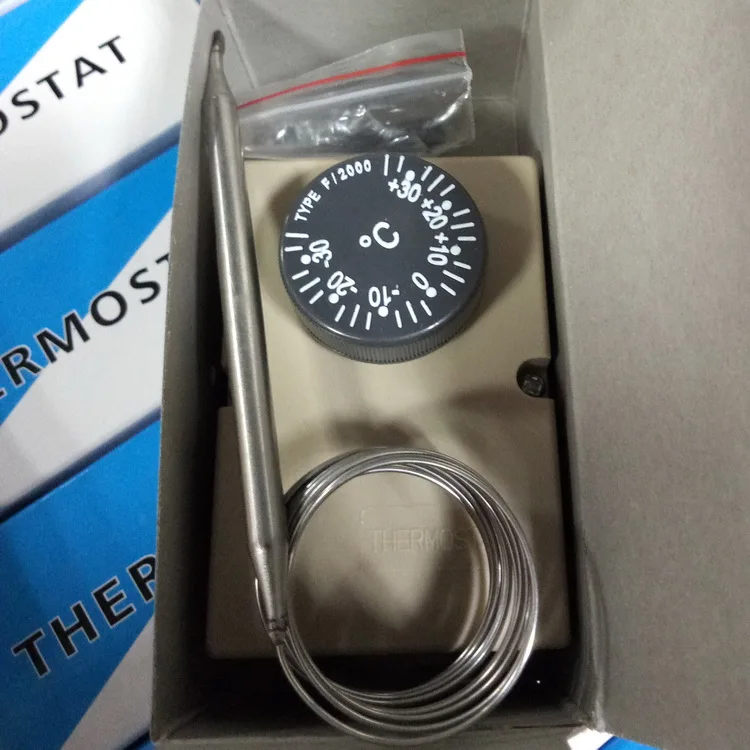

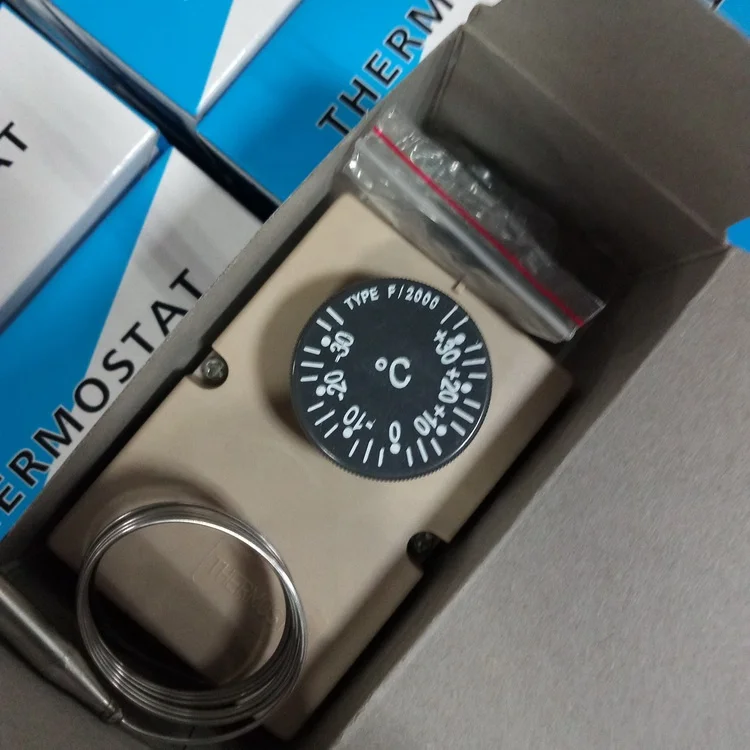

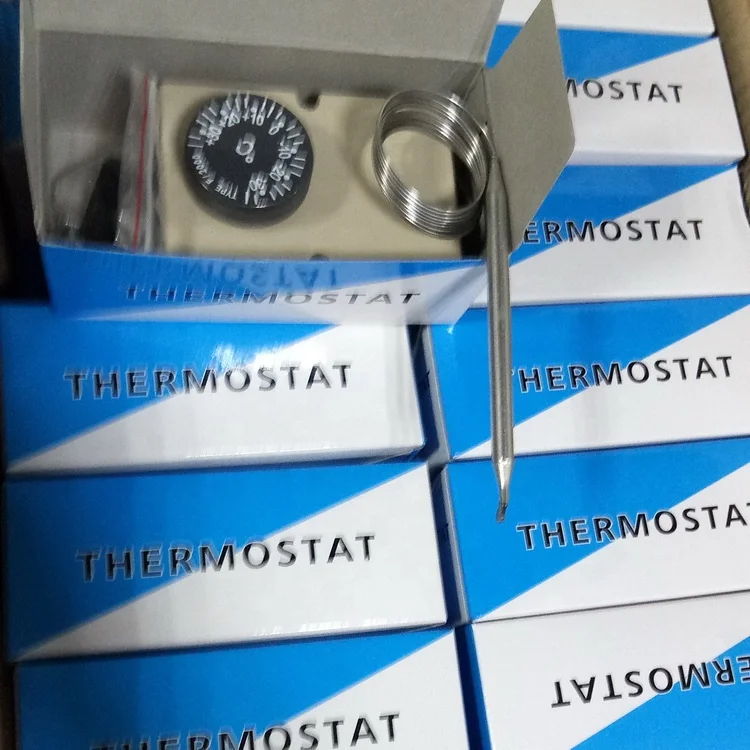

1 capillary thermostat in a small box, 100pcs a carton Carton Size: L42.5 X W21.5 X H28.5cm The packing specifications are subject to change upon negotiation with the customer as per the actual order quantity. Normally the products are shipped by door to door express delivery.
More products for you to choose :
Our Services
Customer oriented: Customers are the roots of TOPRO and the soil in which TOPRO grows.
Exceed customer expectation: We do the most homework to let the customers do the least. Our customers only need to do two things: to pay the money we deserve and to relax, and we do all the work.
It's not our slogon to keep customers satisfied, it's our promise and pratice.
We are committed to providing better service to customers than our competitors. If we don't, please let us know to surpass.
FAQ
1. What is the MOQ?
The minimum order quantity of this product is generally 500PCS. Unit prices vary with the order quantities. The lower the unit price will drop, the higher the order quantity is.
Considering the actual needs of customers, we do accept smaller quantity orders less than MOQ 500PCS. For less than MOQ orders, higher unit price rates will apply.
2. What is your sample policy?
We offer samples for free on the condition that the buyer pays for the freight. The sample quantity is usually 3PCS, which is enough for testing. If more samples are needed, the customer may apply for more.
3. How to pay for the freight cost?
As we offer samples for free to show our sincerity for the business, the buyer is supposed to pay for the freight of sample delivery. The first priority choice of freight payment is the buyer's account for freight collect with DHL, FedEx, TNT, UPS and other international courier service providers.
If the buyer doesn't have any above-mentioned courier accounts, the buyer is supposed to prepay the freight cost that is quoted to and agreed by the buyer before sample preparation. We accept small amount payments by PayPal or T/T.
Contact us for specific thermostat you need.
