Chicken farm egg sorting packing equipment

Product Overview

Description

a) Vacuum lifter

b) Candling

c) Printing

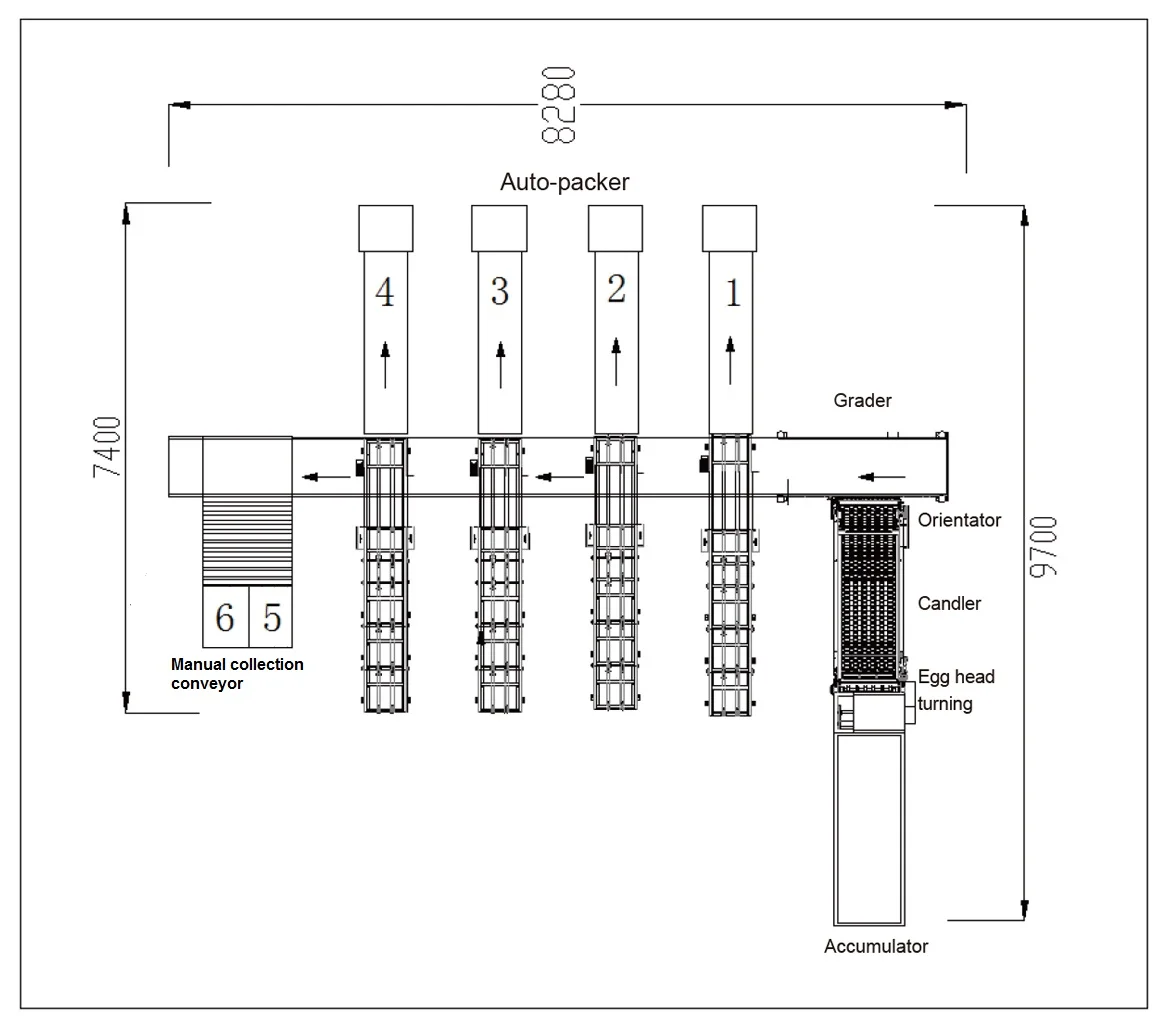

Flow chart





Operate instruction

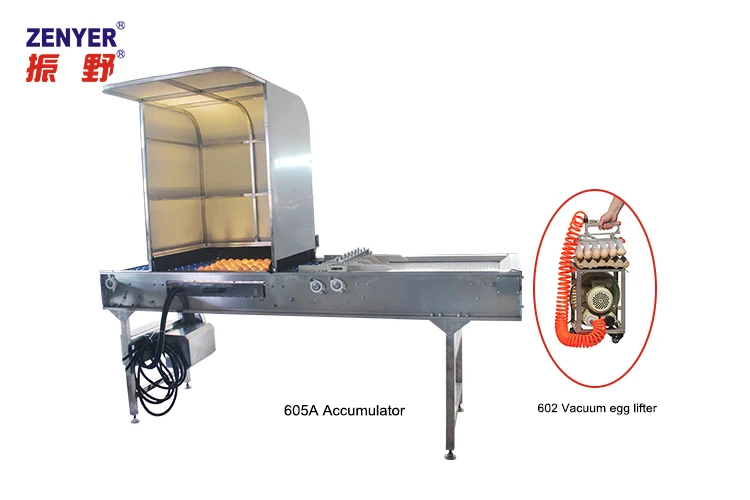

a) Vacuum egg lifter

First, Eggs are sucked onto the roller of egg grading machine by a vacuum egg lifter (5*6=30 eggs each suck). The vacuum egg lifter is used to help workers to load eggs onto the egg machine more easily.

b) Egg loading unit

Load eggs and collate eggs into better order and align eggs into several lanes before entering egg grader

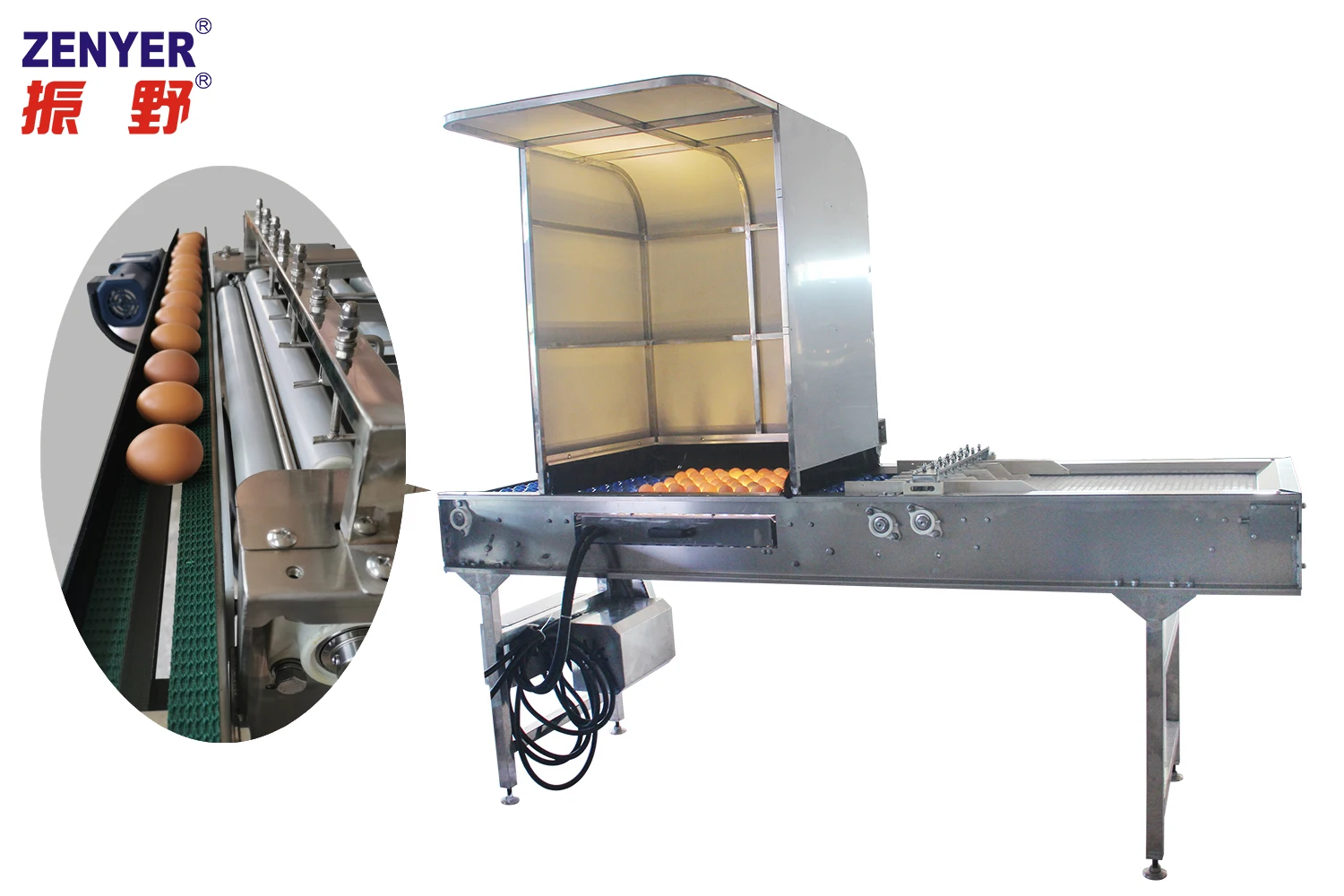

c) Candling

Candler with LED light source has been installed on the roller of grader to help operators to check whether there is any damage of eggs. For example eggs with cracks, eggs with black core, eggs having gone bad can be selected out by hand.

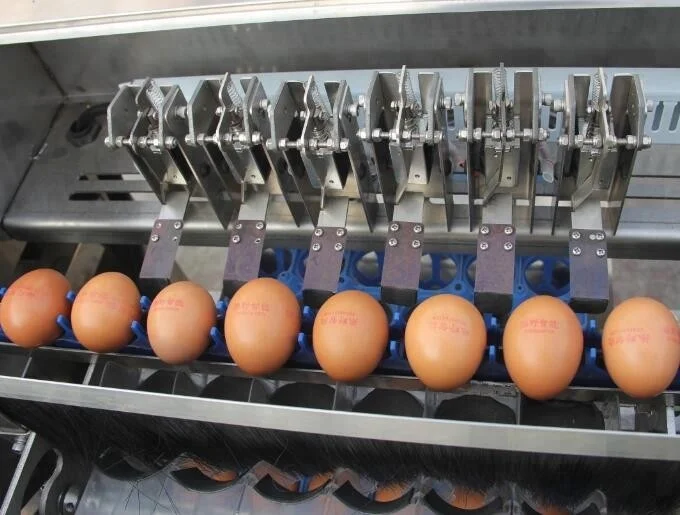

d) Printing

Printer can also be installed on the grader to print company name, brand name, production date, expiration date, batch number etc.

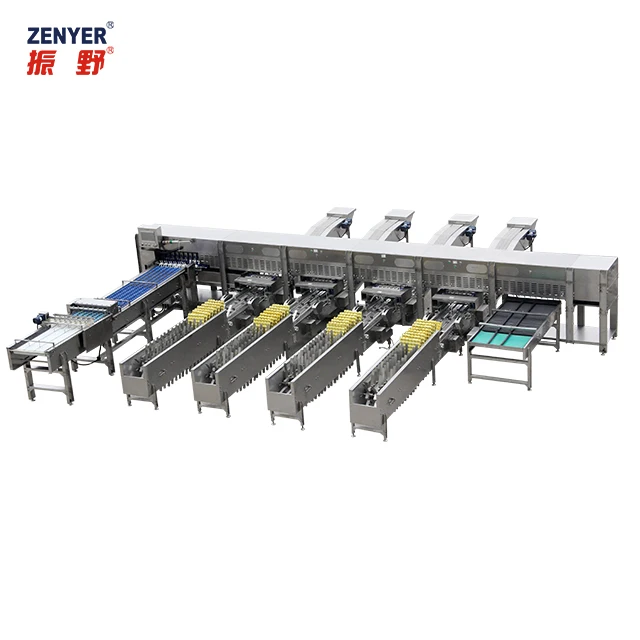

e) Electronic egg grader

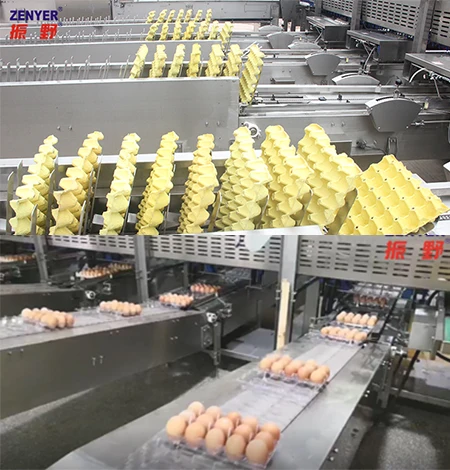

After printing, eggs will enter the weighing part of the electronic egg grader. The electronic egg grader can at most separate eggs into 5 grades. Eggs of different weight fall down onto to different lanes of the electronic egg grader. Some enter egg collecting belt, some enter egg collecting table, some enter automatic egg packer.

f) Package

At last, respectively operators pack egg trays into different boxes for sale.







 Package: we also pack this machine in a sealed wooden case as a whole to prevent any unexpected damage due  to the rough handling in transit.

Shipping : we will arrange shippment after receive the payment from our clients within 15days ,and we have a  long- term cooperation shipping company to ensure delivery on time and safety  in transit.



We give you some spare parts for free along with the delivery of the machine

 If required we can appoint our engineers to serve for you onsite.
