1. High productivity and good precision for metal sheets bending;
2. Different tools working for multifarious pieces. Can make complex shapes by repetitious bending work;
3. Mechanical stopper in oil cylinder, typical of high feedback precision for gliding block;
4. Double hydraulic oil cylinder is applied for upper transmission, provided with mechanical limit stopper and synchronous torsion bar;
5. With slowly falling fuction, the worker can control the machine easily;
6. Conventional clamps for the punch with manual wedge adjustment;
7. Realization of high precision, energy saving, environmental protection, high efficiency.
Specificatons & Paremeters
Model
Nominal pressure
(KN)
Max.bending width
(mm)
Opening height
(mm)
Throat depth
(mm)
Cylinder stroke
(mm)
Main power
(kw)
Dimension
(mm)
40T/1600
400
1600
325
250
120
4
1850x1300x2100
40T/2000
400
2000
325
250
120
4
2250x1300x2100
40T/2500
400
2500
325
250
120
4
2750x1300x2100
63T/2500
630
2500
360
250
120
5.5
2750x1350x2230
63T/3200
630
3200
360
250
120
5.5
3450x1350x2230
80T/2500
800
2500
380
320
120
7.5
2750x1400x2350
80T/3200
800
3200
380
320
120
7.5
3450x1400x2350
100T/2500
1000
2500
380
320
120
7.5
2750x1450x2380
100T/3200
1000
3200
380
320
120
7.5
3450x1450x2380
100T/4000
1000
4000
380
320
120
7.5
4250x1450x2380
125T/2500
1250
2500
380
320
120
7.5
2750x1450x2380
125T/3200
1250
3200
380
320
120
7.5
3750x1450x2380
125T/4000
1250
4000
380
320
120
7.5
4250x1450x2380
160T/3200
1600
3200
450
320
180
11
3450x1700x2600
160T/4000
1600
4000
450
320
180
11
4250x1700x2600
200T/3200
2000
3200
470
320
200
15
3450x1850x2860
200T/4000
2000
4000
470
320
200
15
4250x1870x2950
250T/3200
2500
3200
530
400
250
18.5
3450x1920x3050
250T/4000
2500
4000
530
400
250
18.5
4250x1950x3150
300T/3200
3000
3200
560
400
250
22
3450x2200x3130
300T/4000
3000
4000
560
400
250
22
4250x2250x3320
300T/6000
3000
6000
560
400
250
22
6100x2250x4250
400T/3200
4000
3200
640
400
300
30
3200x2280x3250
400T/4000
4000
4000
640
400
300
30
4000x2300x3600
400T/6000
4000
6000
640
400
300
30
6000x2350x4650
500T/4000
5000
4000
640
500
310
37
4000x2480x4330
500T/6000
5000
6000
640
400
310
37
6000x2450x4700

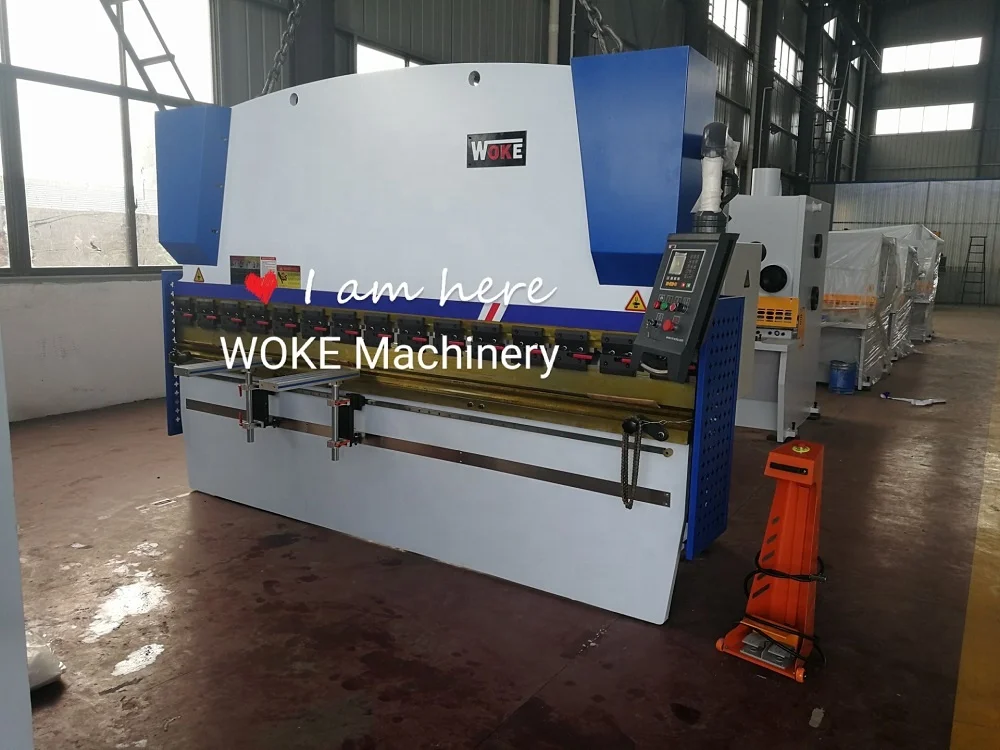

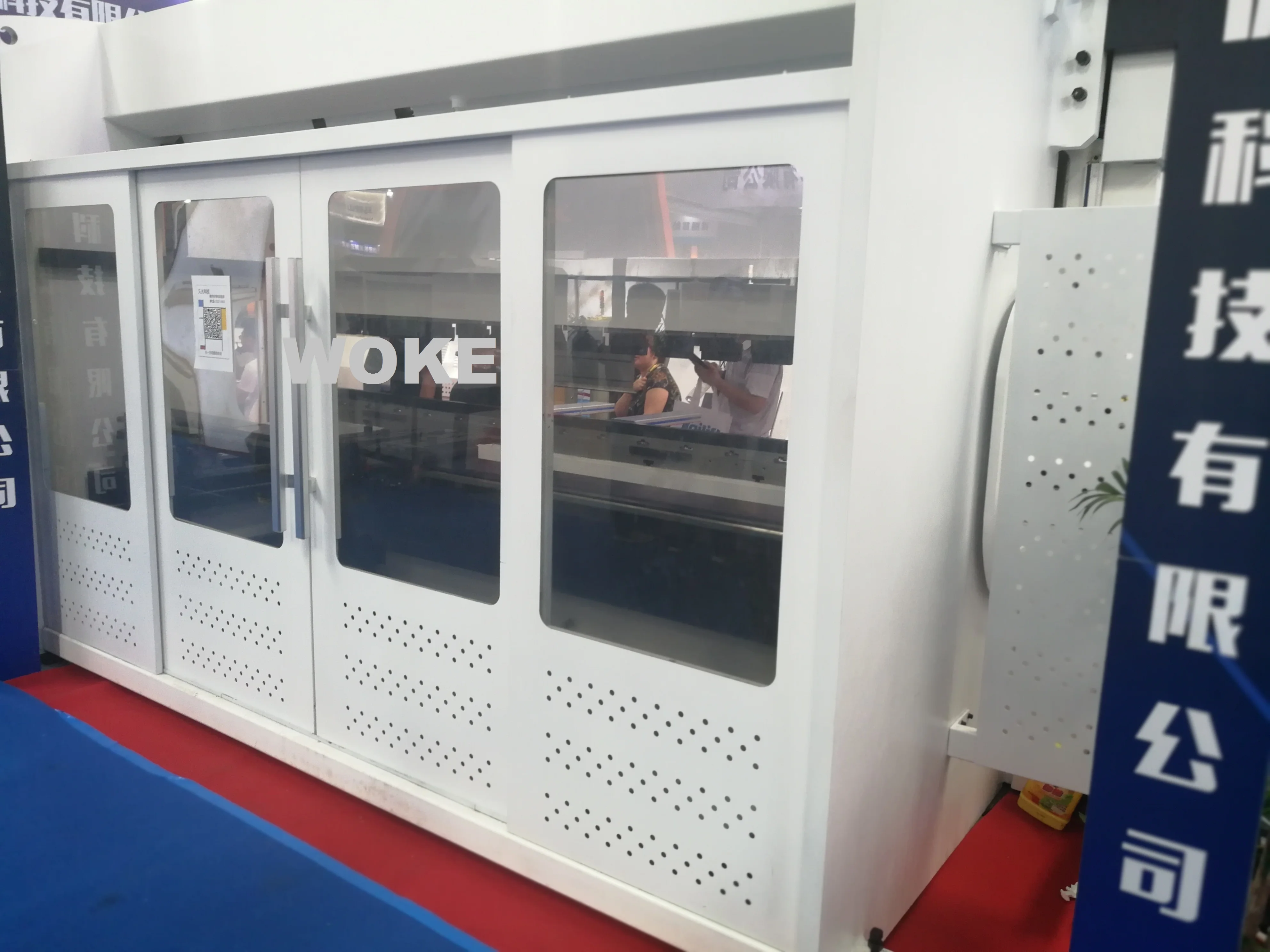

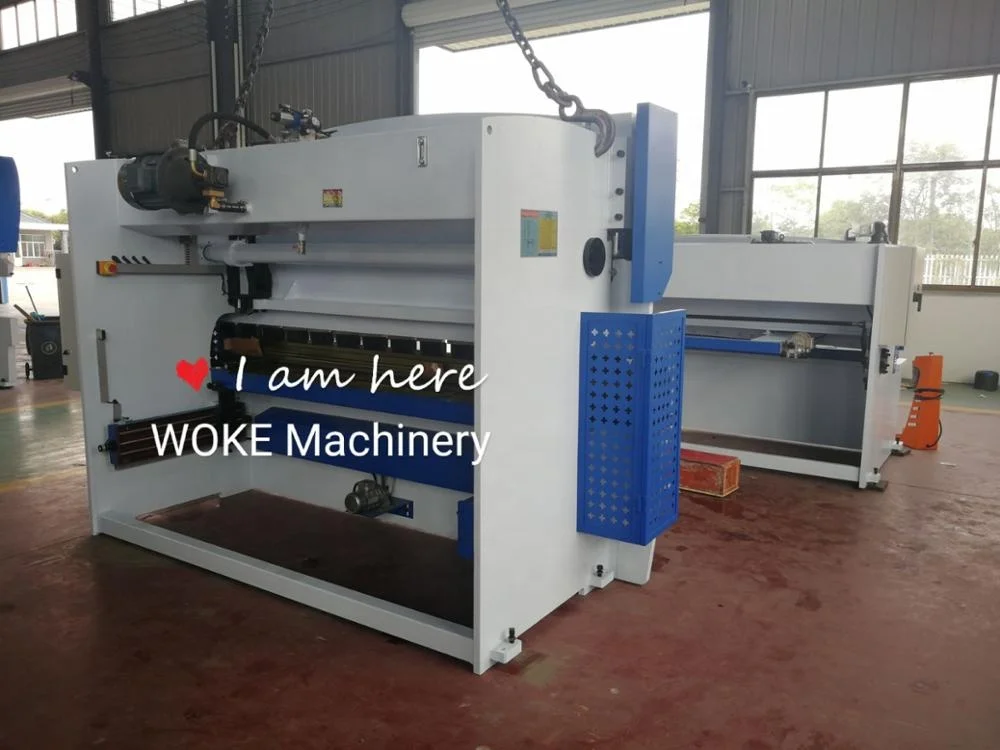

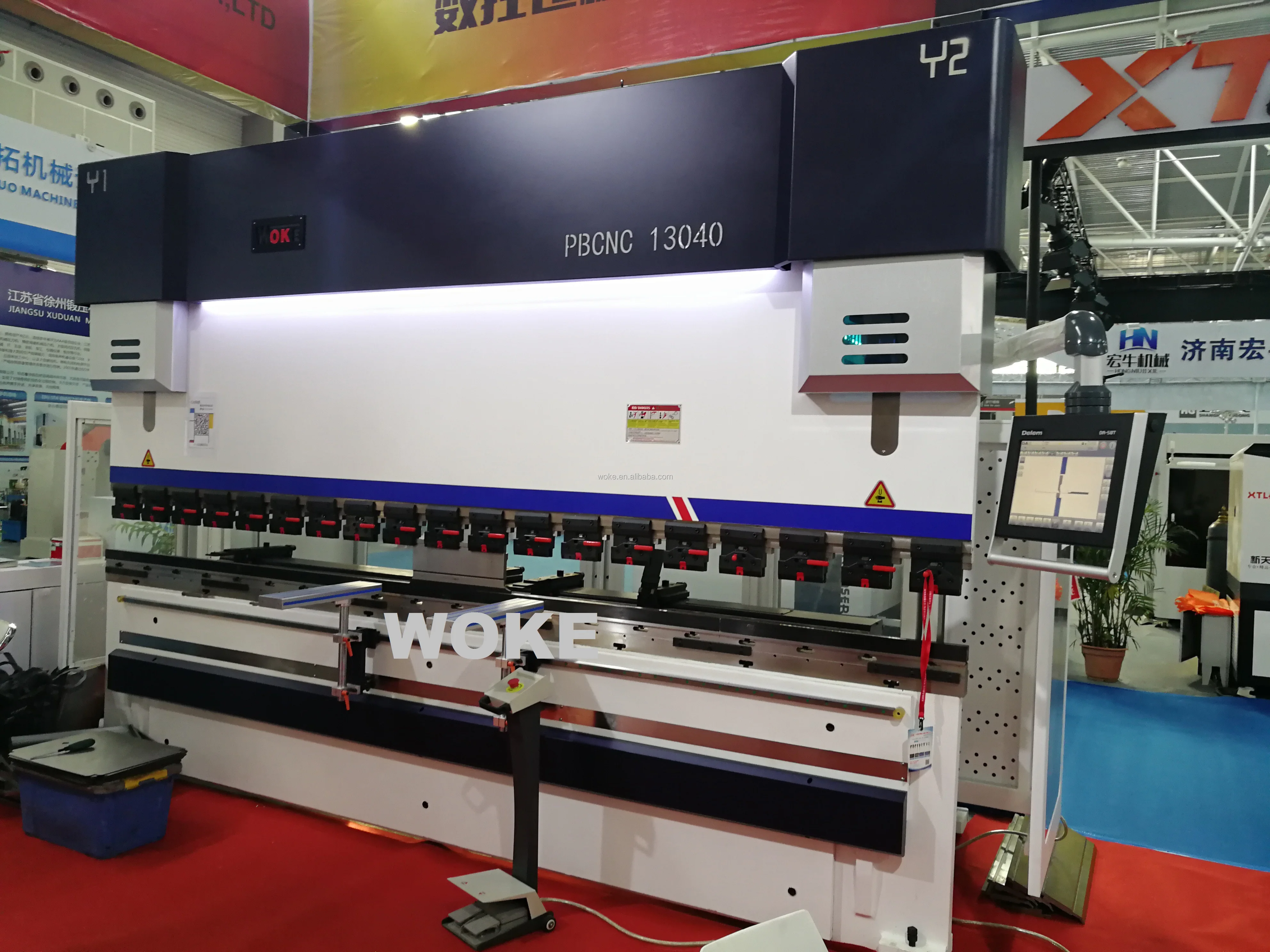

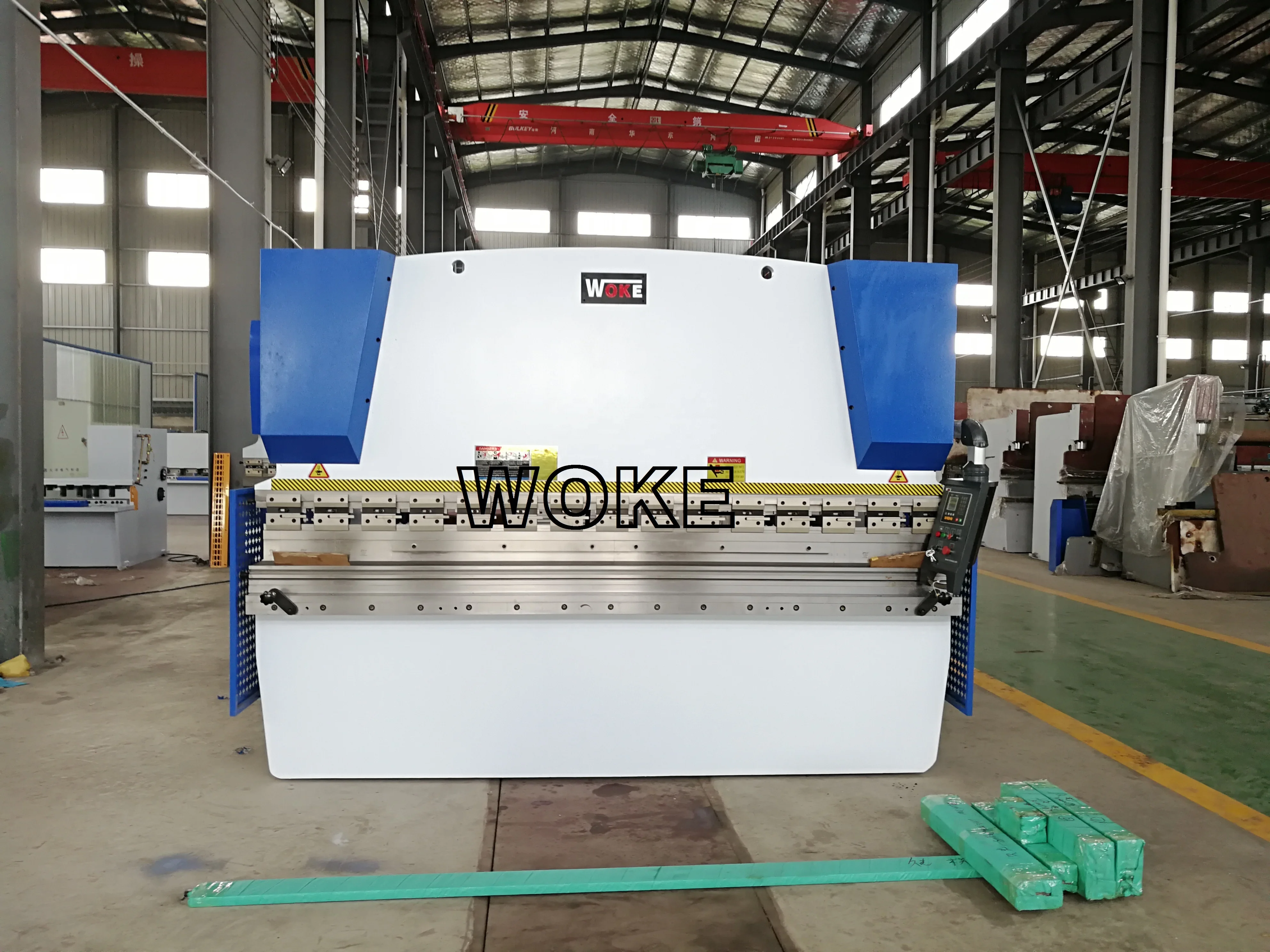

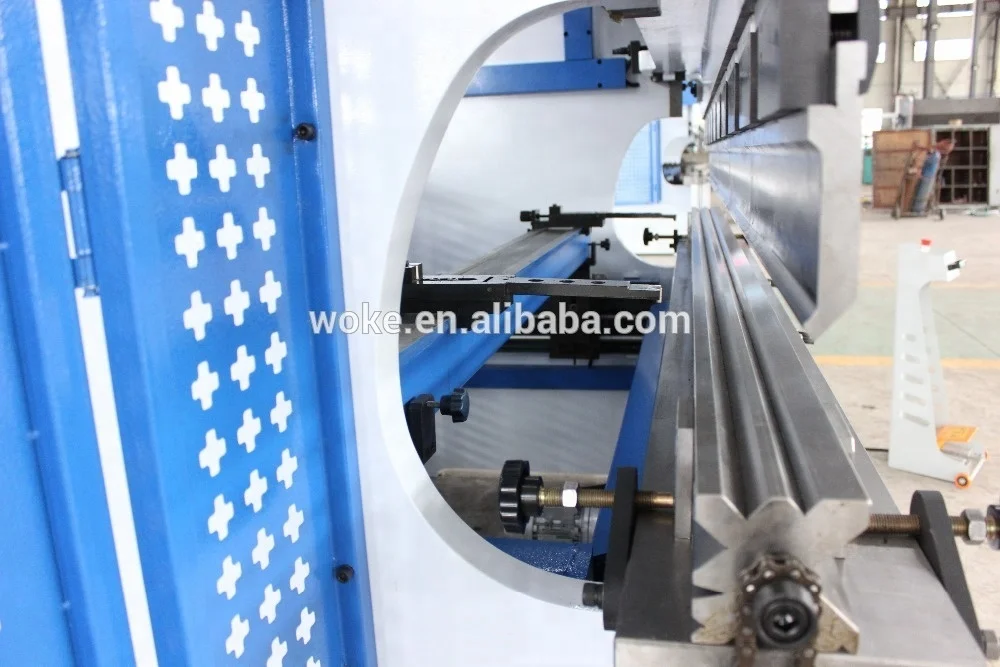

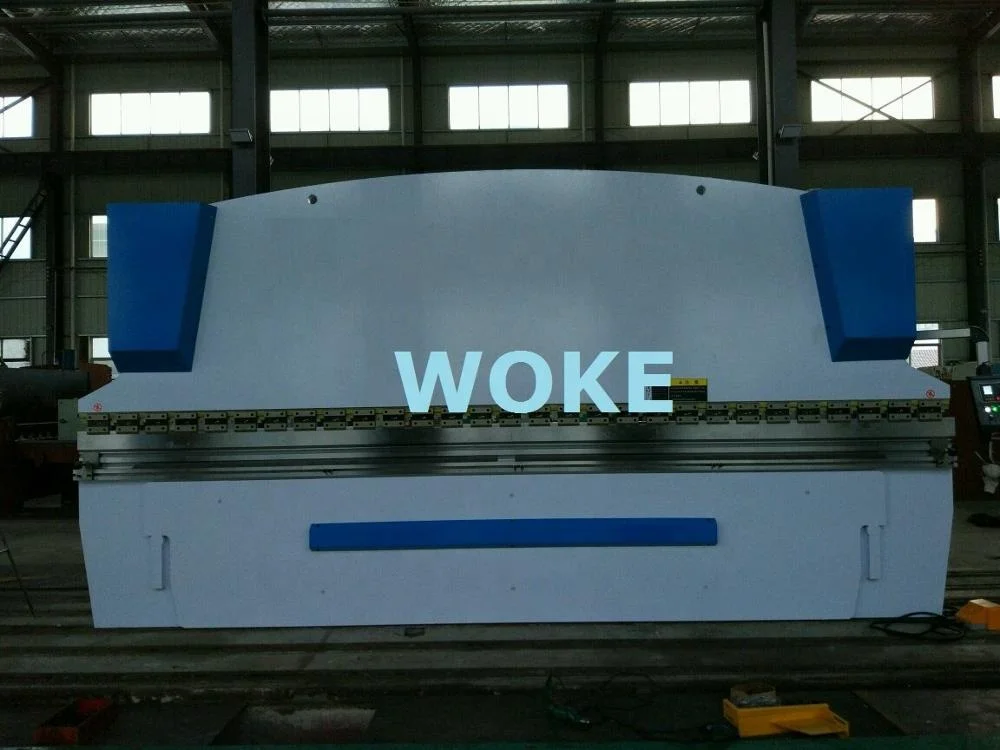

Machine show

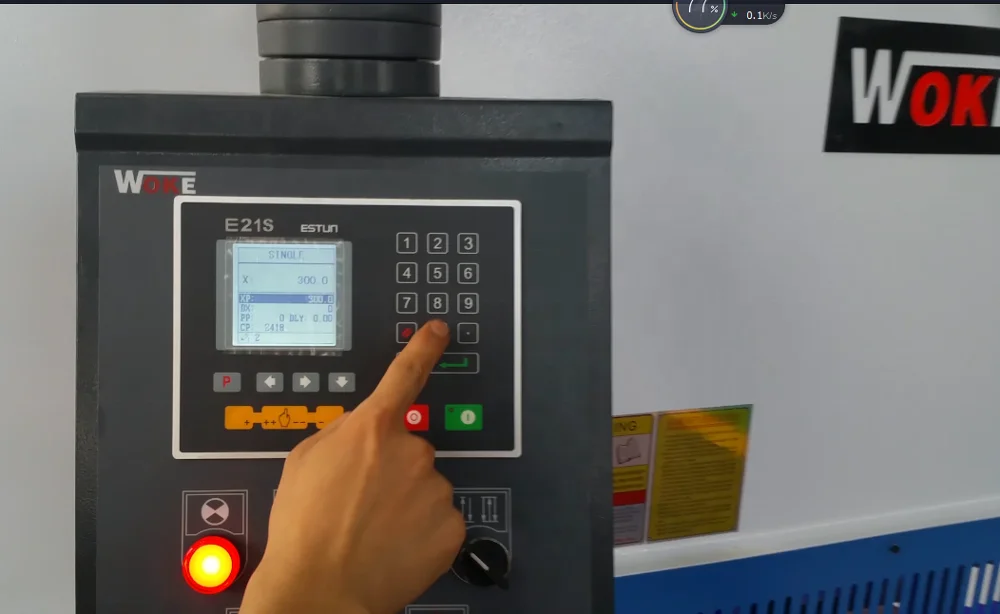

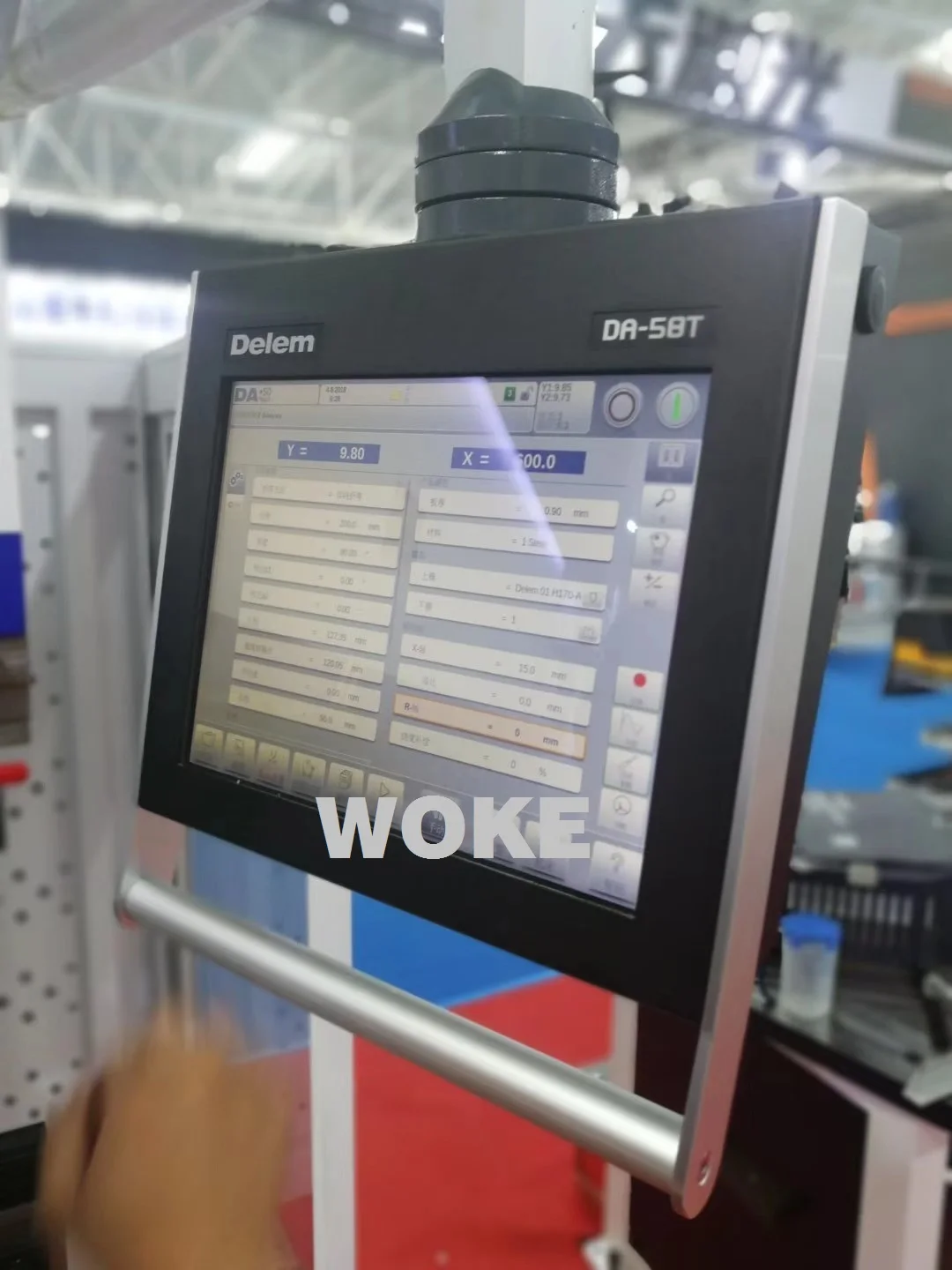

Control System
Customer case
Company Information
WOKE MACHINERY supply good quality sheet metal machines. We are specialized in export of machinery and equipment. Product scope include: Press brake, guillotine shearing machine, metal bending machine, pipe hole punching machine, angle notching machine, rolling machine, Iron Worker.
Our products have been exported to more than 20 countries or regions in the world with high quality. Our technicians will assure you of appropriate equipment with reasonable price and best pre-sale and after-sale services.

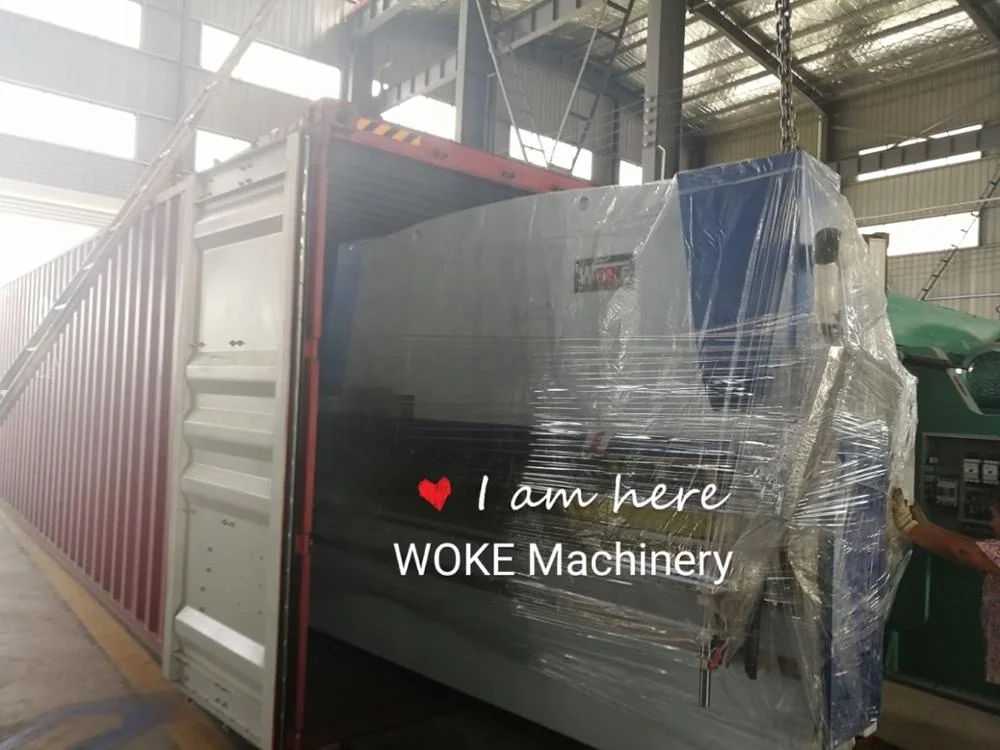

Packaging & Shipping
CNC Press Brake Machine, NC Press Brake Machine with series WC67Y, WC67K, WE67K
