hiway china supplier Hdpe/ldpe Mini Film Blowing Machine
- Category: >>>
- Supplier: Ruian Guotai Plastic Machine Co. Ltd.
Share on (60288686481):
Product Overview
Description
Product Description
1. Main technical parameters :
Characteristic:
Haul-off unit is oscillating reverse by horizontal±180.Its structure is reasonable, so it economizes lots of energy and it is easy to maintain. By means of the reversing haul-off unit, films can be produced without requiting rotating die head, so the structure of die head is simplified. Reversing haul-off unit eliminates many problems of ling channel for the rotating die head, difficult sealing for the melt, compound leakage being easy, unsymmetrical heating, difficult maintenance, macro film tolerance and so on Haul-off unit reduces the degree of difficulty for recipe of the multi-layer co-extruded product and production technical processing control, if the blowing film line is with IBC (Internal Bubble cooling system),it can produce film with the quality of more high-grade transparency and better all round performance. The produced film is very flat, reel is high-quality by the use of reversing haul-off units. The film can meet the demand for the high-speed printing.
2. Main parameter :
| Type | MSJ55-GS1300 | MSJ60-GS1500 | MSJ65-GS1700 | MSJ70-GS2200 | |
| Diameter of screw | 1200 | 1400 | 1600 | ||
| L/D | 3 | 3 | 3 | 3 | |
| Film thickness (mm) | 0.02-0.12 | 0.02-0.12 | 0.02-0.12 | 0.02-0.12 | |
| Max. output (kg/h) | 120 | 150 | 180 | 240 | |
| Raw material | MLLDPE,LLDPE,LDPE,EVA | ||||
| Screw diameter (mm) | 55×3 | 60×3 | 65×3 | 70×3 | |
| Screw L/D ratio L/D | 28:01:00 | 28:01:00 | 28:01:00 | 28:01:00 | |
| Screw Max. rotation Speed (r/min) | 15-100 | 15-100 | 15-100 | 15-100 | |
| Extruder driving power (kw) | 22×3 | 30×3 | 37×3 | 45×3 | |
| The way of esteem changing of extruder | Manual twin-station changing screen quickly | ||||
| Die structure | With or without IBC(Internal Bubble Cooling system) | ||||
| Air-ring structure | Dual tuyere | ||||
| Reversting haul-off system | Film turning mode | Horizontal | |||
| Angle of reversing | ±180℃ | ||||
| Take-off Wide-up speed (m/min) | 45 | 45 | 45 | 45 | |
| Total Power (kw) | 85 | 110 | 140 | 220 | |
| Overall dimensions (mm) | 1000×6000×9000 | 1000×600×9500 | 1100×7000×10000 | 1300×7000×12000 | |
| Weight (T) | 15 | 20 | 25 | 30 | |

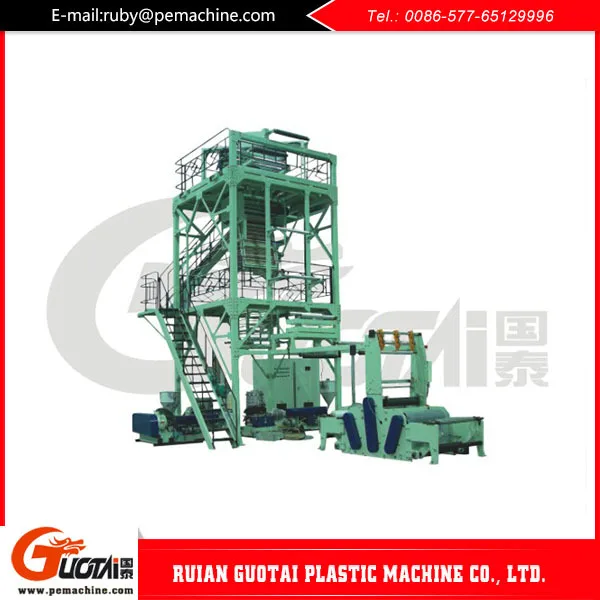

3. Picture:

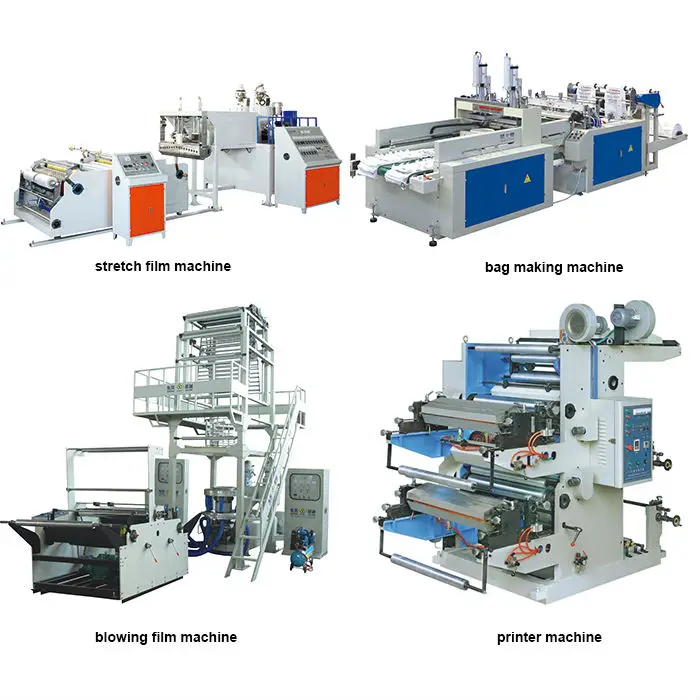

4. More Products For You To Choose
5. Payment
Packaging & Shipping
5. Packaging
Company Information
1.About Us
Guotai Machinery Co., Ltd. was built in 1987, and is located in Rui'an City, Zhejiang, which is a production base of plastic packaging machines in China. We are a professional manufacturer of plastic packaging machines.
We are engaged in manufacturing film blowing machines, bag-making machines, printing machines, bubble film making machines, recycling machines and complete sets of plastic packaging machines. Our machines have been exported to East Europe, North America, South America, Southeast Asian, Africa and the Middle East, enjoying good reputation among our customers and consumers.
Our company covers 14000 square meters, including a building area of 11,000 square meters. We staff 200 employees, with 30 engineers for technical support. With the concept of "customers are first, reputation is life", we follow scientific management system in every process. Each machine is inspected strictly before delivery.
2.CE
3.Our Markets
4.Contact
FAQ
5.FAQ
Q:Are you factory or trade company?
A:We are factory.
Q:Where is your factory?
A:We are in RuiAn County, Wenzhou City.
Q:How far is your factory from the Ruian station?
A:Half an hour.
Q:How far is your factory from Wenzhou airport?
A:Half an hour.
Q:What do you offer after-sales service?
A:One-year warranty and maintenance of life. And we could send our engineer if you need.
