JS MAC C series single chain roller accumulation conveyor

Product Overview

Description

  Name: JS MAC-C series single chain roller   accumulation conveyor

Defined:



  Accumulation convey is also called piled convey. It has not only the function of common drive convey, but also the feature that goodsstop and pile up on the conveyor line in the condition of driving element still operating, while the operating resistance is not obviously



increased. In normal conveying, the accumulation device transmits the moment of force. But when goods stopped and piled up, the operating moment of resistance exceeds the roller’s definitive working moment of force, the accumulation sleeve or friction slice slips,



roller and the driving element are in the condition of flexible connection. It appears that rollers under the goods stop running, only the driving element is still running



Parameters:

 The rollers of MAC-C series chain driving conveyor is driven through friction; rollers and chains can be moved comparatively,

which can assure to reduce the friction of goods when they stop.

 Diameter of roller:    Ø38mm, Ø42mm, Ø57mm, Ø60mm

 Width:    100mm~1000mm

 Moving Capability:   max 100kg/m



 Drawing:

 Size:

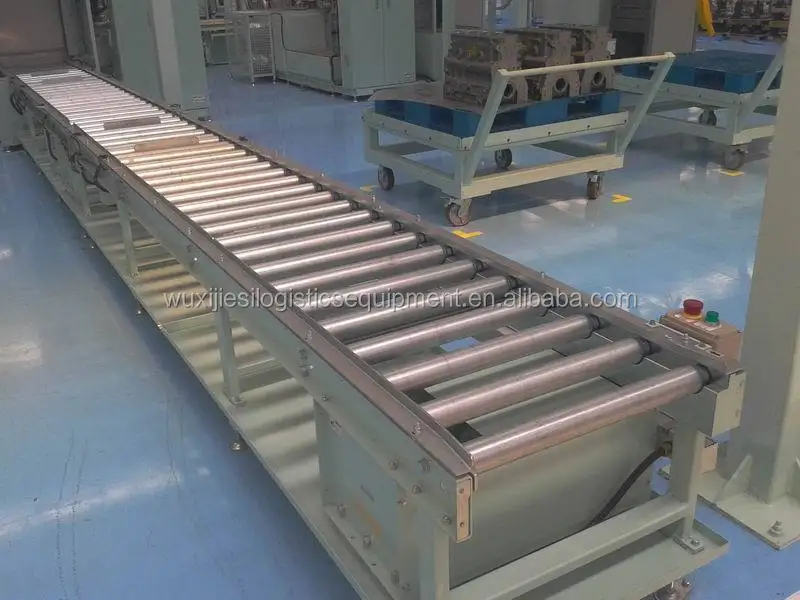

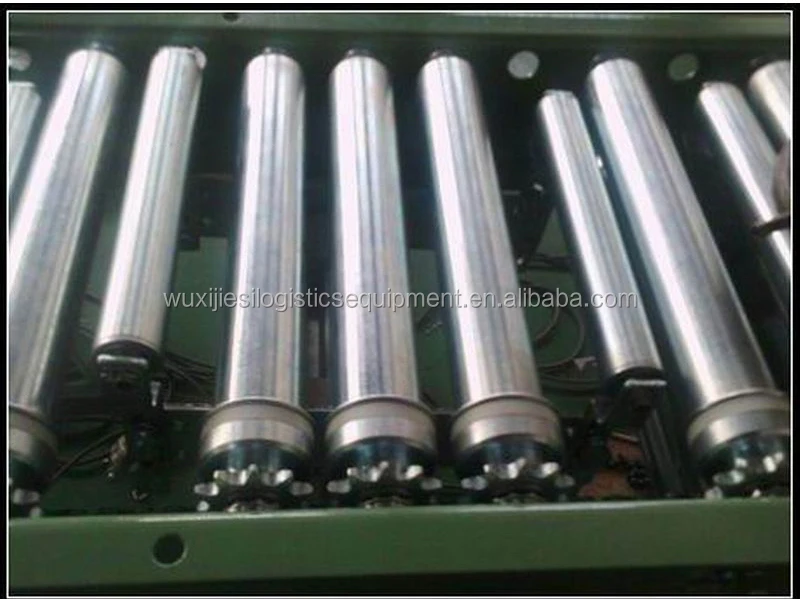

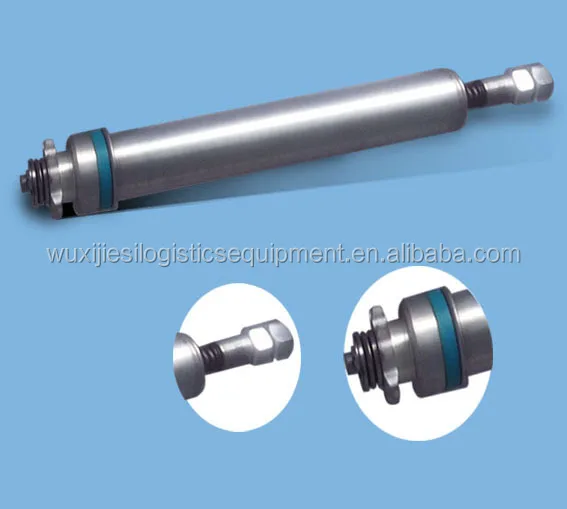

Picture:



 >>workshop and machine



How to choose the right roller conveyor for your warehouse or workshop, please follows:

 1.tell us the conveying items' size and weight

 2.how long of conveyors do you want?

 3.do you need motor to drive or manual work?

 4.what is the working environment?

 Email me for more details:







(Note: talk more details with sales; you could get better price and accurate products)
