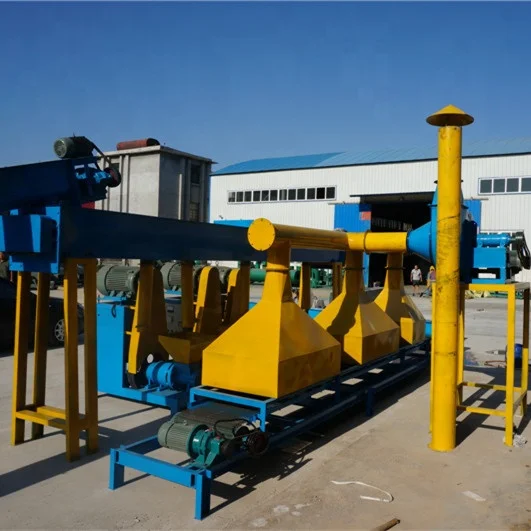

Easy to use coconut charcoal briquette production line

Product Overview

Description

coconut charcoal briquette production line





Introduction of coconut charcoal briquette production line

Coconut charcoal briquette production line is a energy saving equipment to making briquettes

with a hole and different shapes, such as hexagon, square and round and etc.

The working principle is by the high pressure and high temperature, and temperature is around

300-300℃. Under this, the raw material could be high density briquettes without any binder.



Technical parameter of coconut charcoal briquette production line

Model	ZBJ-1	ZBJ-2
Powder	15KW	18.5KW
Capacity	120-200kg/h	250-300kg/h
Weight	550KG	680KG
Dimension	1.68*0.72*1.25	1.86*0.72*1.32
Note	Briquette size:50mm	Briquette size:60-70mm
Final shape	circle,square,hexagon	circle,square,hexagon



Raw material of coconut charcoal briquette production line

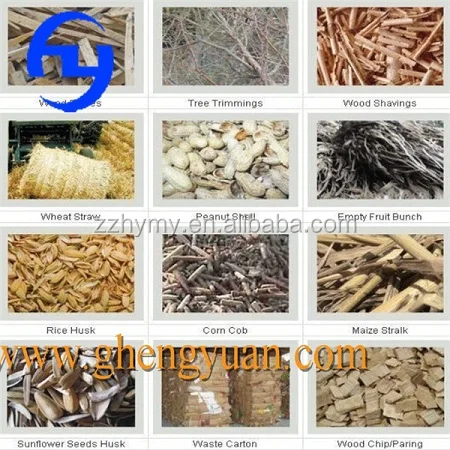

Many kinds of agro-waste, agro-forestry and biomass could be raw material, such as sawdust,

rice husk, wood waste, bamboo, straw, coffee husk, sugar cane bagasse, shrub branch, corn

stalk, soybean straw, sorghum stalk, rape stalk, peanut seedling and so on. But the size should be

less than 6mm and moisture less than 12%.

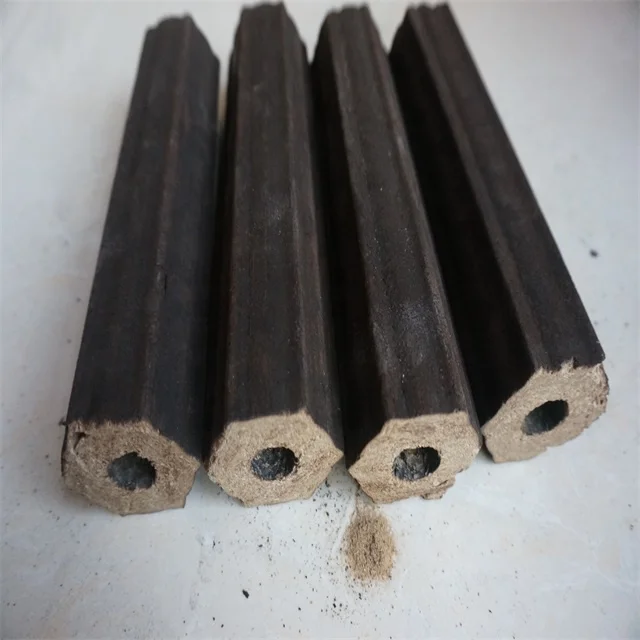

Final products of coconut charcoal briquette production line

The final product could be different shapes briquettes by using different molds and briquettes

could be charcoal by using carbonization furnace. The briquettes length could 30-40cm.

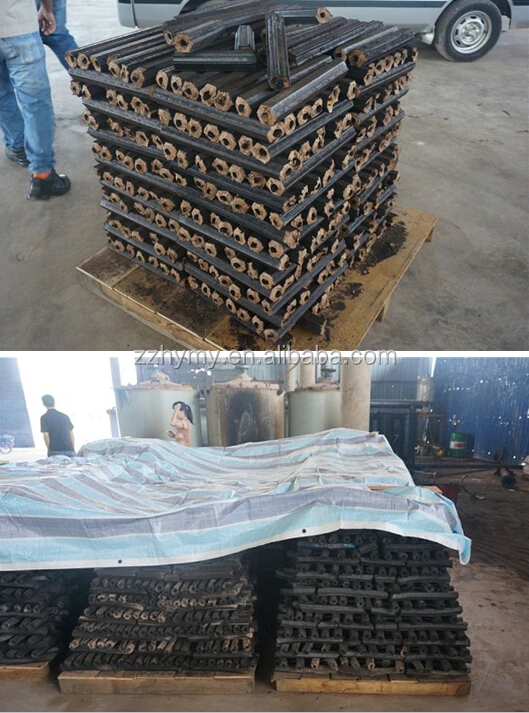

From briquettes to charcoal



Spare parts of coconut charcoal briquette production line

Mold lifetime is 8-10months, propeller lifetime is 6 months, heating ring lifetime is 4-6months.

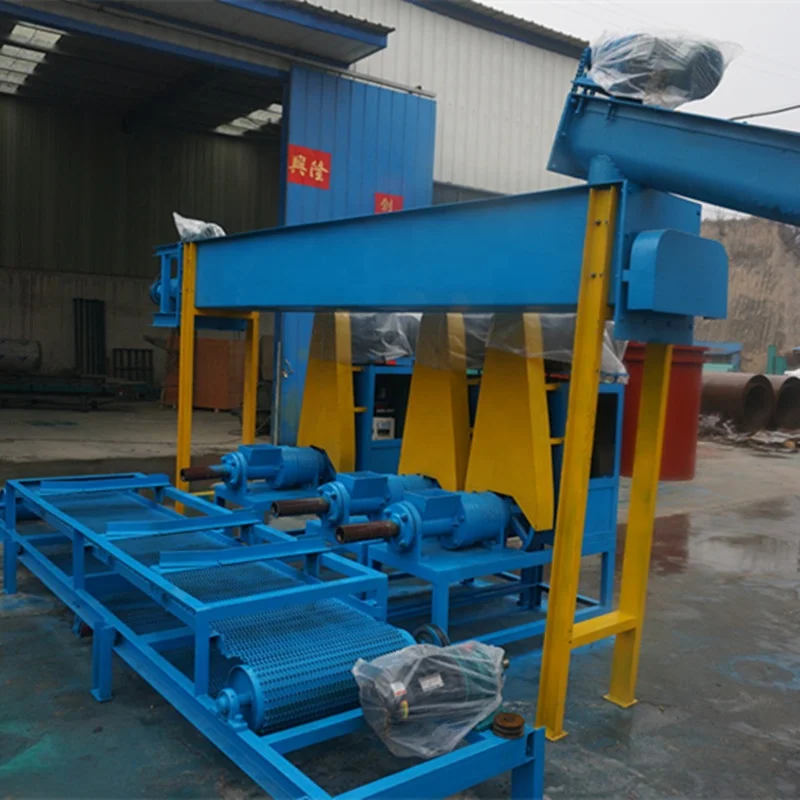

Production line of coconut charcoal briquette production line

If the buyer want large capacity, we could according to the buyer’s requirements (such as

capacity, raw material’s size and moisture) give the buyer suitable production line. The working process as follows:

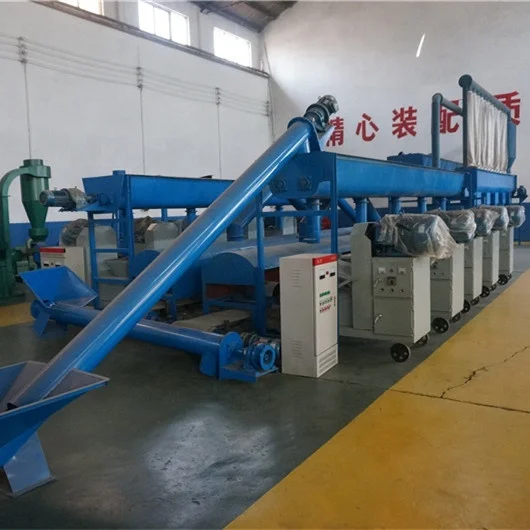

Raw material---crusher---screw conveyor---rotary sawdust screen---screw conveyor---rotary dryer---screw conveyor---two shaft materials distributor---briquettes machine---briquettes conveyor belt and smoke collecting system---carbonization furnace---charcoal



Our service for coconut charcoal briquette production line

Welcome to our factory for visiting, we will pick up from the nearest airport.

Before deliver the goods to you, we will test machine in best working.

About after-sale service, we could send the engineer to your country for installing and training,

we will try our best to provide service for you.



Company information

GongYi HengYuan Industry Co., Ltd is located in GongYi, ZhengZhou, HeNan Province—China. Our main markets is Bulgaria, Canada, Argentina, Brazil, Malaysia, India, Vietnam, Kenya, South Africa. Our goods get good comments from our clients. Our principle is to offer best price of goods with best quality.



If you are interested in this coconut charcoal briquette production line, welcome to contact with me freely as the followings:
