Best price rice straw charcoal briquette making machine

Product Overview

Description

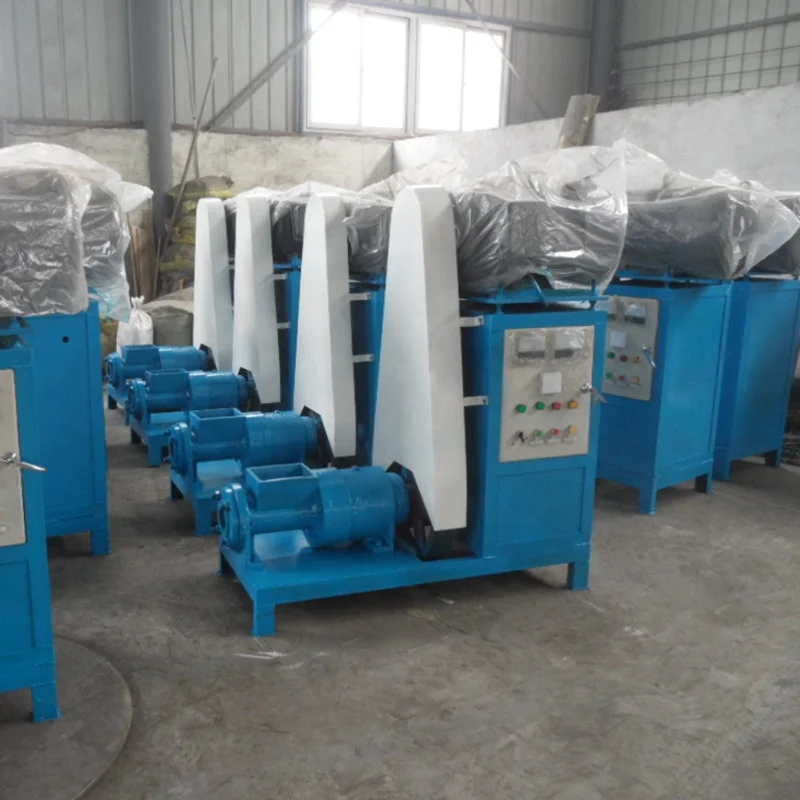

rice straw charcoal briquette making machine





Introduction of rice straw charcoal briquette making machine

Rice straw charcoal briquette making machine is a energy saving equipment to making

briquettes with a hole and different shapes, such as hexagon, square and round,etc.

The working principle is by the high pressure and high temperature, and temperature is around

300-300℃. Under this, the raw material could be high density briquettes without any binder.



Technical parameter of rice straw charcoal briquette making machine

Model	ZBJ-1	ZBJ-2
Powder	15KW	18.5KW
Capacity	120-200kg/h	250-300kg/h
Weight	550KG	680KG
Dimension	1.68*0.72*1.25	1.86*0.72*1.32
Note	Briquette size:50mm	Briquette size:60-70mm
Final shape	circle,square,hexagon	circle,square,hexagon





Raw material of rice straw charcoal briquette making machine

Many kinds of agro-waste,agro-forestry and biomass could be raw material, such as sawdust,

rice husk, wood waste, bamboo, straw, coffee husk, sugar cane bagasse, shrub branch, corn

stalk, soybean straw, sorghum stalk, rape stalk, peanut seedling and so on. But the size should be

less than 6mm and moisture less than 12%.



Final products of rice straw charcoal briquette making machine

The final product could be different shapes briquettes by using different molds and briquettes

could be charcoal by using carbonization furnace. The briquettes length could 30-40cm.



From briquettes to charcoal

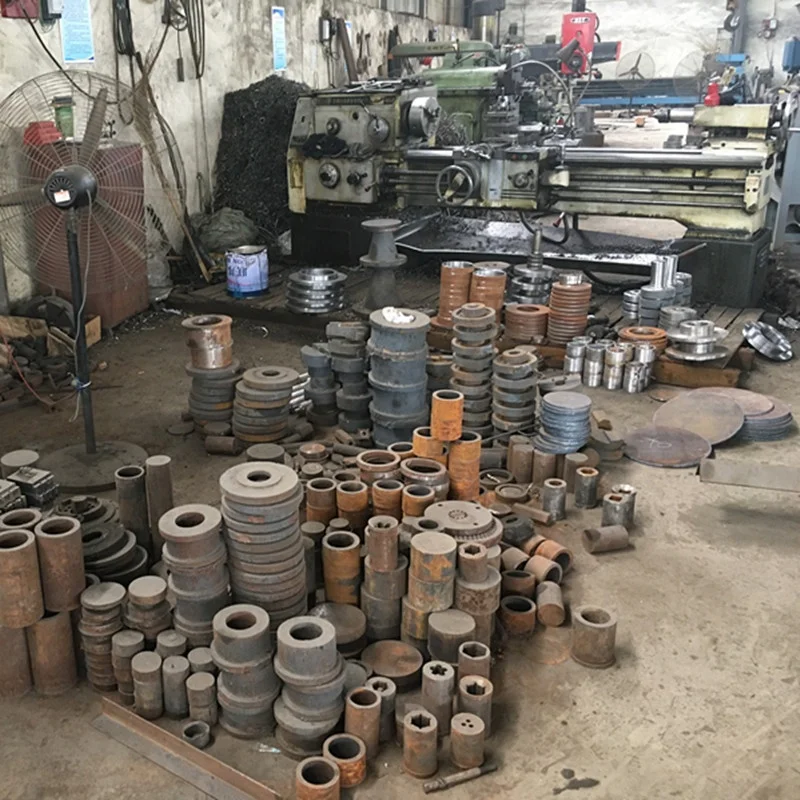

Spare parts of rice straw charcoal briquette making machine

Mold lifetime is 8-10months, propeller lifetime is 6 months, heating ring lifetime is 4-6months.

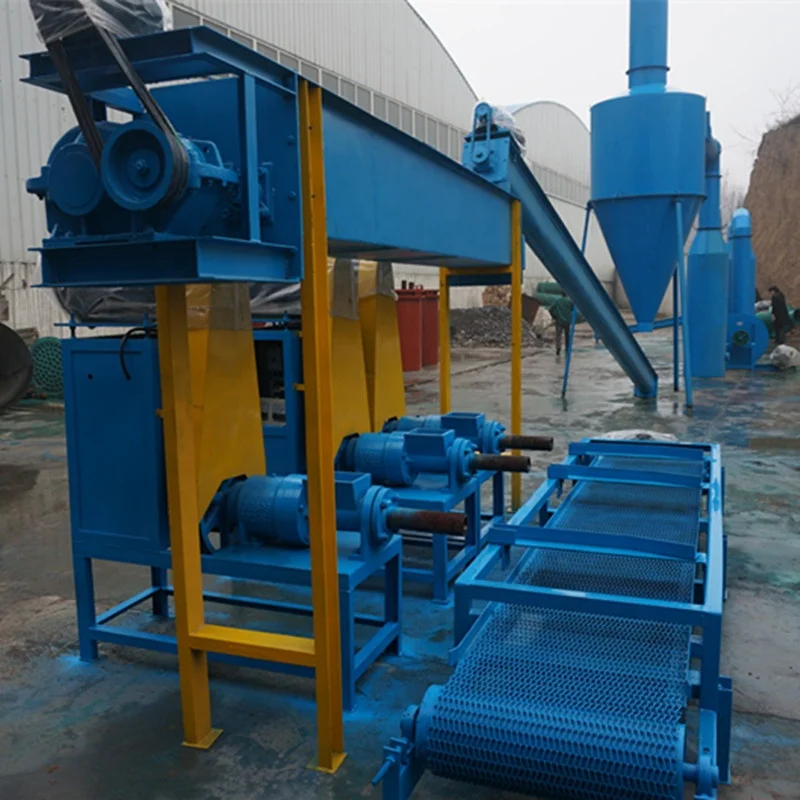

Production line of rice straw charcoal briquette making machine

If the buyer want large capacity, we could according to the buyer’s requirements (such as

capacity, raw material’s size and moisture) give the buyer suitable production line. The working

process as follows:

Raw material---crusher---screw conveyor---rotary sawdust screen---screw conveyor---rotary dryer---screw conveyor---two shaft materials distributor---briquettes machine---briquettes conveyor belt and smoke collecting system---carbonization furnace---charcoal



Our service for rice straw charcoal briquette making machine

Welcome to our factory for visiting, we will pick up from the nearest airport.

Before deliver the goods to you, we will test machine in best working.

About after-sale service, we could send the engineer to your country for installing and training,

we will try our best to provide service for you.



Company information

GongYi HengYuan Industry Co., Ltd is located in GongYi, ZhengZhou, HeNan Province—China. We are specialized in supplying the following products
1)Agriculture machines (charcoal briquettes series machinery, crusher, dryer and so on)
2)Pellets machine
3)Carbonizarion furnace for coal briquettes
4)charcoal ball pressing machine
Our main markets is Bulgaria, Canada, Argentina, Brazil, Malaysia, India, Vietnam, Kenya, South Africa. Our goods get good comments from our clients. Our principle is to offer best price of goods with best quality.



If you are interested in this rice straw charcoal briquette making machine, welcome to contact with me freely as the followings:
