mini mirror glass machine / bevel glass machine / grinding machine
- Category: >>>
- Supplier: Foshan Addtech Glass Machinery Co. Ltd.
Share on (60289221399):
Product Overview
Description
Mechanical details
Product Description
I. INTRODUCTION:

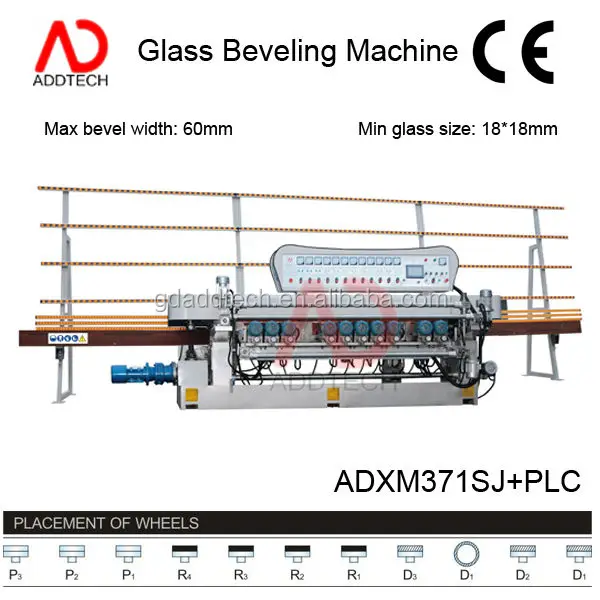

ADXM371SJ lifting straight line beveling machine:
1. Using PLC to control glass processing thickness, angle and height.
2. Suitable for beveling various sizes flat glass.
3. The front beam and grinders can be adjusted up and down simultaneously to grinding the bottom edge
and bevel edge of the flat glass.
4. The coarse grinding, fine grinding and polishing process are finished at one time.
5. All the pressing plates are using with thicker steel plate, which make machine more stronger, transmit
steadier and in higher working precision.
6. The working speed adopts frequency motor, easy operation and high practicality.
II. TECHNICAL SPECIFICATIONS:
|
TECHNICAL SPECIFICATIONS |
|||
|
voltage |
Power |
Bevel angle |

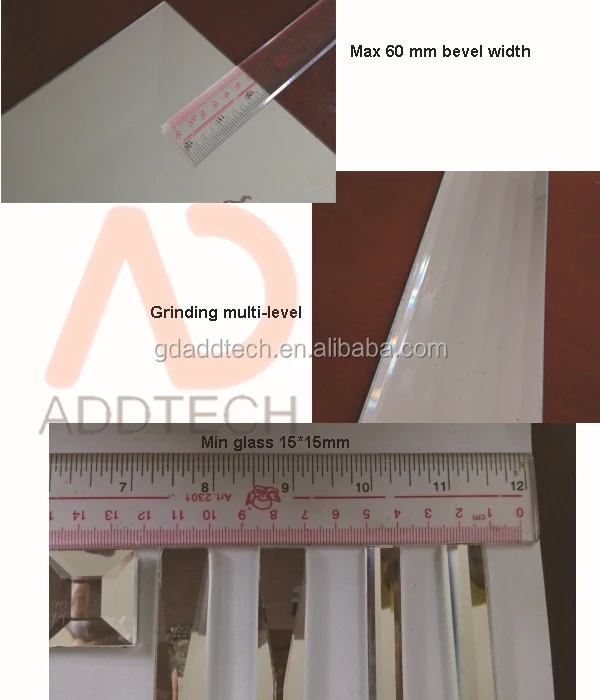

Max bevel width |
|
380v/50Hz |
24.8kw |
0°-40° |
55mm |
|
Glass thickness |
Feeding speed |
Min size |
Weight of machine |
|
3-19mm |
0.5-9m/min |
18x18mm |
5500kg |
|
Overall size(LxWxH) |
7000x1300x2500mm |
|
|
The CE certificate
PRODUCTION

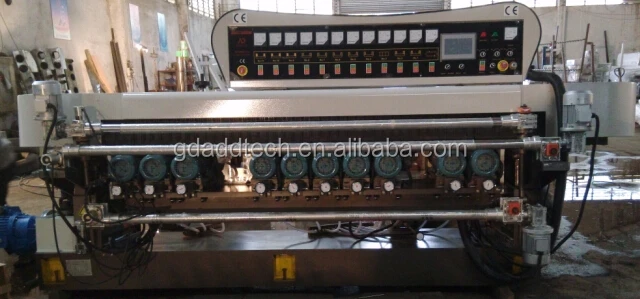

Machine detail:
1. CE & CE certification
PLC control system and digital displayer available;
2. Heavy duty foundation & beams: cast steel,annealing treatment;
3. Electric device: SIEMENS, Schneider or Delixi electrical optional;
4. ABB, XINDONGYA, SNY motor optional.
380V/50Hz, 380V/60Hz, 220V/60Hz, 400V/50Hz, 415V/50Hz, optional;
5. Thicken chain transmission system, can loading 600kg big size thick glass;
Beveling machine equipt synchronous belt PU chain transmission system
6. Various high quality import grinding wheels.
Suit for grind mirror, mosica, spell mirror,Low-e glass, float glass, laminated glass, tempered glass etc,.
Packaging & Shipping
Related Products
Our Services
Engineers available to service machinery oversea;
Oversea third-party support available;
OEM/ODM available.
Company Information
ADDTECH GLASS MACHINERY CO., LTD. Was established in 2007.
We are a professional manufacture which handling the deep-processed equipments of glass.
The main products include: Glass Straight Line Edging Machine, Beveling Machine, Round Machine,
Glass Washing Machine, Irregular Glass Grinding Machine, Glass Drilling Machine etc..
We are supplying the high quality products plus with best service.
The automatic oil lubrication of pulling plate is our particular innovation, it is great helpful to improve
stability and maintainability.
We are looking forward to be a valuable and strategic partner of you company, to help you thirve in the
deep processed of glass industry.
