8Ton series Heavy Duty Universal Lathe Machine CWA61100/2000, Large Swing Lathe Machine
- Category: >>>
- Supplier: Nantong Woke Machinery Equipment Co. Ltd. [Jiangsu China]Nantong
Share on (60289425272):
Product Overview
Description
Large engine universal lathe, heavy duty horizontal lathe CWA61100/2000
Product Description
Description
The universal lathe is suitable for high speed steel and alloy knives processing materials of shaft parts, cylindrical and discoid parts, cutting cylindrical, ending face, grooving, cutting out, boring, cutting on cone, threading and so on.
The spindle adopts the three supporting structure, the whole bed with high rigidity. Meanwhile, the lathe is equipped with independent oil pump for forced lubrication.
The lathe bed has the high rigidity, the oil pump, tool post and gap can move fast. The whole lathe has the features of strong rigidity, high efficiency, safety and reliability, easy operation and attractive apperance.

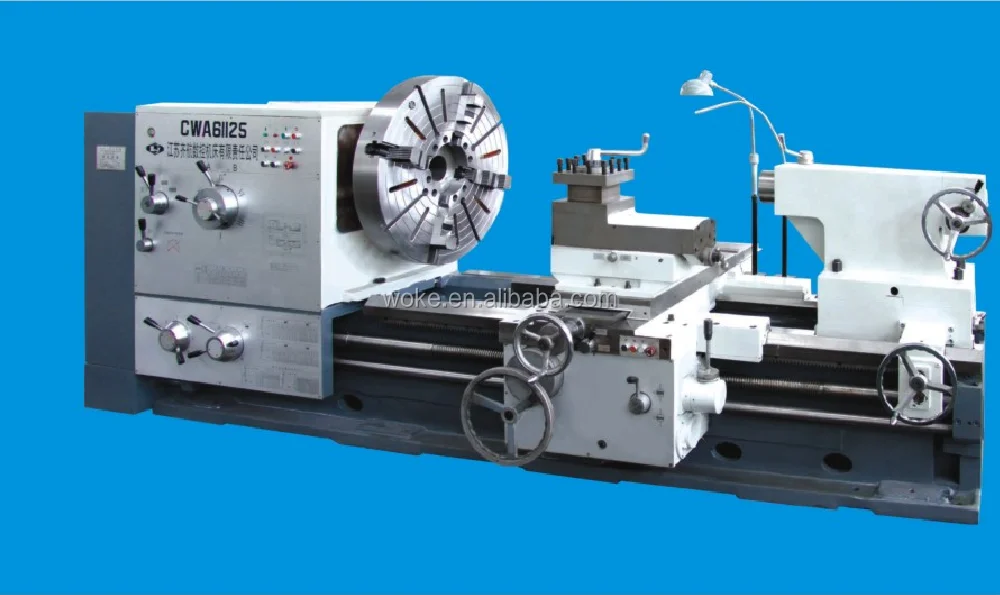

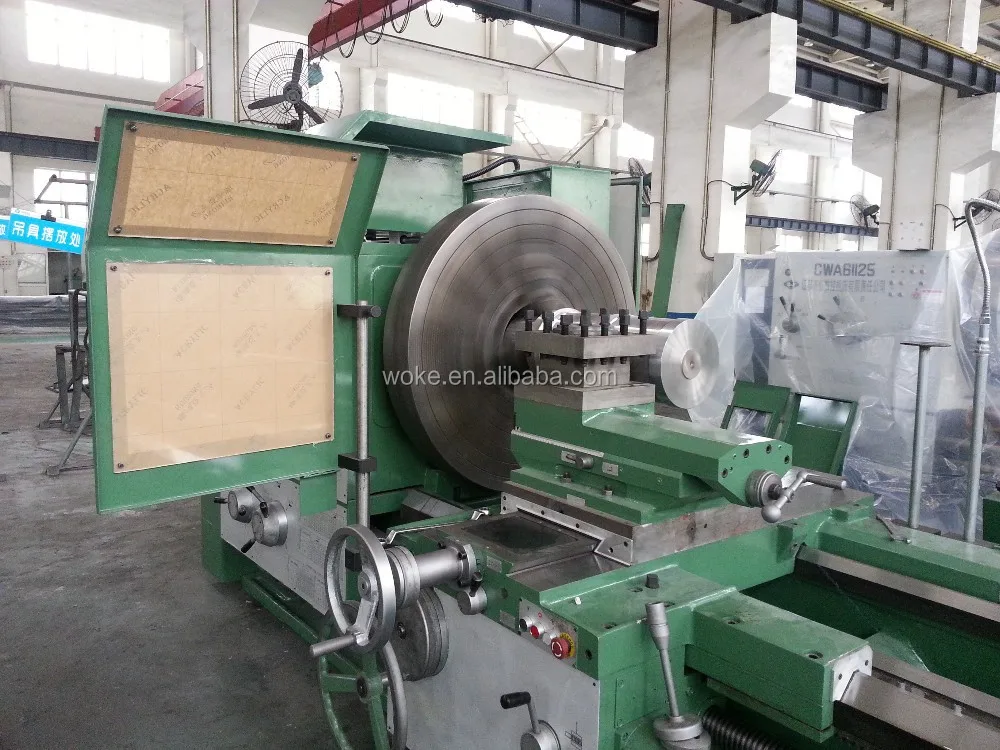

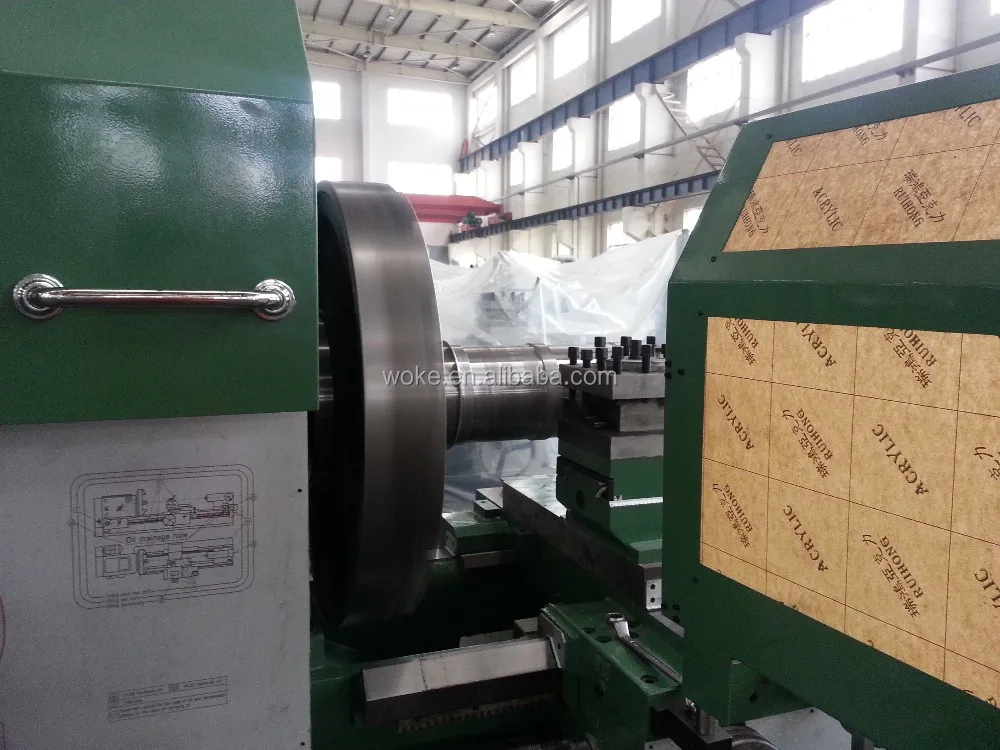

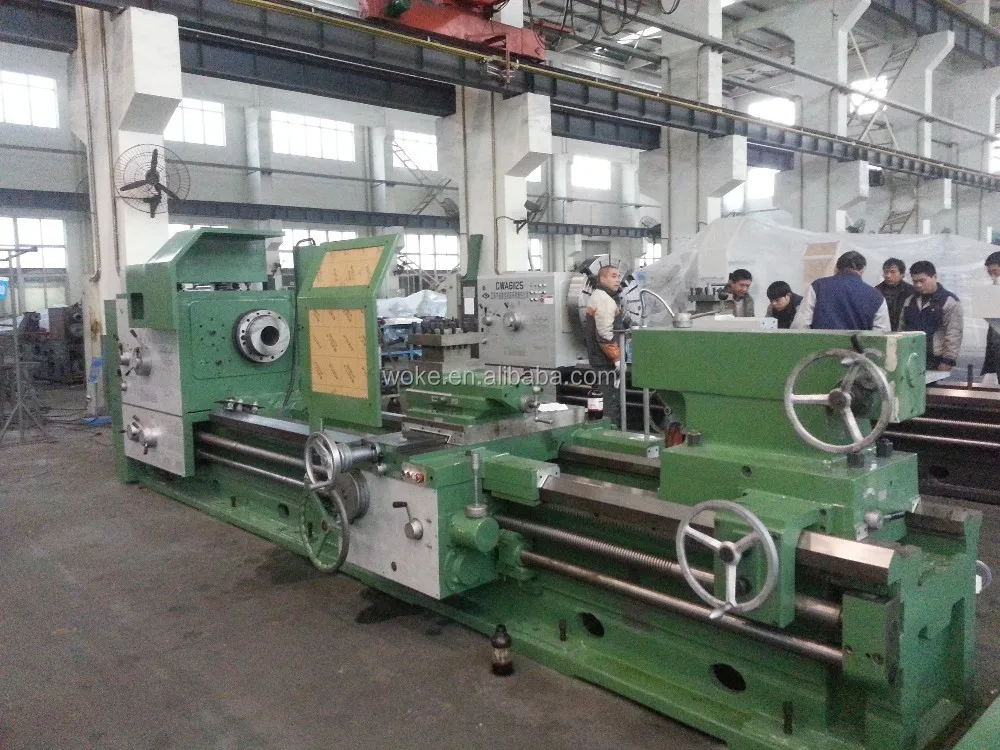

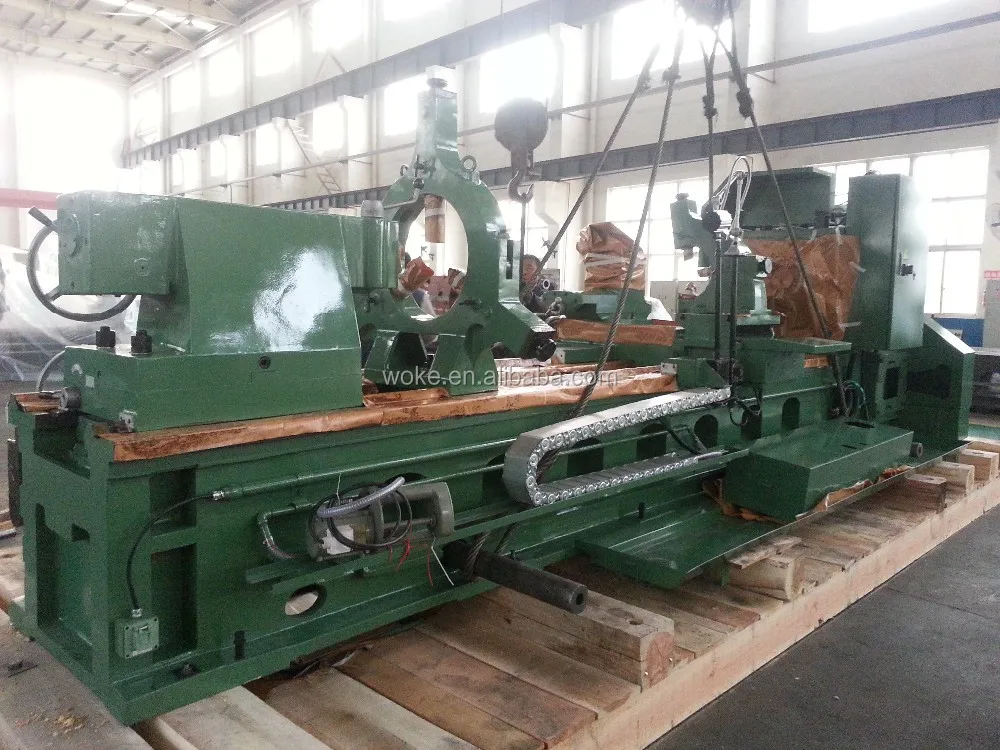

Product pictures just for your reference
Technical parameter
| MODEL | CWA61100 | CWA61125 | CWA61140 | CWA61160 |
| Max workpiece weight | 8T | |||
| Max swing over bed | 1000mm | 1250mm | 1400mm | 1600mm |
| Max swing over cross slide | 620mm | 8700mm | 1000mm | 1200mm |
| Center distance | 1.5m,2m,3m,4m,5m,6m,8m,10m,12m | |||
| Bed width | 780mm | |||
| HEADSTOCK | ||||
| Spindle hole | φ130mm | |||
| Spindle taper | metric140# | |||
| Spindle speeds | 3.15-315r/min or 2-200r/min or 2.5-250r/min | |||
| GEAR BOX-THRESDS&FEEDS | ||||
| Metric thresds range | 44 kinds 1-120mm | |||
| Inch threads range | 31 kinds 1/4-24 | |||
| Moudle threads range | 45 kinds 0.5-60mm | |||
| Diametral threads range | 38 kinds 1/2-56DP | |||
| Longitudinal feeds range | 56kinds 0.1-12mm | |||
| Cross feed range | 56kinds 0.05-6mm | |||
| Rapid feed:long/cross | 3400/min,1700mm/min | |||
| TOOL POST | ||||
| Diatance between center&tool | 48mm | |||
| Tool section | 45×45 | |||
| CARRIAGE | ||||
| Cross slide travel | 650mm | |||
| Compound rest travel | 280mm | |||
| TAILSTOCK | ||||
| Sleeve diameter | φ160mm | |||
| Sleeve taper | metric80# | |||
| Sleeve travel | 300mm | |||
| MOTOR | ||||
| Main drive motor | 22kw | |||
| Coolant pump motor | 0.15kw | |||
| Rapid feed motor | 1.5kw | |||
| Center distance:Net weight Dimention CWA61125 | 1500 10000kg 4600×1900×2400 | |||
| 2000 10800kg 4600×1900×2400 | ||||
| 3000 11600kg 6100×1900×2400 | ||||
| 4000 12400kg 7100×1900×2400 | ||||
| 5000 13200kg 8100×1900×2400 | ||||
| 6000 14000kg 9100×1900×2400 | ||||
| 8000 15600kg 11100×1900×2400 | ||||
| 10000 17200kg 13100×1900×2400 | ||||
| 12000 18800kg 15100×1900×2400 | ||||
Standard accessories
| 1 | Light-duty four-jaw chuck 1250 |
| 2 | Main spindle center Morse 6 |
| 3 | Main spindle center sleeve |
| 4 | Tailstock center Morse 6 |
| 5 | Nut |
| 6 | Socket head wrench fixed by four-jaw chuck |
| 7 | Steady rest 50-470 |
| 8 | Follower rest 50-220 |
| 9 | Adjusting bolt os shim plate |
| 10 | Anchor bolt(Including nut and gasket) |
| 11 | Electrical cabinet |
| 12 | Oil gun |
| 13 | Double-headed solid wrench |
| 14 | Documents |
Warranty
Since the Bill of Lading date, our company implements the products' after-sale service. The warranty period is 12 months. During the warranty period, our company provides free replacement parts if these parts or damages are out of machine itself quality problems. Meamtime, the machine should be under normal opeation according to the operational manual provided by the sellers. (Except for improper operation or man-made damage by the buyers)
