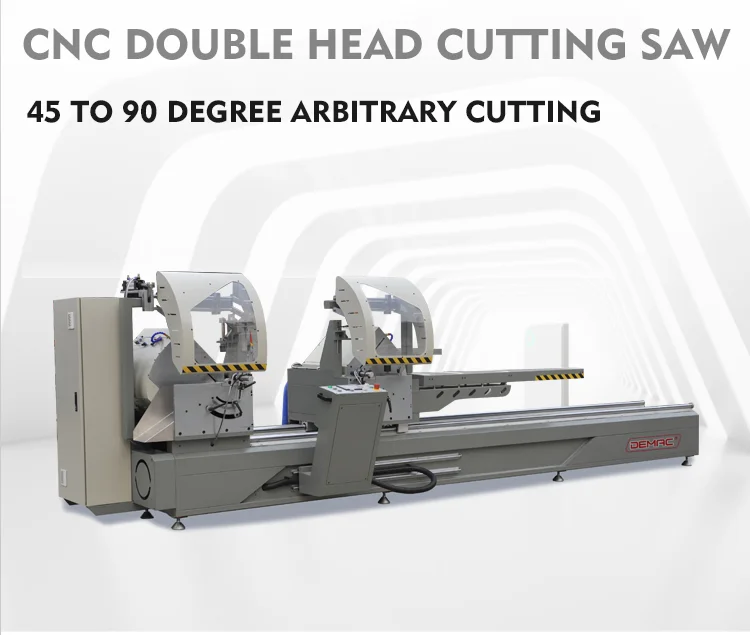

Double head 45 degree aluminum profile cutting machinery

Product Overview

Description





Specification:



Used for aluminum profile 45° angle cutting.

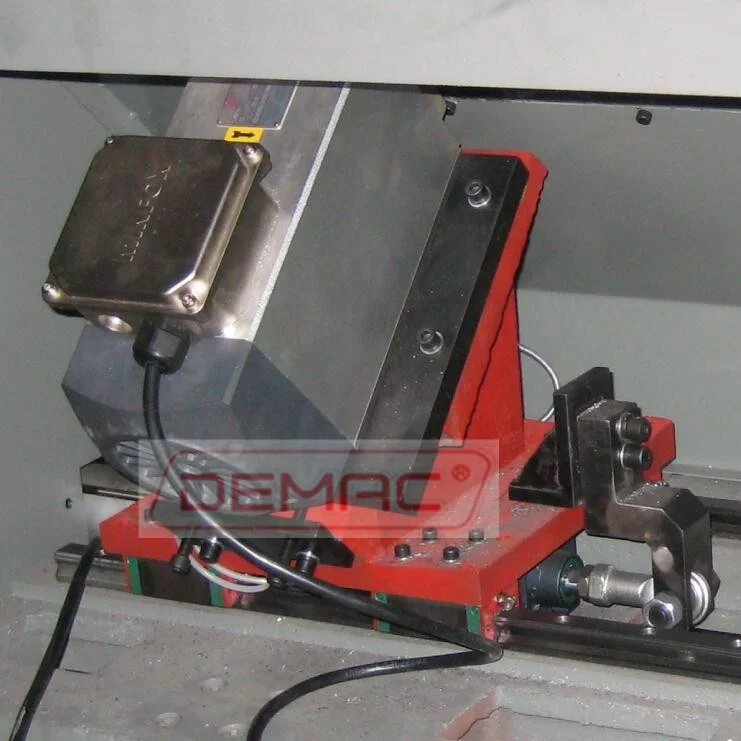

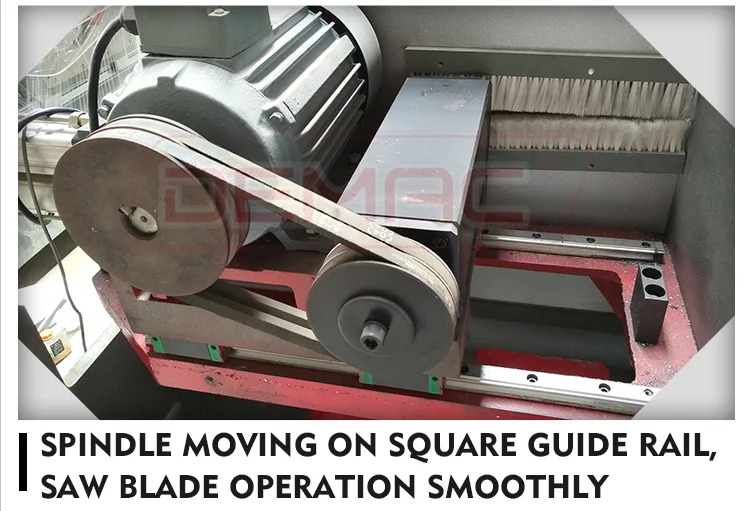

Linear bearing moving parts ensure a smooth cutting head moving.



Stable and high quality cutting

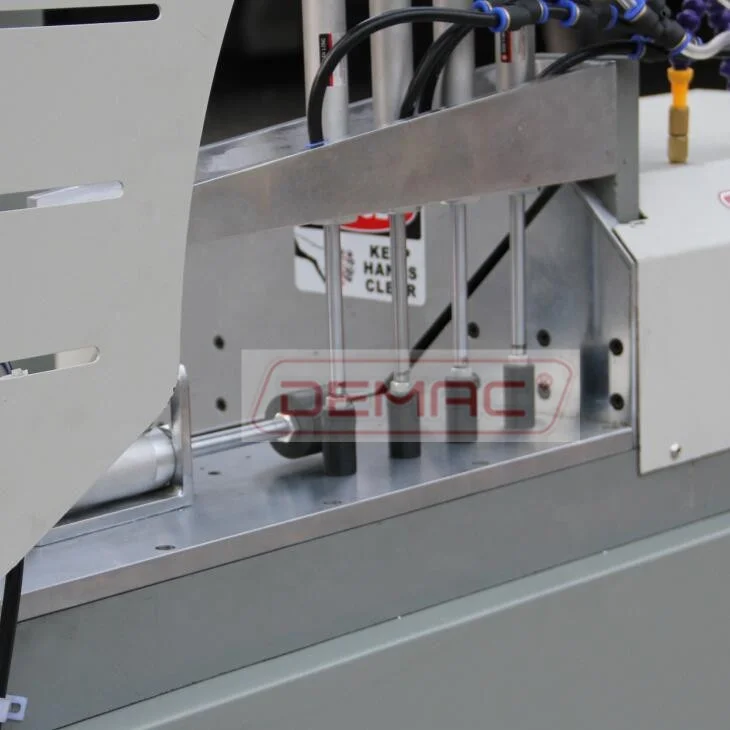

Hydro-pneumatic driving system gives stable feeding.



Especially for 45° angle cutting and large capacity of multi-profiles cut in one cycle.



Technical Parameter:



Power supply	3phase 380v 50hz
Motor power	2*2.2 KWSpindle Motor
Motor rotary speed	2850r/min
Operation air pressure	0.5~0.8Mpa
Cutting size	450~4000mm
Cutting range	Height Max 90mm, Width Max. 350mm
Air consumption	200L/min

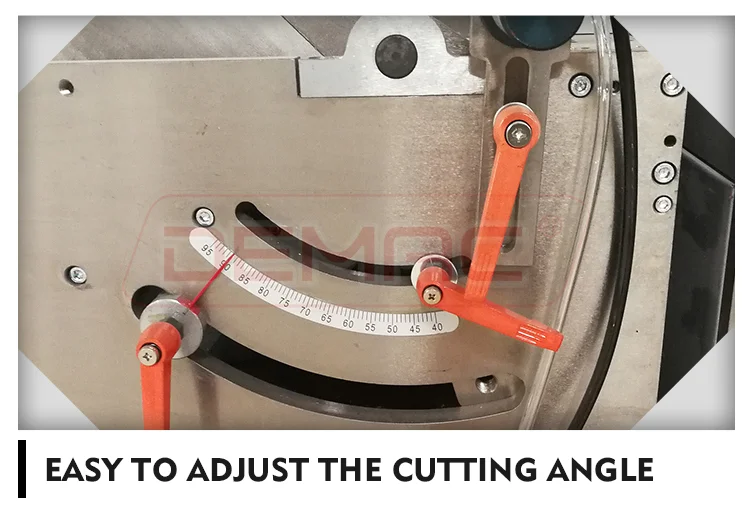

Cutting angle	45°
Feeding speed	Stepless timing 0~3m/min

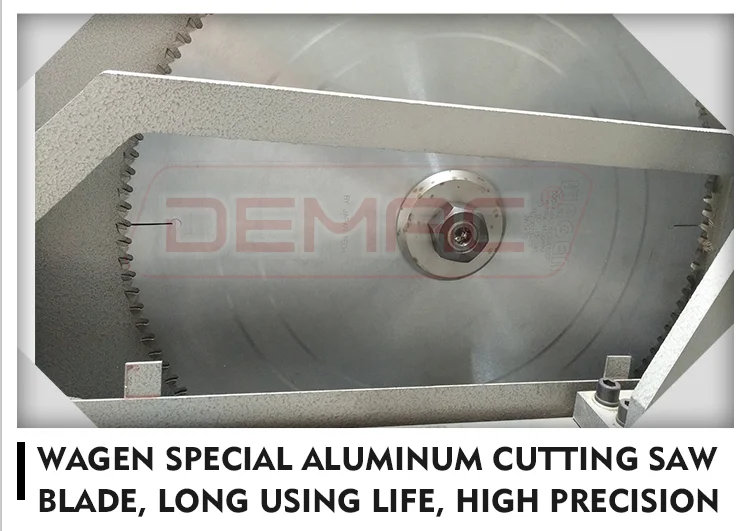

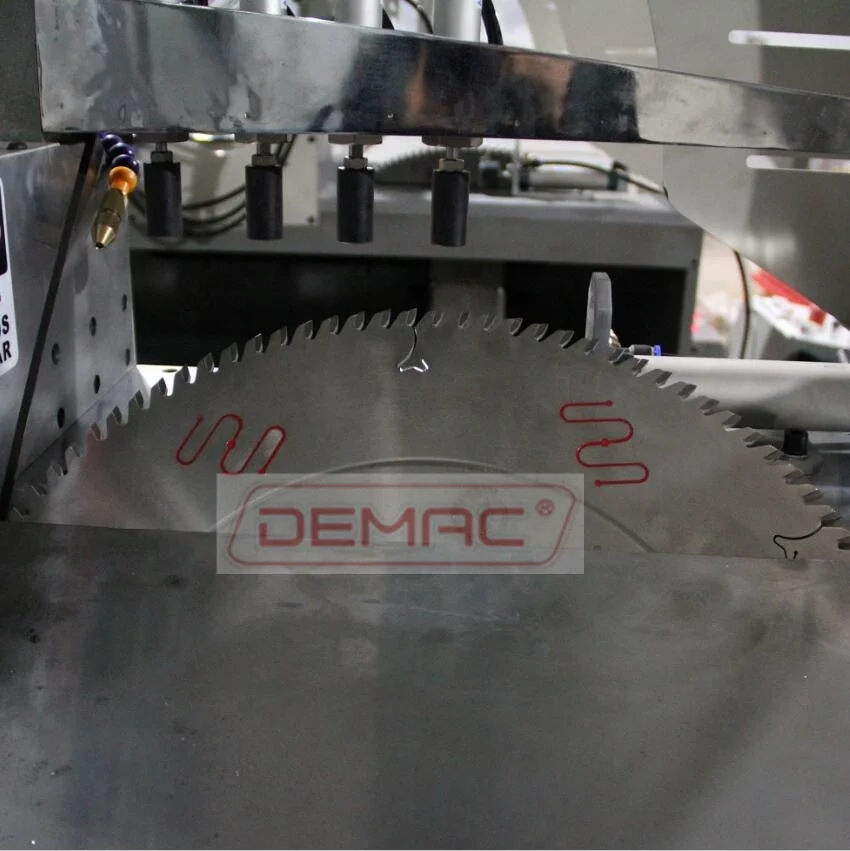

Saw blade specification	Φ450mm×3.5mm×φ30mm
Dimension	460mm×1500mm×1500m
Weight	1700kg
