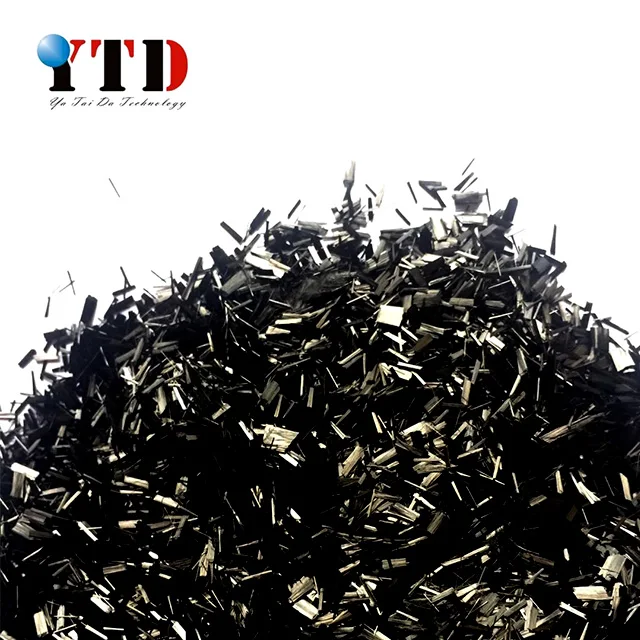

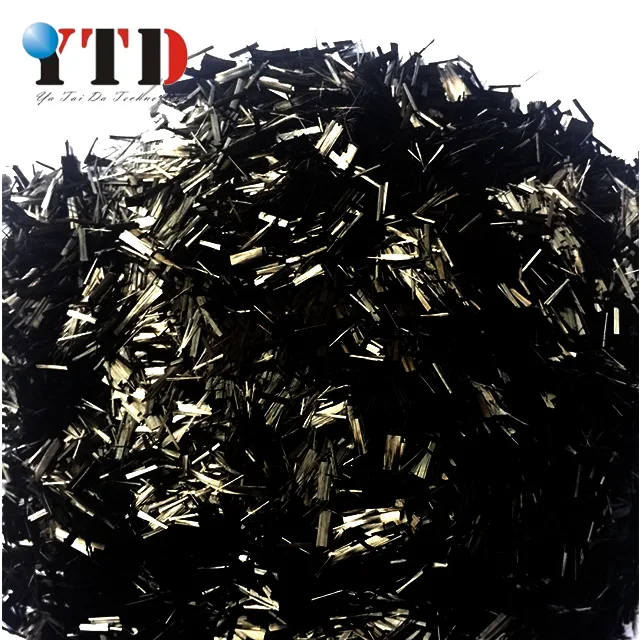

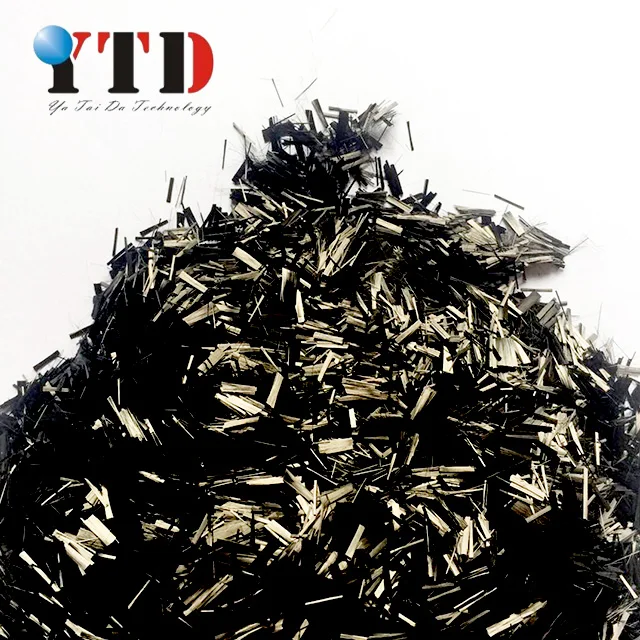

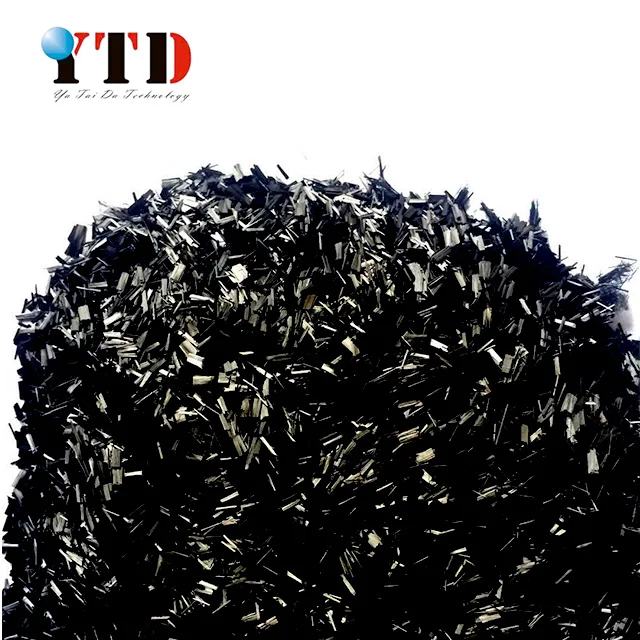

1mm/2mm/3mm Short Carbon Fiber, Chopped Carbon Fiber

Product Overview

Description

                                              1mm/2mm/3mm Short Carbon Fiber, Chopped Carbon Fiber

Specifications

Raw material:polyacrylonitrile fiber
Density:1.65-1.75 g/cm3
Carbon content:>98%
Diameter (um):9.0
length:3mm,4.5mm,6mm,12mm

The carbon fiber chopped strand are based on the polyacrylonitrile fiber as the raw material.Via carbonization, special surface treatment,  mechanical grinding, sieving and drying.



It is stable, electrical conductive,self-lubricating and reinforcing.Because of that It can composite with resin ,plastic,metal,rubber and so on. So It can reinforce the strength and wear resistance of the materials.



Now It is used in many fields.For examples: Electronic chips, conducting plate, conducting floor, Electronic machinery, anti-static industries,anti-static filter, defense industry, building insulation, chemical.



carbon fiber chopped strand TECHNICAL SPECIFICATIONS:

NAME	AVERAGE VALUE	AVERAGE VALUE	AVERAGE VALUE	AVERAGE VALUE
Density	1.65-1.75    g/cm3	1.65-1.75 g/cm3	1.65-1.75 g/cm3	1.65-1.75 g/cm3
Carbon content	>98%	>98%	>98%	>98%
Diameter (um)	7.0	9.0	11.0	13.0
Length(mm)	5,10,15,25, 45,50	5,10,15,25, 45,50	5,10,15,25, 45,50	5,10,15,25, 45,50





















carbon fiber chopped strand STORATE:



The carbon fiber should be stored in a dry place,preferably at room temperature and 50-70% relative humidity.



carbon fiber choped strand PACKAGING:

Products was packed in drums,each 25kg,with inner plastic bag.Gross weight is 31kg.drum size diameter 45cm,height:80cm.
