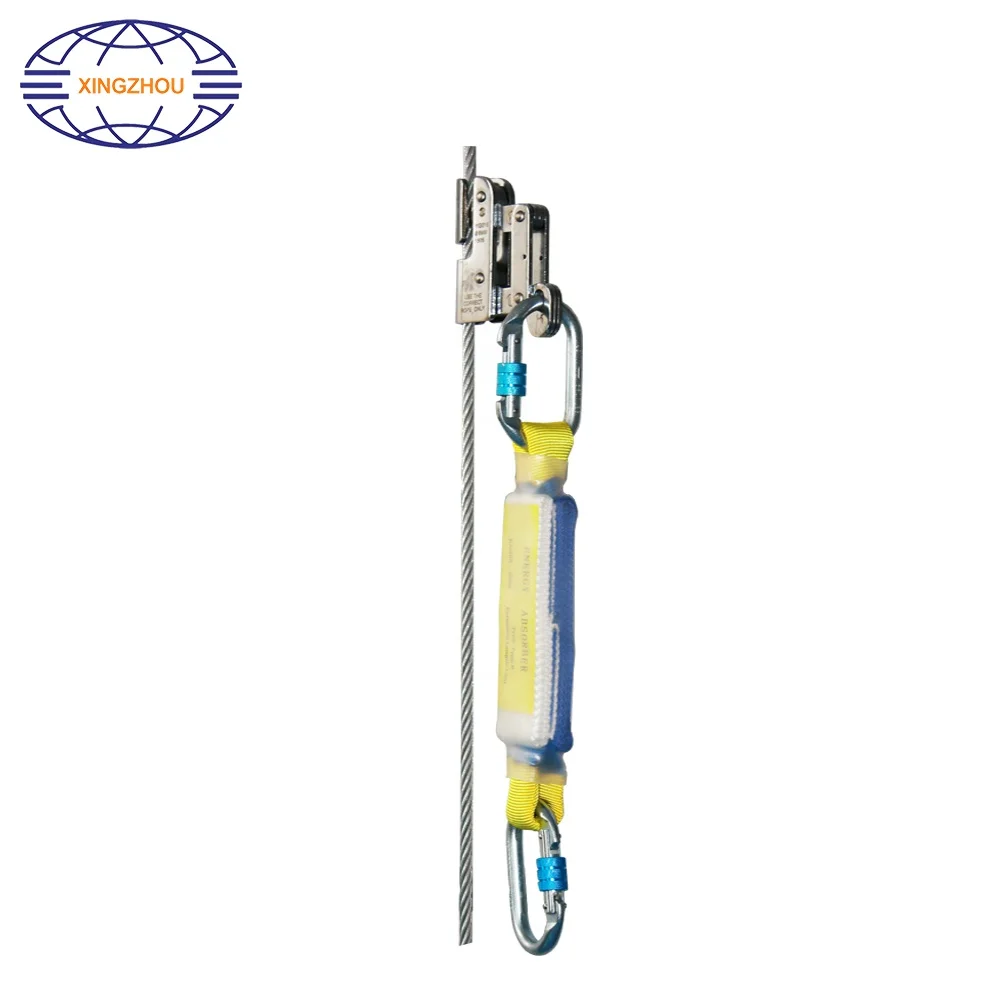

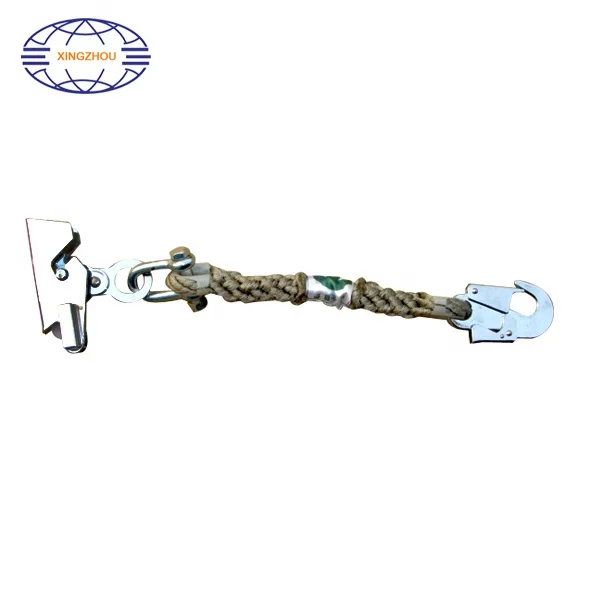

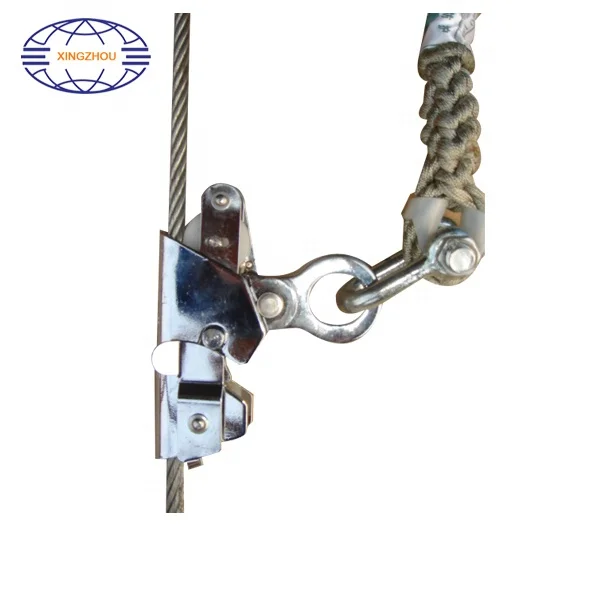

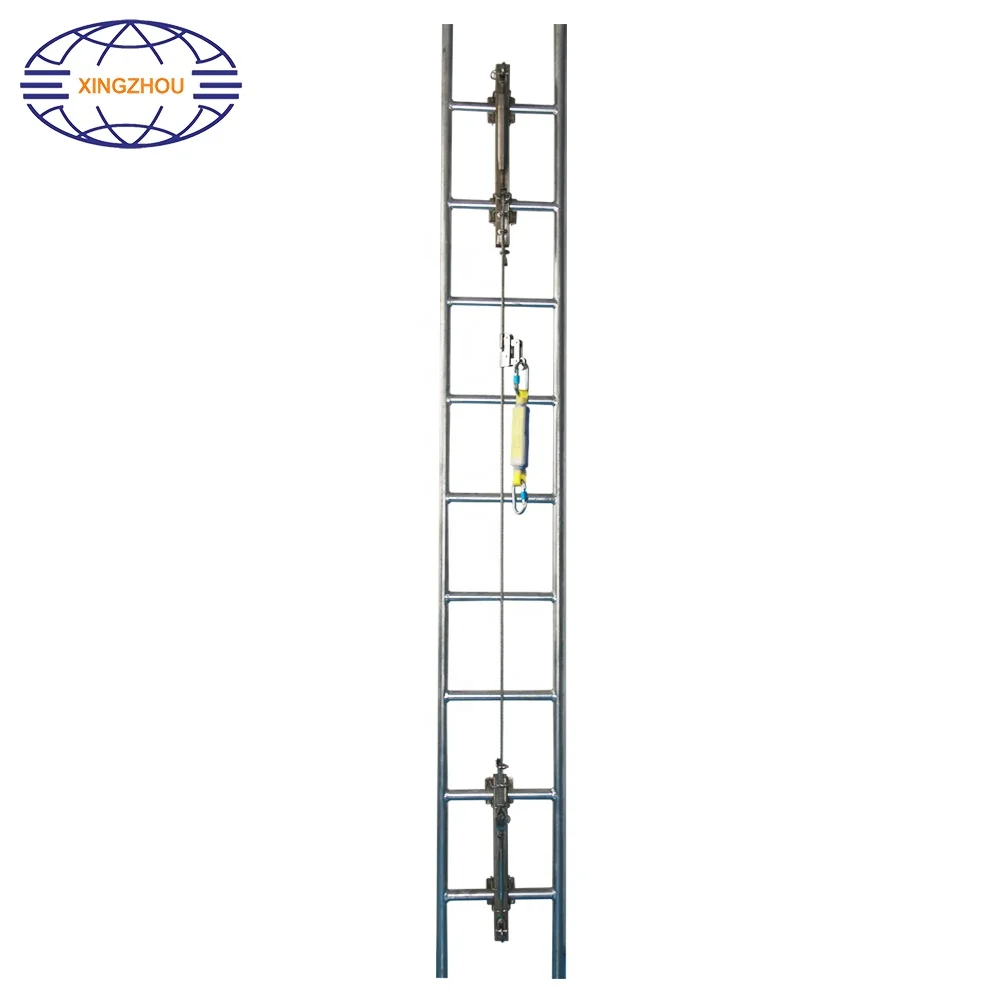

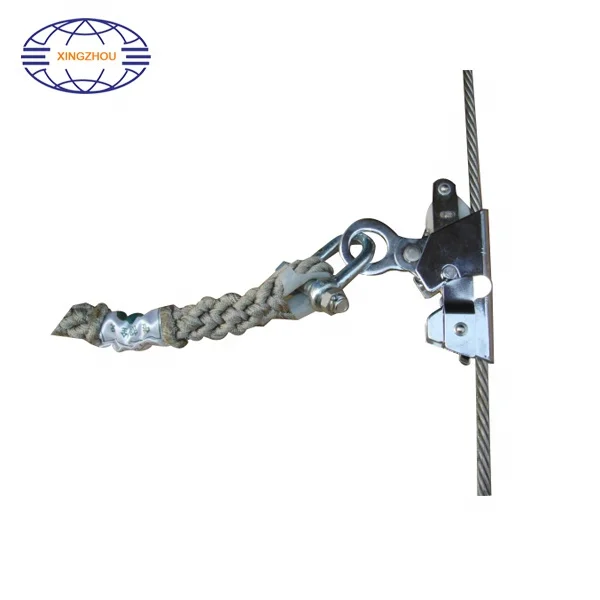

10 мм стальной трос захват

 10mm Steel Wire Rope Grab

Xingzhou” brand XZ series climbing safety self-lock device is a kind of individual anti-dropping article which is used by high position workers to climb up and down, As the 3rd generation of product of our factory, it adopts uniquely created (patent technology of our factory) downward-sliding technology and safety device of self-lock device. The device moves freely up and down along with human body below human body. Once human body drops, it can conduct automatic fast speed locking action. Open and close safety device can ensure fast speed load and unload.

The climbing fall arrester has excellent features such as advanced reasonable structure, fast speed stable locking, shorter dropping distance, small impact force, higher safety coefficient, convenient up-and-down climbing and so on. The Xingzhou climbing fall arrester can move freely in the ropes and adapt to different operation points. Self-locked hook can be clasped on to the anchor-line when a fall occurs.

Model	XZ-1	XZ-2	XZ-3	XZ-4
Min. Breaking Load	3600lbs/16KN	3600lbs/16KN	2800 lbs/13KN	2800 lbs/13KN
Applicable Main Rope	Φ14-16mm (9/16”-5/8”)  Nylon rope	Φ20mm(25⁄32”)  Nylon Rope	Φ8mm(5/16”)  Steel Wire Rope	Φ10mm(3/8”)  Steel Wire Rope
Self-Weight	428g	733g	465g	478g
Product Picture
Meet Standard	ANSI Z359.1 and EN 353-2

Although cable retractors are designed to provide years of trouble free service the type of atmosphere they are used in, or prolonged cable exposure to the sun or moisture may impact the overall service life. For example, use near chemical or paint sprays or failure to allow cable to retract when not in use will reduce the cable's life.

Immediately remove the cable retractor from service and discard if it has been used to arrest a free fall.

Immediately remove the retractor from service and inspection if the device has failed a visual inspection for any reason.

Always store in a cool dry place, always from chemical, water, direct sun light and sources of heat and vibration.

Always ensure cable section is completely retracted before storage.

It is especially important when retractors are left in place outside as components of a permanent fall protection system.
