High performance wood sawdust briquette press machine

Product Overview

Description

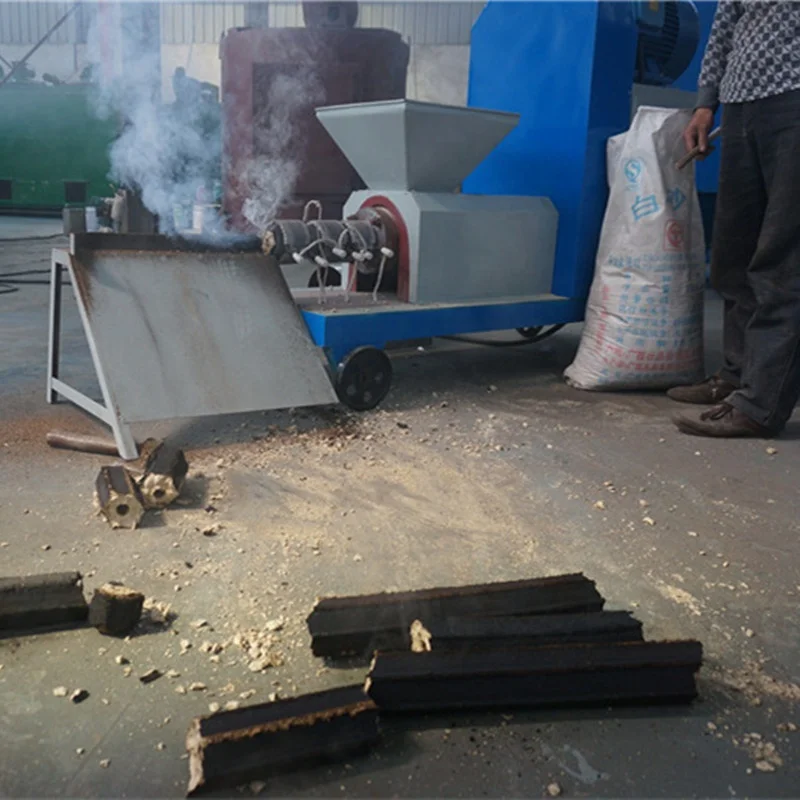

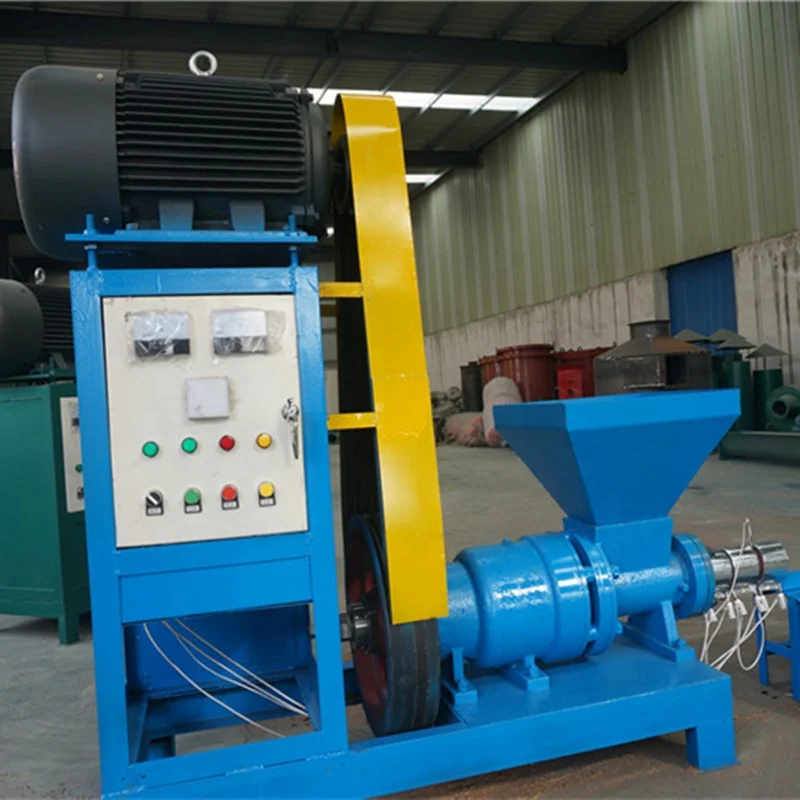

High performance wood sawdust briquette press machine

Brief instrucation of wood sawdust briquette press machine

Wood sawdust briquette press machine is enviroment friendly and energy recycling equipment, it also named wood sawdust briquette forming machine, biomass briquette equipment, rice husk briquette moling machine, the raw material could be wood sawdust, woodpowder, rice husk, raw material daimeter need less then 5mm, moisture need less than14%,

the raw material will foming shape within high pressure and high temperature, do not need any additive.







Techincal paremeter of wood sawdust briquette press machine

Model	Power	Capacity	Weight	Dimension	Note
ZBJ-1	15kw	120-200kg/h	550KG	1.68*0.72*1.25m	Briquettes size: 50mm
ZBJ-2	18.5kw	250-300kg/h	680KG	1.86*0.72*1.32m	Briquettes size: 60-70mm
ZBJ-3	22kw	350-450kg/h	750KG	1.96*0.72*1.32m	Briquettes size: 60-80mm









Raw material of wood sawdust briquette press machine

Wood sawdust briquette press machine raw material could be wood waste, wood sawdust, rice husk, bamboo ane etc, diameter need less then 5mm, moisture need less then 14%.

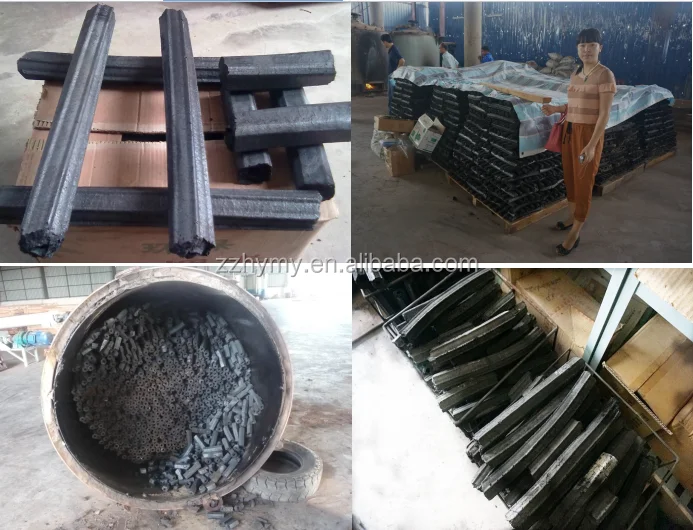

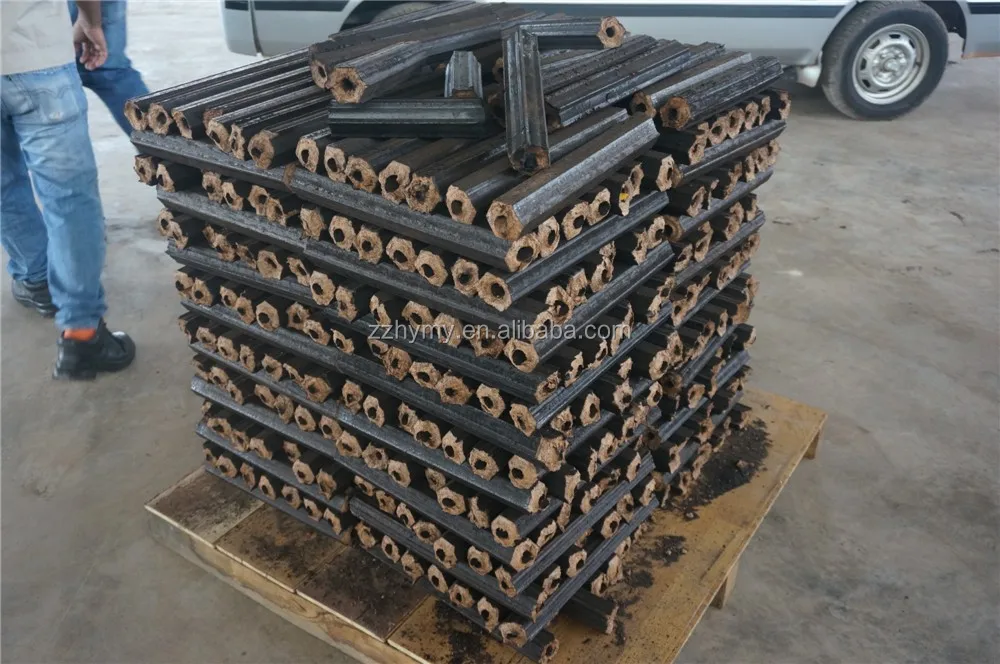

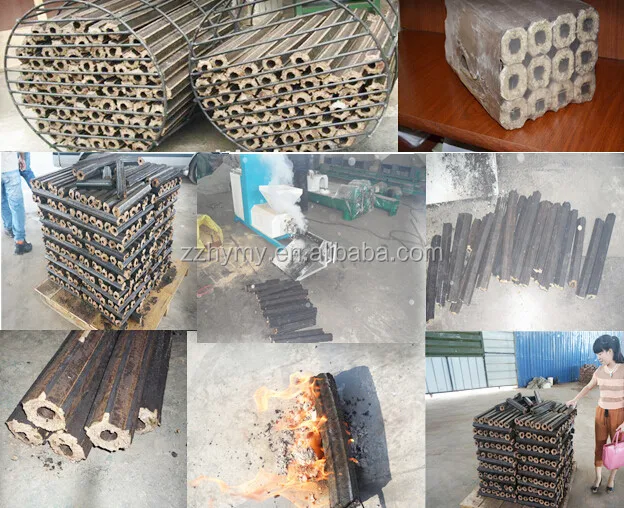

Final product of wood sawdust briquette press machine

Wood sawdust briquette press machine are widely used in biomass power plant heating

industry, boiler heat source and other industries. Final product shape could be round, square, hexagon and etc, the hexagon is most stabilize shape and is best capacity, the final product diameter have three type, 60-70mm is the most stabilize type sawdust briquette also could be the raw material of BBQ, after carbonizating, the final prodcut is charcoal briquette.

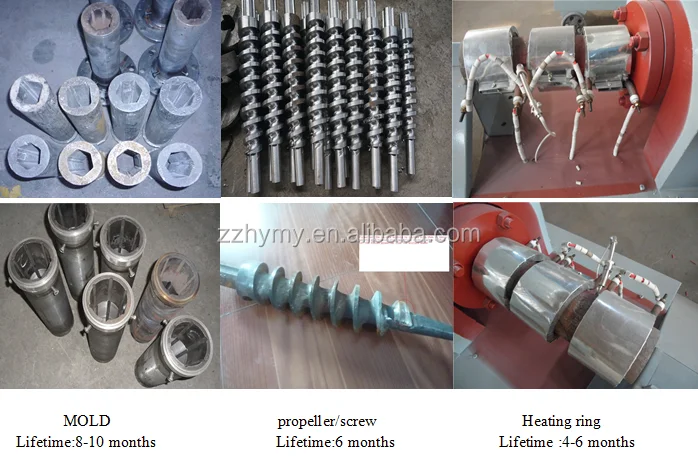

Wear parts and lifetime for wood sawdust briquette press machine

Sawdust briquette forming machine have three type wear parts

Propeller/screw life time 6 months

We often suggest that it should be repaired by welding every 7days.

Heating ring life time 4-6months

Mold life time 8-10months



Main feature of wood sawdust briquette press machine

(1)No need any binder, the final product is not easy break;

(2)Low cost, high capacity, energy saving;

(3)Good quality, convenient maintenance;

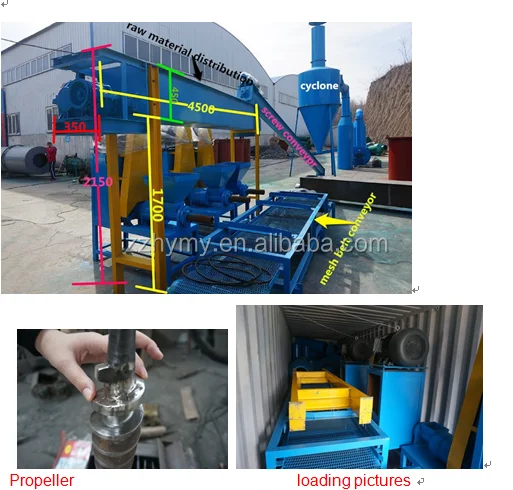

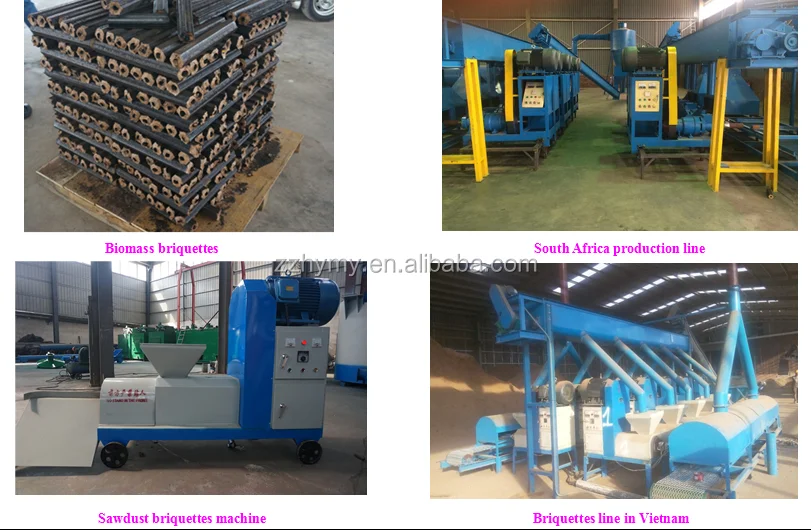

(4)Supply complete production line, high degree of automatic.

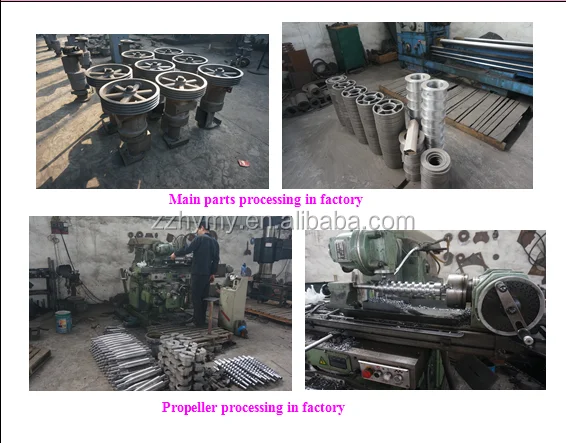

Client visited our factory for wood sawdust briquette press machine

We welcome client visit our factory, we will pick up you at airpoat or railway station, the nearest airport to our company is Zhengzhou Xinzheng international airport.



If you are interested in this wood sawdust briquette press machine, please don't hesitate to contact with me freely as the followings:
