5m PPE Anti Fall Safety Device Fall Protection Retractable Fall Arrester (60289823178)

Share on:


Price:$89.00 - $105.00
Price in USD:Details

Quantity:


Product Overview

Description



Product Description

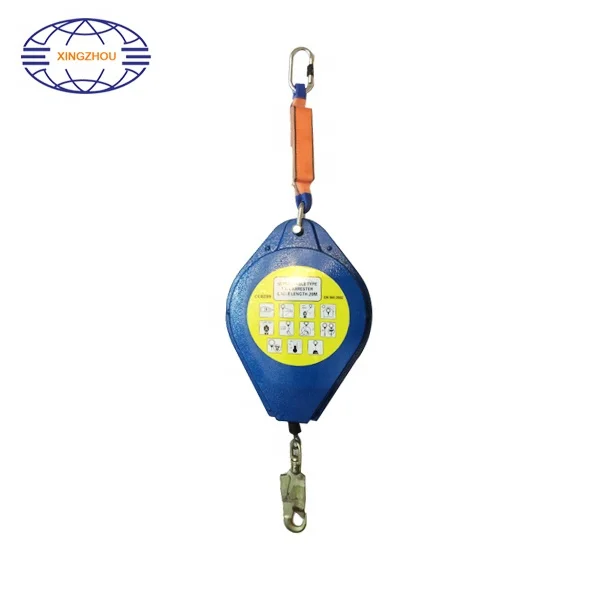

5m PPE Anti-Fall Safety Device Fall Arrester













































Item No.


GJ-5
Features

- Main Cable: Galvanized steel wire rope


- Shell Material: Aluminum alloy


- Cable Diameter: 4mm


- Max. Load 150Kg


- Self Weight: 3Kg


PerformanceLocking speed: 1.0 m/s
Compliance Standard

GB2454-2009 << TEST METHOD FOR PERSONAL FALL PROTECTION SYSTEMS>>


MOQ1 unit
Warranty1 Year
PaymentL/C, T/T, Western Union
Packing DetailsIron Pack
Diagrammatic Drawing1.jpg



-2





The GJ Series Retractable Fall Arrester is designed to restrain the person from vertical falls while allowing them freedom of movement. It also can be called fall arrester. The retracting feature eliminates tripping hazards while the inertia-locking mechanism arrests a fall within inches of activation.





The retractor connects to the fixed sling of the person which is parallel to the hook of the crane and must be attached to an approved point which can be endured 23KN.





Fall Arrester is made of sealed aluminum Jacket or Plastic shell, automatically controlled by the changed speed. It is an innovative engineering solution to arrest falls by two-disc anti-ratchet braking system.falarressystem is a personafalprotectiosystethaarrests a frefalanwhich limitthimpactforce on thbody of the user or goods during fall arrest.





In the event of a fall, the retractor will lock and suspend the person until either self-rescue or outside assistance becomes available.





                                                    Fall Arrester













































































































Model



Maxi Load (Kg)



A



B



C



Cable Length (mm)



Cable Diameter (mm)



Weight (Kg)



GJ5



150



250



170



70



5



4



3



GJ7



150



260



175



80



7



4



4



GJ10



150



290



200



90



          10



4



6



GJ15



150



320



225



95



15



4



8



GJ20



150



420



300



100



20



4



13



GJ25



150



420



300



100



25



4



14



GJ30



150



370



110



30



30



4



18



GJ35



150



370



110



35



35



4



19



GJ40



150



370



110



40



40



4



20























Product Uses





_03_


 Although cable retractors are designed to provide years of trouble free service the type of atmosphere they are used in, or prolonged cable exposure to the sun or moisture may impact the overall service life. For example, use near chemical or paint sprays or failure to allow cable to retract when not in use will reduce the cable's life.





Immediately remove the cable retractor from service and discard if it has been used to arrest a free fall.





Immediately remove the retractor from service and inspection if the device has failed a visual inspection for any reason.





Always store in a cool dry place, always from chemical, water, direct sun light and sources of heat and vibration.





Always ensure cable section is completely retracted before storage.





It is especially important when retractors are left in place outside as components of a permanent fall protection system.
