Easy to operate palm kernel shell briquette press machine

Product Overview

Description

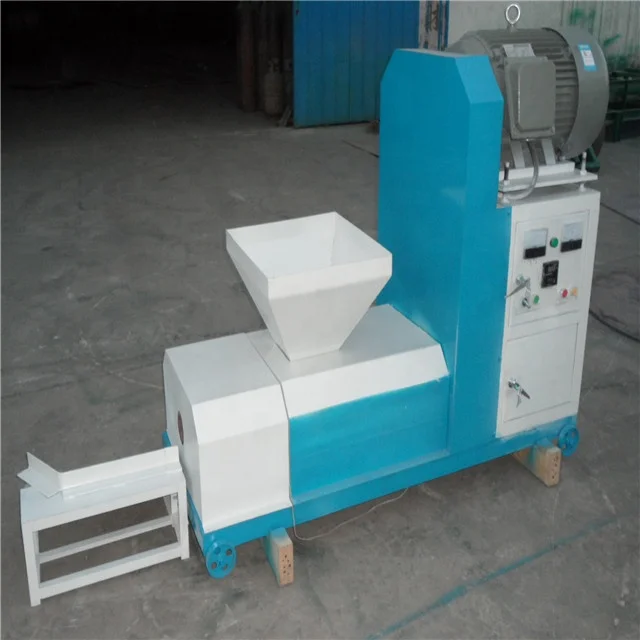

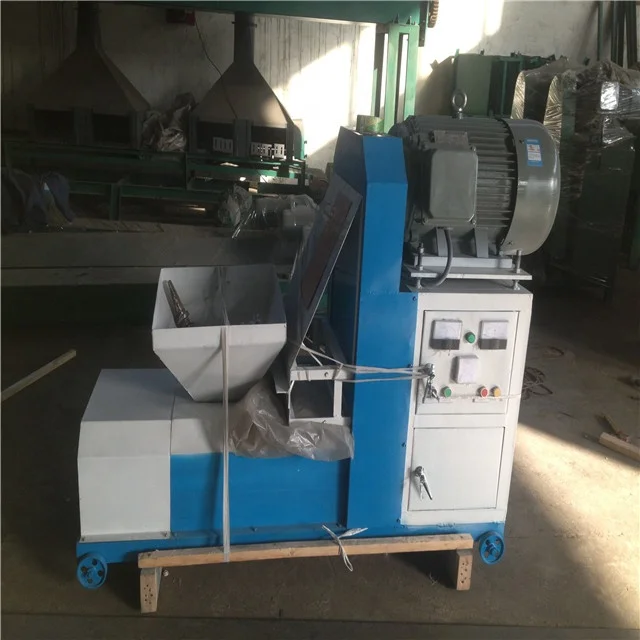

palm kernel shell briquette press machine



Introduction of palm kernel shell briquette press machine



palm kernel shell briquette press is one kind of ultimate green energy source of renewable energy to making briquettes with a hole under the high pressure and temperature without

binder and with different shapes,such as hexagon,square and round,etc. It's also called sawdust/wood briquette machine,rice husk briquette machine.





Technical parameter of palm kernel shell briquette press machine



Model	ZBJ-1	ZBJ-2	ZBJ-3
Powder	15KW	18.5KW	22KW
Capacity	120-200kg/h	250-300kg/h	350-450kg/h
Weight	550KG	680KG	750KG
Dimension	1.68*0.72*1.25	1.86*0.72*1.32	1.96*0.72*1.32
Note	Briquette size:50mm	Briquette size:60-70mm	Briquette size:60-80mm
Final shape	circle,square,hexagon	circle,square,hexagon	circle,square,hexagon



Main features of palm kernel shell briquette press machine

(1) No need any binder

(2) Non-conventional source of energy,we can use it take place of fuel wood or coal.

(3) Renewable in nature

(4) Eco-friendly, non-polluting and economical

(5) Supply complete production line



Raw material of palm kernel shell briquette press machine



Many kinds of agro-waste,agro-forestry and biomass could be raw material,such as sawdust,

rice husk,wood waste,bamboo,straw,coffee husk,sugar cane bagasse,shrub branch,corn stalk,

soybean straw,sorghum stalk,rape stalk,peanut seedling and so on.But if the raw material moisture more than 12% and the size more than 6mm,the buyer should use crusher and dryer.



Final products of palm kernel shell briquette press machine



The final product could be different shapes briquettes by using different molds and briquettes

could be charcoal by using carbonization furnace.The briquettes length could 30-40cm. And according to the users' requirements,the shape could be hexagonal,round and square.



From briquettes to charcoal





Spare parts of palm kernel shell briquette press machine

Mold lifetime is 8-10months,propeller lifetime is 6 months,heating ring lifetime is 4-6months.

Mold is used to make briquettes with different diameter and shape.

Propeller is used to put the raw material into the mold.

Heating ring is used to heating mold and make it hot.





Packing and shipping for palm kernel shell briquette press machine



Packing:wooden case for palm kernel shell briquette press machine

Shipping:we can also use CIF terms.

Our service for palm kernel shell briquette press machine



Welcome to our factory for visiting,we will pick up from the nearest airport.

Before deliver the goods to you,we will test machine in best working.

About after-sale service,we could send the engineer to your country for installing and training,

we will try our best to provide service for you.



Company information





GongYi HengYuan Industry Co., Ltd is located in GongYi, ZhengZhou, HeNan Province—China







FAQ



Q:What’s the requirement of the raw material for palm kernel shell briquette press machine?

A:Almost all the wood waste can be used ,such as sawdust ,wood chips,tree branches ,rice husk and so on ,but the size should less than 5mm.

If the material cannot achieve the requirement ,it should be crush first ,and the moisture of the

raw material is about 8-12%

Final size should be less than 6mm





Q:How about the MOQ?



A:We are very glad to provide 1 set machine for you,we will also give you the best service,best quality and competitive price.





Q:Can we provide the production line?



A:Yes,we can.We could give you the suitable production line according to your requirements.





This is Demi.Any questions welcome to contact me at any time if you are interested in this palm kernel shell briquette press machine machine.
