  • European Standard Double Girder Overhead Crane With Trolley Hoist and Open Winch Hoist
European Standard Double Girder Overhead Crane With Trolley Hoist and Open Winch Hoist
European Standard Double Girder Overhead Crane With Trolley Hoist and Open Winch Hoist
European Standard Double Girder Overhead Crane With Trolley Hoist and Open Winch Hoist
European Standard Double Girder Overhead Crane With Trolley Hoist and Open Winch Hoist
European Standard Double Girder Overhead Crane With Trolley Hoist and Open Winch Hoist
European Standard Double Girder Overhead Crane With Trolley Hoist and Open Winch Hoist
European Standard Double Girder Overhead Crane With Trolley Hoist and Open Winch Hoist

European Standard Double Girder Overhead Crane With Trolley Hoist and Open Winch Hoist

Share on (60289945932):


Price:$27,900.00 - $28,000.00

Quantity:


Product Overview

Description






Product Description

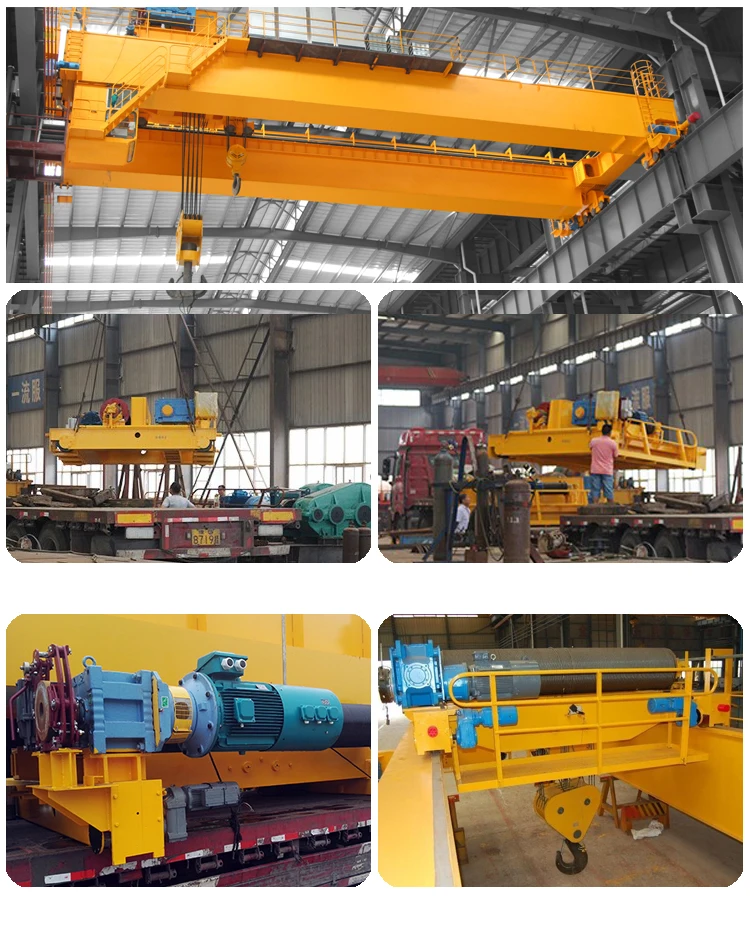

HTB14v2
































1. Compact Gear Motor


2. Limit Switch


  • Smooth traveling and lifting work,

  • Low Dead Weight

  • Low Noise

  • German Quality, Safety and Durable




  • Safe Limit Switch for Lifting and Traveling

  • Incase of load crash the top of lift mechanism

  • Incase of trolley or Crane crash to the end of track.

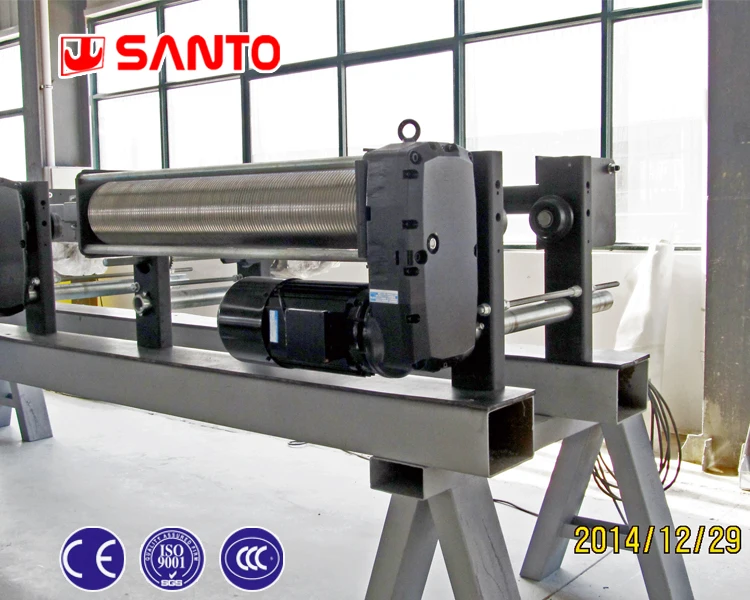

3. Small and high strength Wheel4. Aviation Revos


  • Small euro-type wheel help lowen the whole dead weight of the overhead crane

  • Advanced Wheel shape design lower the noise and make the traveling more smoothly




  • With this Aviational Revos, the Electrical box has a higher protect class, Safety and Reliable





5. Hook


  • DIN standard hook with block

  • High strength and with cover, Beautiful and pratical

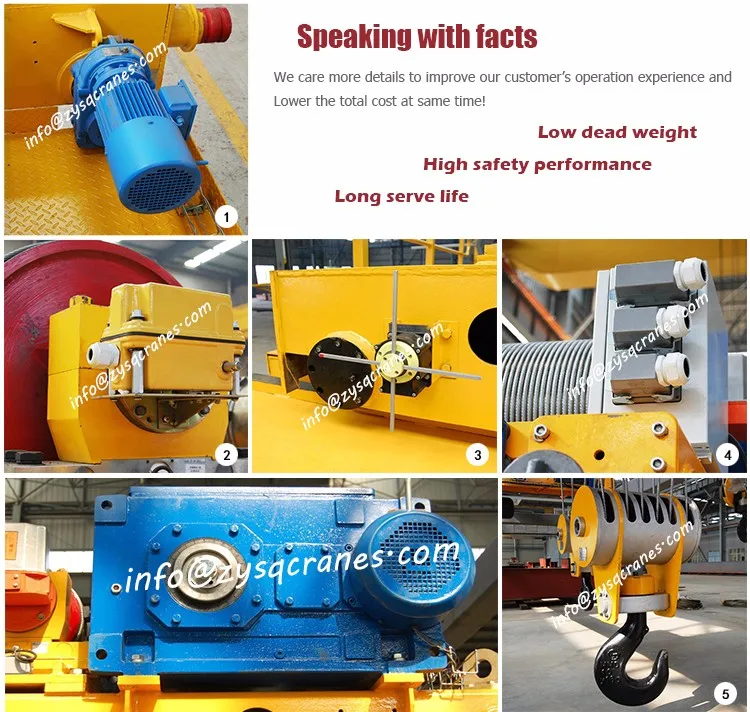

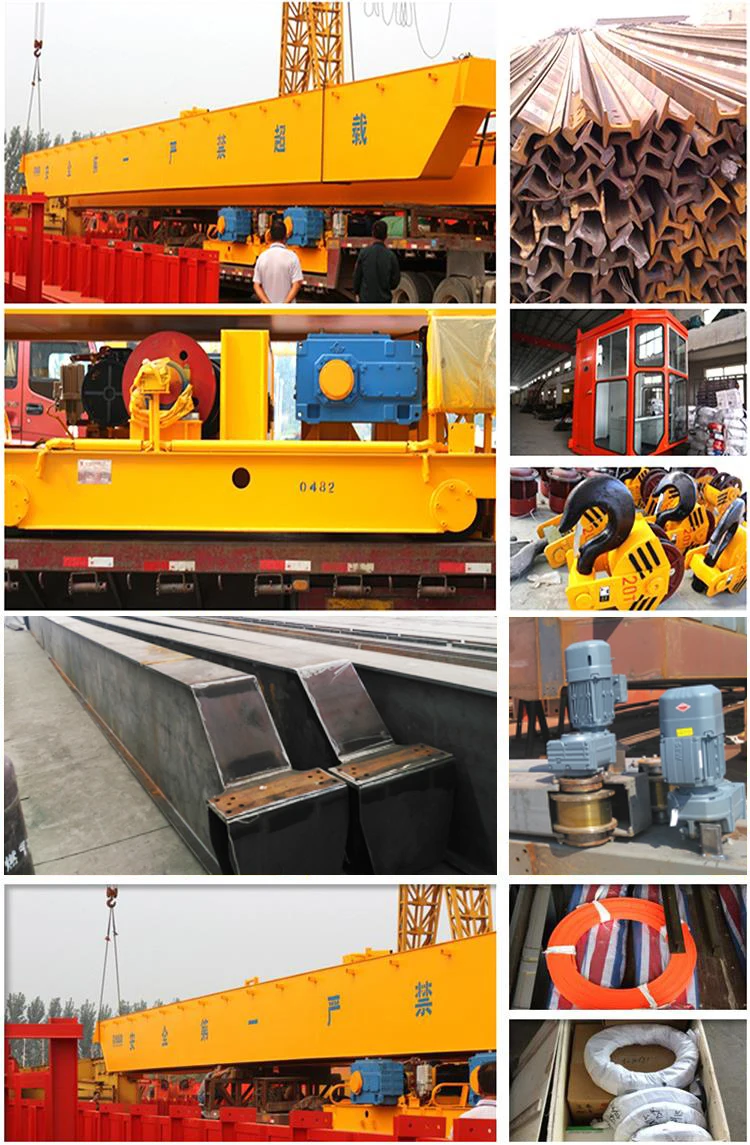

The details pictures showing

Traditional Chinese type overhead Crane Design


Strong and durable steel material adapted make the whole crane more safety.


Cheaper price while the quality from us are top of line, because we are professional.










Trolley

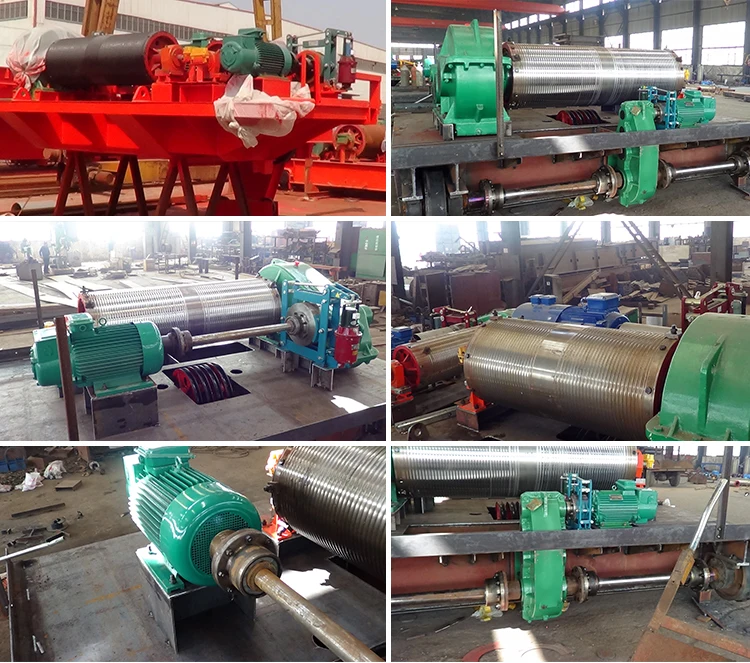

(3)

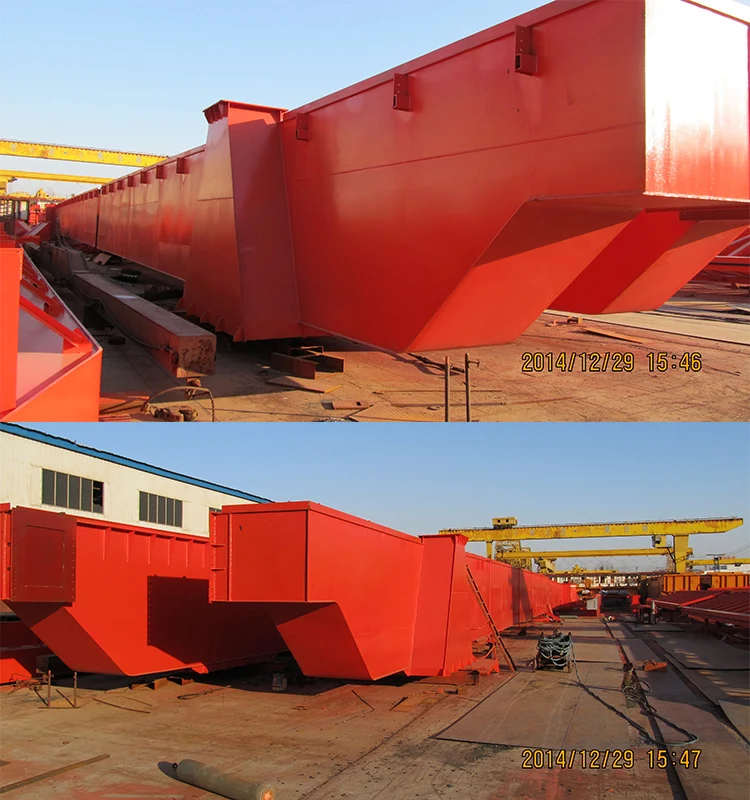

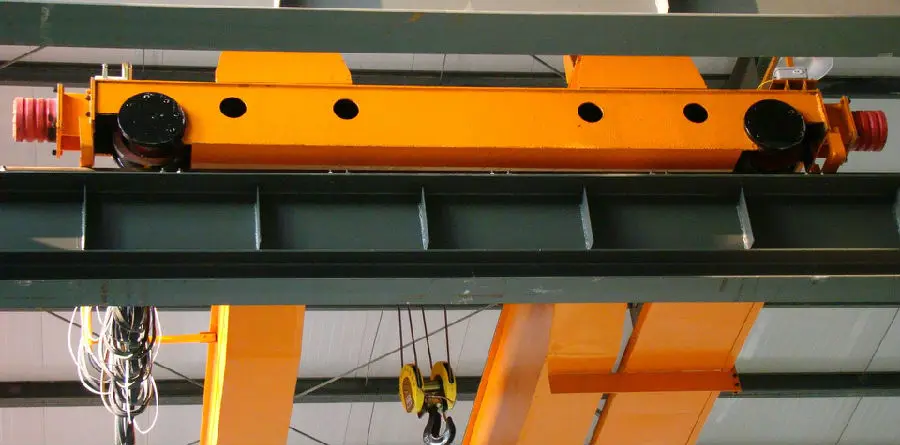

Main Beam

MG- +



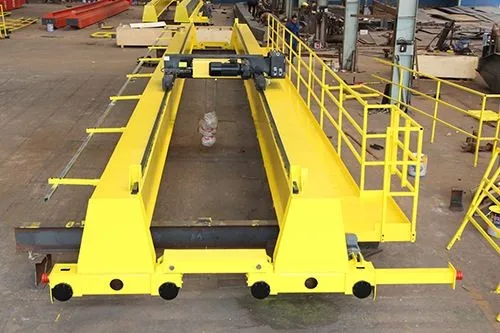

Euro-style double girder overhead crane


Compact design especially for low clearance workshop. Light deadweight help lower the total cost for construction.


Meanwhile, the price is also more affortable than other supplier.

















Cranes


__

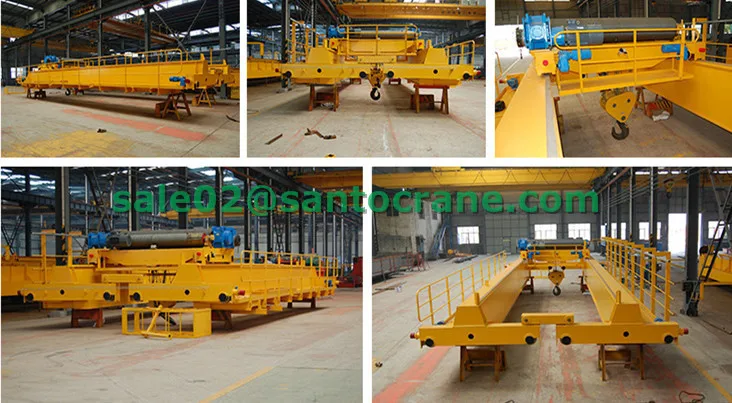

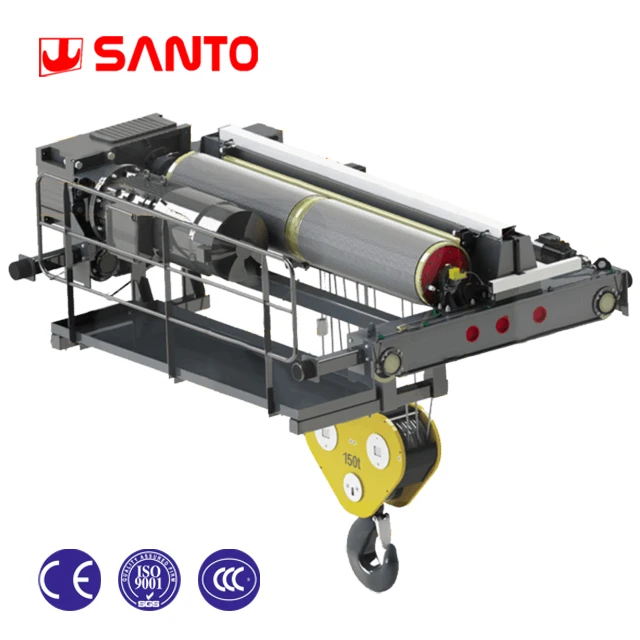

Trolley Showing

HTB1wELxGFXXXXXoaXXXq6xXFXXXZ







Design Standard
















The design and manufacture follow the GB/JB standard

GB/T 3811-2008


GB6067.1-2010


GB/T14405-2011


GB/T104406-2011


GB/T10183-2005


GB/T5905-1986


JB/T4315-1997


Gb8918-2006


GB/T700-2006


GB/T1591-2008


Jb928-1994


GB11345-1989




Design rules for cranes


Crane machinery safety procedures


General overhead crane


General gantry cranes


Tolerance of Overhead crane and gantry crane manufacuturing and rails installation


Crane testing rules and process


Crane Electrical control equipment


Wire rope for cranes


Carbon structural steel


Low-Alloy High-Tensile Structural Steel


The standard of Radiographic inspection for weld joint


Manual ultrasonic testing method

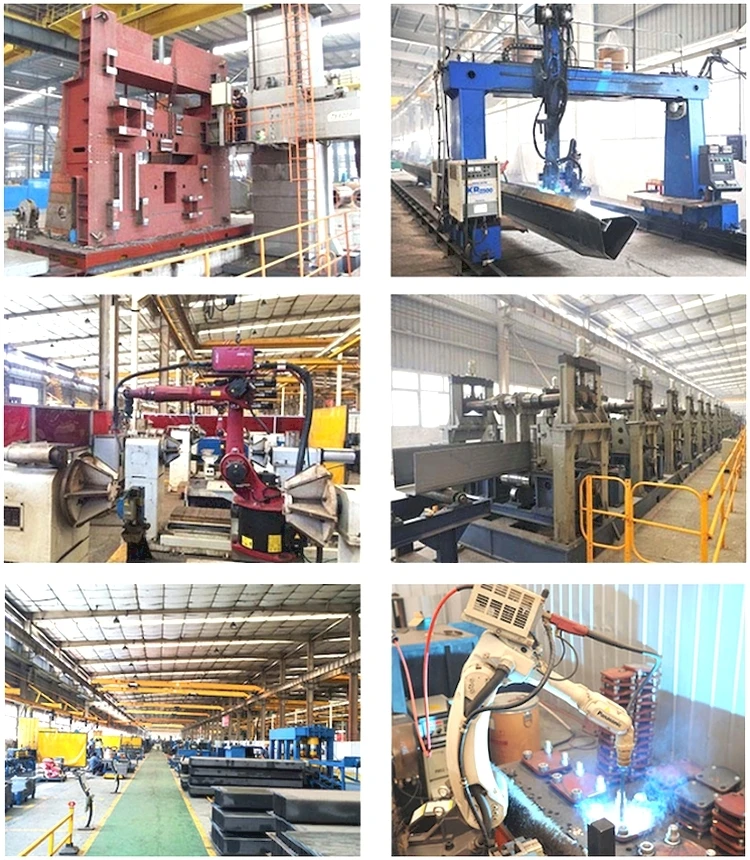

Advanced equipment and produce technology

We own the World advanced level manufacture euipment and produce technology. We pay every attention on strictly controling the crane quality and improving the service. We do all is to help our customer to have a strong business.

e147904e0c-4

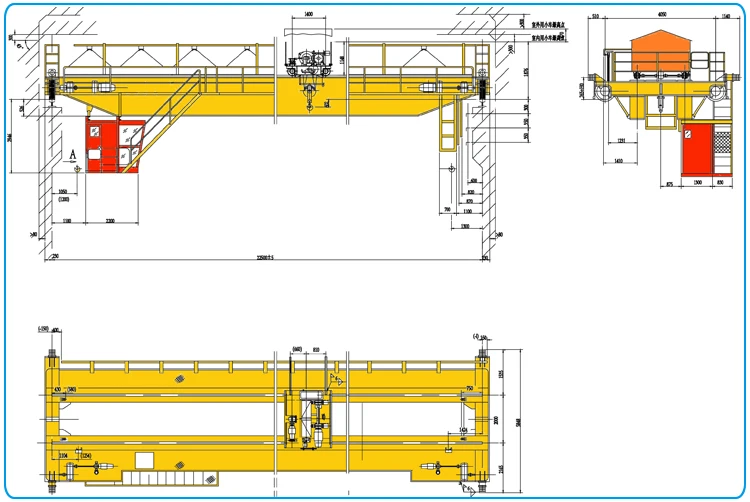

Sketch & Parameters

QD-sketch-














































































































































































































QSWL Gn rated lifting capacityt32/10 (we can supply up to 550 ton)
Opertional methodm/minRemote or Pendant control/Cabin Control
SpeedMain.hook lifting3(0.3/3)
Aux.hook lifting7(7/0.7)
Cross travelling20
Long travellingRemote or Pendant control20/30
Cabin Control30/40
MotorMain.hook liftingkwZDX62-6/18.5,(ZDS2.2/18.5)
Aux.hook liftingZD151-4/13(ZDS1-1.5/13)
Cross travellingZDY123-4/2.2x2
Long travellingRemote or Pendant controlZDY123-4/2.2x2ZDY131-4/3x2
Cabin ControlZDR112L2-4/3.0x2ZDR125-4/4.6x2
Electric Hoist WH164;CD1(MD1)
Lifting Heightm9;12;16;24
Duty Class A3--A5
Power source 3-phase A.C. 50Hz;380V
Track recommended 43KG/M
Spanm7.510.513.516.519.522.525.5
Max.wheel presureKN167184196206215224233
Crane weightRemote or Pendant controlkg12530146601636018870216502426027060
Cabin Controlkg13430155601726019770225502516027960
Basic dimensionsBmm5070--59605572--6222
Wmm3600~4500
Wcmm2200-2900
Kmm1600~2500
Hmm1900
H1mm765
H2mm170270370470570670770
H3mm2395249525952695279528952995
H4mm-700
bmm230
S1mm1100
S2mm1600

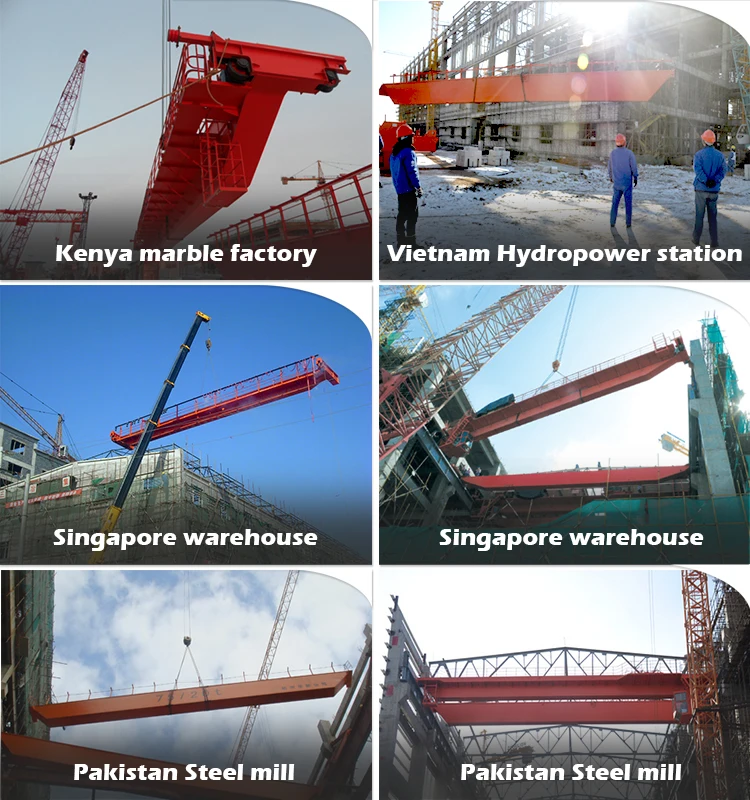

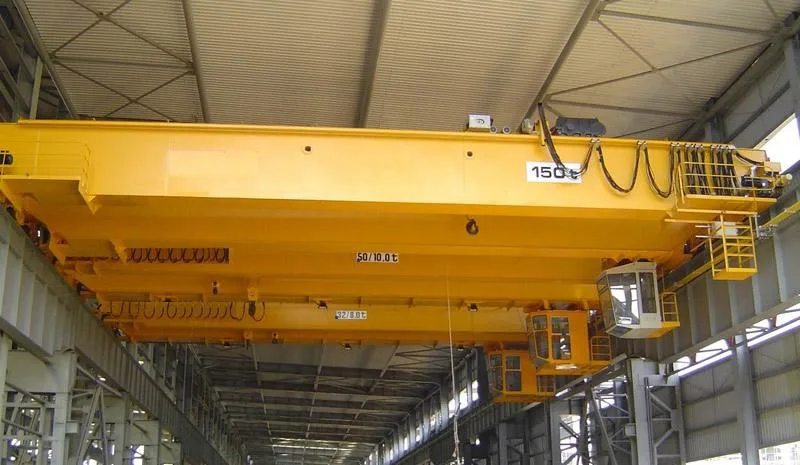

Installation















Spare parts we purchases

We have a very strictly purchase part selection system. We do all is to help improve our customers experience of our Crane














































No.



Items



COOPERATE Manufacturers



1



Motor



Sino-US KDS Motor Factory
Nanjing Special Motor Factory
Wuxi XINDALI Motor Factory
ABB-China
SEW(Gearmotor)-German



2



Gear Box



SEW-German
Jiangsu Tailong Reducer Factory
Jiangsu Taixing Reducer Factory
Shanghai TGS Transmission Equipment Co., Ltd.
GUOTAI



3



Wire Rope



Italy Redaelli S.p.A.
Nantong Wire Rope Factory



4



Electrical



CHINT
Schneider
SIMENS



5



Converter



Yaskawa Electric (China) Co., Ltd.
Mitsubishi
Schneider
ABB-China



6



Controller



Lee's Hi-Tech Enterprise Co.,LTD.
HBC-German
Jay-Electronique



7.



Shaft



China: HRB/LYC/ZWZ
SKF/FAG/NTN/IKO/KOYO/NACHI/TIMKEN




HTB1rC3pSFXXXXa9X-750






Company Information

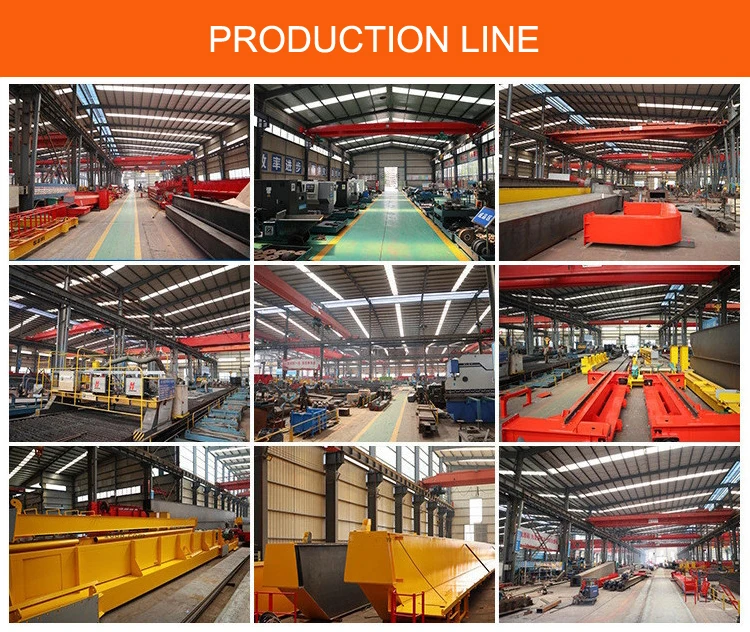

1Crane manufacturing workshop














Customer Visiting

customer visit 2















The Shipping

20180222-santo






Free inquiry





In order to make a very quick offer and saving your waiting time, It's better to fill the information below. Copy and send us the information together with the enquiry.


HTB1ICjkHXXXXXXCXpXXq6xXFXXXh






























































































Load Capacity, ton:(_______)
Span, S, m:(_______)
Lift Height, H, m:(_______)
Voltage:(_______)
Duty Class:(_______)
? Hours per day:(_______)
Control way:(_______)
Lift Speed:(_______)
Cross & Long travel speed:(_______)
Rail supply needed(_______)
Power supply system needed(_______)
Your nearest port:(_______)

{Tips: 5 ton, 10 ton, 16 ton, 20 ton, 30 ton, 40 ton, 50 ton up to 550 ton}
{Tips: 6m ~40m}

{Tips: 380V, 50Hz, AC, 3-phase or please note}
{Tips: A5, A3, If you don't know, please fill the follow}

{Tips: Remote control, cabin control or pendent control }
{Tips: Single speed, double speed, or stepless speed}
{Tips: Single speed or stepless speed}
{Tips: If yes, please note the Long travel length}
{Tips: If yes, please note the Long travel length}
{Tips: We quote CIF price need the port. FOB price please note FOB}

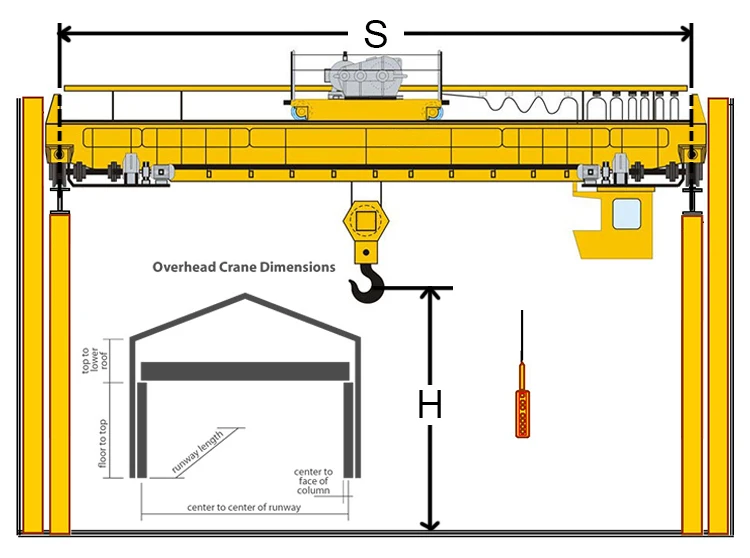

 If your workshop roof is very low, Its better to send us a drawing, a sketch or show us datas and then our Engineer can work out a full suitable solution just for yours.


Looking forward your kindly inquiry and hope to help your strong business in near future!
