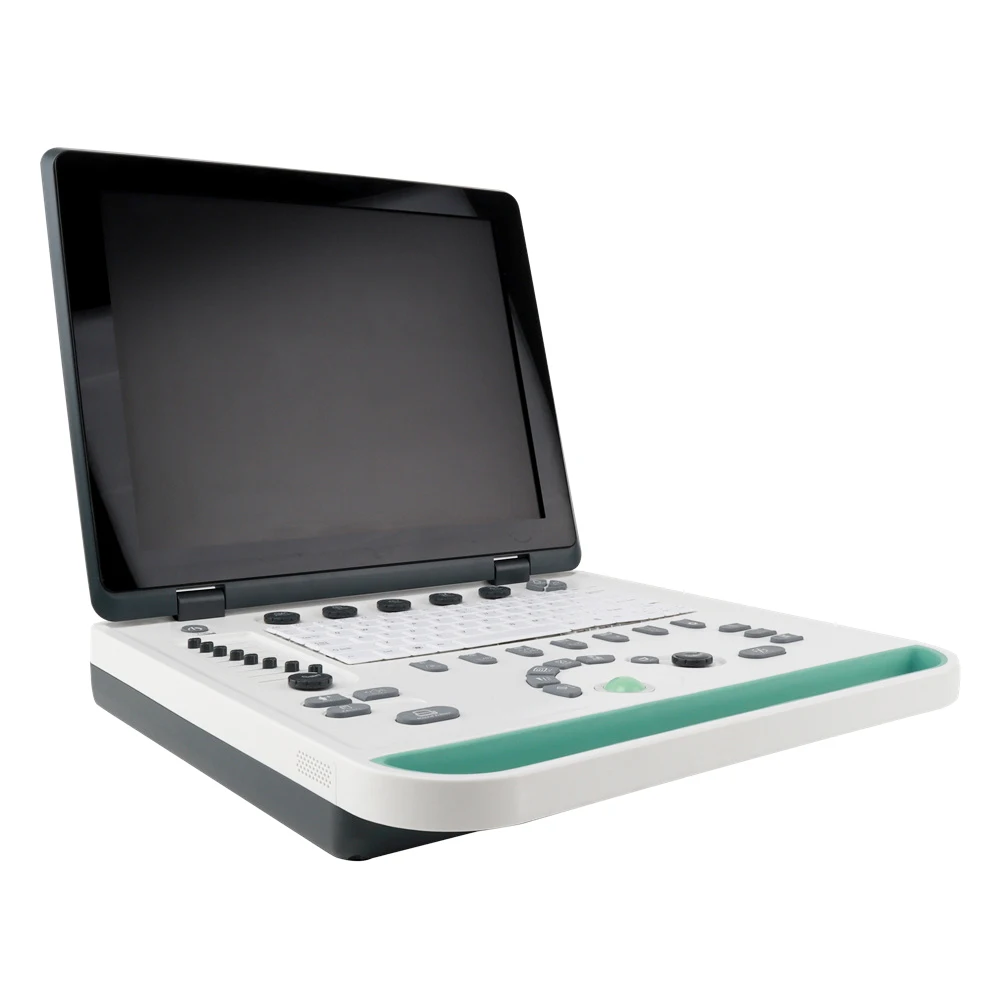

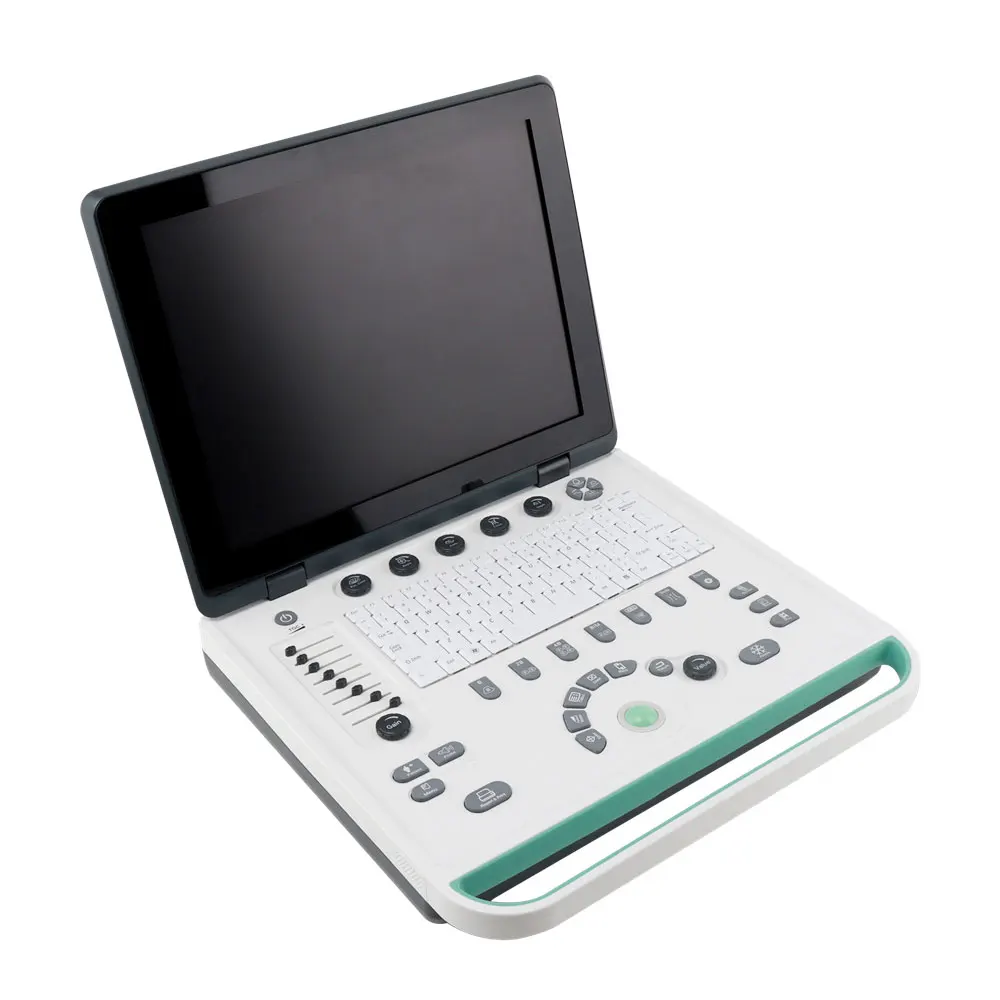

HV-7 Laptop Veterinary B/W Ultrasound Machine
Features
• 15 inch LCD screen
• Full digital imaging technology, crystal-clear Image
• Pretty and light
• 8 segment TGC
• Broadband multi-frequency probes
• 2 probe connector

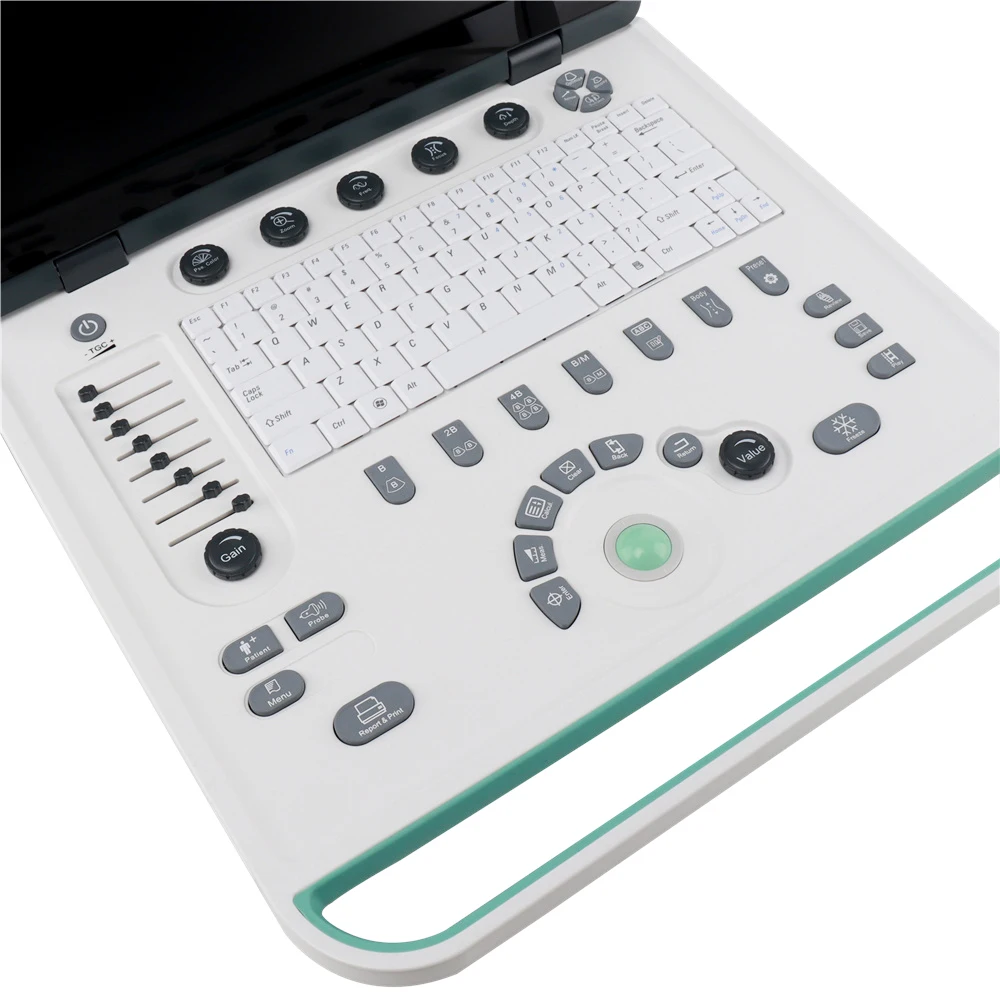

• Silica gel backlight gravure laser keyboard
• USB flash disk large volume image storage
• Cine loop
• Built-in battery(can work more than 5 hours)
• High Cost-effective
• 15 inch LCD screen
• Full digital imaging technology, crystal-clear Image
• Pretty and light
• 8 segment TGC
• Broadband multi-frequency probes
• 2 probe connector
• Silica gel backlight gravure laser keyboard
• USB flash disk large volume image storage
• Cine loop
• Built-in battery(can work more than 5 hours)
• High Cost-effective
Technical Specifications
Display size | 15 inch LCD screen |
Working frequency | 2.0MHz~10MHz |

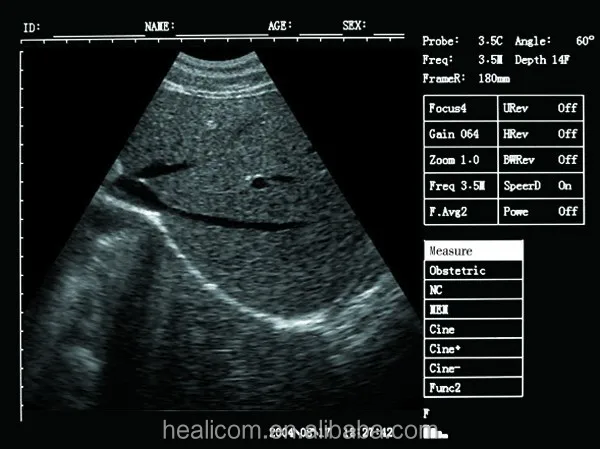

Display mode | B, B+B, B+M, M, 4B |
Scanning range | Convex array 60°~150° |
Amplification factor | 1.0, 1.2, 1.5,2.0 |
Gain control | 8 segments TGC and overall gain can be adjusted respectively |
Image processing | 8 γ corrections, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc |
Image gray-scale | 256 levels |
Scanning line number | 512 lines/frame |
Frame rate | 30 frames/second |
Digital scanning conversion | 512×512×8 bits |
Memory | USB flash disk large volume image storage |
Conventional measurements | distance, perimeter, area, volume |
Obstetric measurement | gestational weeks (BPD, GS, CRL, FL, HL, OFD, TTD, AC), expected date of confinement and fetus weight, etc. |
Report function | auto make report |
Built-in battery capacity | can work more than 5 hours |
Output interface | USB port, video. |
Overall size | 362mm×340mm×60mm |
Total weight | 4Kg(with battery) |
Standard configuration

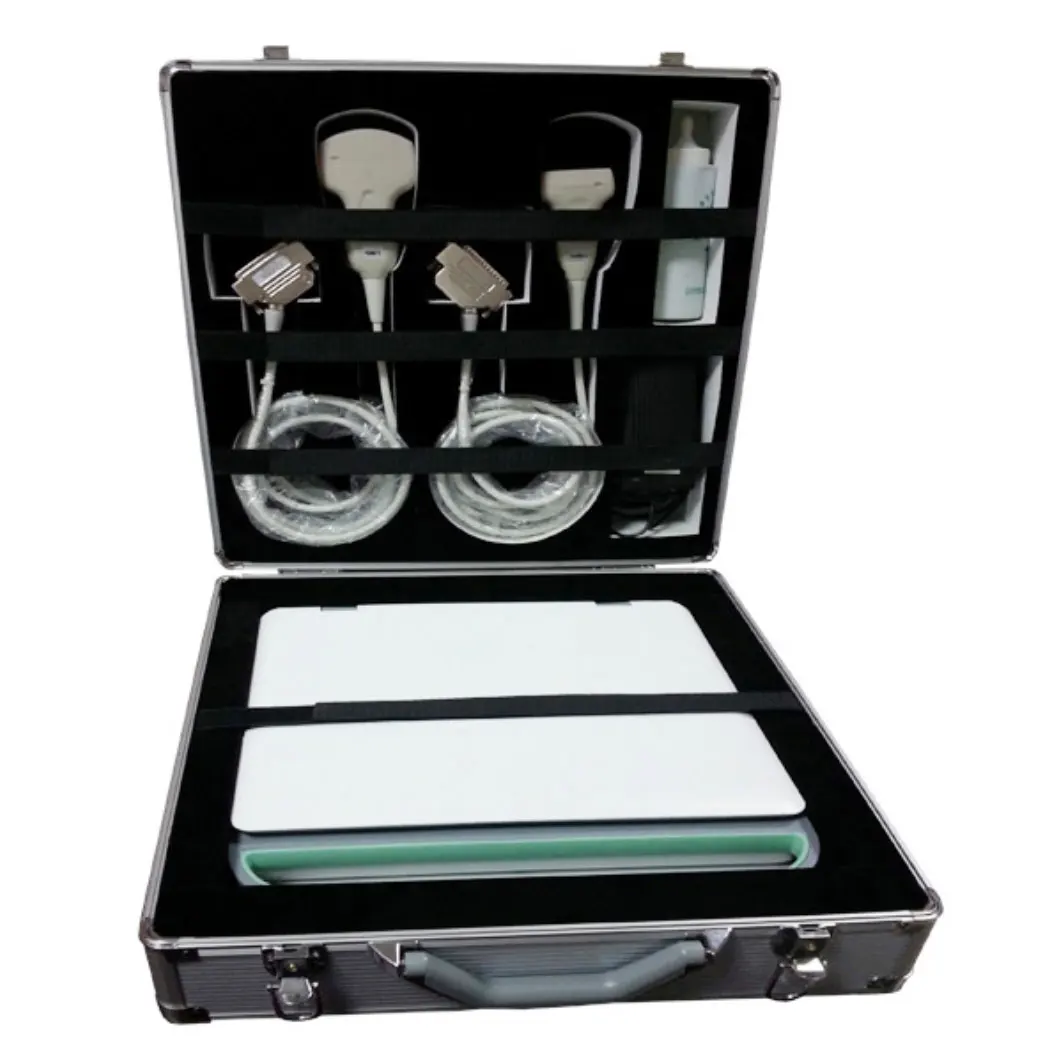

One host, one convex probe, one aluminum trunk
Optional
Linear, Rectal, Backfat probe;
Biopsy

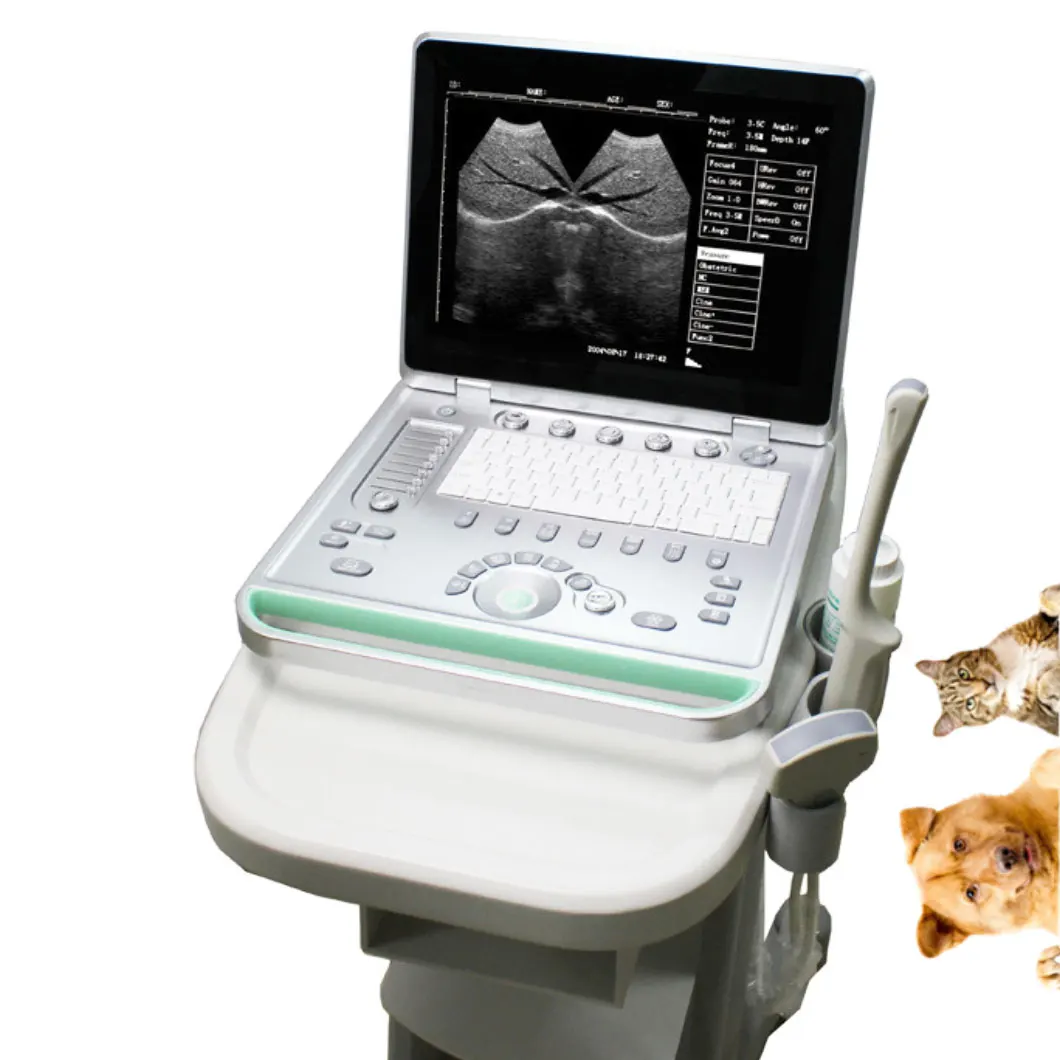

Trolley
Printer
Optional
Linear, Rectal, Backfat probe;
Biopsy
Trolley
Printer
