Factory sale Complete Set Of Polyester Fiber Production Line

Product Overview

Description



Complete Set Of Polyester Fiber Production Line can be used the recycled PET flakes and virgin chips to produce the polyester staple fiber; it is a flexible production line. It can produce solid polyester staple fiber (PSF) and 3-dimensional conjugated fiber (HCF) (including dope dyed fiber), the specification from 1.5D to 20D. The capacity can be from 3000MT/year to 30,000MT/year.

Our machines had been exported to India, Turkey, Korea, USA, Honduras, Thailand, Vietnam, Iran, Philippine and so on totally more than 140 product lines.

We warmly welcome your coming to our company. We hope we have the opportunity to do business with you.

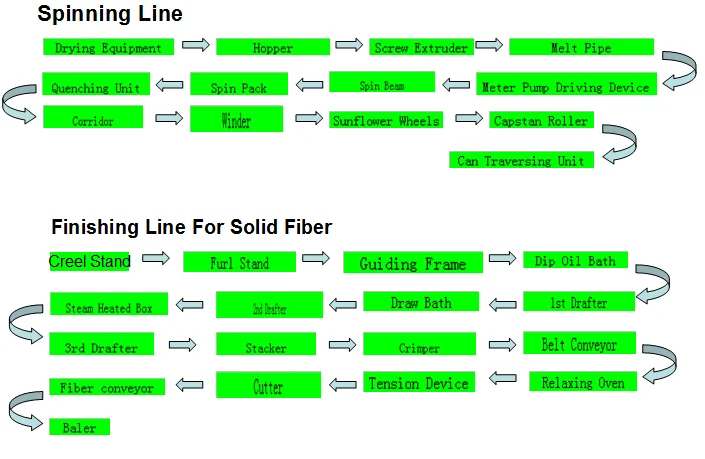

Process flow of the production line

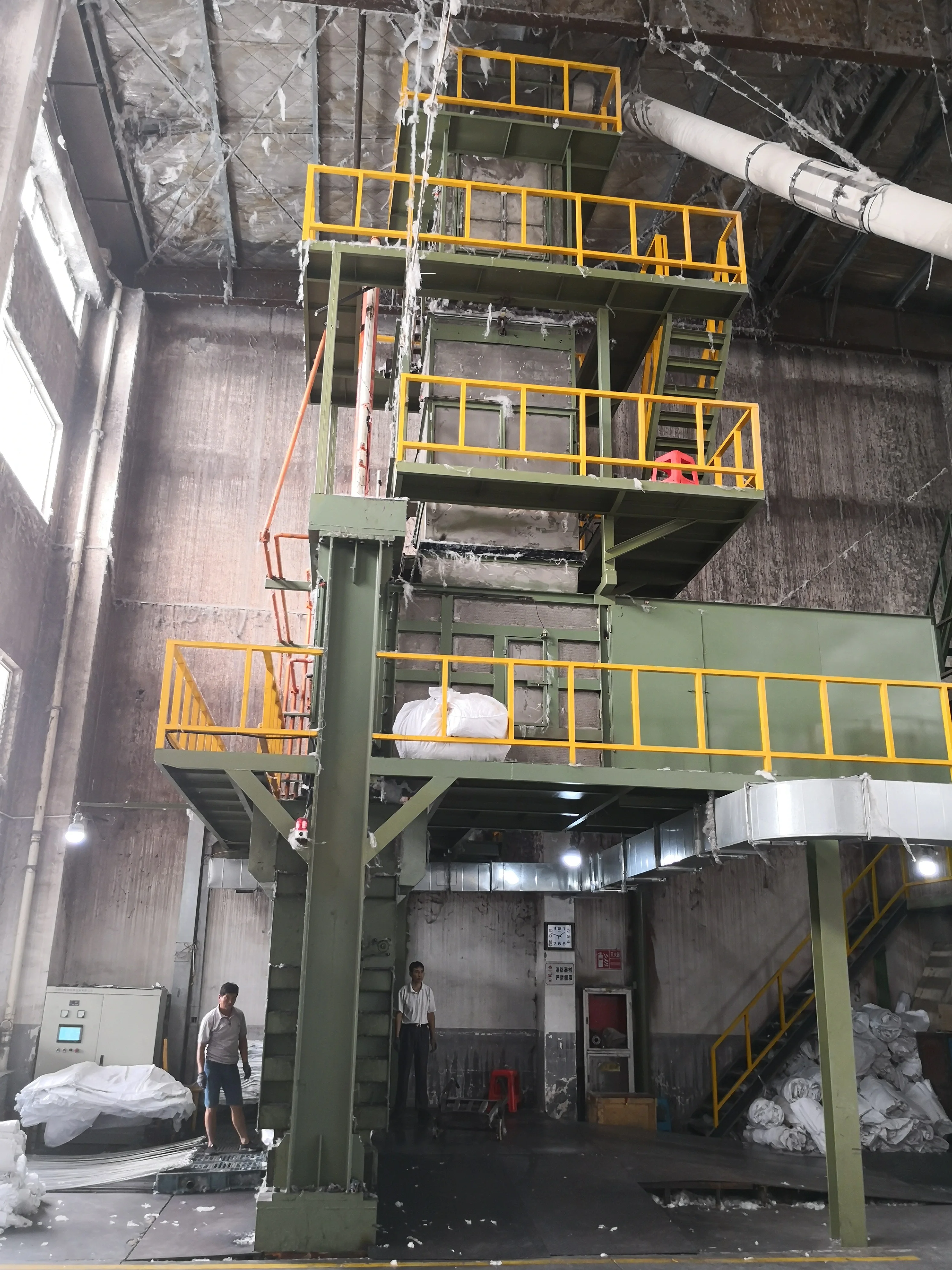

Spinning Line:
Vacuum Dryer -> Hopper -> Screw Extruder -> Filter -> Spin Beam (Meter Pump System, Spin Pack, Spinneret) -> Quenching Unit -> Interfloor Duct -> Draw-off Wall -> Capstan Roller -> Sunflower Gearing unit -> fiber can traverse system

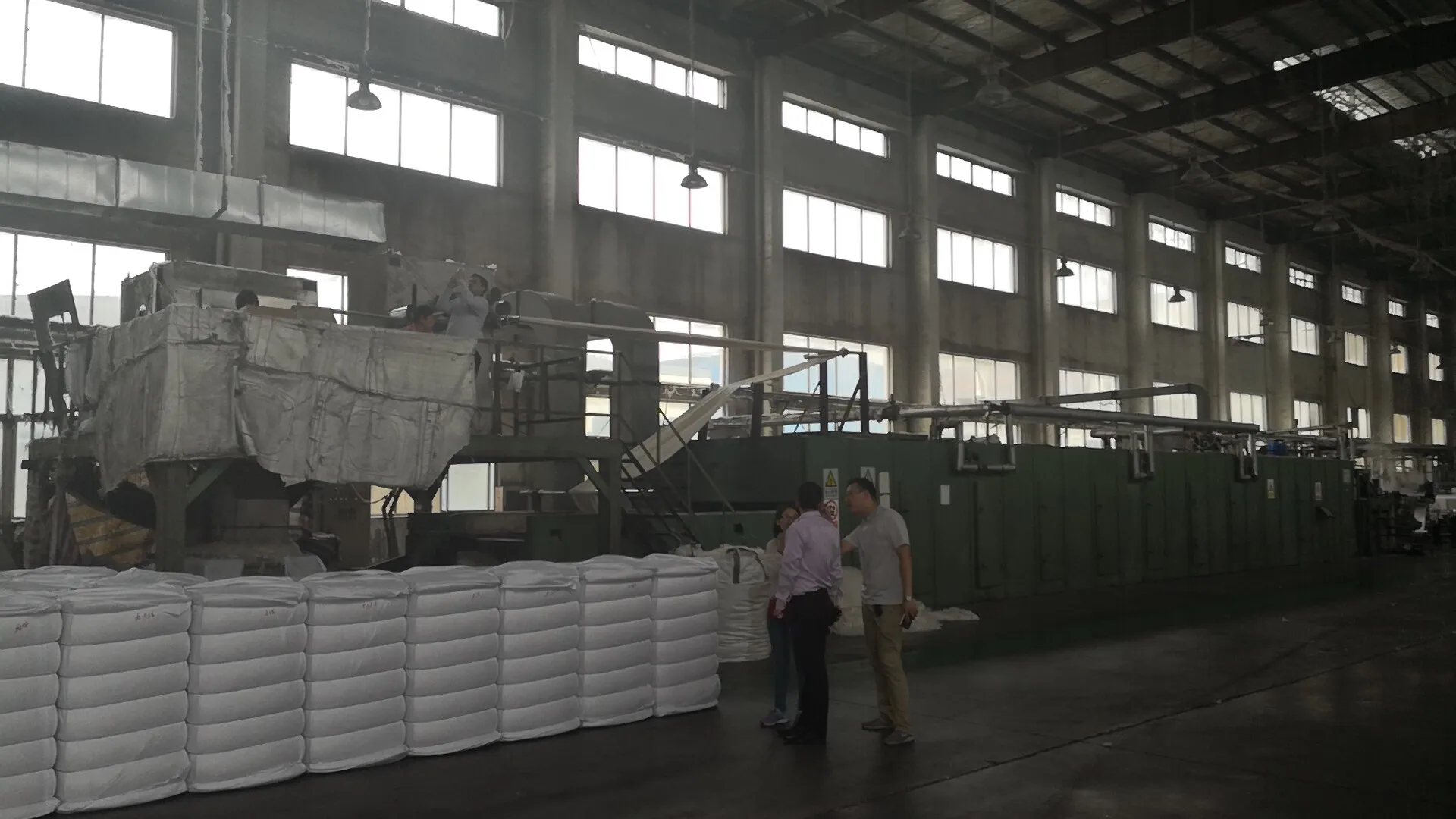

Draw Line:
if 2-Dimensional Hollow Fiber:

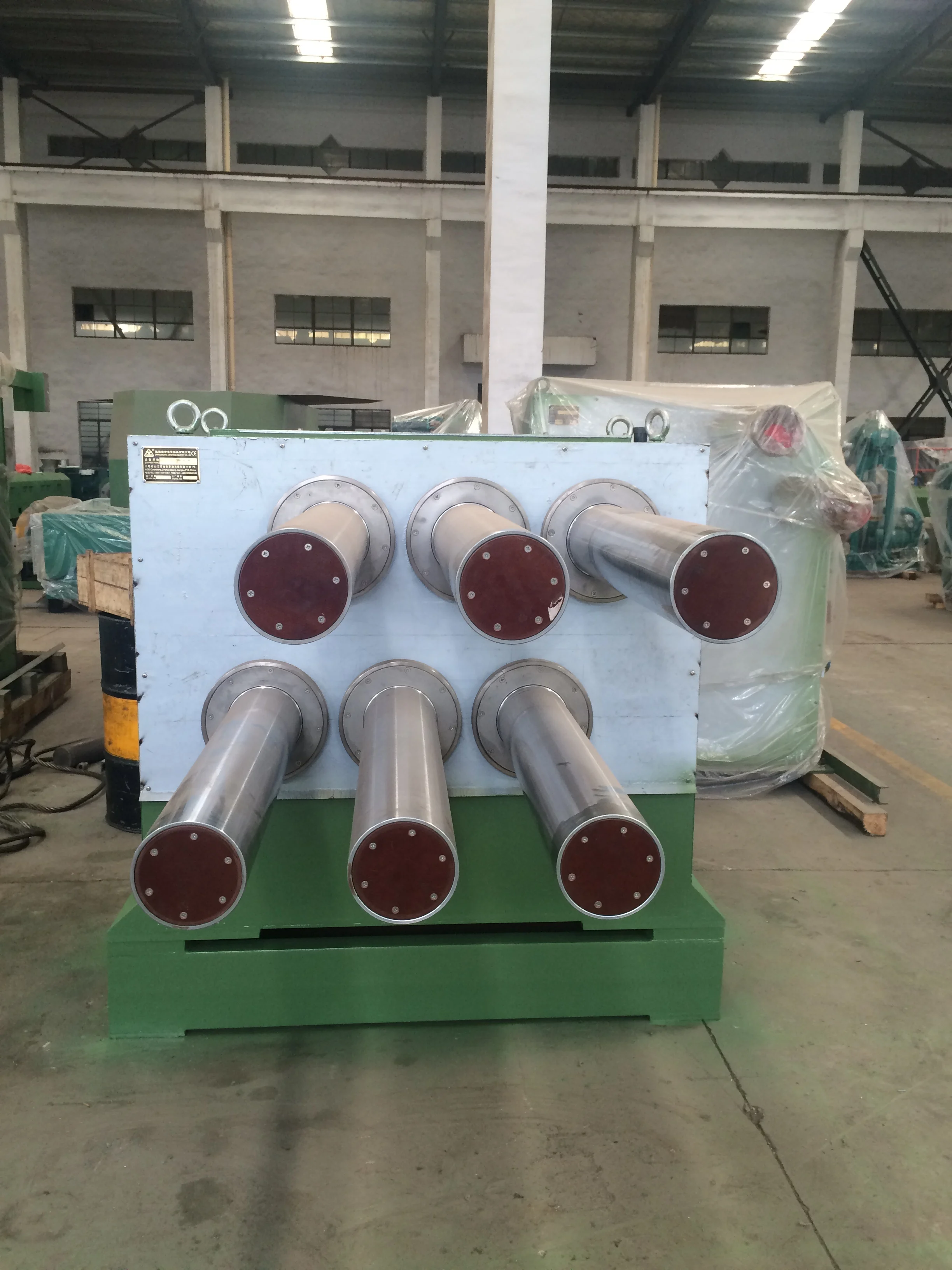

Can Creel -> Inlet Thread Guide -> Tow Guide Stand -> Dipping Bath -> 1st Draw Stand -> Draw Bath -> 2nd Draw Stand -> Draw Steam Chest -> 3rd Draw Stand -> Tow Stacker -> Crimper Steam Box -> Crimper -> Tow Conveyer -> Relaxer -> Tow Tension Stand -> Cutter -> Chain Plate Conveyor -> Baling Press

if 3-Dimensional Hollow Fiber:
Can Creel -> Inlet Thread Guide -> Tow Guide Stand -> Dipping Bath -> 1st Draw Stand -> Draw Bath -> 2nd Draw Stand -> Draw Steam Chest -> 3rd Draw Stand -> Tension Control Device -> Tow Stacker -> Crimper Steam Box -> Crimper -> Silicon Oil Sprayer -> Tow Tension Stand -> Cutter -> Fiber Spreader -> Fiber Leveler -> Relaxer -> Chain Plate Conveying system -> Baling Press
