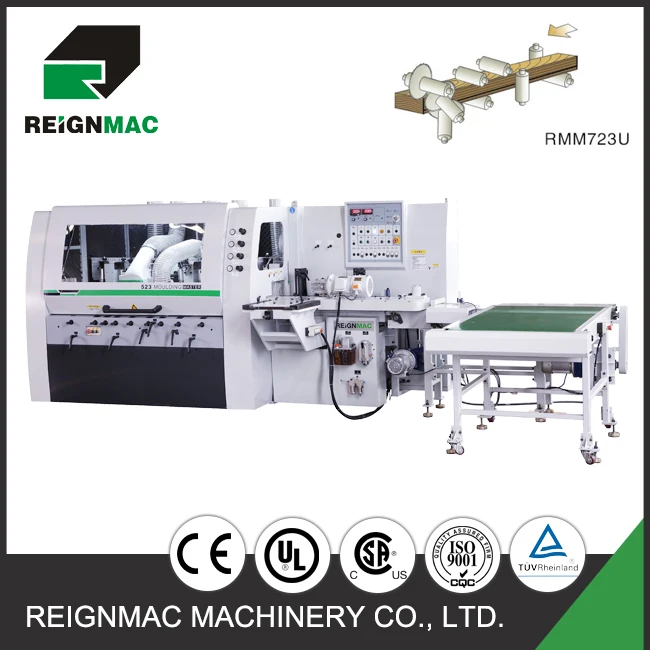

Flooring machine 7 spindle Four Sided moulder / four side planer - Reignmac
| Specification & type | RMM723U+S | ||
| Working Width(mm) | Min. | 20 | |
| Max. | 230 | ||
| Working Thickness(mm) | Min. | 20 | |
| Max. | 160 | ||
| Number of spindles | 9 | ||
| (r/min) Spindle rotation(r/min) | First Bottom,First Top spindle | 6000 | |
| Left and right ,Second Top ,Second Bottom spindle | 7500 | ||
| Universal sanding spindle sanding wheel rotation(r/min)(Inverter ) | 600-1000 | ||
| Vertical sanding wheel rotation(r/min) | 900 | ||
| Cutting circle(mm) (mm) | First bottom spindle | Ø110 ~ Ø145 | |
| Right spindle | Ø110 ~ Ø200 | ||
| Left spindle | Ø110 ~ Ø200 | ||
| First top spindle | Ø110 ~ Ø200 | ||
| Second top spindle | Ø110 ~ Ø200 | ||
| Second bottom spindle | Ø110 ~ Ø200 | ||
| Sanding wheel diameter(mm) | Universal sanding spindle | Ø200 | |
| Right sanding spindle | Ø200 | ||
| Left sanding spindle | Ø200 | ||
| Spindle and sanding spindle diameter(mm) | Ø40 | ||
| Motor power(kW) | First bottom spindle | 5.5kW/7.5HP | |
| Right spindle | 5.5kW/7.5HP | ||
| Left spindle | 5.5kW/7.5HP | ||
| First top spindle | 7.5kW/10HP | ||
| Second top spindle | 5.5kW/7.5HP | ||
| Second bottom spindle | 7.5kW/10HP | ||
| Universal sanding spindle | 3kW/4HP | ||
| Right sanding spindle | 3kW/4HP | ||
| Left sanding spindle | 3kW/4HP | ||
| Feed | 5.5kW/7.5HP | ||
| Universal lifting | 0.18 kW /0.25 HP | ||
| Feed beam&fall | 1.1kW/1.5HP | ||
| Total motor power kW | 52.78kW/71.25HP | ||
| Feed speed(mm)(Inverter) | 6~30 | ||
| Dust outlet diameter(mm) | Ø150 | ||
| Overall machine dimensions(LXWXH) (mm) | 6400×1750×1850 | ||
| Weight(Tons approx.) (T) | 6.6 | ||
| Note: Any variation to the specification above mentioned will not be further notified since the product specification and designs keeps on changing all the time. | |||

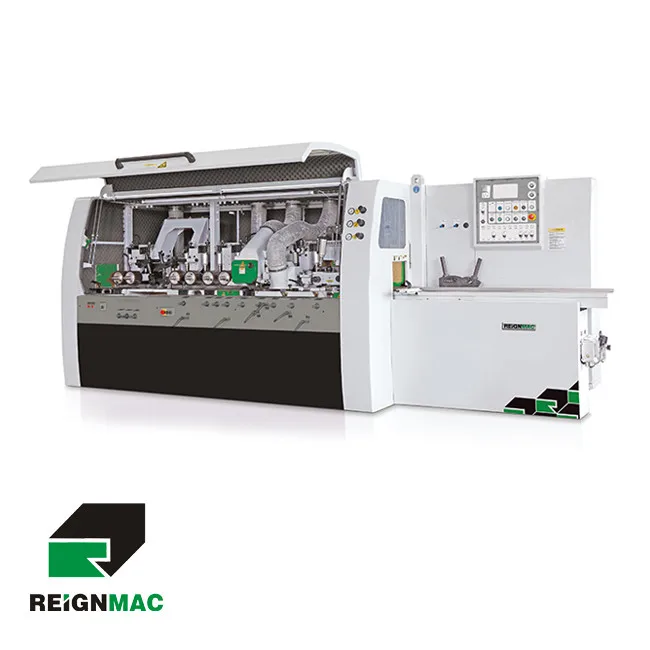

RMS723U+S with sanding function four side moulder
Professional solution for one-time planing, shaping, sanding, polishing processing of MDF strip, wood strip from semi-finished product .
