LH Type Electric Hoist Double Girder Bridge Overhead Cranes
$1,800.00-2,000.00

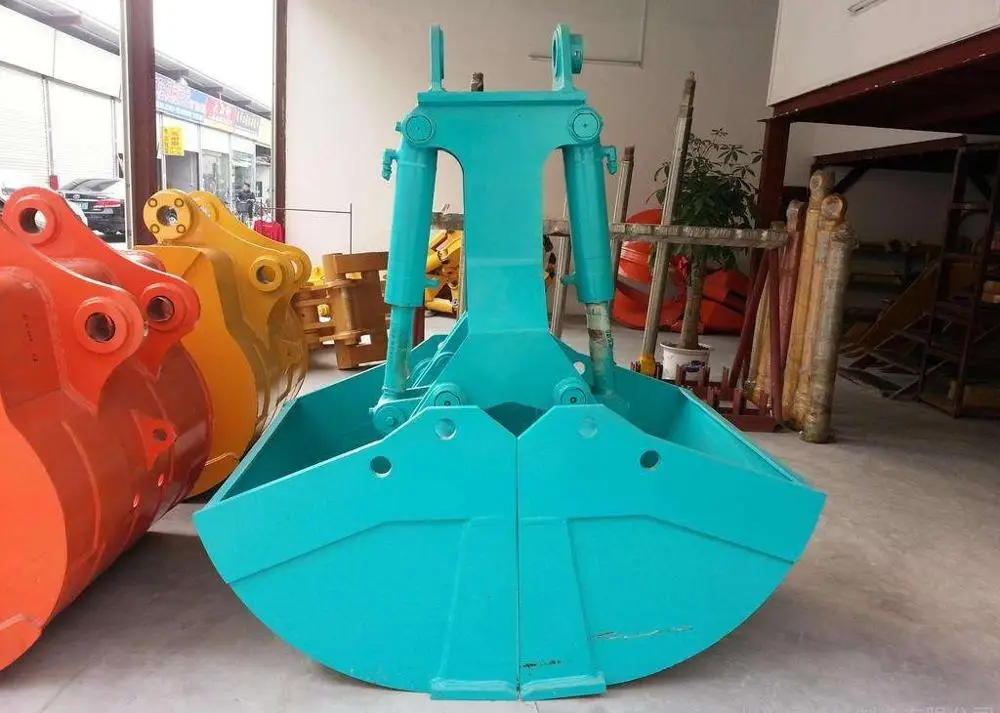

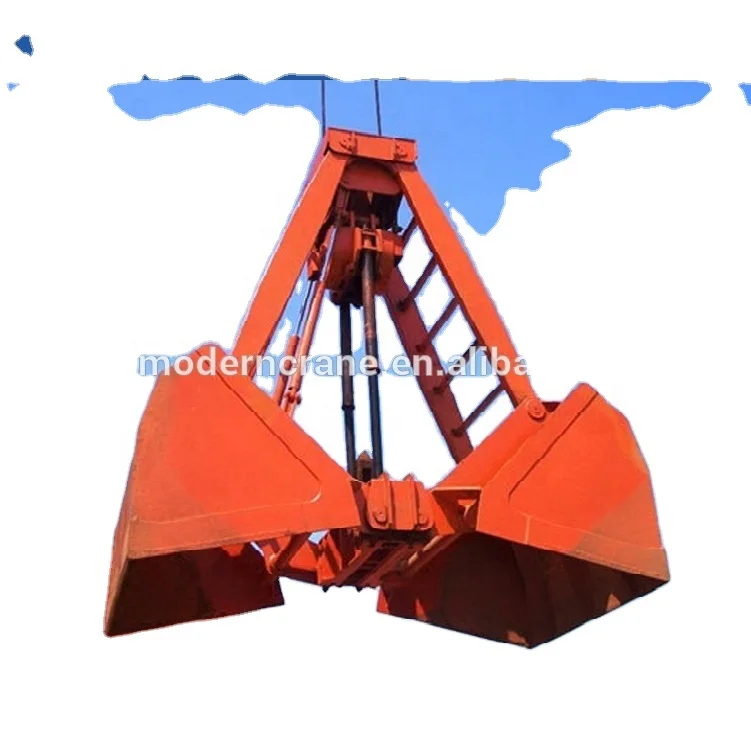

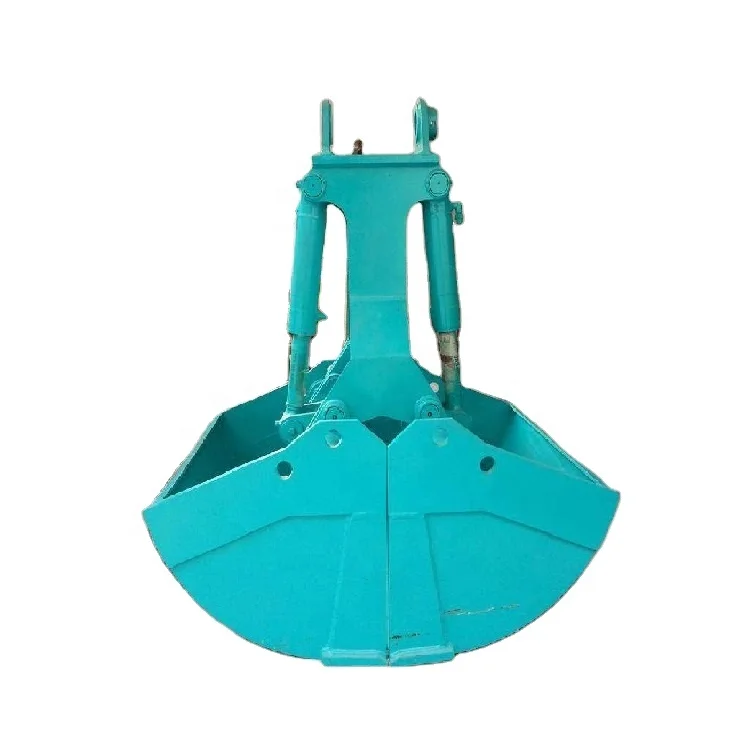

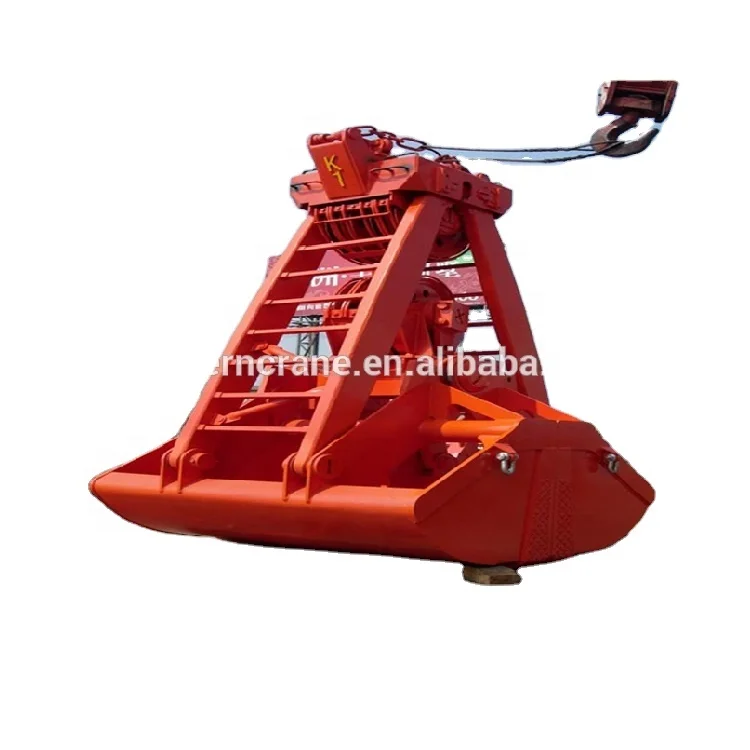

claw bridge crane overhead crane with hydraulic claw hydraulic crane for steel scrap
- Category: >>>
- Supplier: Henan Province Modern Crane Co. Ltd.
Share on (60290248935):
Product Overview
Description

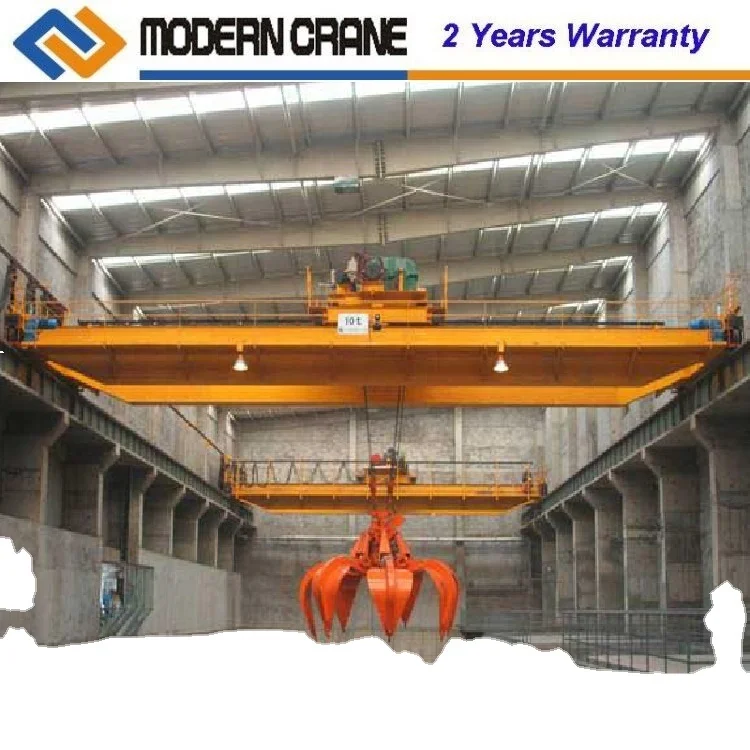

Claw crane machine , EOT claw crane 5 ton-30 ton overhead crane with claw
Product Description
Product Type: QD
Lifting Capacity: 5-320T
Span Length: 16-31.5M
Operation method: Pendant control, remote control or operating cabin
Product Features
1. Strong beams. The crane beams are of welded construction. This result in lower dead weight with a high degree of vertical and horizontal rigidity and smaller wheel loads.
2. End carriage: Crane travelling system, Motor-Reducer-Wheel driven system! motor used soft start motor which result in very stable starting!
3. Durable performance and High efficiency!
4. Modern cabin control with Air conditioner to separate operators from harsh environment
5.Electrical equipment: Electric systems are Siemens brand or Schneider brand!
6. Long service life with a low-maintenance.
Technical parameters
bridge crane with CE ISO GOST certificate
SWL | Span (m) | Lifting Heifht (m) | Duty | Lifting Speed (m/min) | Wheel Load (KN) | Run Way (m) | Power (Kw) | Weight (Kg) |
10000 (2m) | 13.5 | 9 | A5/2m | 8.5/10.5 Standard Speed | 74 | P22 | 19.4 | 14000 |
16.5 | 76 | 16600 | ||||||
19.5 | 81 | 18400 | ||||||
22.5 | 87 | 21000 | ||||||
25.5 | 93 | 25600 | ||||||
28.5 | 54 | 28100 | ||||||
31.5 | 64 | 31300 | ||||||
16000/3200 (2m) | 13.5 | 9 | A5/2m | 7.2/15 Standard Speed | 143 | P30 | 20 | 20333 |
16.5 | 155 | 23300 | ||||||
19.5 | 166 | 26800 | ||||||
22.5 | 178 | 28600 | ||||||
25.5 | 188 | 33100 | ||||||
28.5 | 196 | 36700 | ||||||
31.5 | 202 | 39200 | ||||||
20000/5000 (2m) | 13.5 | 9 | A5/2m | 3.2/0.8 Standard Speed | 163 | P30 | 21 | 21300 |
16.5 | 172 | 23600 | ||||||
19.5 | 185 | 27800 | ||||||
22.5 | 190 | 30100 | ||||||
25.5 | 199 | 34200 | ||||||
28.5 | 211 | 38100 | ||||||
31.5 | 231 | 41200 | ||||||
32000/5000(2m) | 13.5 | 9 | A5/2m | 7.5-15.5 Standard Speed | 250 | P43 | 40.4 | 28500 |
16.5 | 262 | 32700 | ||||||
19.5 | 275 | 36700 | ||||||
22.5 | 288 | 38100 | ||||||
25.5 | 302 | 43700 | ||||||
28.5 | 313 | 49600 | ||||||
31.5 | 323 | 51200 | ||||||
50000/1000(2m) | 13.5 | 9 | A5/2m | 5.9~10.4 Standard Speed | 333 | QU70 | 48 | 37000 |
16.5 | 386 | 41000 | ||||||
19.5 | 400 | 45700 | ||||||
22.5 | 422 | 48000 | ||||||
25.5 | 433 | 52200 | ||||||
28.5 | 450 | 56400 | ||||||
31.5 | 496 | 63600 | ||||||
750000/20000(2m) | 13.5 | 9 | A5/2m | 4.7-9.2 Standard Speed | 270 | QU70 | 52 | 66200 |
16.5 | 287 | 70300 | ||||||
19.5 | 295 | 75300 | ||||||
22.5 | 310 | 80700 | ||||||
25.5 | 336 | 86800 | ||||||
28.5 | 360 | 92500 | ||||||
31.5 | 395 | 95000 |

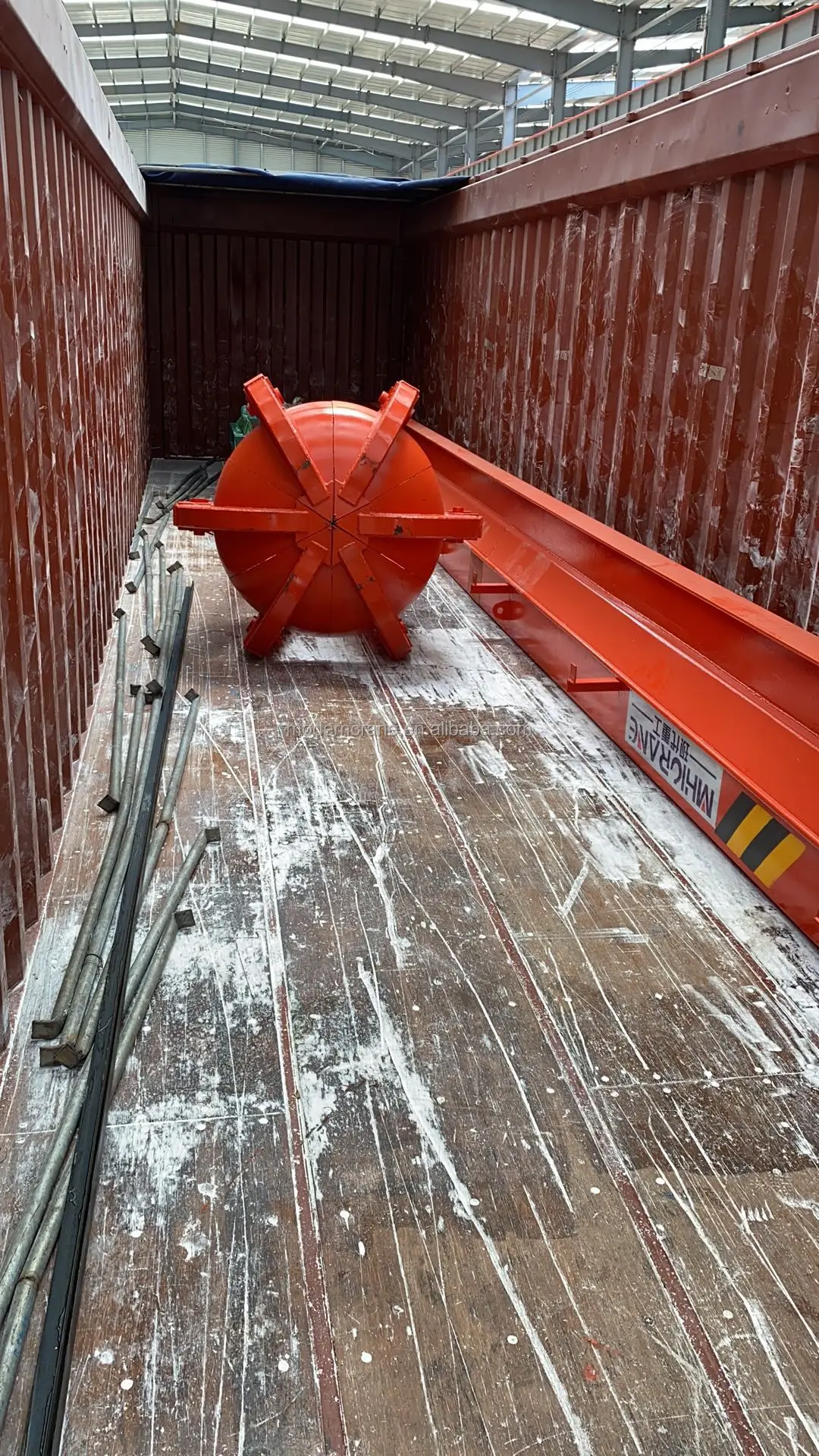

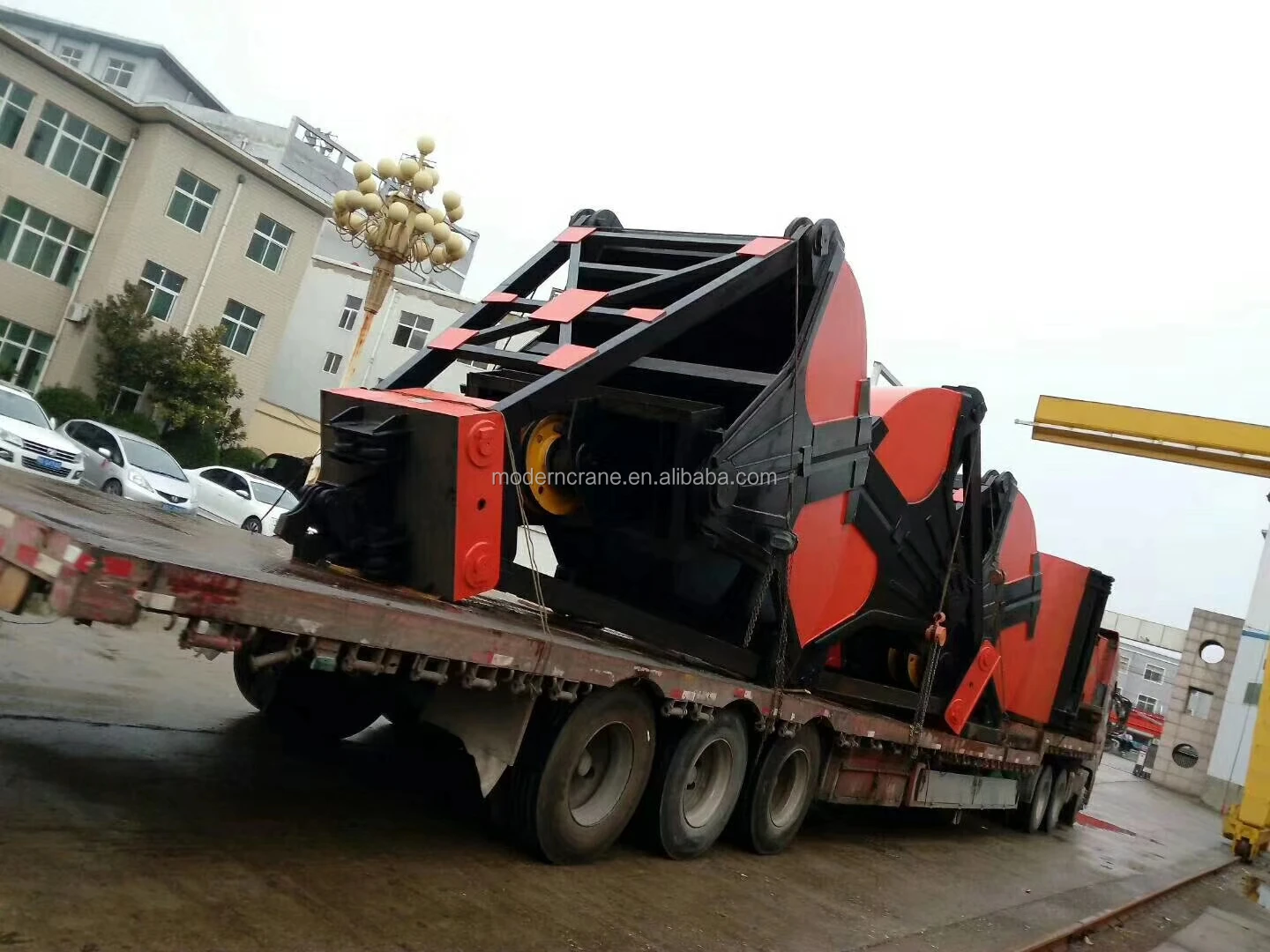

Packaging & Shipping
Company information
Modern Crane co.Ltd., focuses on lifting resolutions for customers .We provide design ,production and service of different lifting equipment ,which covers electric wire rope hoist ,china hoist ,jib crane ,bridge crane ,gantry crane ,port crane etc.
Under principle CUSTOMER FIRST ,MODERN CRANE people always provide customers with first class products and excellent service. MODERN CRANE people follow a strict QUALITY CONTROL system which ensure perfection of each lifting equipment .Our products have completely passed ISO9001 ,CE ,GS and other quality system certificates .Thanks to our high quality products and outstanding customers service ,MODERN CRANE has earned a reputation customers and gained a global sales network reaching Brazil , India ,Philippine ,Ukraine ,Argentina ,Spanish ,Malaysia and other 30 countries .
With the commitment of customer satisfaction ,we are expecting to widen and deepen the cooperation and communication with all friends all over the world .

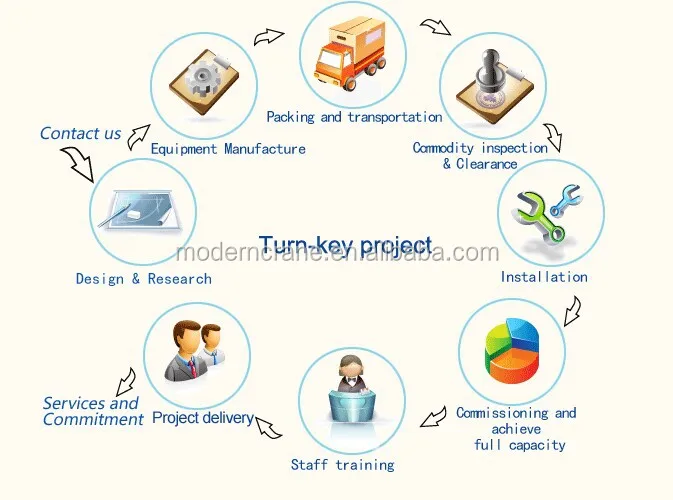

Our Services
FAQ
1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote! QD model double beam overhead crane Workdshop crane
2.What's the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated . Workdshop crane
3.How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
4.Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
contact information
Any other requirements, just feel free to let us know!
Your kind inquiry, Our sincere quotation
