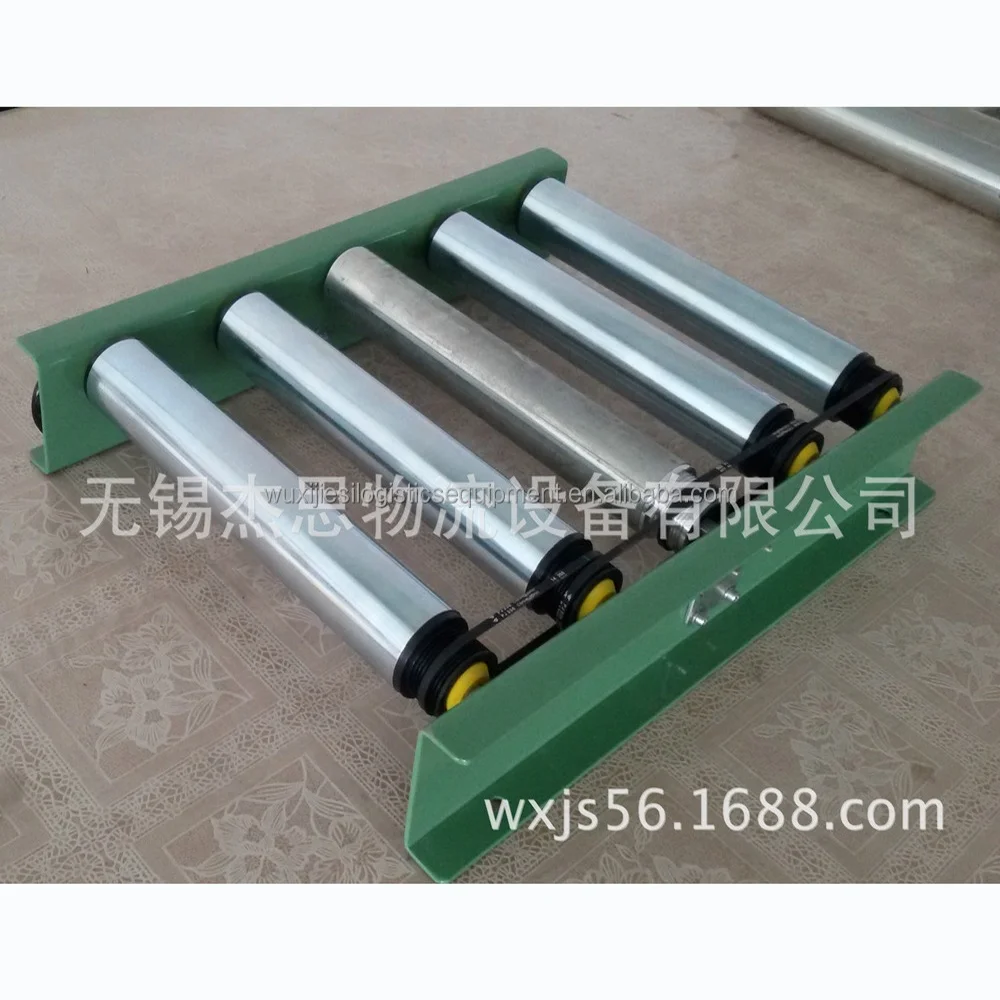

JS PRC series Poly-vee Roller and Roller conveyor


>>Introduction


Great transmitting power: V-ribbed belt has excellent mechanical transmission performance


with high transmission torque;easy to combine; every unit with a drive, and any length can


be combined; zero pressure accumulation;speed can be adjusted and low running noise.





>>Product features:


1. high speed and load capacity with low noise


2. PJ type of Poly-vee belt, pitch 2.34mm, ISO9982.


3. 9 V-grooves, more options of PJ poly-Vee belt. Even for the Poly-vee belt of 2 grooves,


   the unit convey capacity could reach 50kg.


4. to effectively avoid the effect of oil from the surface of coveying goods to the Poly-vee belt.


5. The different roller pitch (centre distance between rollers) requires different type of Poly-vee belt.


6. Precision ball bearing polymer bearing housing, end cap form the bearing unit which is very important,


    it is not only for good looking but also further more for running smoothly and quitely.


7. The end cap of roller can resist dust and water splash well in operation environment.


8. Suitable for high speed application. Speed could vary according to diameter and length of roller,


    Max. Speed up to 120m/min.


9. Temperature range: -5~+40℃





 >>Drawing:










Size:












































































ModelPRC-50PRC-60
Driving Poly-Vee Poly-Vee
Roller sizeD*t*d50*1.5*12/1560*1.5*12/15
Roller widthW(mm)100~1400100~1400
PitchP(mm)75,100,15075,100,150
FrameI*k*t90*30*2.390*30*2.3
Conveyor lengthL(mm)Max8000Max8000
HeightH(mm)Min450Min450
Capability(Kg/P)Max100Max100
SpeedV(m/min)Max120Max120
Power(kw)0.2,0.4,0.750.2,0.4,0.75
Voltage 3PH220V3PH220V




 IMG_20160815_143644IMG_20160815_143632IMG_20160815_090326


Picture:

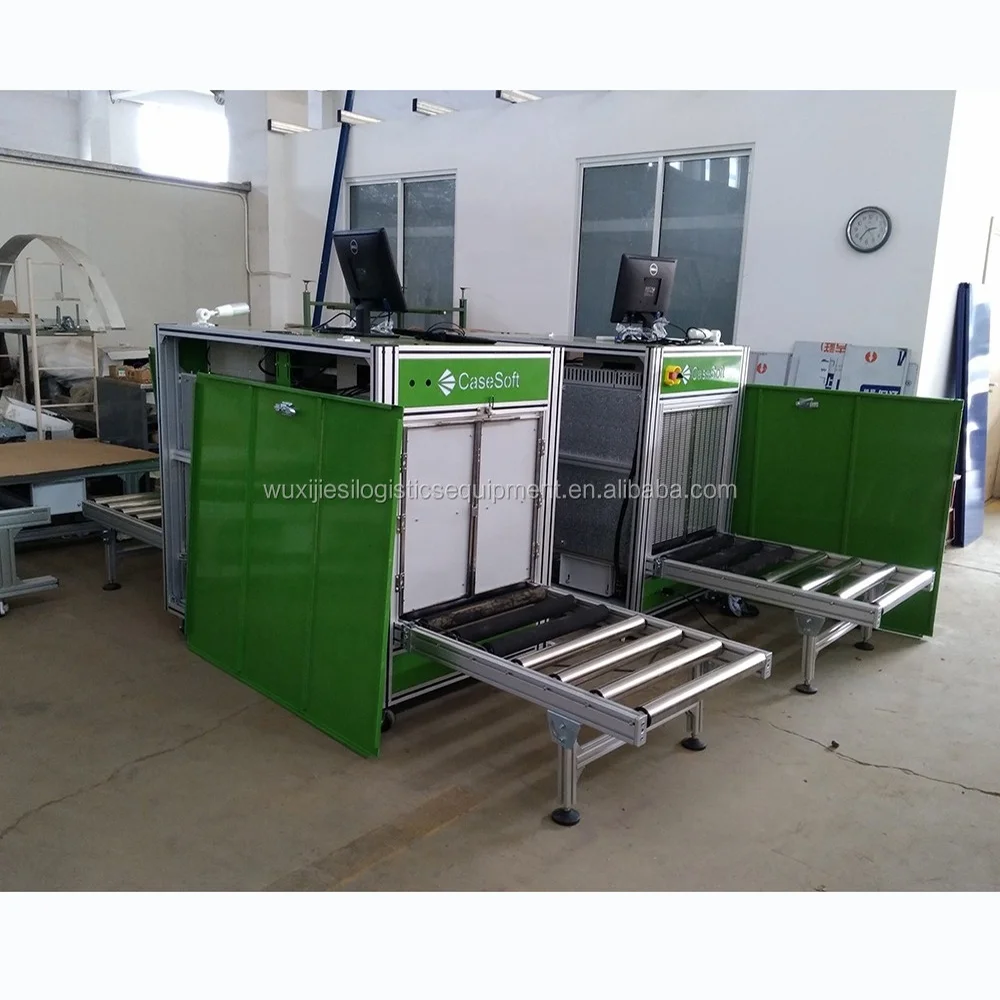

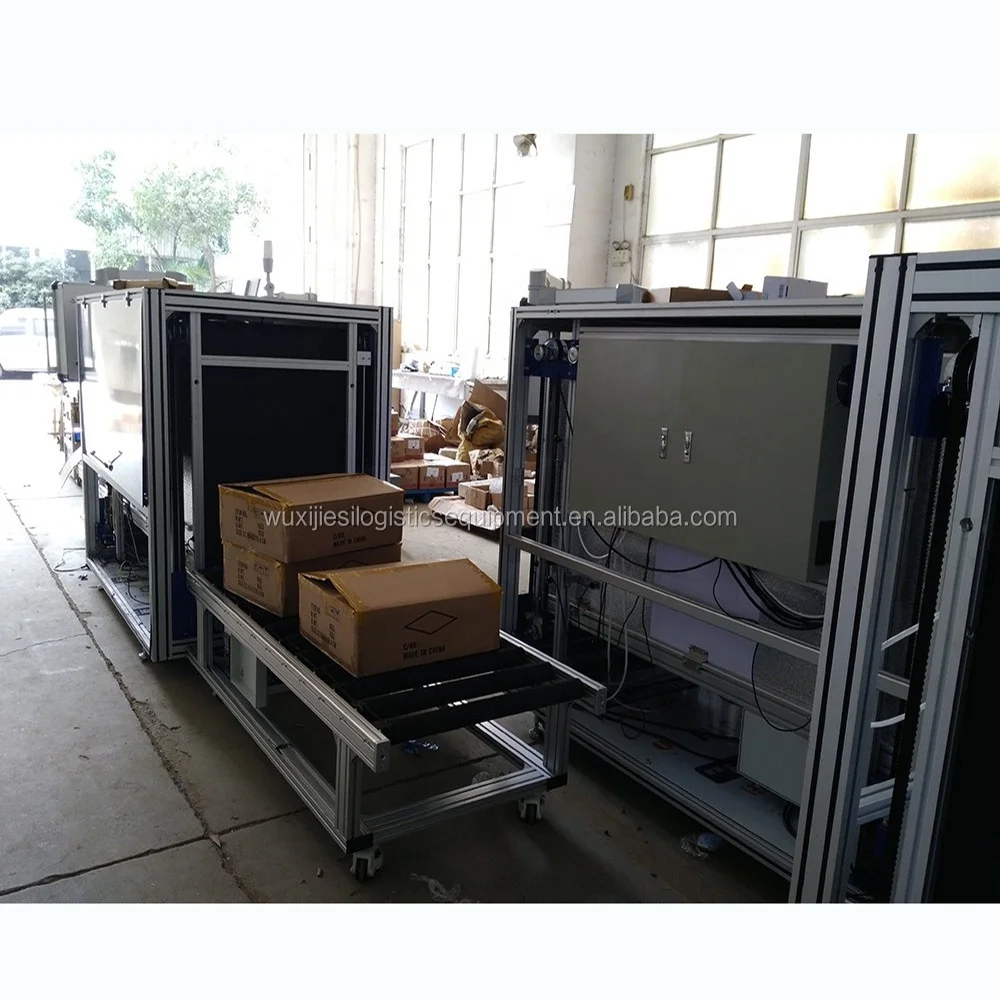

 >>workshop and machine


initpintu





How to choose the right roller conveyor for your warehouse or workshop, please follows:


 1.tell us the conveyingwhat is the working environment?


 Email me for more details:





 .jpg





(Note: talk more details with sales; you could get better price and accurate products)
