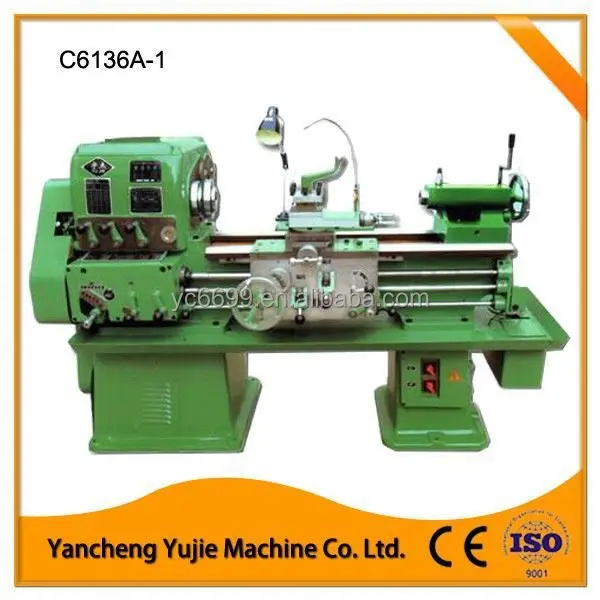

Advanced Used Manual lathe C6136A Machine
- Category: >>>
- Supplier: Yancheng Yujie Machine Co. Ltd.
Share on (60290295866):
Product Overview
Description
Product Description
Specification
Parameters As Following
Main technical parameter | |||||
Max. swing over bed | mm | 360 | |||
Max. swing over carriage | mm | 190 | |||
Distance between centers | mm | 750/1000/1500/2000 | |||
Screw cutting capacity | Metric | mm | 0.3-10 | ||
Inch | tpi | 24-1.5 | |||
Travel of tool post | Vompound rest | mm | 95 | ||
Cross slide | mm | 180 | |||
Spindle speed | Steps |
| 8 | ||
Range | r/mm | 48-1200 | |||
Turning accuracy | Roundness | mm | 0.01 | ||
Cylindricity | mm | 0.01Φ100 | |||
Planeness | mm | 0.015Φ200 | |||
Dia. of Spindle through hole | mm | Φ52 | |||
Total power of motors | kw | 4 | |||
Total power of motors | kw | 4.125 | |||
Overall dimensions(Lxwxh)& Net weight | |||||
Center distance
| 750mm | mm | 2170*870*1260mm/1250kg | ||
1000mm | mm | 2420*870*1260mm/1450kg | |||
1500mm | mm | 2920*870*1260mm/1650kg | |||
2000mm | mm | 3420*870*1260mm/1850kg | |||
Standard Accessories | Optional Accessories | |
Φ200mm(8") Manual three jaw chuck | Φ200mm(8") Manual four jaw chuck | |
Water pump | Disk chuck | |
Buffering iron | Center rest & follow rest | |
Morse center (2xMT4)& Morse reduction sleeve(MT6/MT4) | Live center(MT4) | |
Tools | Digital readout device | |
| Drive center(MT6) | |
Product Features
Features As Below
1.This machine is a kind of widely used common lathe , with fixed bearing spindle, goodcutting performance, high speed. Φ38mm orΦ52mm spindle bore.
2.Can be used for processing cylindrical or conical surface, end face,the inner hole,inch or metric screw thread.
Company Information
Packaging & Shipping
Our Services
24 hours technical support by e-mail or mobile, free instruction and problem solving.
User manual ( English version) and detailed video.
On-the-spot training and installation can be met if required.
12 months warranty period, any quality problem, please contact us.
