Product Overview
Description
UL Coating adhesive insulation Heat shrink tube
Model: G-3 & 4

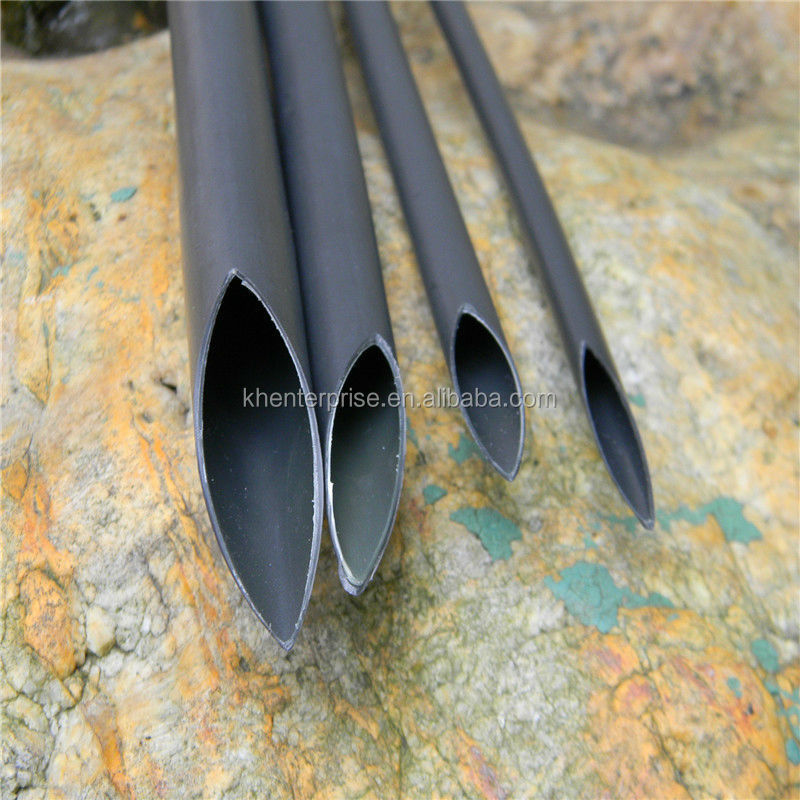

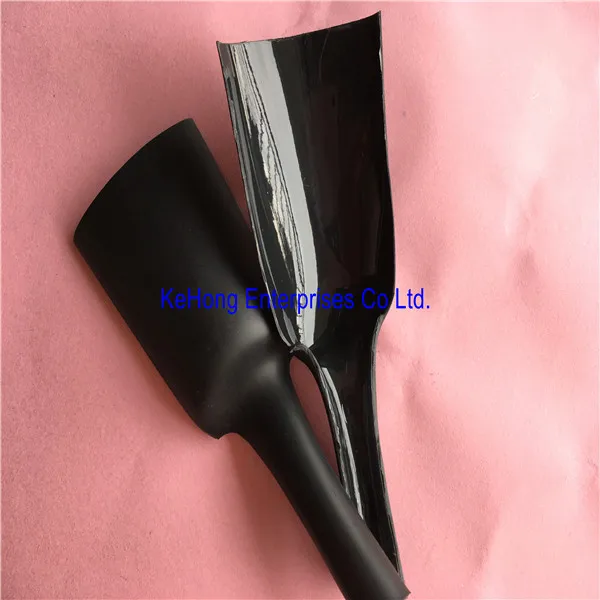

Dual wall, high-shrink-ratio, adhesive-lined flexible polyolefin tubing
1) Application

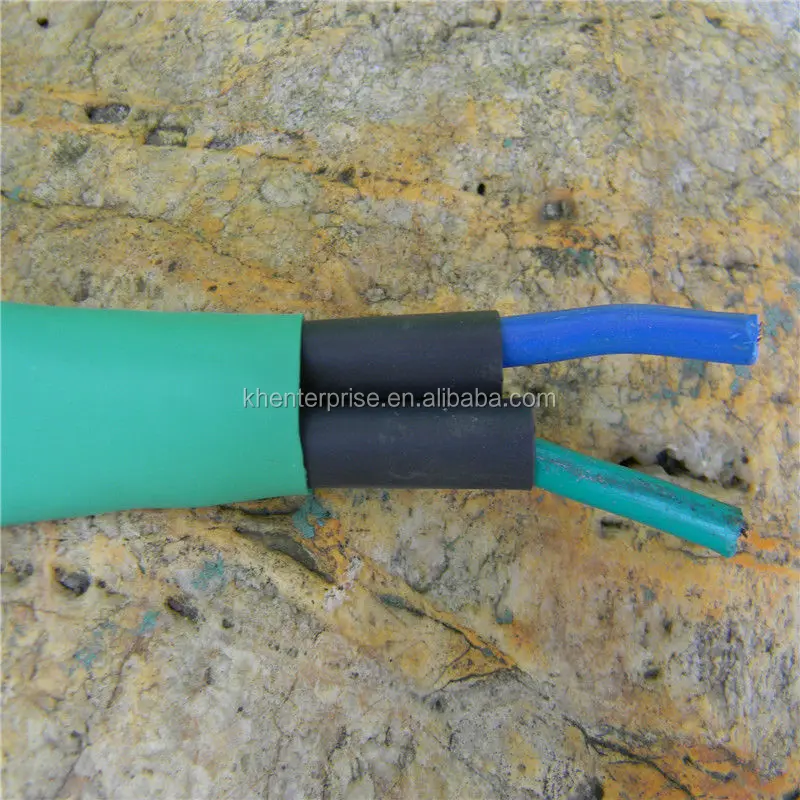

G-3&4 is a flexible, irradiated heat-shrinkable, flame-retardant, dual wall, high-shrink-ratio, tubing manufactured by co-extrusion of polyolefin and hot-melt adhesive, adhesive coated in the innerwall, with good stickness and outer is flexible, irradiated cross-linked polyolefin. It is widely used to environmentally seal and protect interconnections, jointsand components from fluids, moisture and corrosion. High shrink ratio allows for connector-to-cable sealing and makes it possible to repair most damaged cable jackets without removing connectors.
2) Features/Benefits
Shrink ratio: 3:1, 4:1.
Environmentally seals and protects components, joints and interconnections from fluids, moisture and corrosion.
Good mechnical, electrical and chemical properties.
Adhesive has good stickness and bonds to a wide variety of plastics, rubbers and metals.
Conform to European RoHS environmental directive.
3) Operating Temperature Range
Operating temperature range: -55℃~110℃
Minimum shrink temperature: 80℃
Minimum full recovery temperature: 110℃
4) Specifications/Standards
UL224,UL Approval,125℃ 600V
5) Specification values
| Property | Requirement | Test method | Typical value |
Physical: | Tensile strength | 10.3MPa min. | ASTM D 638 | ≥12MPa |
Elongation | 200% min. | ASTM D 638 | ≥400% | |
Heat shock 250℃, 4hrs | No cracking, dripping or flowing of outer wall | ASTM D 2671 | Pass | |
Low temperature flexibility -55℃, 4hrs | No cracking | ASTM D 2671 | Pass | |
Aging 158℃,168hrs |
|
|
| |
Tensile strength after aging | 70% of original min. | ASTM D 638 | ≥90% | |
Elongation after aging | 100% min. | ASTM D 638 | ≥300% | |
Electrical: | Dielectric voltage withstand | 2500V, 60sec no breakdown | ASTM D 2671 | Pass |
Volume resistivity | 1014Ω·cm min. | ASTM D 876 | ≥1014Ω·cm | |
Chemical: | Copper corrosion 158℃,168hrs | No corrosion | ASTM D 2671 | Pass |
| Flammability | ALL TUBING FLAME TEST | UL224 | Pass |
6) Product sizes
Size (inch/mm) | As suppied(mm) | After recovery(mm) | Standard length (m/length, m/spool) | |||
Inside diameter (min.) | Wall thickness* (nominal) | Inside diameter (max.) | Wall thickness* (nominal) | Adhesive wall thickness (nominal) | ||
3:1 | ||||||
1/8(3/1) | 3.0 | 0.35 | 1.0 | 1.00±0.28 | 0.50 | 1.2/200 |
3/16(4.8/1.6) | 4.8 | 0.35 | 1.6 | 1.00±0.28 | 0.50 | 1.2/100 |
1/4(6/2) | 6.0 | 0.4 | 2.0 | 1.00±0.28 | 0.50 | 1.2/100 |
3/8(9/3) | 9.0 | 0.5 | 3.0 | 1.40±0.28 | 0.60 | 1.22 |
1/2(12/4) | 12.0 | 0.6 | 4.0 | 1.78±0.38 | 0.76 | 1.22 |
15/5 | 15 | 0.6 | 5 | 2.25±0.55 | 0.76 | 1.22 |
3/4(18/6) | 18.0 | 0.7 | 6.0 | 2.25±0.55 | 0.76 | 1.22 |
1(24/8) | 24.0 | 0.8 | 8.0 | 2.54±0.55 | 1.02 | 1.22 |
1 1/4(30) | 30 | 0.8 | 10 | 2.54±0.55 | 1.02 | 1.22 |
1 1/2(39/13) | 39.0 | 0.8 | 13.0 | 2.54±0.55 | 1.02 | 1.22 |
4:1 | ||||||
4/1 | 4.0 | 0.4 | 1.0 | 1.00±0.28 | 0.50 | 1.22 |
6/1.5 | 6 | 0.4 | 1.5 | 1.1±0.15 | 0.50 | 1.22 |
8/2 | 8.0 | 0.45 | 2.0 | 1.00±0.28 | 0.50 | 1.22 |
12/3 | 12.0 | 0.5 | 3.0 | 1.40±0.28 | 0.60 | 1.22 |
16/4 | 16.0 | 0.6 | 4.0 | 1.78±0.38 | 0.76 | 1.22 |
24/6 | 24.0 | 0.7 | 6.0 | 2.25±0.55 | 0.76 | 1.22 |
32/8 | 32.0 | 0.8 | 8.0 | 2.54±0.55 | 1.02 | 1.22 |
52/13 | 52.0 | 0.8 | 13.0 | 2.54±0.55 | 1.02 | 1.22 |
Larger size are available up on requirment.
Hot products
100Pcs Heat shrink solder sleeve Kits

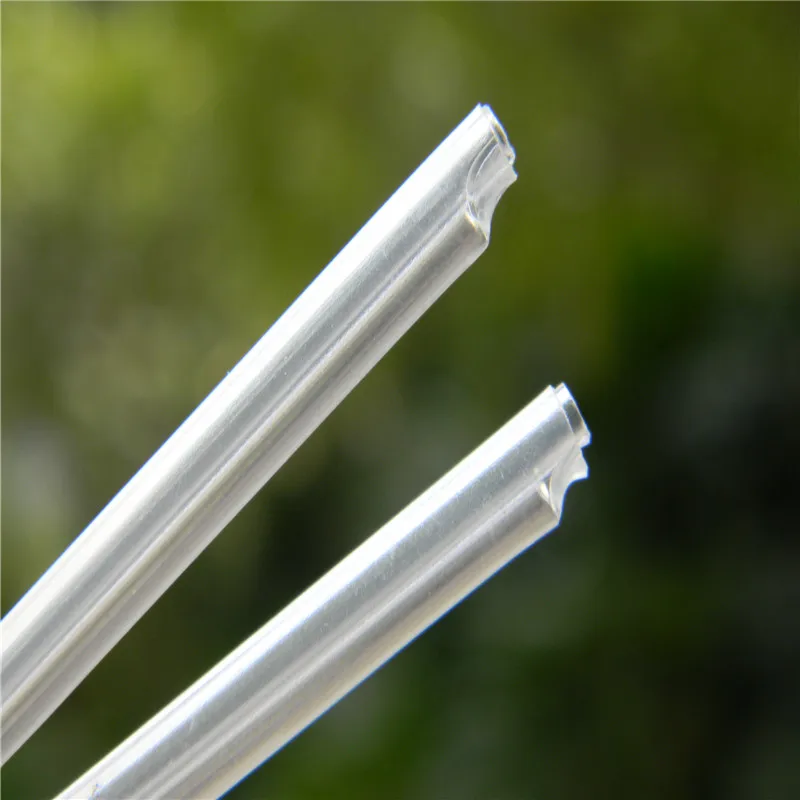

Optical fiber protection Heat shrink tube
