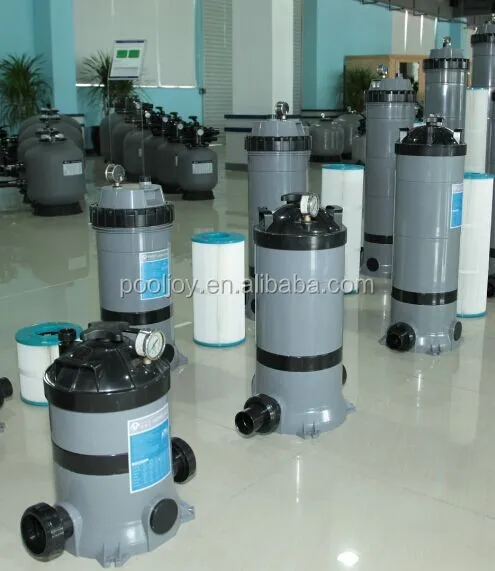

Emaux CF Series swimming pool cartridge filter

Product Overview

Description

                   Emaux CF Series swimming pool cartridge filter







1. Description  & Specification:





Emaux CF Series swimming pool cartridge filter
Model No.	Filter Area (m³)	Connections	Max Flow Rate		A (mm)	B (mm)	C (mm)
CF25	2.25	1.5inch   50mm	92lpm	5.5m³/h	445	387	225
CF50	4.63	1.5inch   50mm	190lpm	11.4m³/h	625	567	225
CF75	7.00	1.5inch   50mm	283lpm	17.0m³/h	805	747	225
CF100	9.40	2.0inch   63mm	382lpm	22.9m³/h	985	927	225
CF150	13.72	2.0inch   63mm	555lpm	33.4m³/h	1165	1107	225
CF200	16.82	2.0inch   63mm	680lpm	40.9m³/h	1345	1287	225





* Compact and light weight.

* UV-resistance tank.

* Heavy duty ring-lock lid allows easy cleaning and replacement of the cartiridge element.

* Screw type air bleeder for easy removal of trapped air inside the filter tank.

* High quality oil filled pressure gauge for easy inspection of the operation pressure.

* Application to domestic swimming pool & spa.



3.Standard carton box package :
