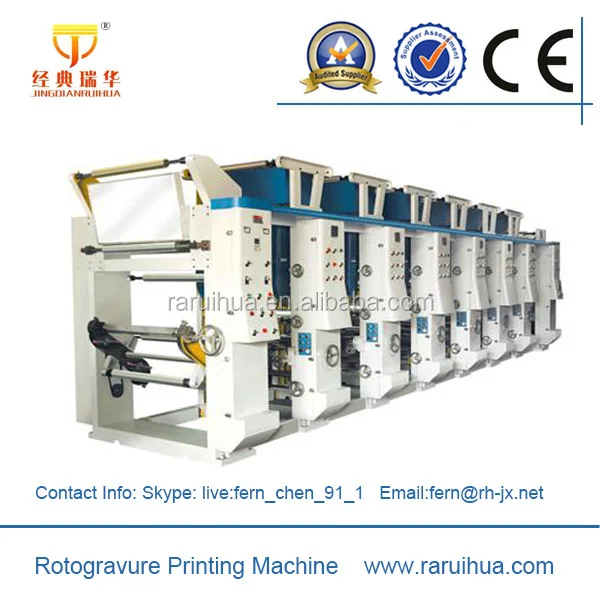

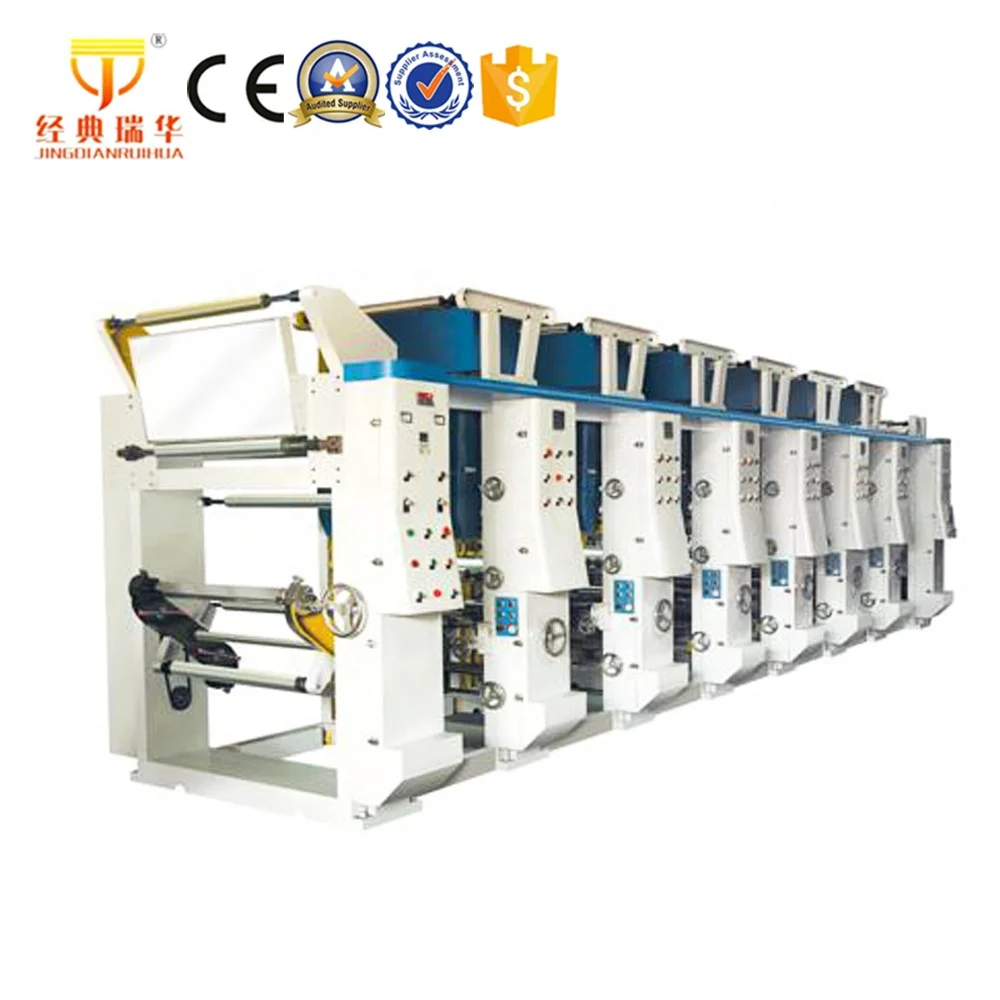

Used Rotogravure Printing Machine, 8 Color Rotogravure Printers Machine

Use:

8 Color Rotogravure Printers Machine is suitable for various materials roll to roll printing, such as different films(BOPP, OPP, PET, PVC, PE), Coated Film, Aluminum foil, paper, etc.

Characteristics:

1) Every control module of the automatic color register system is equipped with microprocessor and can correct the deviation of color register quickly and accurately
2) The main machine adopts frequency control of motor speed
3) Releasing tension adopts full-automatic tension controller and magnetic powder brake
4) Rolling adopts full-automatic constant tension and traction coordinated with torque DC motor, double-station automatic turnover, replacing the material without stopping the machine
5) Closed oven and independent heating send the breeze system
6) Pneumatic pressing system and pneumatic ink-scraping system
7) Automatic ink circulation system is provided
8) Air shaft is used for unwinding and rewinding shaft providing convenient assemble and unassembled possibilities
9) It is provided with display of press line speed and accumulated length in meter
10) Quality cast-iron structure for the whole set provides good stability and vibration absorbing capability
11) Pneumatic back preesure shifting blade
12) It can elect different computer flashed boundary and stationary checking figure.

Main Technical Parameter

Model of Machine

ASY-1000

Effective Printing Width

950mm

Max.Width of Base Material

1000mm

Max.Printing Speed

10-70m/min

Max.Mechanical Speed

80m/min

Max.Diameter of Roll Core of Base Material

φ600mm

Inside Diameter of Roll Core of Base Material

φ76mm

Diameter of Printing Plate Roller

φ120-φ300mm

Modified Accuracy of Computer Registration

±0.2mm(whole Machine)

Control Range of Tension

0-25kg/Full Width

Heating Power of Oven

15kw

Total Power of Machine

20kw

Weight of Machine

3000kg

Overall Dimensions(L*W*H)

2400×2600×2550mm
