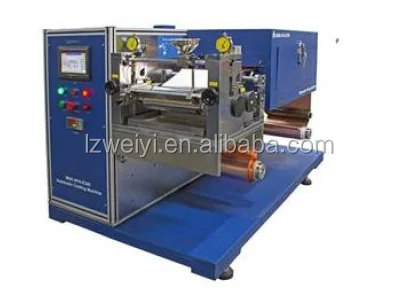

MSK-AFA-E300 Roll to Roll Battery Electrode Coating System



MSK-AFA-E300-UL is a CE Certified automatic battery electrode coating system with a compact
footprint that is less than 6'x3'. It is perfect for research or building prototypes (e.g. pilot scale
studies) of new generation rechargeable batteries. It is integrated with the functions/ features of
metallic foil roll unwinding (reeling out), slurry feeder, coating blade, baking oven, and final
electrode winding (reeling in) together with touch screen operation for customer's



SPECIFICATIONS:

Working Voltage 208 - 240 VAC, 50/60 Hz, Single Phase available upon request
Max. Power Consumption 3 KW ( 30A Air breaker required )
Max. Coating Width 250mm
Coating Speed 0-750 mm / minute
Thickness Precision ± 3μm (± 5μm at edges)
Max. Drying Temperature 150°C
Temperature Accuracy ±1°C
Heating Zone Length 710mm (28")
Reeling/Unreeling Shaft 75mm (ID)
Max. Reeling/Unreeling Diameter 250mm (OD)
Max. Coating Length Depending on coating and substrate thickness.
Typically, 10um thick foil with 100um coating can get 600 meters of
electrode length coated per run
Coating Modes Two available modes:
1.Continuous mode by default
2.Intermittent coating ( system performs coating, stops, coats again and so
on. The length of the coating and break segments can be specified by the
user ) capable model available at extra cost.
Slurry Stirring SS316 Moving Rod
Exhaust Port Size 127mm O.D
Compressed Air 0.5-0.8 MPa (Air compressor not included.)
Optional You may order Dual-Filtration System for NMP Vapor and connect it to the
coating system for keeping environmental healthy.
Product Dimensions 1750mm ( L) x 950mm (W) x 1060mm (H)
Compliance CE
