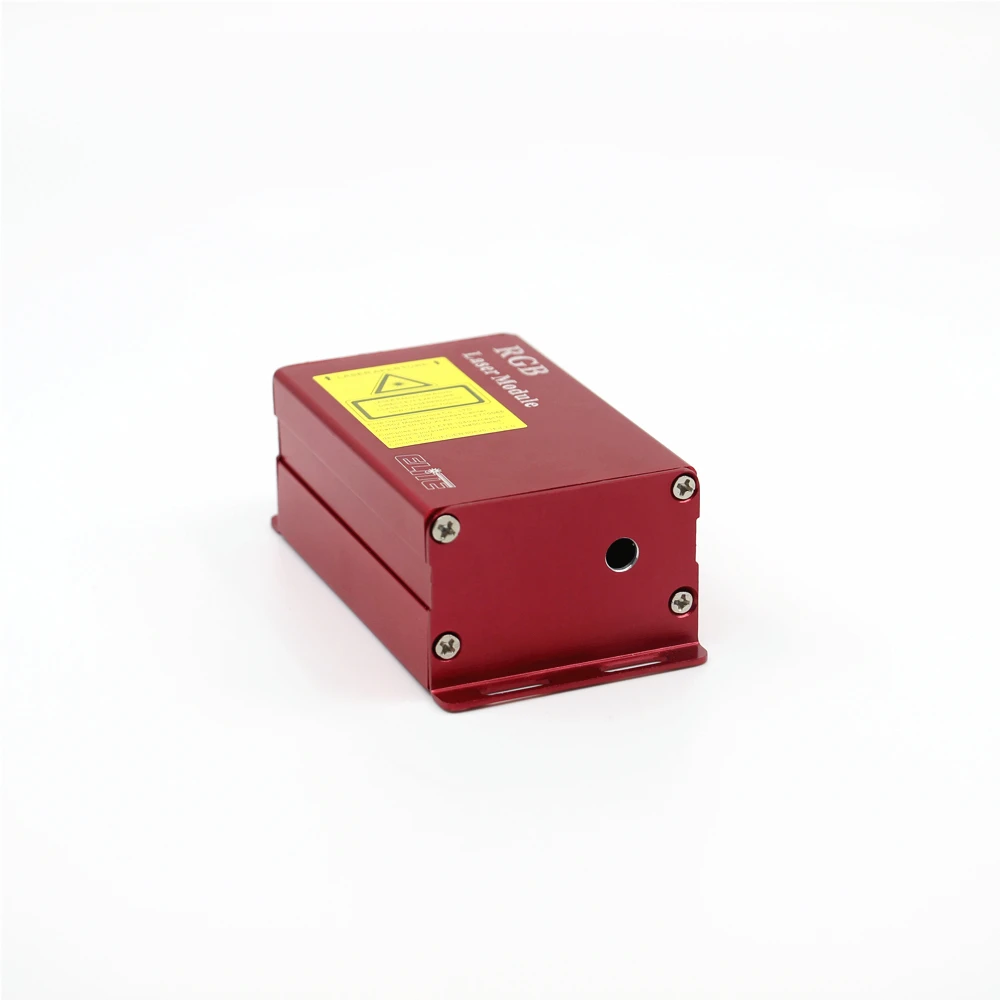

2 to 7 Colors RGB Fiber laser Module with FC SMA Connector Fiber Optics Fiber Laser
- Category: >>>
- Supplier: Elite Optoelectronics Co. Ltd.
Share on (60290898569):
Product Overview
Description
Item | Specification |
Wavelength | 445nm, 520nm, 635nm |
Output Power | 1mw-300mw |
Fiber Core | 105μm,125μm, 170μm, 200μm |
Numerical Aperture | 0.22mm, 0.37mm, 0.53mm |
Fiber Length | 0.5-10m |
Optics | Glass lens |
Packaged Type | Through Hole |
Case Material | Aluminum black anodized |
Beam Size | Customized |
Connector | FC, ST or SMA |
Dimension | Customized |
Divergence | 0.6mrad |
CDRH Class | Class IIIb Laser, ROHS compatible |
Operating Temperature | -10-50°C |
Storage Temperature | -40-80°C |
Voltage Stability | >98% (at 2.7-5.5VDC) |
Temperature Stability | >95% (at -10°C-50°C) |
Protection | Static, Surge, Reverse Polarity Protected |
Lifetime | >6,000hrs |
Description
Elite mini laser diode module has extraordinary performance and unique compact design. Only our experienced engineer team is able to balance reliability and design for the system where size and weight limited. Mini laser diode module is one of the top selling products in the market with CE.
Features
Compact Size Design
High Performance
High Reliability
High Product Quality
High Quality Elliptical and Circular Beams
High Performance
High Reliability
High Product Quality
High Quality Elliptical and Circular Beams
1.High optical power and multi-color.2Fiber coupled output or collimated beam output.
3.Long term stability 4.High reliability
5.High power density 6.Uniform intensity distribution
Elite offers the ultra-small beam laser diode module,specially designed for high precision instrumrnt and equipment,widely used in precise positioning and high-precision detection.
FAQs
1. What's the way of shipping
Shipping via DHL, TNT, UPS, FedEx, and EMS.
2. What's the payment method?
Assurance payment on Alibaba
3. What's your MOQ?
1 Piece
4. What's the delivery time?
3 – 7 days for International Shipping
5. Can I customize the products based on my requirements?
Yes. We can design and produce lasers based on your special requirements.
6. Do you have any certifications for lasers?
Yes. All our lasers are certified with CE, RoHS.
7. How long is the warranty period?
12 months.
Shipping via DHL, TNT, UPS, FedEx, and EMS.
2. What's the payment method?
Assurance payment on Alibaba
3. What's your MOQ?
1 Piece
4. What's the delivery time?
3 – 7 days for International Shipping
5. Can I customize the products based on my requirements?
Yes. We can design and produce lasers based on your special requirements.
6. Do you have any certifications for lasers?
Yes. All our lasers are certified with CE, RoHS.
7. How long is the warranty period?
12 months.
