Center-filled Wafer Biscuit Machine/Wafer Biscuit Process Line/Wafer Biscuit Production Line
Product Description
Introduction:
Center-filled wafer biscuit are generally square or rectangular bread with widely range of dimensions; It is a newly food between puff snack and biscuit; The flat bread is a good snacks to replace the toast in the meals; They offers crispy taste, nutritious content, and long shelf time for the clients; Also It is less fat, high fiber textures snacks, which can be center-fiiling or coating with cream, chocolate etc

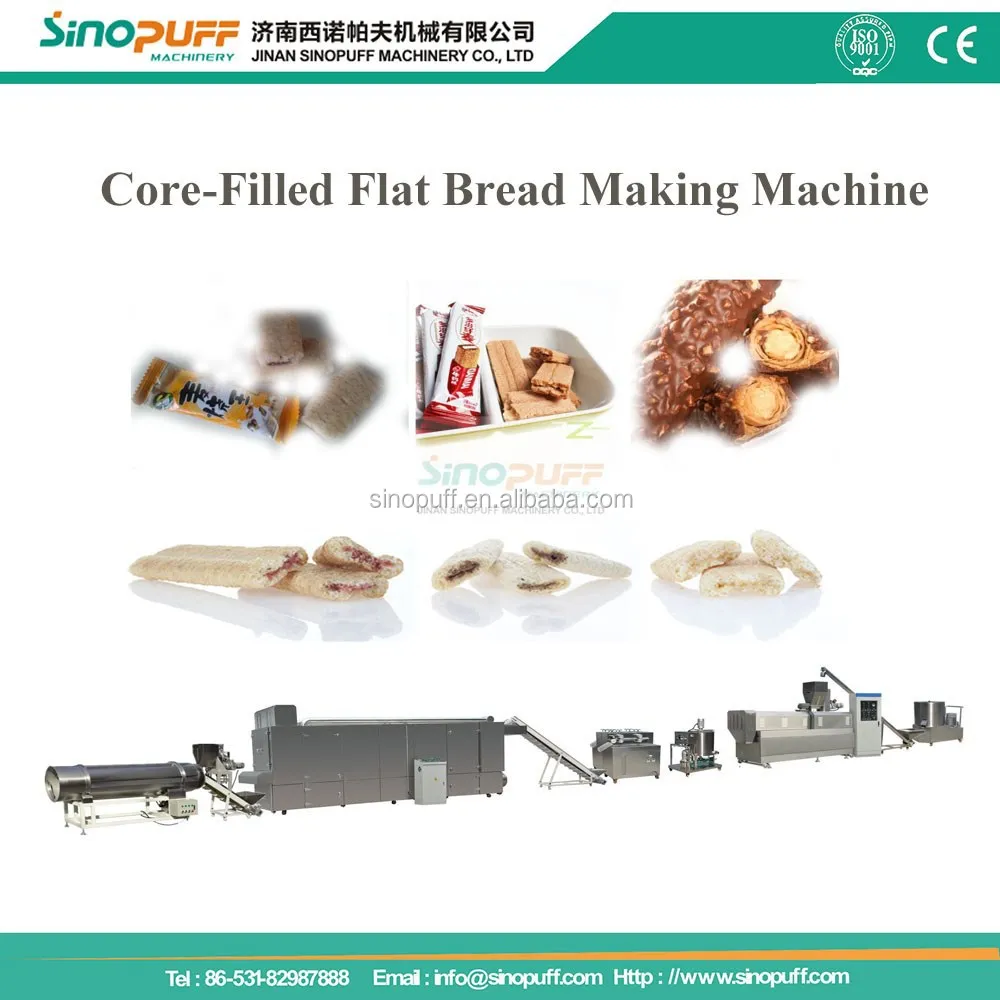

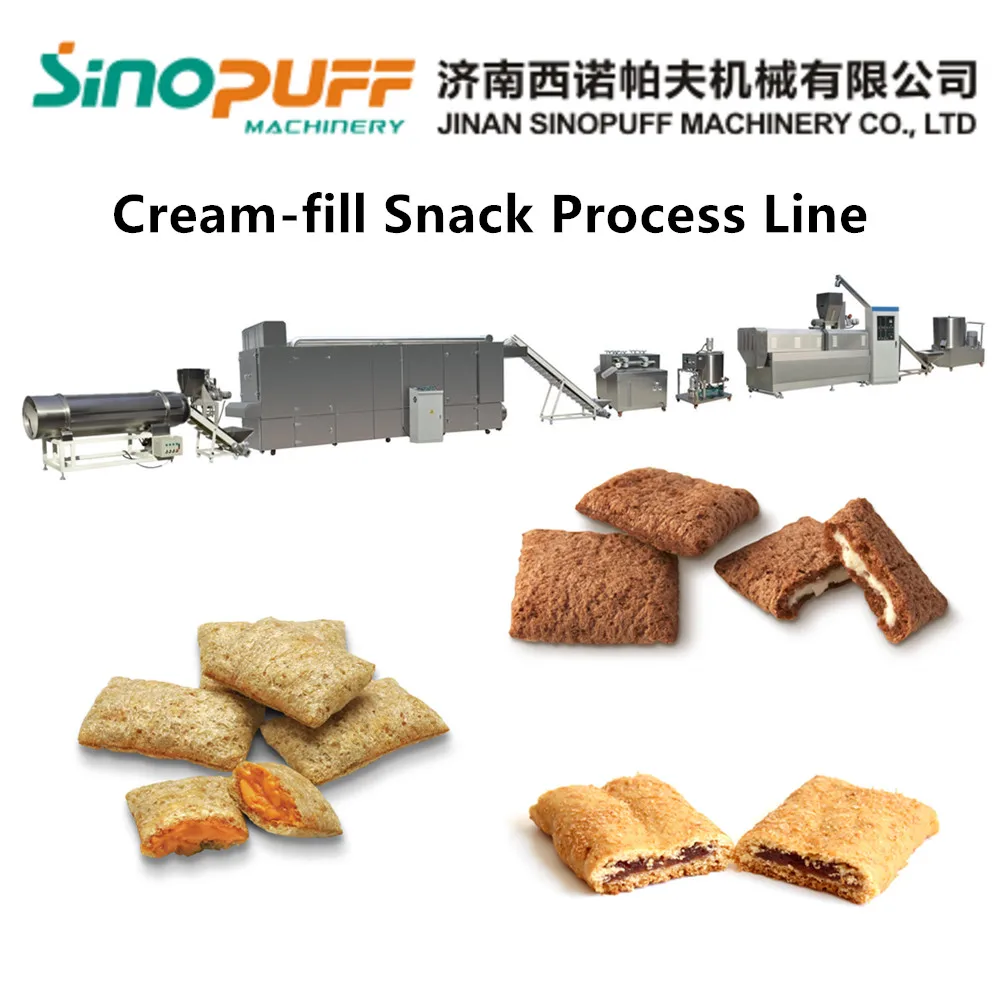

Production Process Line:
Sinopuff bread pan snack making process is from mixing, extruding, shaping, cutting, and drying; The process is fully automatic and less cost than the biscuit;
Basic Formula:
Cereals Powder(corn, wheat, oat, barley,rice etc)
Whole Grains, Mixtures grains;
Machine Parameters:
Model
Installed Power
Power Consumption
Capacity/Output
Dimension
SP65-II Twin Screw Extruder
42.9kw
30kw
100-180kg/h
3070x960x2050mm
SP65-III Twin Screw Extruder
31.3kw
22kw
100-150kg/h
2600x960x2000mm
SP70-III Twin Screw Extruder
64.45kw
40kw
200-250kg/h
3320x960x2100mm
SP75-III Twin Screw Extruder
79.05kw
50kw
250-350kg/h
4650x1100x2200mm
SP85-III Twin Screw Extruder
97kw
72kw
350-500kg/h
4800x1100x2300mm
SP52-II Twin Screw Extruder
54.3kw
40kw
100-150kg/h
4500x900x1820mm
SP75-II Twin Screw Extruder
89.7kw
67.3kw
200-350kg/h
5200x1100x2200mm
SP90-I Twin Screw Extruder
161.3kw
121kw
350-800kg/h
5800x1200x2500mm
Application
Machine Advantages
Productive: Automated systems for controlled and consistent production on a continuous basis, easy and quick product changeover, automated start up, simple cleaning and maintenance procedures.
Flexible Formula: Processing of a wide range of raw materials, such as corn, wheat, rice, potato, oat etc;
Widly Appication: Easy adaptation to extend the range of products by changing the segments screw;
Smart Control System: PLC Control of production to ensure optimized process parameters for each recipe;
Advanced Die and Cutting system: This designs give processors an entirely new set of templates to create innovative shapes and sizes-Balls, animals, stars, rings, pillows, triangles, curls, chips, sticks, and also letters;
Processing & Factory
Our services:
Before Purchasing: We will provide professional technical project and sales consultation service to solve the customers' question and worried;
During Production: Timely updates the machine status for customer to ensure delivery time, and quality
After Production: Machine testing video and photos will be provided for inspection, if the customer can't come;
Before & During Shipment: The machine will be cleaned and packaged before transportation; All the documents will be provided for the seller;
Installation & Training: Providing professional and expert technical engineers to supply the training and installation service.
After Sales Service; Dedicated department and engineers for providing the timely and efficient service when the clients' need, such as formula, parameters setting, and spare parts;
Packaging & Shipping
All Machine will be cleaned and entirely wraped by plastic film to avoid any scratch;
Extra Spare Parts, wires and tool box will be placed with the package;
Deliver Department and sales will check the list to aviod any missing, and possible mistake;
Good quality wooden cases to protecting the machine for long-tme shipment;
Hot Product
Hope you will like the following products:
FAQ
1 Where is your factory?
Jinan city, Shandong Province, China
2 What is your machine warranty?
1 year, main parts warranty time will be 2 or 3 years.
3 Do you supply spare parts?
Yes, we supply spare parts with reasonable price;
4 What can you provide for after sale service?
We can send engineers to your factory for installation and training if customers‘ required
5 If we show you our layout of factory, can you help to design the whole process line?
Yes, our experienced engineers and technical employee can help you to arrange the layout and installation of whole process line based on your real situation;
6 How can we contatc you if we meet problems during production?
Phone/email/wechat/whatsapp/Skype are all available.
7 If we have samples of new products, can you help to analysis and design the machine?
Yes, Our technical department can help to analysis, design and test the new products you offered.
