6 layer puzzle parking lifting and sliding shop mall car parking solution
Operating Principle
The entrance of this type is on the ground floor, the car boards on the top layer can only be lifted, the car boards on the bottom layer can only be slid, and car boards on the middle layers can be both lifted and sild. The middle layers had empty spaces, so that the car boards could be slid, and let the vehicle above down to the ground floor to be picked. The vehicles on the bottom layer can be driven out directly.
Video Show
Company's video: //www.tadaparking.com.cn

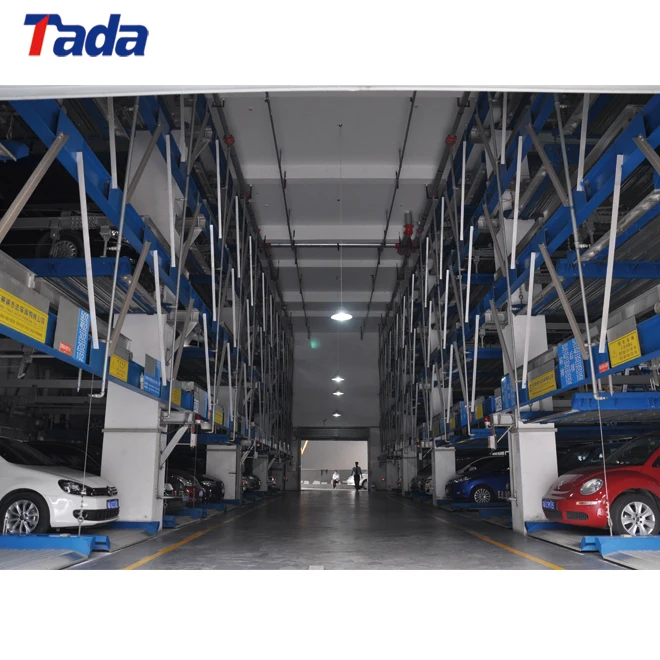

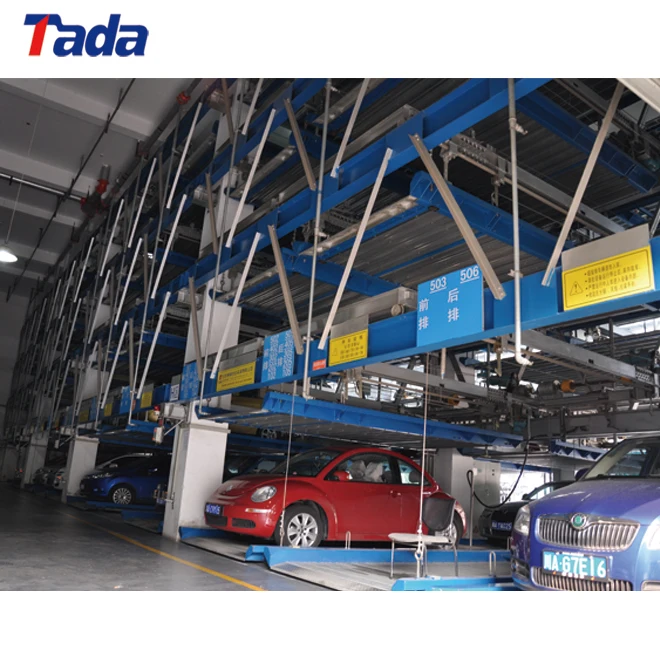

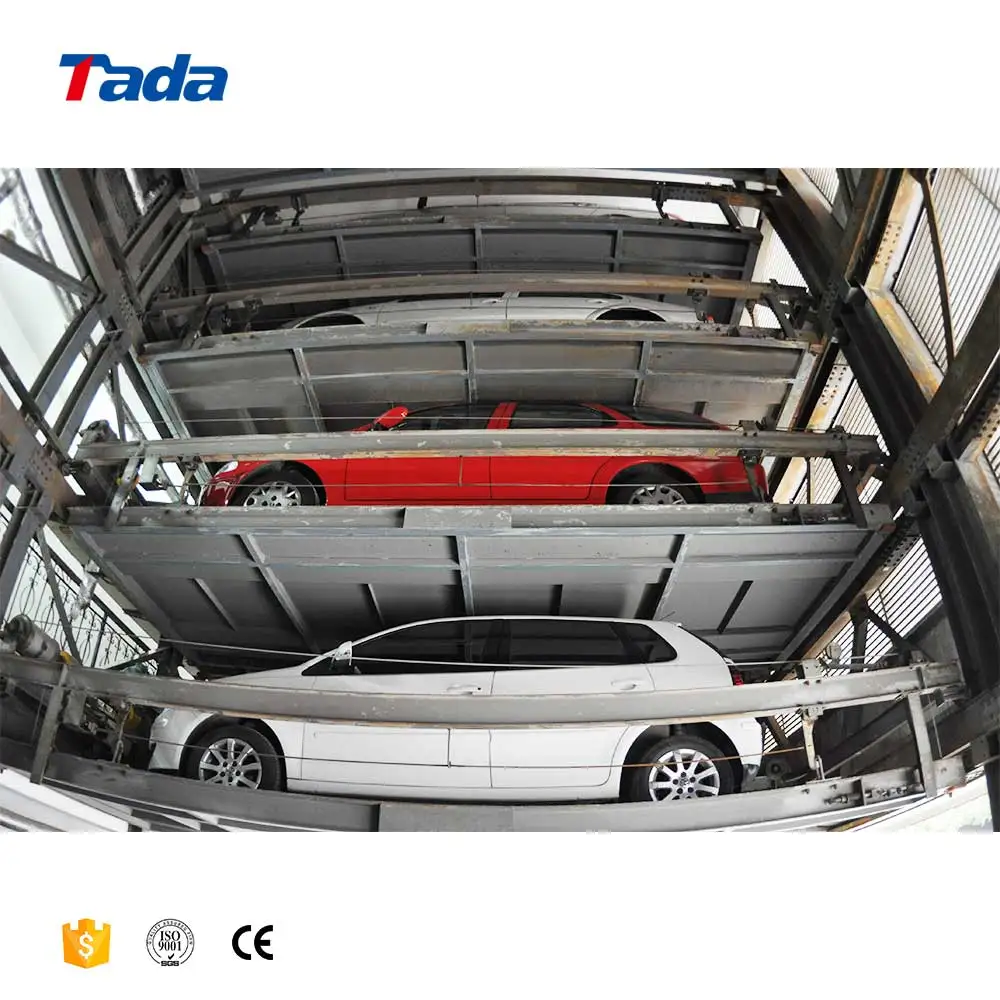

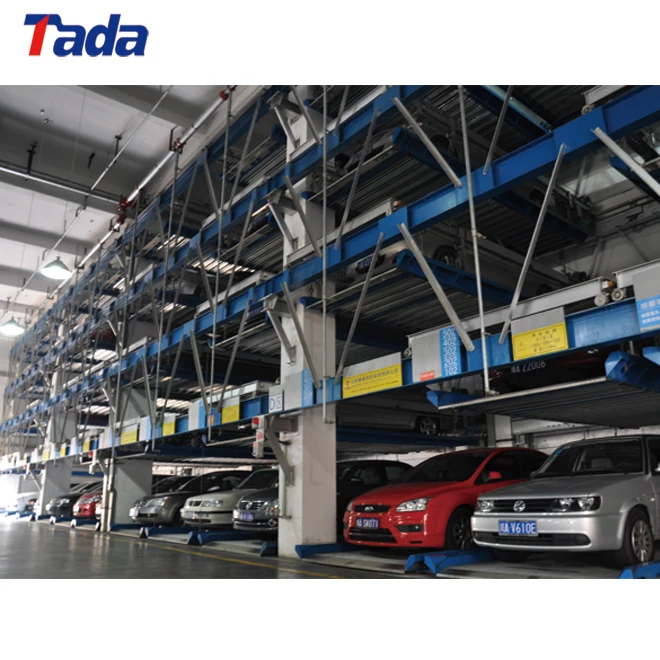

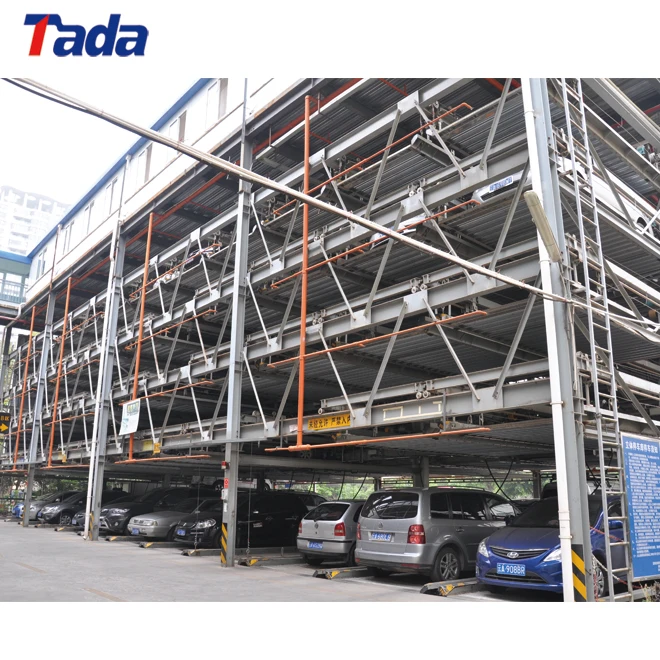

Picture Show
Technical Parameters
Name
Instruction
Layer
Upper layer
Middle layer
Ground layer
Vehicle Size
Length
5000(mm)
5000(mm)
5200(mm)
Width
1850(mm)
1850(mm)
1900(mm)
Height
1550(mm)
1550(mm)
2050(mm)
Vehicle Weight
1700(kg)
1700(kg)
2000(kg)
Lifting
Power
2.2(kw)
Speed
5.5-6(m/min)
Sliding
Power
0.2(kw)
Speed
8(m/min)
Driven Mode
Electric machine+Cycle chain+ Steel wire rope
Operation Mode
Button, Automatic, Manual
Power Supply
AC380V/220V50Hz; 3¢380V/220V50Hz
Application Range
6 layer puzzle lifting and shifting shop mall car parking solution (1)The equipment utilizes steel wire to lift, it is designed into 6 layers. (2)Less occupied area, make full use of the three-dimensional space. (3) Arrangement is convenient and the design is flexible. (4) Increase the parking space and the cars go in and out conveniently. (5) The operation is simple and reasonable. (6) Multiple protection device, safe and reliable. (7) Equipment structure is concise and practical.
Equipment Structure
6 layer puzzle lifting and shifting shop mall car parking solution Each group of controlling of this parking system is designed into 3-car to 6-car, just depending on specific site conditions.
Type & Classification
6 layer puzzle lifting and shifting shop mall car parking solution 4-point safety device on the ground and underground; independent car-resistant device, over-length, over-range and over-time detection, crossing section protection, with extra wire detection device.
Project Case
Exporting countries USA, Canada, Australia, Russia, Spain,Germany, UK, New Zealand, Brazil, Mexico, Columbia, Thailand and many other countries.
Our Factory
Quality Guarantee
Warranty
Five years for main structure, one year for parts. During this period, if there is damaged parts because of our quality, after you send us real pictures, we will send you new products for free.
Supplier Assessment
Tada has been assessed by TÜV Rheinland, giving buyers in-depth details and authoritative information about suppliers for free, to help buyers source smarter and safer. Below is the certificate showing.
Trade Assurance
The registered capital of Tada almost 30 million USD, is the largest parking system company of China. Tada has assigned Alibaba a Trade Assurance Limit for covering buyers,so your rights can be well protected.
Technical Patents
The Europe R & D Center The Europe R&D Center of Tada located beside of beautiful Lake Lugano in Switzerland, and many top parking experts of the world had joined in IT. The technology strength is abundant and had invented the third generation silomat intelligence carrying system and monitor system. Which had more than 30 intellectual properties. This system had widely used in Athens' Olympics Games (more than 1000 carports).
Main Material
Shan Steel Group is one of our shareholders, ranking the 88th on the list of the China's top 500 enterprises, and the 33rd on the list of China’s top 500 manufacturing enterprises. Material of Tada used Hot rolled H-shaped steel was made by Shan Steel Group. Hot rolled H-shaped steel was awarded the "China famous brand" title, this is also the first steel of famous brand in China metallurgical industry.
Shan Steel and Shagang Group are both Tada’s shareholders. Shan Steel Gr- oup are H-beam steel high-quality goods production bases, and the quality of raw material can be guaranteed.
Production Equipment
Quality Certificate
Company's Honors
Purchasing Process
Packaging & Delivery
Packaging Details
Packaging Details: Standard export packing
Delivery Detail
Delivery Detail: 30-120 days after receiving the deposit
