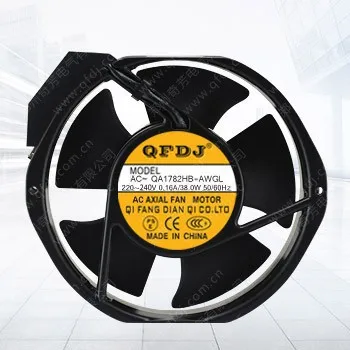

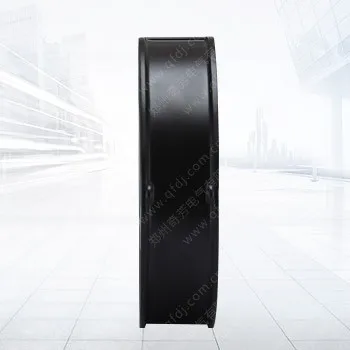

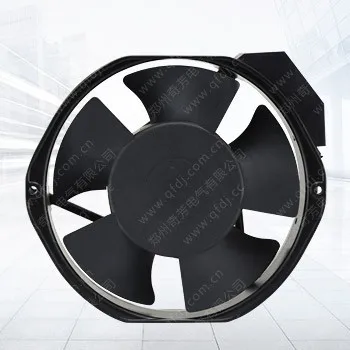

17238 AC 220 volt tangential fan motor cooling fan

Product Overview

Description

    17238 AC 220 volt tangential fan motor cooling fan

Specifications:

1. Packaging Detail: white/color box, blister package

2. Normal Operating Temperature: 25°C-45°C

3. Life Expectancy: Dual Ball Bearing: 50000 hours

                                  Sleeve Bearing: 20000-25000 hours

4. Standard: Fully CE,  ROHS  Approved



Item specifics









FRAME SIZE	MODEL NO.	BEARING TYPE	Freq Hz	VOLTAGE (V)	CURRENT (A)	POWER (W)	SPEED (RPM)	AIR FLOW (CFM)	PRESSURE (mmH2O)	NOISE dB(A)	WEIGHT(g)
172*145*38	QA1781HS-AWGL	S	50/60	110	0.40/0.35	43/36	2300/2500	150/170	11/15	48/51	800
	QA1781HB-AWGL	B	50/60	110	0.40/0.35	43/36	2300/2500	150/170	11/15	48/51
	QA1782HS-AWGL	S	50/60	220	0.20/0.16	44/38	2300/2500	150/170	11/15	48/51
	QA1782HB-AWGL	B	50/60	220	0.20/0.16	44/38	2300/2500	150/170	11/15	48/51
	QA1783HS-AWGL	S	50/60	380	0.14/0.12	45/40	2300/2500	150/170	11/15	48/51
	QA1783HB-AWGL	B	50/60	380	0.14/0.12	45/40	2300/2500	150/170	11/15	48/51









Advantages:

1.Reliable quality as well as Competitive price
2.Large volume flow and long life expectancy
3.High speed and large air flow
4.Low noise and high efficiency
5.Ball or sleeve bearing for options
6.Sample lead time:3-5 days
7.Delivery lead time:2 weeks
8. Professional service
