Fully Automatic Coconut Charcoal Briquette Production Line

Product Overview

Description

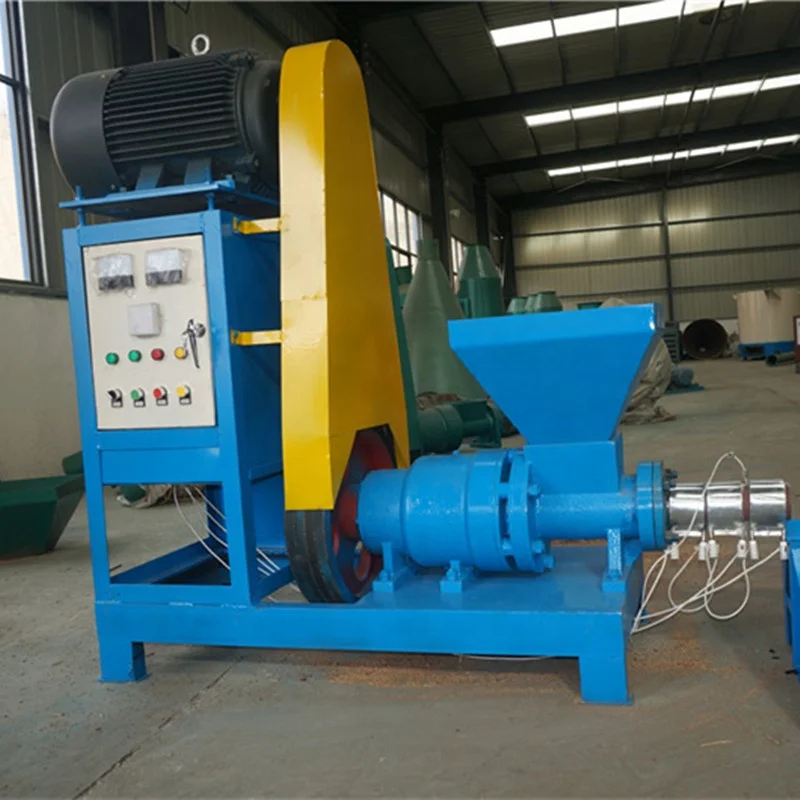

Fully Automatic Coconut Charcoal Briquette Production Line



Brief instrucation of coconut charcoal briquette production line

The coconut charcoal briquette production line is enviroment friendly and energy recycling equipment, it also named wood sawdust briquette forming machine, biomass briquette equipment, rice husk briquette moling machine, the raw material could be wood sawdust, wood

powder, rice husk, raw material daimeter need less then 5mm, moisture need less then14%,

the raw material will foming shape within high pressure and high temperature, do not need any additive.



The techincal paremeter of coconut charcoal briquette production line

Model	Power	Capacity	Weight	Dimension	Note
ZBJ-1	15kw	120-200kg/h	550KG	1.68*0.72*1.25m	Briquettes size: 50mm
ZBJ-2	18.5kw	250-300kg/h	680KG	1.86*0.72*1.32m	Briquettes size: 60-70mm
ZBJ-3	22kw	350-450kg/h	750KG	1.96*0.72*1.32m	Briquettes size: 60-80mm



Raw material of coconut charcoal briquette production line

The coconut charcoal briquette production line raw material could be wood waste, wood sawdust, rice husk, bamboo ane etc, diameter need less then 5mm, moisture need less then 14%.

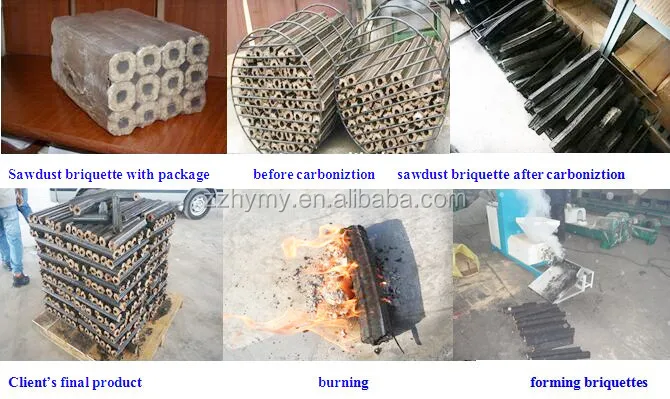

Final product of coconut charcoal briquette production line

The coconut charcoal briquette production line are widely used in biomass power plant heating

industry, boiler heat source and other industries. Final product shape could be round, square, hexagon and etc, the hexagon is most stabilize shape and is best capacity, the final product

diameter have three type, 60-70mm is the most stabilize type sawdust briquette also could be the raw material of BBQ, after carbonizating, the final prodcut is charcoal briquette.



The wear parts and life time for coconut charcoal briquette production line

The coconut charcoal briquette production line have three type wear parts

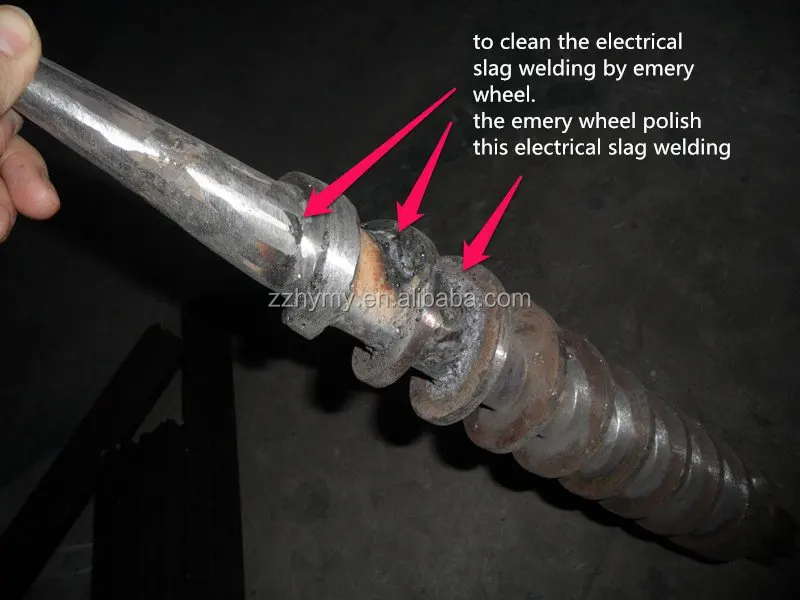

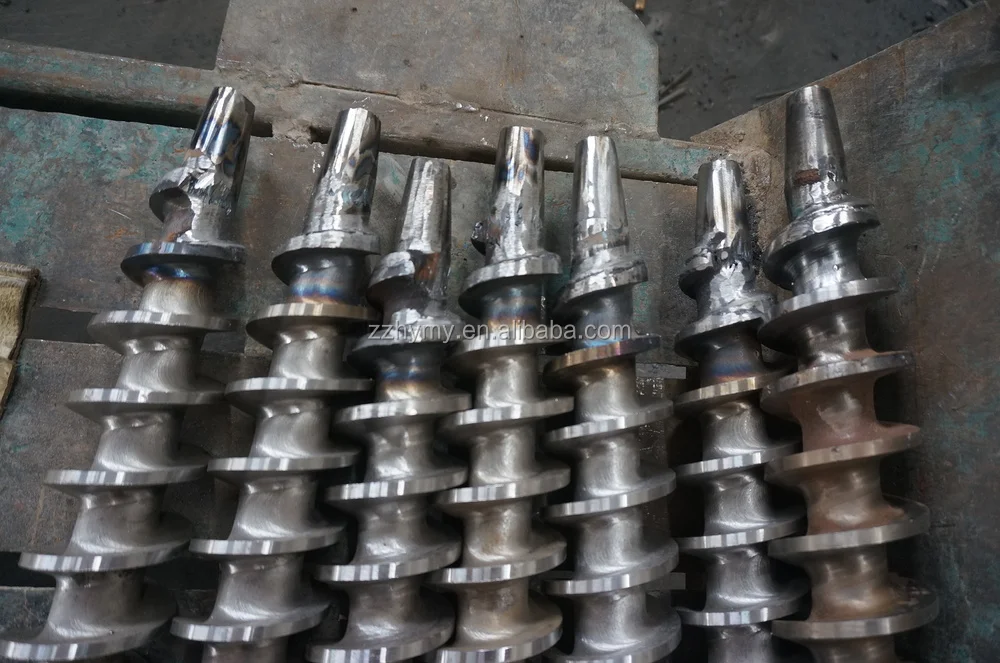

Propeller/screw life time: 6 months

We often suggest that it should be repaired by welding every 7days.

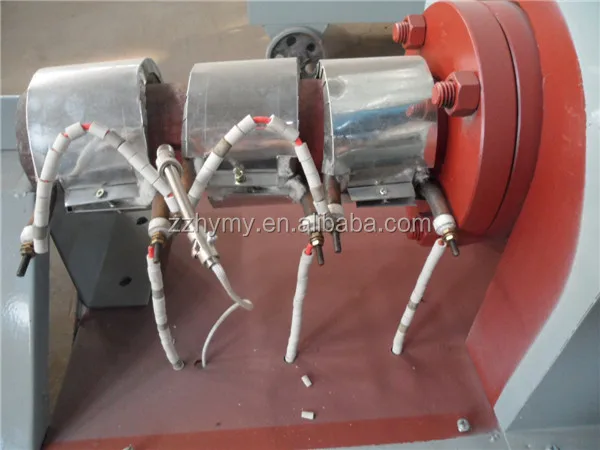

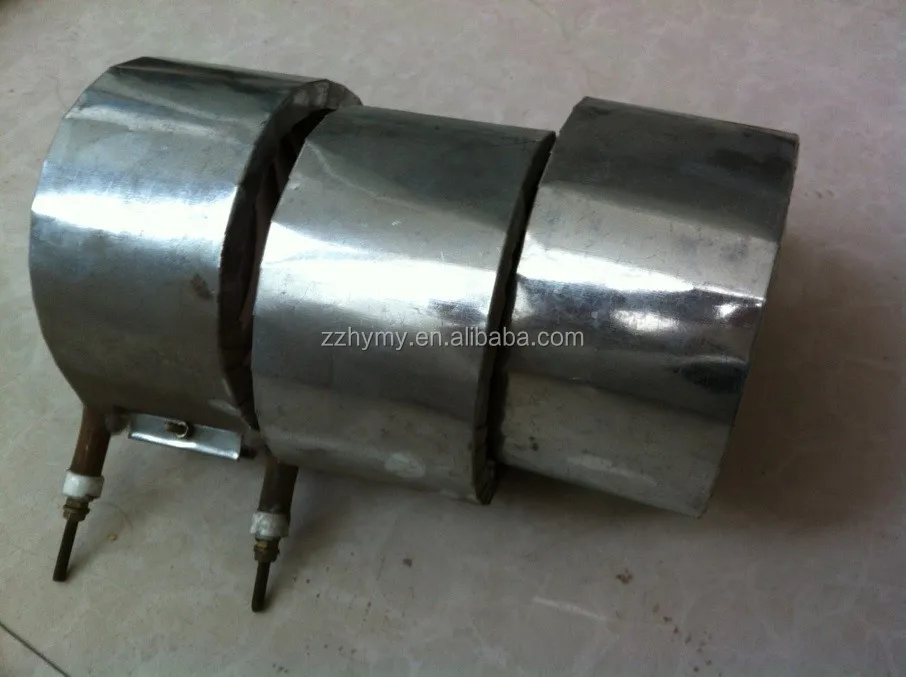

Heating ring life time: 4-6months

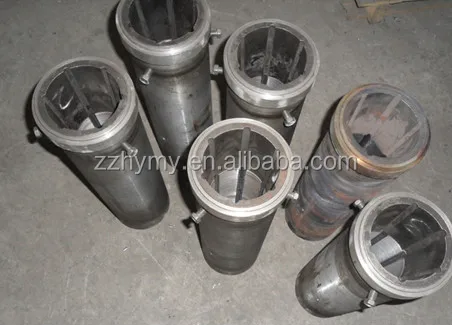

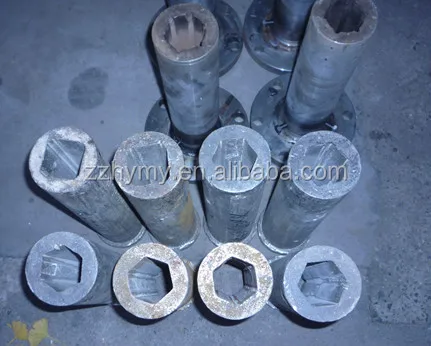

Mold life time: 8-10months







Main feature of coconut charcoal briquette production line

(1) No need any binder, the final product is not easy break;

(2) Low cost, high capacity, energy saving;

(3) Good quality, convenient maintenance;

(4) Supply complete production line, high degree of automatic.



Client visited our factory for coconut charcoal briquette production line

We welcome client visit our factory, we will pick up you at airpoat or railway station, the nearest airport to our company is Zhengzhou Xinzheng international airport.



If you are interested in this coconut charcoal briquette production line, please contact with me freely as the followings:
