16mm IP65 Waterproof Latching Emergency Stop, Momentary Mushroom Head Push Button Switch
- Category: >>>
- Supplier: AUSPICIOUS ELECTRICAL ENGINEERING CO. LTD. [Taiwan China]AUSPICIOUS
Share on (60291102907):
Product Overview
Description
16mmΦ Series Control Unit / Mushroom Head Type Switch
Description :
- Apparent shape: Round (18mm) / Square (18*18mm) / Rectangular (18*24mm).
- Install and remove the contact block easily.
- Gold-clad cross bar contact.
- Solder / plug-in terminal (#110) and PC board terminal type.
- Light touch structure.
- Use of high performance engineering plastics.
- Protective grade : IP65 (IEC Pud 529).

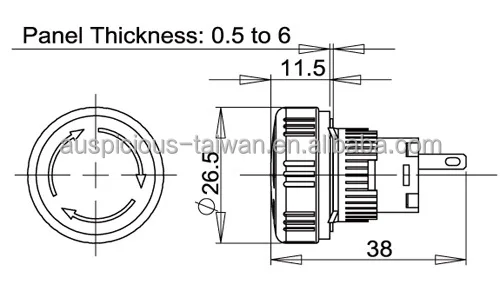

A16LM |  |  |
A16BLM |  |  |

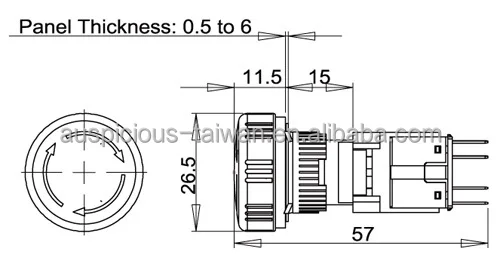

A16LMB | | |

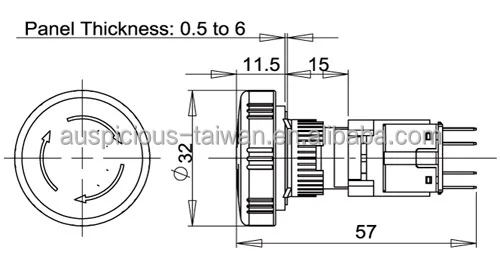

A16BLMB |  |  |

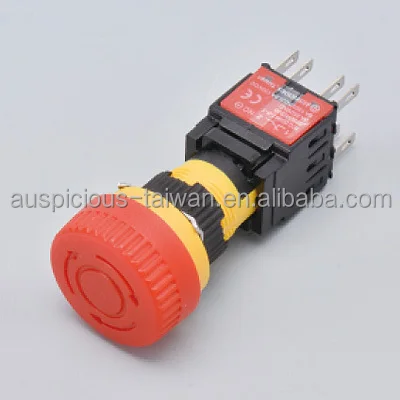

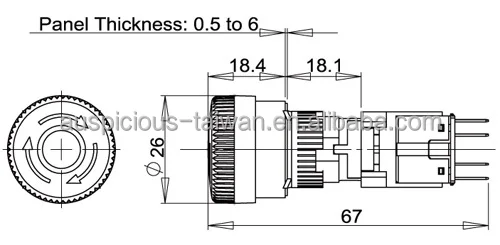

A16LMS |  |  |

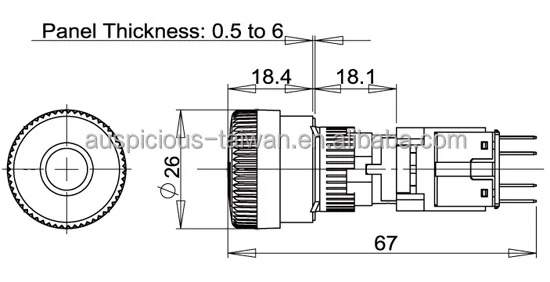

| A16E |  |  |

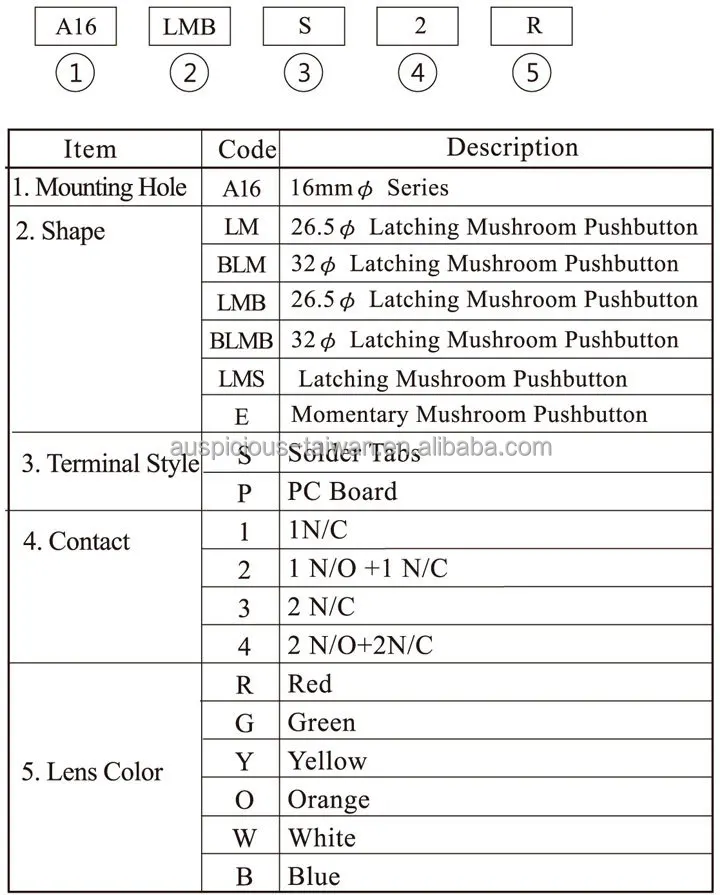

16mmΦ Series Mushroom Head Type Switch w/o Lamp

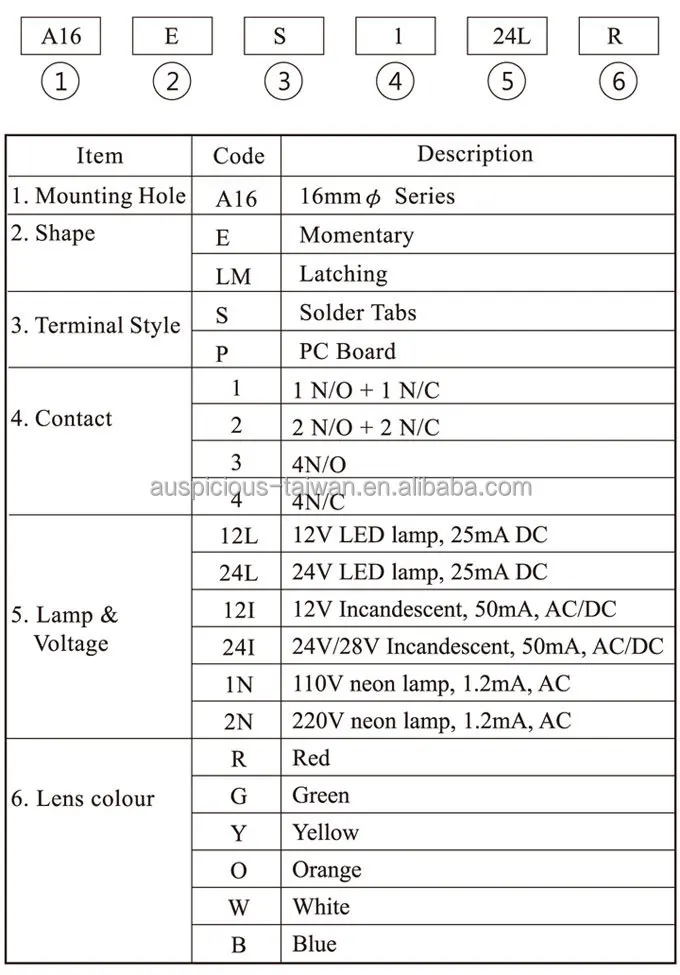

16mmΦ Illuminated Mushroom Head Type Switch

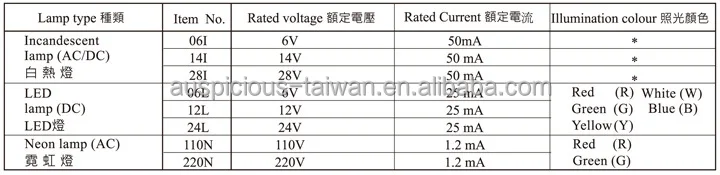

Lamp Type
Specifications
| Operating Temperature | -25°C ~ +55°C (Without freezing) |
| Storage Temperature | -30°C ~ +80°C |
| Operating Humidity | 45 ~ 80% RH |
| Contact Resistance | 100mΩ maximum (initial value) |
| Insulation Resistance | 100mΩ minimum (500vdc meggar) |
| Dielectric Strength | Between live part and ground 2500VAC : 1 minute |
| Between terminals of different poles : 2500VAC : 1 minute | |
| Between terminals of the same poles : 2000VAC : 1 minute | |
| Vibration Resistance | Operating extremes : 5 ~ 55 Hz, Amplitude 1.0mmp-p |
| Damage limit : 1000 m/s2 (Approx : 100G) | |
| Operating extremes : 1000 m/s2 (Approx : 10G) | |
| Mechanical Life (min) | Momentary : 2,000,000 |
| Alternate : 250,000 | |
| Selector switch : 250,000 | |
| Electrical Life (min) | Momentary : 100,000 (1800 operations/hour) |
| Alternate : 100,000 (1200 operations/hour) | |
| Selector switch : 100,000 | |
| Protection Degree | IP65 (IEC Pud 529) |
Please visit www.auspicious.com.tw for more detail information.
