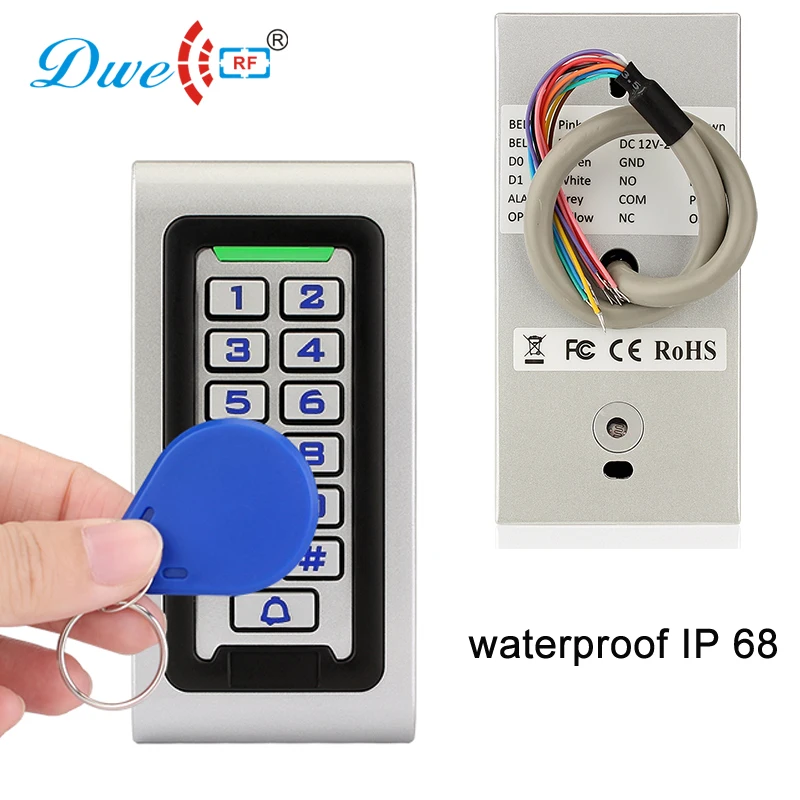

hot sell 125khz metal waterproof outdoor keypad rfid standalone access control 2000 users IP68

Product Overview

Description

hot sell 125khz metal waterproof outdoor keypad rfid standalone access control 2000 users IP68



Features

Low power consumption: less than 30mA standby current

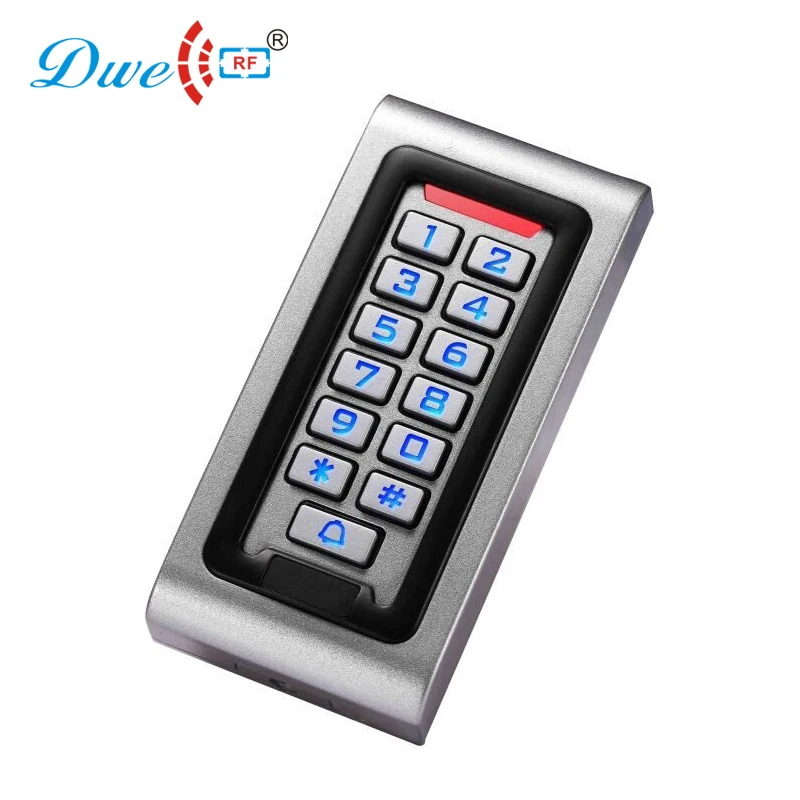

Luminous keyboard for convenient use at night

User capacity: support 2,000 users

Independent password: can use password which irrelevant with the card to open the door

User modification password: Users can revise the door password

Search speed: charge to open the door time less than 0.1 S.

Output short circuit protection: electric lock or alarm output circuit within 100 μS when shut down automatically output

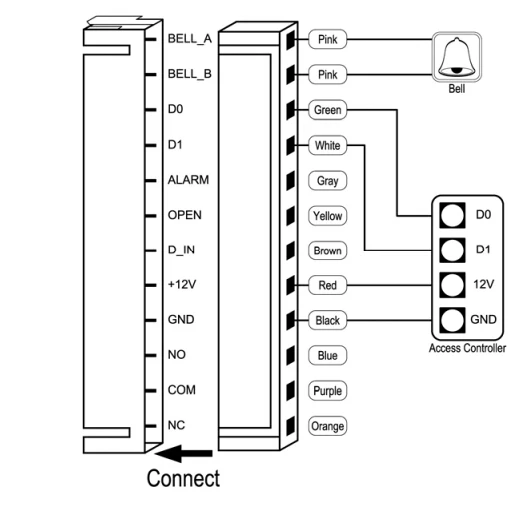

Wiegand output: With Wiegand output interface,Wg26 card number
Usable keyboard delete card number:After card is lost, usable keyboard delete card, Thoroughly eliminate safety lapses

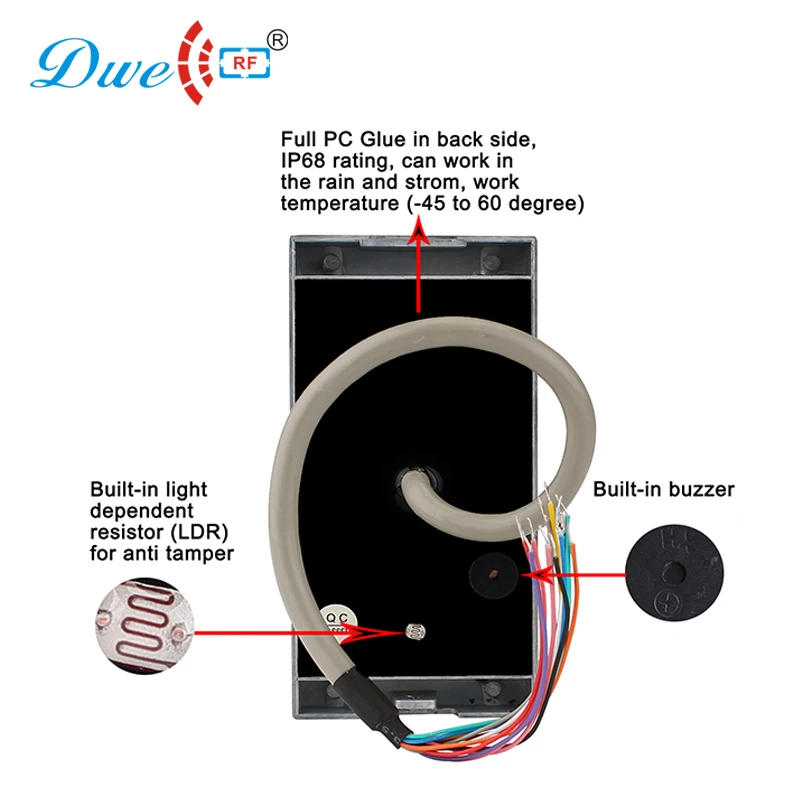

The demolition alarm:Illegal dismantling machine, built-in alarm sound buzzer

The bell button and interface: key and circuit segregation, external any the doorbell.

Technical parameters

Work Voltage:AC&DC9-28V

Static Current:≤30mA

Reading Range:3~8cm

Capacity: 2000 users

Ambient Temperature:-25°C~60°C

Ambient Humidity:10%~90%

Electricity lock output:≤3A

Alarm output:≤20A

Output short circuit protection time:≤100μS

Open time:0 ~ 99 seconds (adjustable)

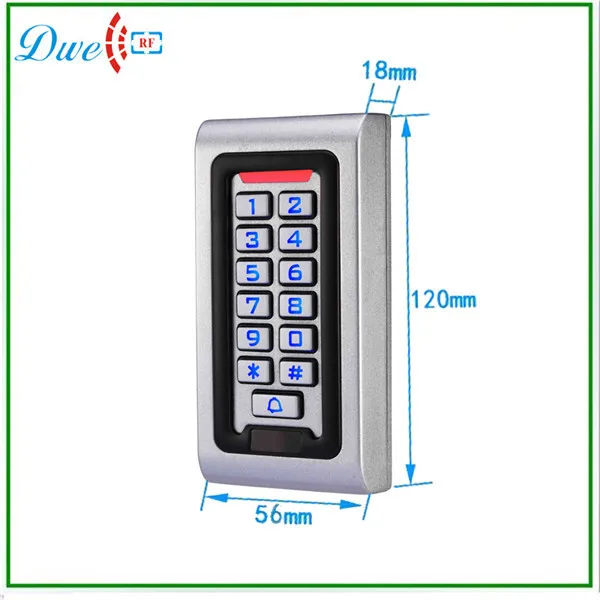

Size:120 *80*25mm

Weight: 750g

Box Dimension: 19*13*6cm

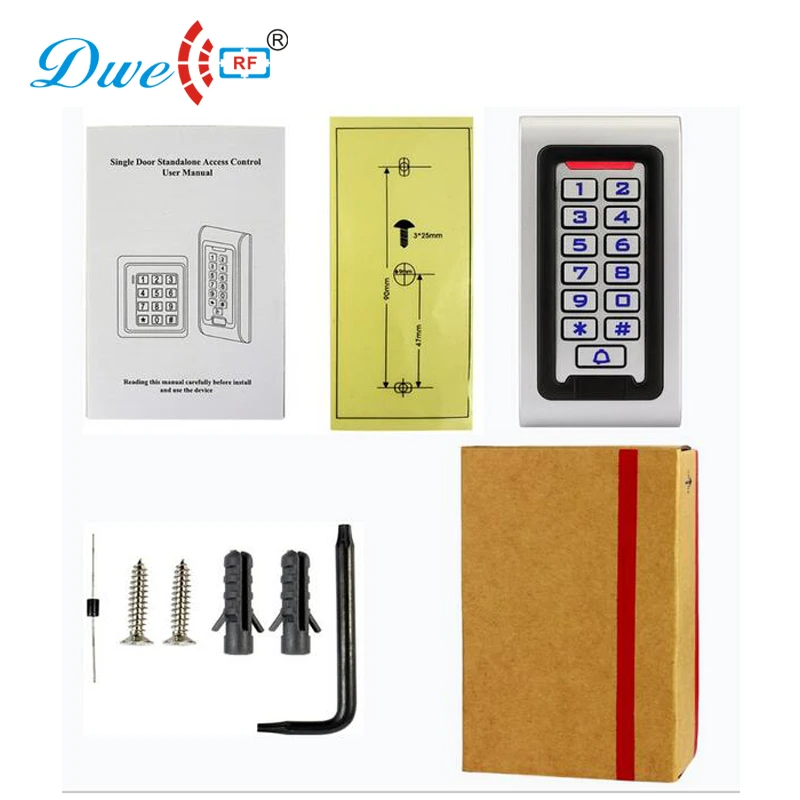

Packing list





1	D008-C201(this controller the keypad is plastic , not matel )

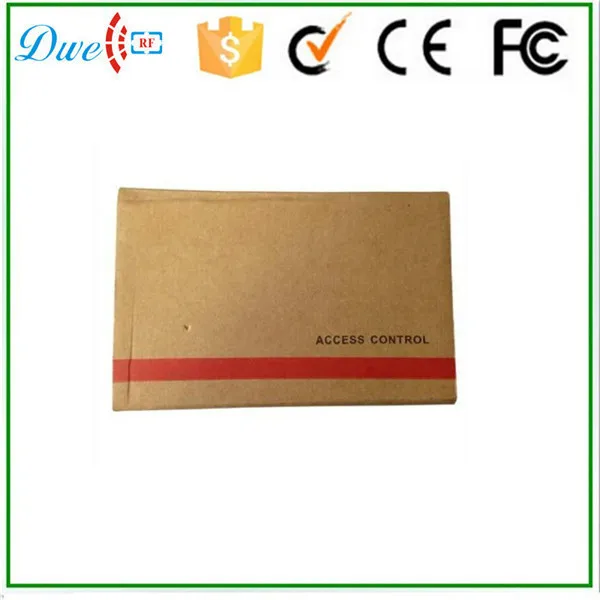

1	Gift box
