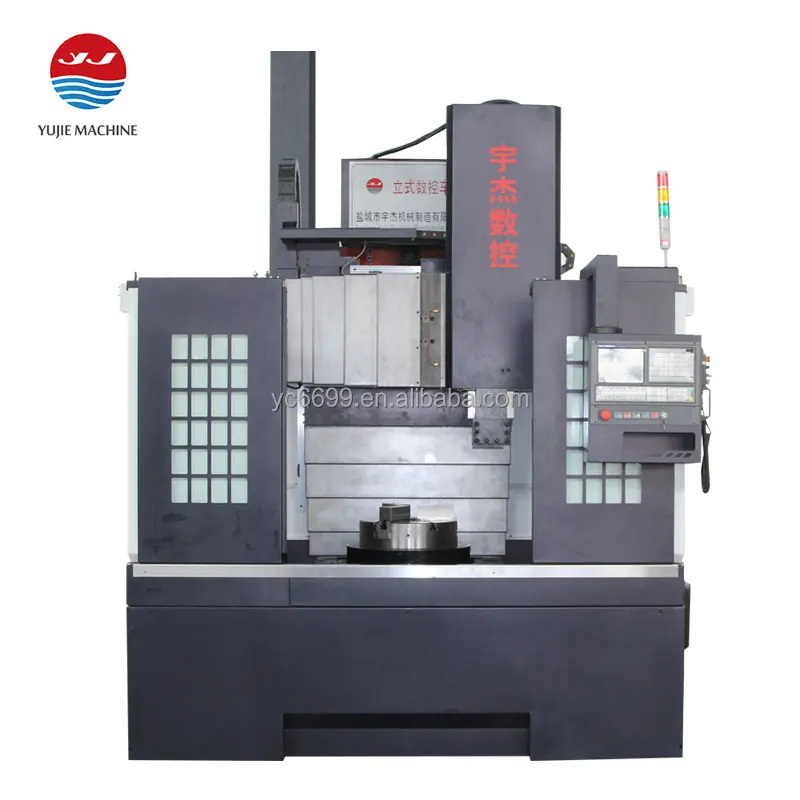

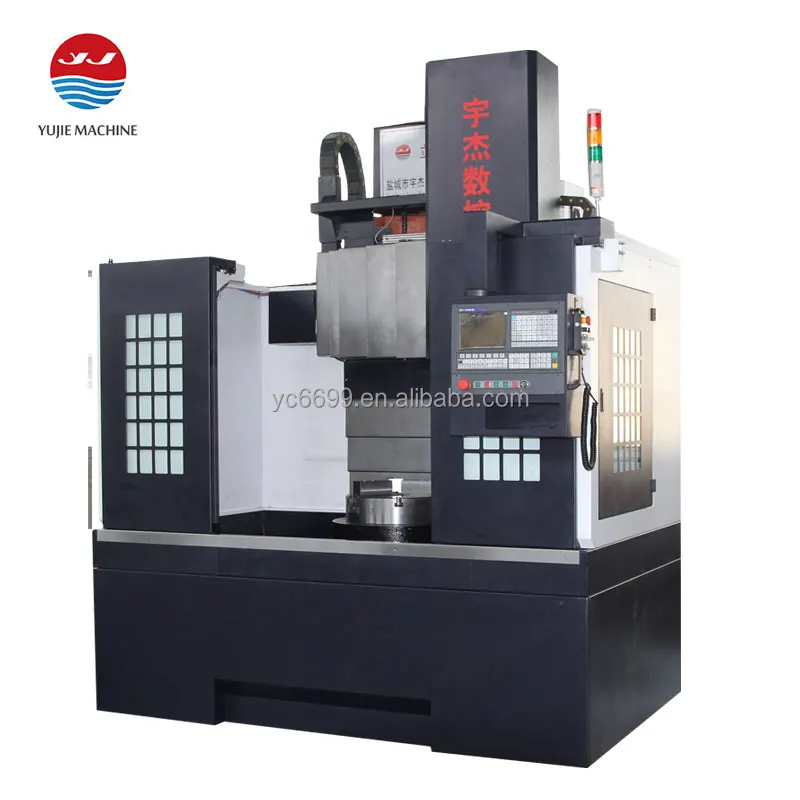

CK5112 Large CNC Vertical Lathe
- Category: >>>
- Supplier: Yancheng Yujie Machine Co. Ltd.
Share on (60291421668):
Product Overview
Description
Product Description
Specification
Parameters As Following
Item | Unit | CK5112 | |
Max swing over bed | mm | 1400 | |
Table diameter | mm | 1300 | |
Spindle bore | mm | 120 | |
Spindle speed range(low speed) | r/min | 20-80 | |
Spindle speed range(high speed) | r/min | 80-300 | |
Main motor power | KW | 11 | |
Rapid feeding | X axis | m/min | 1.2 |
Z axis | m/min | 0.8 | |
Re-Positioning accuracy | X axis | mm | 0.01 |
Z axis | mm | 0.015 | |
Travel | X axis | mm | -50,+450 |
Z axis | mm | 550 | |
Servo motor torque | X axis | N.m | 10 |
Z axis | N.m | 15 | |
Overall diameter (L×W×H) | mm | 3250*2350*2300 | |
Max. work piece weight | kg | 2500 | |
Weight | kg | 6500 | |
Note:Technical specifications are subject to change without notice. Special orders will be according to the contract . | |||
Standard accessories | Optional accessories |

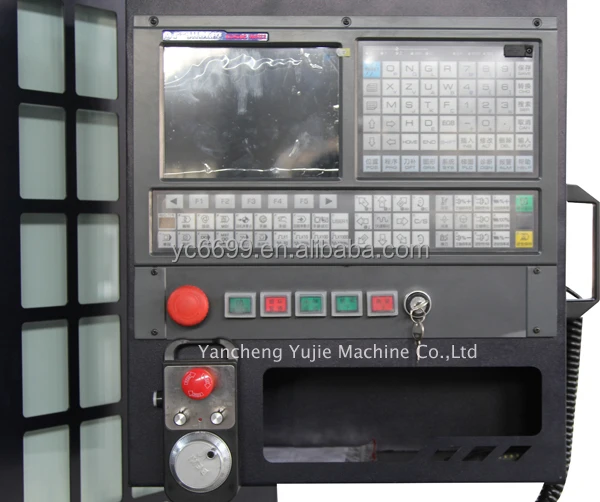

GSK 980 TDC System | FANUC/SIEMENS/SYNTEC/KND or other cnc System |

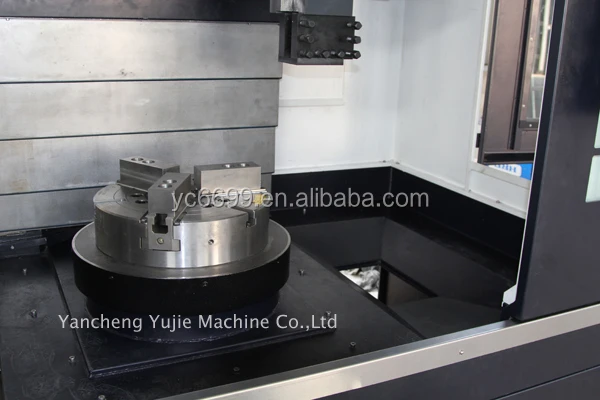

Workbench | Pneumatic chuck/Hydraulic chuck |

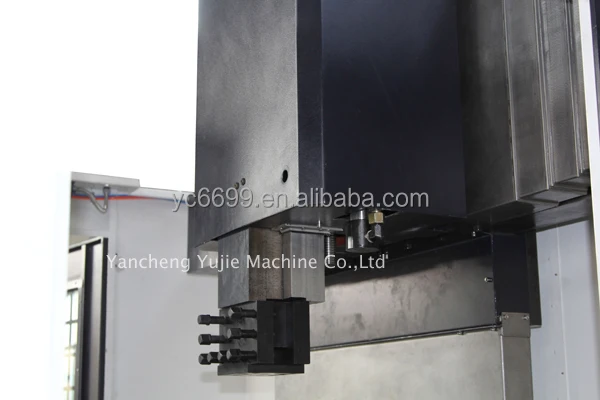

Vertical 4 Positions tool post | 6positions tool post(optional) |
Manual chip convey device | Automatic chip convey de |
Independent cooling system | Hydraulic station |
Integrated automatic lubrication system |
|
X;Z axis servo drive |
Product Features
Features As Below
1.Holding work-piece fast and easily machining for disk parts with high precision and complex shape.
2.Double rectangular hardfacing railway with high abrasion resistance and extended service life is applied in single column. (railway width 100mm)
3.The base adopts square box closed structure with thin-wall ribbed arrangement, adding its symmetric and stable section.
4.Rigid structure Large torque can meet the demand for heavy cutting.
5.The main spindle is driven by variable frequency motor or servo motor it is also equipped with automatic lubrication system.
6.Vertical structure small occupation area convenient to install and repair.
7.A production unit can be formed by CK580 series for automatic production line.
8.The machine is totally enclosed complies with occupation health and safety which ensures its stability with great precision and extends its service life.
Company Information
Packaging & Shipping
Our Services
24 hours technical support by e-mail or mobile, free instruction and problem solving.
User manual ( English version) and detailed video.
On-the-spot training and installation can be met if required.
12 months warranty period, any quality problem, please contact us.
