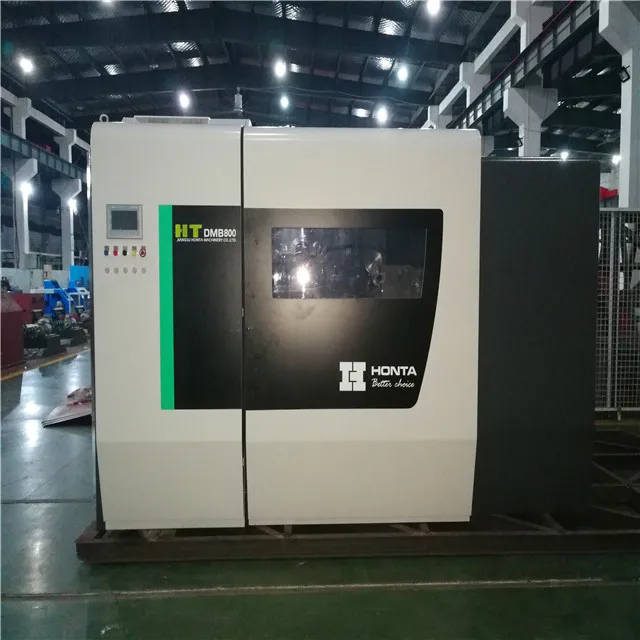

JiangSu Kunshan HONTA factory double twist copper wire bunching machine wire bunch stranding machine

Features:

Products Model: HT.DMB800.02.00

 Fit materials :

 Bare copper wire, Tinning line, Silvering line.

 Inlet wire dia. :

 Un-regular twisting:
 Sectional area twisted          :Min0.50-Max10 mm 2
 Single Wire dia.                    :Minø0.15-Maxø0.6mm
 Finished size                        :Maxø5.4mm

 Regular twisting (1+6+12)
Sectional area twisted            :Min0.597-Max10 mm 2
Single Wire dia.                      :Minø0.20-Maxø0.60mm
Finished size                          :Minø0.97-Maxø3.0mm

Adjustment of pitches: Digital pitch(controlled by PLC)

Max wire speed: Max 300m/min(bobbin cylinder diameter≥297mm)

Max production rate :

2200 r.p.m 4400 twist/min
Production rate is the stranding machines theoretically possible to achieve,
the actual production rate depends on various factors, such as: quality of
wires, wire bobbins, the proficiency of operator and product structure etc.

Finished Products









Company Information

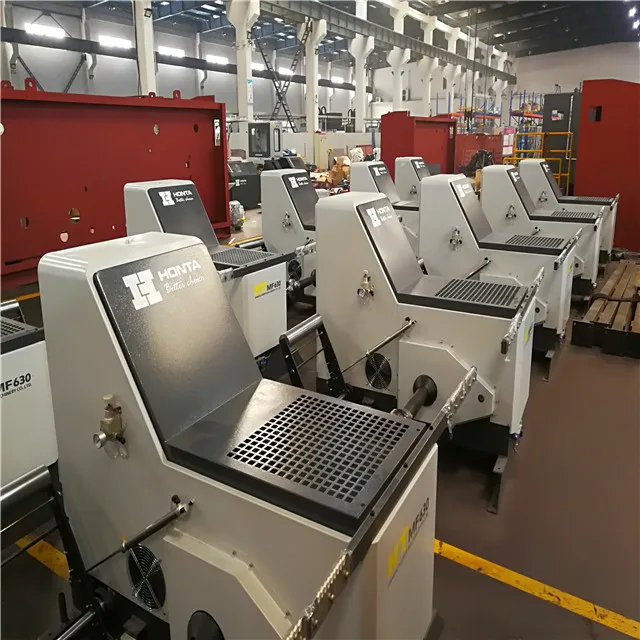

 Our factory show:

Certifications

 CE for multi wire drawing machine:



Trade show

 Exhibition is shanghai city:

Commissioning

 Commissioning wire drawing machine in Turkey :



Customer show

Our customers come from different countries around the world.
