Product Overview
Description
Full automatic small recycle tire machine / Tyre rubber crumb production line
Product Description
Waste tire shredder is used to recycle the waste tires into rubber
powder,Environmental protection and energy saving.
Production Flow

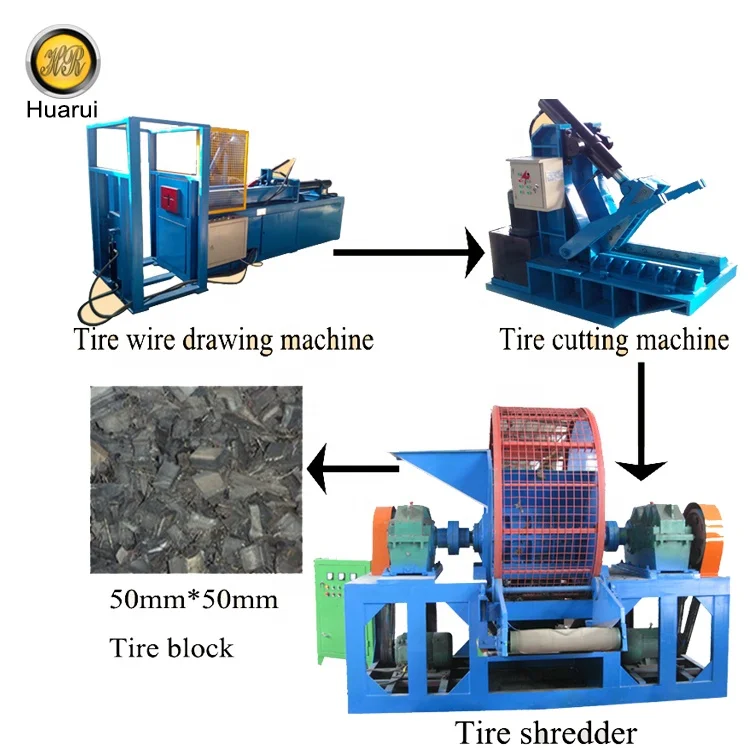

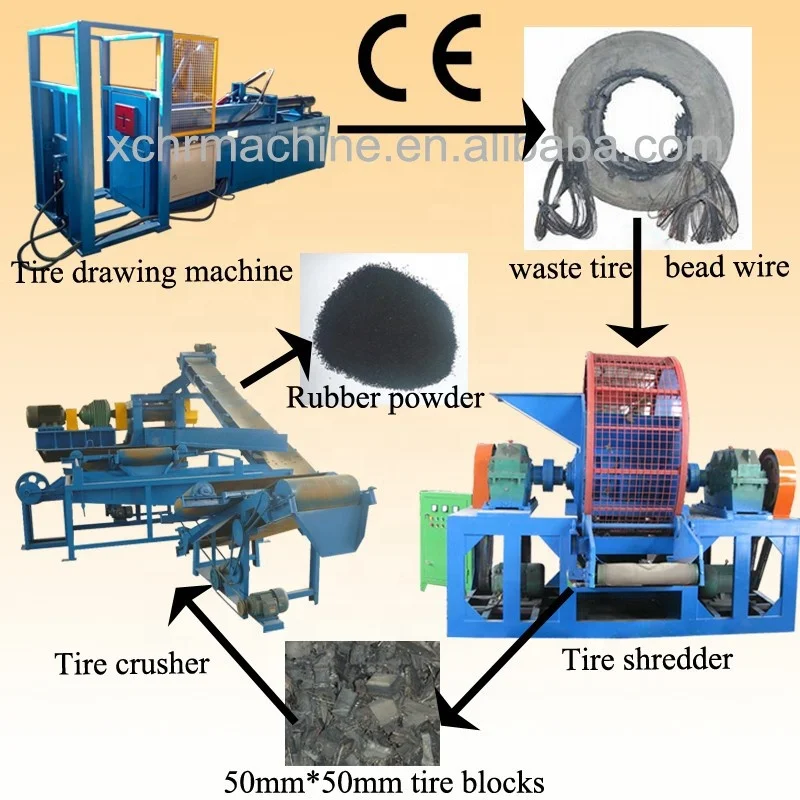

Waste tire--- Tire de beading - Whole tire cutting ---Tire shredding---Rubber crushing--- Magnetic separating ---Rubber powder.
First step: Tire wire drawing machine, it is used to pull the steel wire out of tire.
--1. TD-1200Tire wire drawing machine | |
Name | Technical parameter |
Feed size of tire(mm) | ≤φ1300 |
Capacity(tires/h) | 30-40 |
Power(KW) | 11 |
Overall dimensions(m) | 4.1*0.9*1.7 |
Equipment weight (T) | 1.8 |
Application: used to draw out the steel loops from the tire bead. | |
Second step: Whole tire cutter, it is used to cutting tires when tire size is larger than 850mm.
--2. TC-1200Tire cutting machine | |
Name | Technical parameter |
Feed size of tire(mm) | ≤φ1300 |
Capacity(tires/h) | 30-40 |
Power(KW) | 5.5/7.5 |
Overall dimensions(m) | 1.8*0.9*1.85 |
Equipment weight (T) | 1.5 |
Application: used to cut big tires to tree pieces or smaller pieces. | |

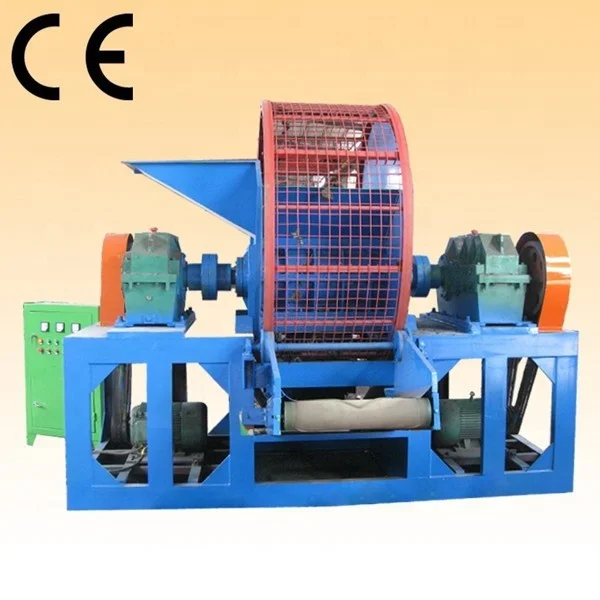

Third step: Whole tire shredder, this whole tire shredder can cut whole tire into 50x50mm, and 60x60mm rubber block as you need.
Model No. | TS-800 | TS-1000 | TS-1200 |
Output(T/h) | about2ton | 3-4ton | 4-6ton |
Feed size of tire(mm) | ≤φ900 | ≤φ1000 | ≤φ1250 |
Output size(mm) | ≤50*50 | ≤50*50 | ≤50*50 |
Power(KW) | 22/30*2+4+1.5 | 45*2+4+1.5 | 75*2+5.5+1.5 |
Speed(r/min) | 15 | 14 | 14 |
Equipment weight | 9T | 12T | 15T |
Application: is used for cutting whole tire to 50*50mm rubber block. | |||
Fourth step : Tire crusher, it is used to grind the rubber blocks into smaller mesh powder through the vibrating screen as you need.
Model No. | XKP-400 | XKP-450 | XKP-560 | XKP-560L | XKP-660 |
Diameter of front roll | 400 mm (groove) | 450 mm (groove) | 560 mm (groove) | 560 mm (groove) | 660 mm (groove) |
Diameter of back roll | 400 mm (groove) | 450 mm (groove) | 510 mm (groove) | 560 mm (groove) | 610 mm (groove) |
Drum working length | 600mm | 760mm | 800mm | 1000mm | 1200mm |
Front roll liner speed | 34.5 m/min | 38.0 m/min | 40.6m/min | 44m/min | 58m/min |
Roll ratio | 1:2.5 | 1:2.5 | 1:2.5 | 1:2.5 | 1:2.5 |
Max roller spacing | 10 mm | 10 mm | 10 mm | 10mm | 10mm |
Motor power | 45KW/55KW | 75KW /90KW | 90KW/110KW | 132KW/160KW | 200KW |
Weight | 8.5 T | 11T | 17.5T | 21T | 32T |
L*W*H | 4.3*1.8*1.6m | 4.6*2.0*1.65m | 5.3*2.0*1.7m | 5.6*2.0*1.7m | 6.5*2.3*2m |

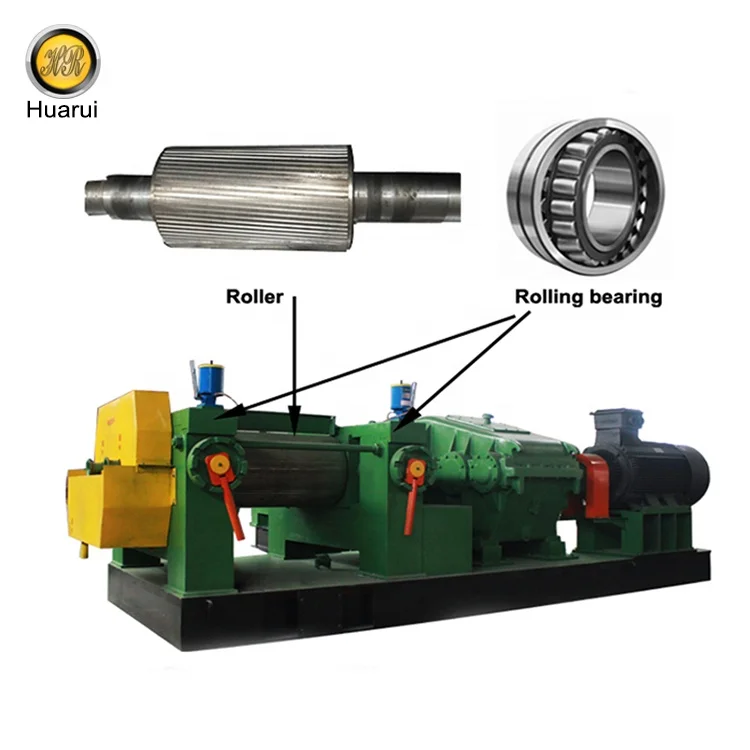

Tips: Both rollers are grooved which can improve the output. Roller material is Alloy 5Cr6MnMo. There are 8 pieces bearing inside the machine , all rolling bearing. | |||||

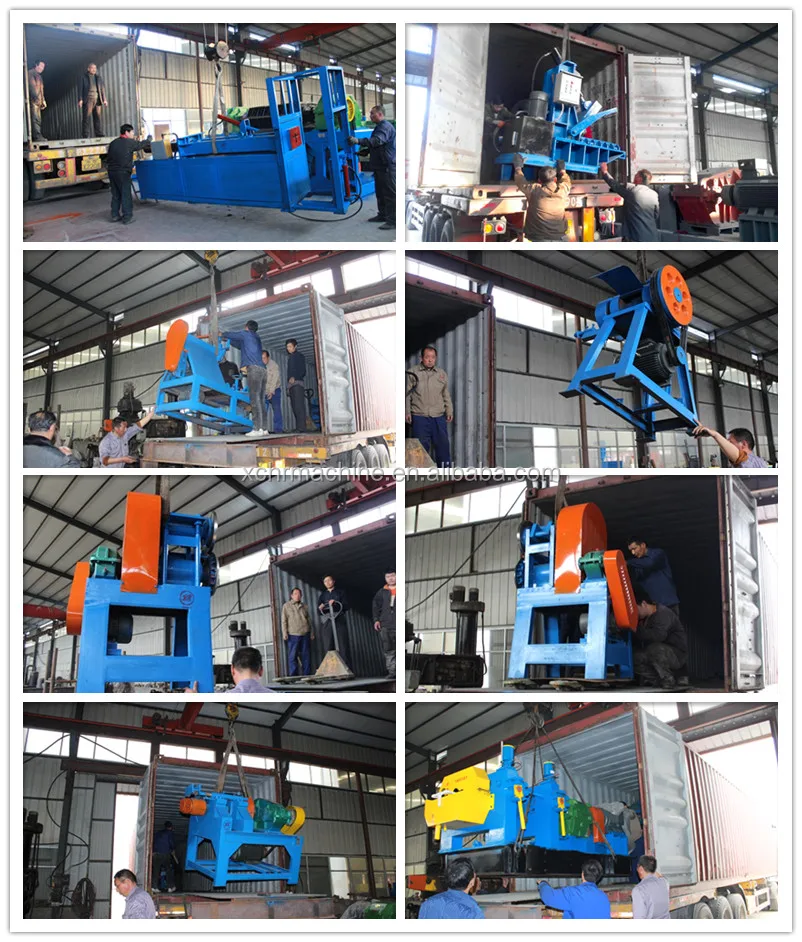

Packaging & Shipping
