Профессиональный алюминиевый оптический Компас/призматический геометрический компас

Product Overview

Description

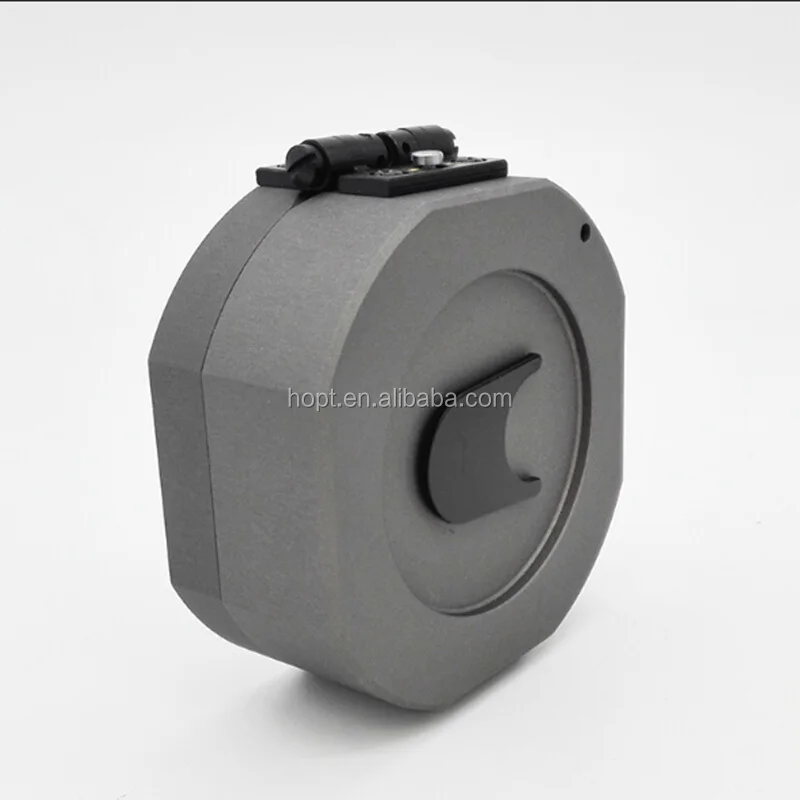

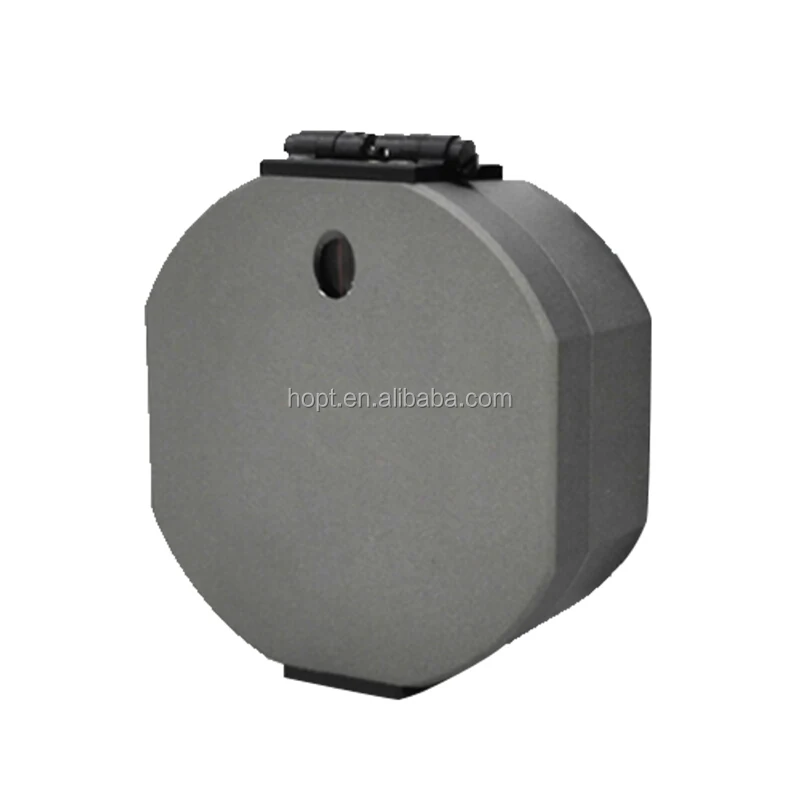

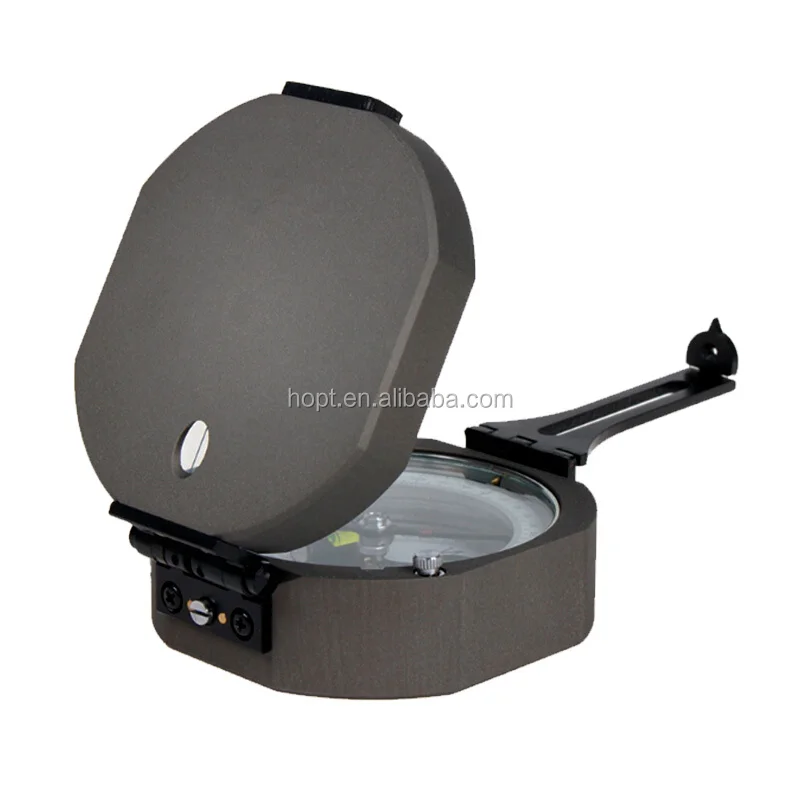

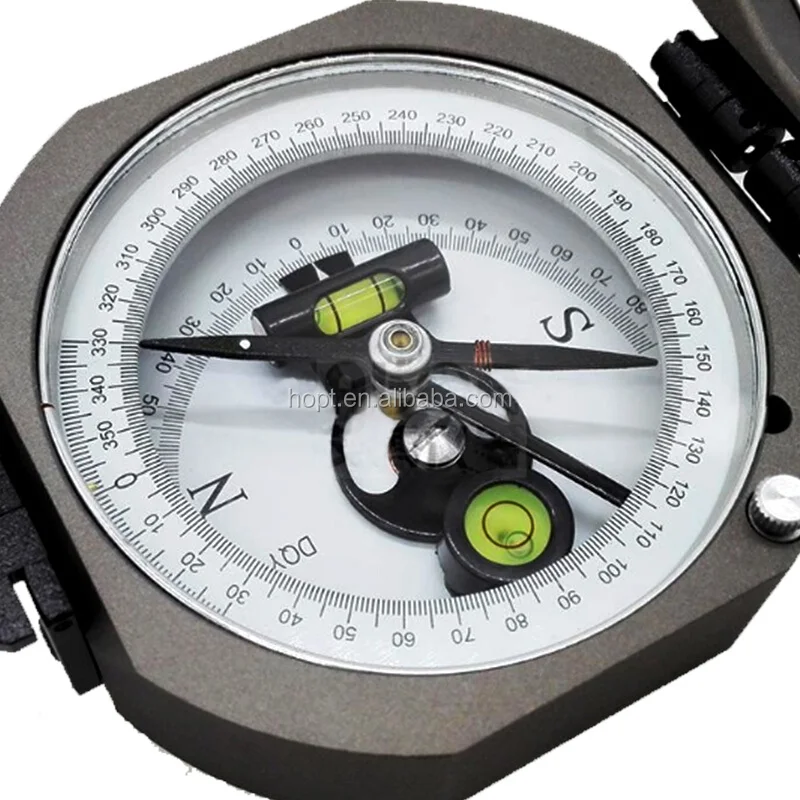

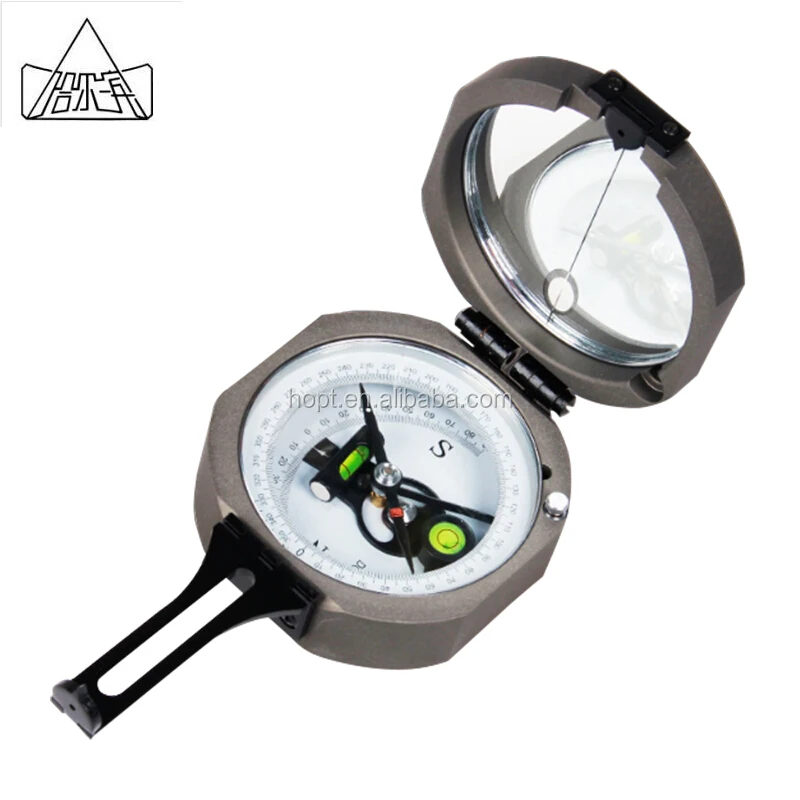

DQY-1J Pocket compass



1.Made of metal construction



2.Compass with liquid-filled



3.To measure direction,obliquity,gradient,upright,horizontal



4.Used in geology perambulation,colliery and other mine exploitation,military training.



Main specification
Item	Specifications
Damping time of needle	30-60s
Graduation Circle	0°~360°
Dial scale	1°
The reading error	≤ 0.5°
Precision of long air level	15′±5′/2mm
Precision of circle air level	30′±5′/2mm
Color	Black
Material	Aluminium alloy crust
Size	85×73×35(mm)
Weight	0.27kg



 Feature

 * Azimuth Dial (0 - 360 degrees)
* Abney Level
* 1 degree graduations
* Vertical angles: +/- 90 degrees with vernier reading to 10 minutes
* +/-100% grade with 5% divisions
* Needle Locking mechanism
* Declination Adjustment
* Includes leather case with belt clip
* Works in all magnetic zones

*  Jewel bearing





Remark



 We are the factory . The logo will be agree to print. we can supply the neutral packing . This products is hign procesion with  viewfinder. It can be used in many field
