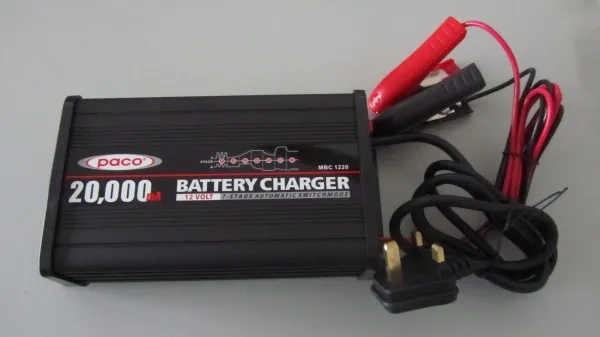

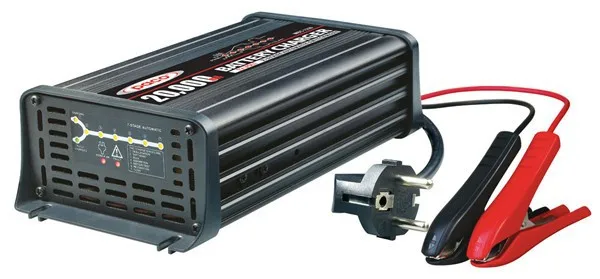

China Manufacturer 12V 20A Automatic Car Battery Charger with CE CB
Product Description
Automatic 7 stage battery chargeris used for charge lead acid batteries include: calcium, GEL, AGM.
MBC1220 is used for charge 12V batteries, it takes 4-17 Hrs to fully charge battery.
Specifications
P/ No.
MBC 1220
Type
7-Stage Automatic
Input Voltage
220-240V~, Hz 110V~, 600Hz
Input Power
554W
Output Voltage/ Current
12V DC, 20000mA
Minimum Start Voltage
2V
Current Fuse Rating
250V AC, T 5A
CHARGE CONRTOL
Desulption
Pulse charge to 11V
Soft start
Half the rated set current up to 12V
Bulk
20000mA (up to 14.4V)
Absorption
Constant voltage until current drops to 3A
Bettery test
Monitors voltage for 90 seconds
Recondition
Constant current (1.8A) up to 16V for 14 hours.
Float
13.8V also with pulse feature.
Efficiency
App. 85%
Short Protect
Short Circuit Protection
Polarity Reverse
Polarity Reverse Circuit Protection
Non battery link protection
Circuit protection
Link battery type mistake
Circuit protection
Over voltage protection
17.5 V
Thermal Protect
65℃ +/- 5℃
Cooling fan
Automatic temperature controlled
BATTERY RANGE
Deep cycle
134-400Ah
Types of batteries
Most type of lead acid batteries including Calcium, GEL and AGM.
Dimension (L x W x H)
215 x 115 x 62 mm
Weight
1.2 kg
Packaging & Shipping

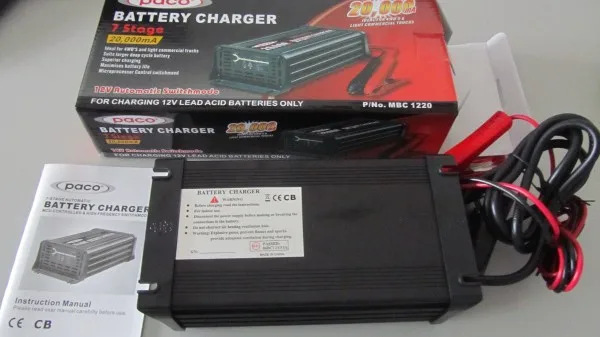

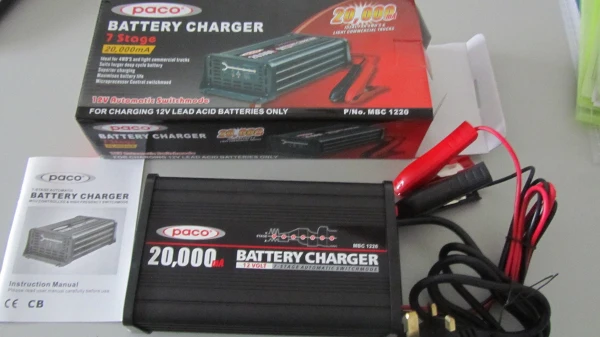

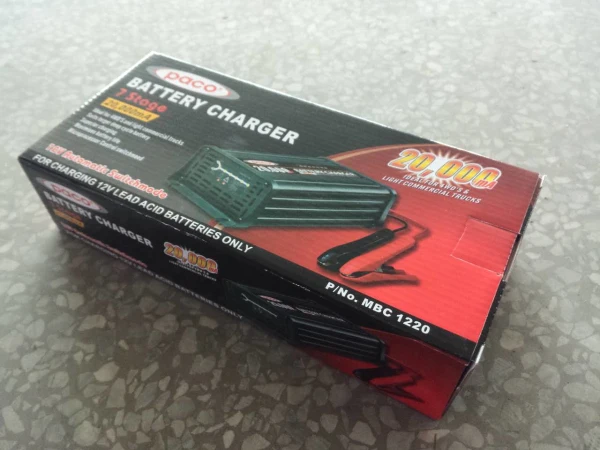

PACKING

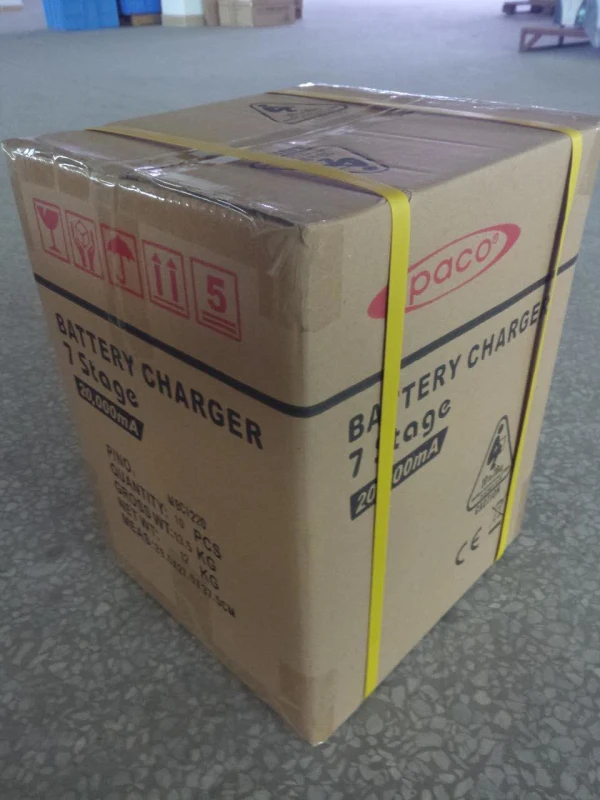

Color box packing, each 10pcs packed in a master carton.
For OEM orders, packing details as per customers requests.
Packing
Size
Weight
Qty
Color box
215 x 1150 x 62 mm
1.2 kg
1PCS/Gift box
Carton
275 x 275 x 375 mm
12 Kg
10 PCS/Carton
SHIPPING
LEAD TIME: 35-45 days against deposit received
With over 10 years experience staff handle and tracking shipping, ensure goods reach your side fast and smoothly.
MBC FAQ
.Why PACO 7-stage battery charger?
1). This is a fully automatic battery charger with 7 charge stages. 2). Automatic charging protects your battery from being overcharged. You can leave the charger connected to the battery charger indefinitely. 3).Compare with traditional chargers, 7-stage charger with much more comprehensive and accurate charging process, ensure your battery longer life and better performance! 4). 7-stage chargers are suitable for most battery types including calcium, Gel and AGM batteries. They could also help restore the drained and sulphated batteries.
.How do I know if the battery is charged?
The charger’s FULLY CHARGED LED will illuminate (solid). Alternatively use a Battery
Hydrometer A reading of 1.250 or more in each cell indicates a fully charged battery.
.I have connected the charger properly but the ‘CHARGING LED’ does not come on?
In some cases batteries can be flattened to the point where they have very little or no
voltage. This can occur if a small amount of power is used for a long time, for example
a map reading light is left on for a week or more. 7-Stage chargers are
designed to charge from as little as 12V charger 2.0 Volts and 24V charger 4.0 Volts
If the voltage is lower than 2.0 Volts and 4.0 Volts use a pair of booster cables to connect between
two batteries to provide more than 2.0 Volts and 4.0 Volts to the battery being charged. The charger
can then start to charge the battery and the booster cables can be removed.
.Can I use the charger as a power supply?
7-Stage chargers are designed to only supply power to the battery clips when
they are connected correctly to a battery. This is to prevent sparks during connection to
the battery or if connected incorrectly by mistake. This safety feature prevents the
charger from being used as a ‘Power Supply’. No Voltage will be present at the clips
until connected to the battery.
.How can I know what stage the battery charger is in?
Below are the conditions that are displayed by the LEDs for each of the charge stages.
Certifications
With CE, CB, ISO, RoHS certified by SGS.
Company Information
About us:
LIGAO (Zhongshan) electrical appliance Co., LTD is one of the most specialized manufacturers of electrical appliance with over 20 years of experience.
Conducted by ISO9001:2000 and gain CB, CE, RoHS approvals.
Company Information:

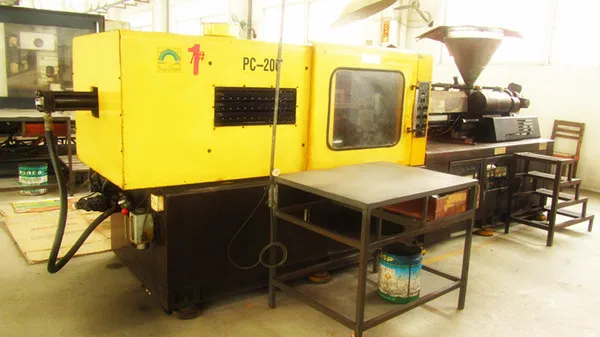

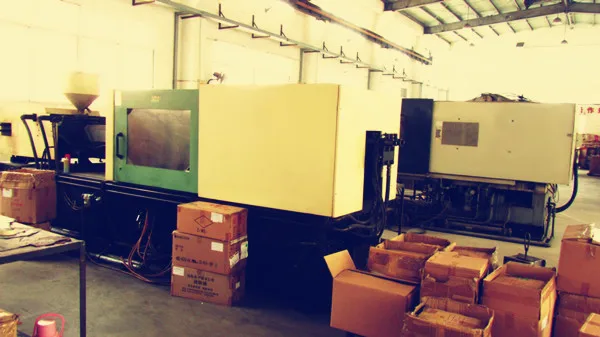

Investment on Manufacturing Equipment: US$5 Million - US$10 Million
Factory size: 40,000 Square Meters
Production line Workers: 400 people
R&D engineer: 5-10 people
QC Staffs: 5-10 people
Sales Team: 6 people
Our Service
One year warranty.
OEM is AVAILABLE!
Excellent Pre-sales and After-sales service system.
