FE02600 Viewing head zoom bm800 binocular stereoscope polarizing microscope

Share on (60291845076):


Price:

Quantity:


Product Overview

Description



Product Description


 FE02600 series Upright Infinity Biological Microscope
.CCIS infinity chromatic aberration revise system achieves sharp and high resolution optical images.
.Infinity achromatic objectives produce high quality image contrast and make clearer image.
.With incorporate design in whole unit, the rigidity and shock-resistant capability is stable.
.Ergonomic design in the low-position coarse/fine focusing meets the requirement for the user to long time working.
.To prevent the specimens from broken, FB02600 use the up-stop focusing system.
.The large surface built-in double-plate mechanical stage facilitates easy two specimens handling.

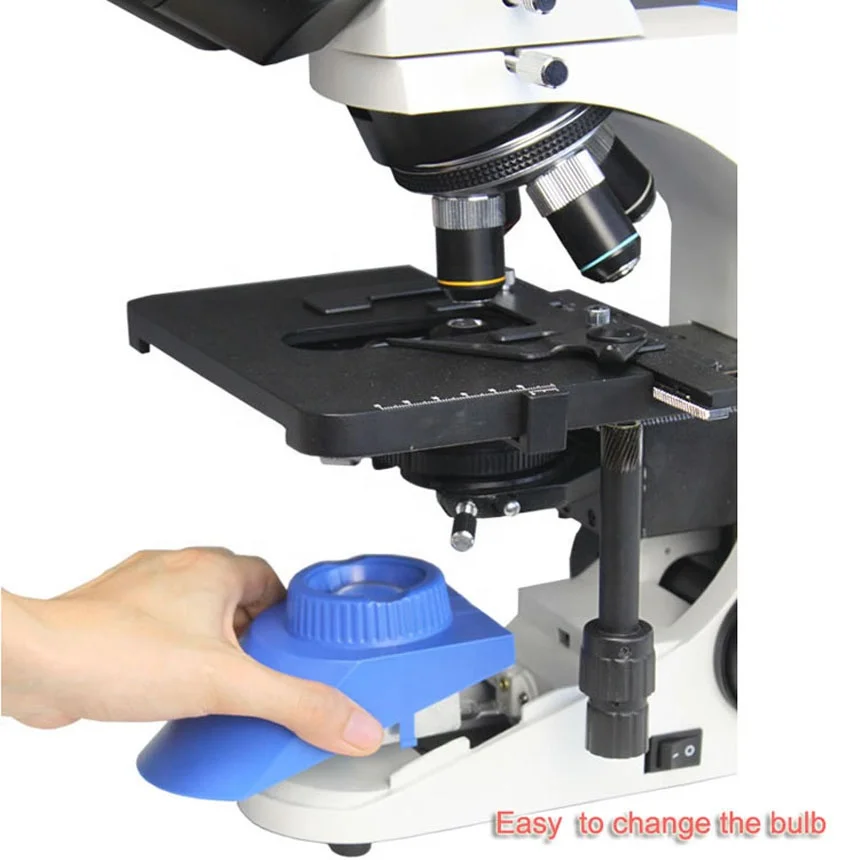

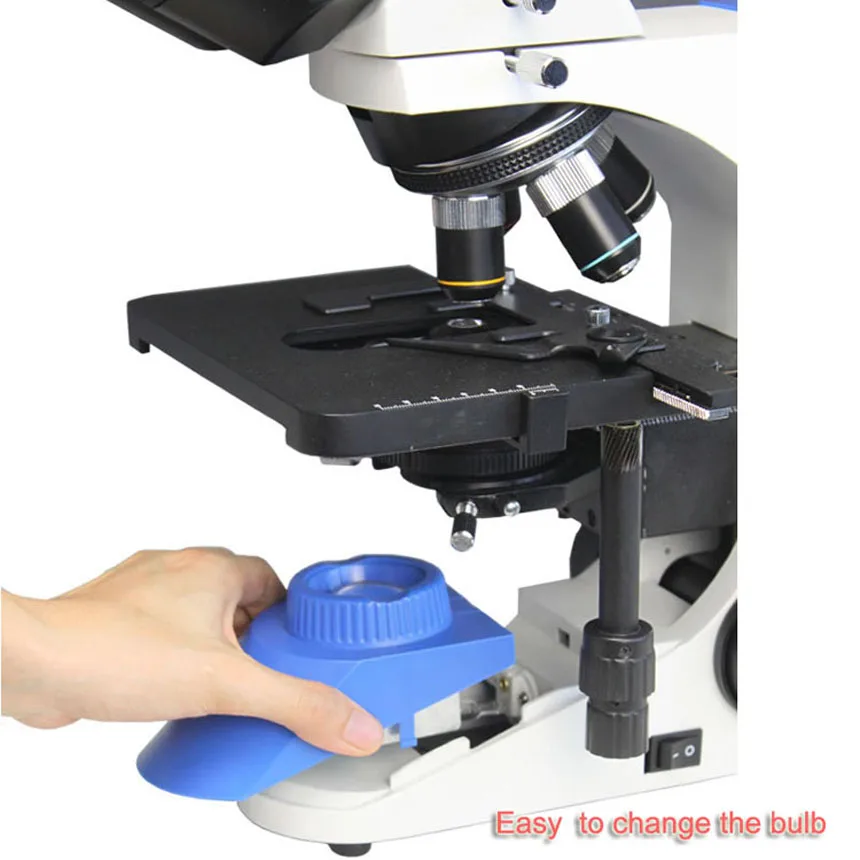

3Replacing the halogen lamp is safe and easy, and so is replacing the optional mirror unit





Optical Parameter

















































































NameFE02600 series Infinity Biological MicroscopeFE02602FE02603

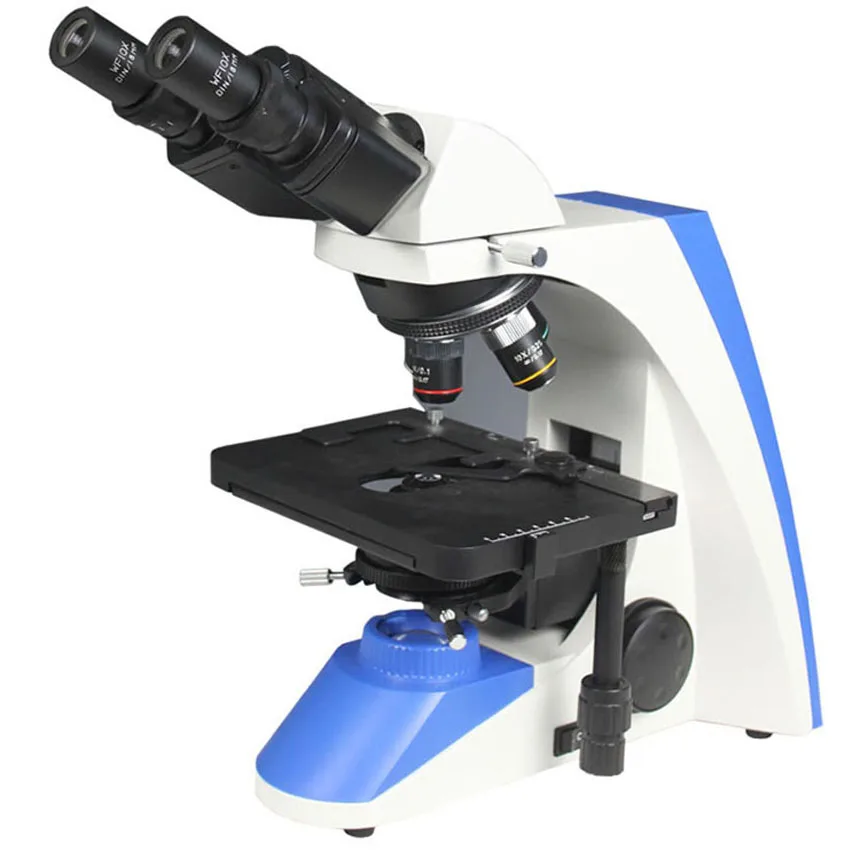

 Viewing HeadCompensation Free Binocular Head, 30°Incline,Interpupillary Adjustable Distance: 50~75mmv---

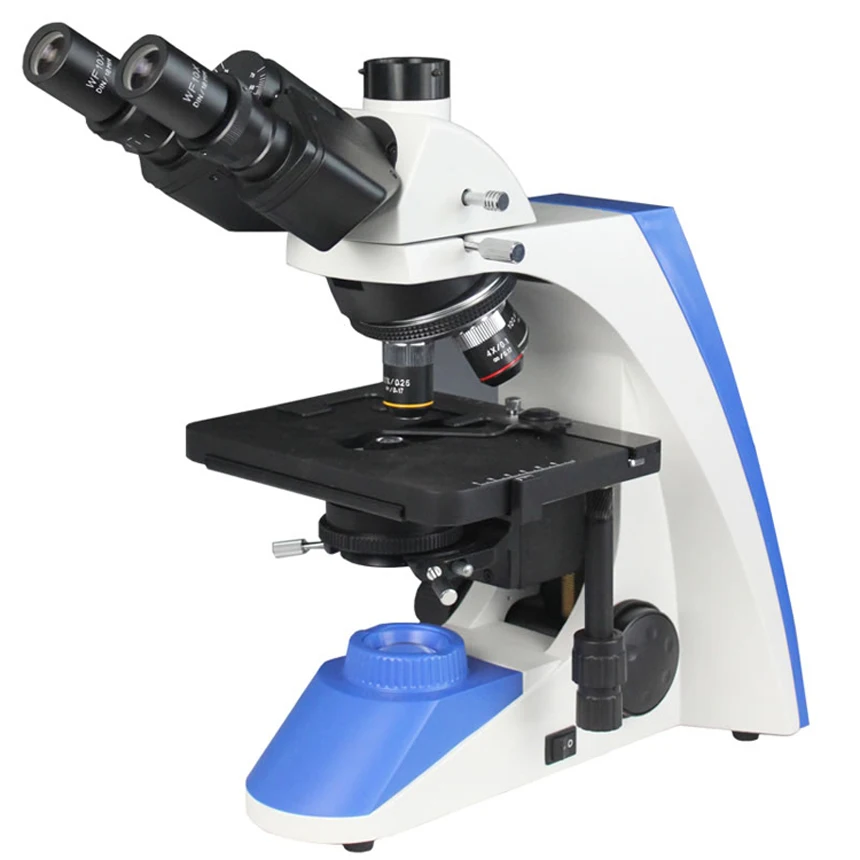

Compensation Free Trinocular Head, 30°Incline,Interpupillary Adjustable Distance: 50~75mm---v
Optical SystemCCIS Infinity Chromatic Aberration Revise System
EyepieceWide Field Eyepiece  WF10×/20mm
 Objectives Infinite Plan Achromatic Objective 4×∞/NA 0.1
 Infinite Plan  Achromatic Objective 10×∞/NA 0.25
Infinite Plan  Achromatic Objective 20×∞/NA 0.50
 Infinite Plan Achromatic Objective 40×(s) ∞/NA 0.65
 Infinite Plan Achromatic Objective 100×(s, oil) ∞/NA.1.25
NosepieceQuadruple Nosepiece
Mechanical StageDouble-plate mechanical stage
Size:185mm×145mm,Moving Range: 75(X)mm×50(Y)mm
Precision: 0.1mm
Focus SystemUp-stop focusing system
CondenserAbbe Condenser:N.A.1.25
Illumination6V 30W Halogen Lamp, with adjustable brightness, free voltage 100V~240V
FilterBlue Filter





Product pictures
