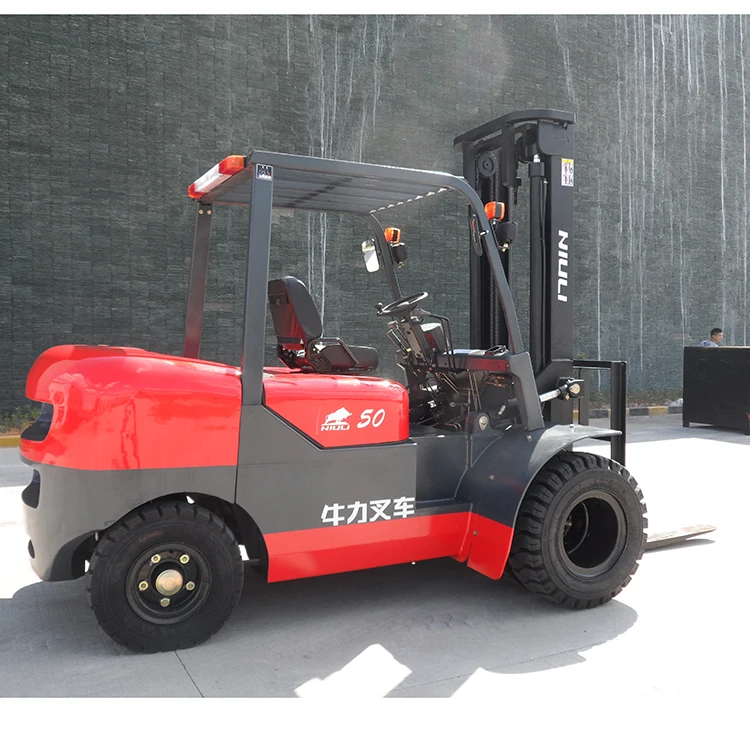

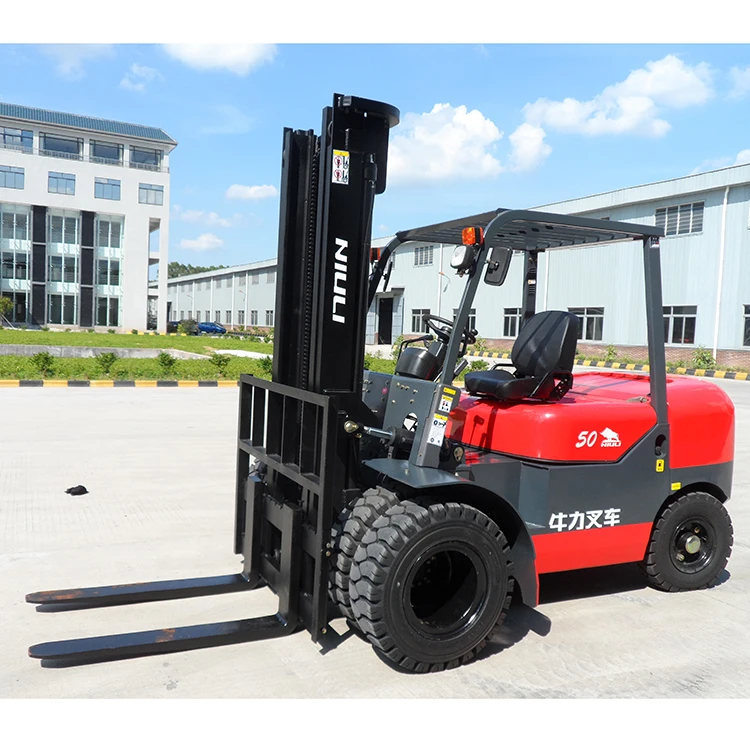

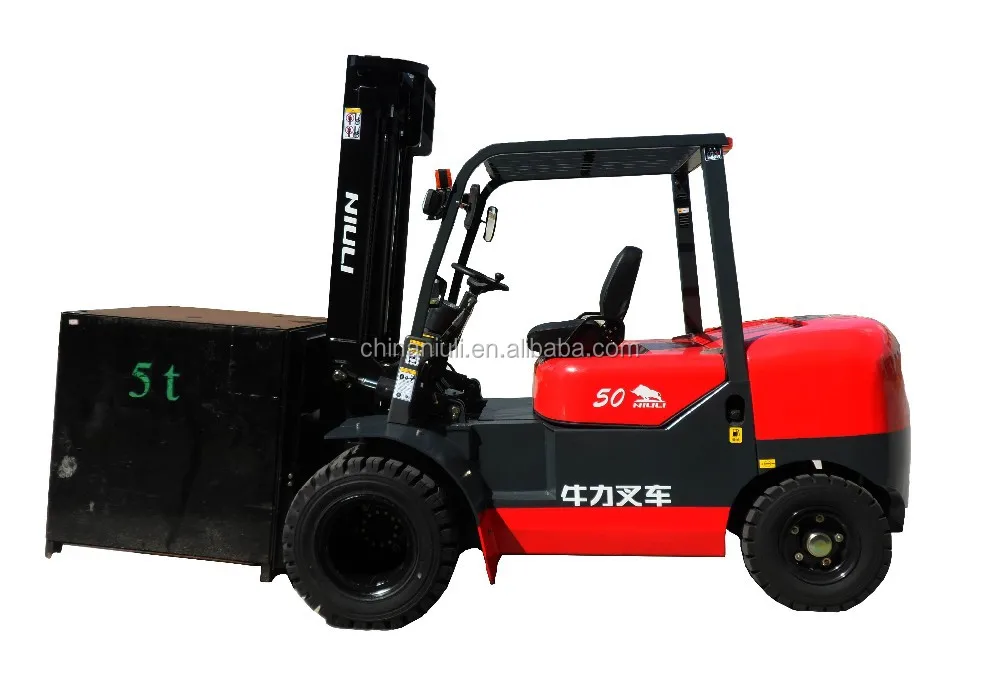

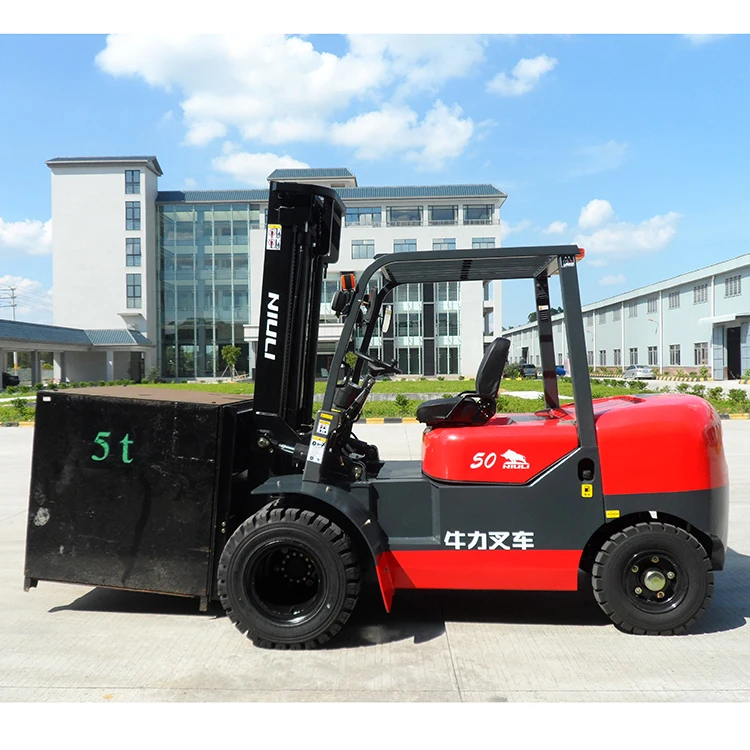

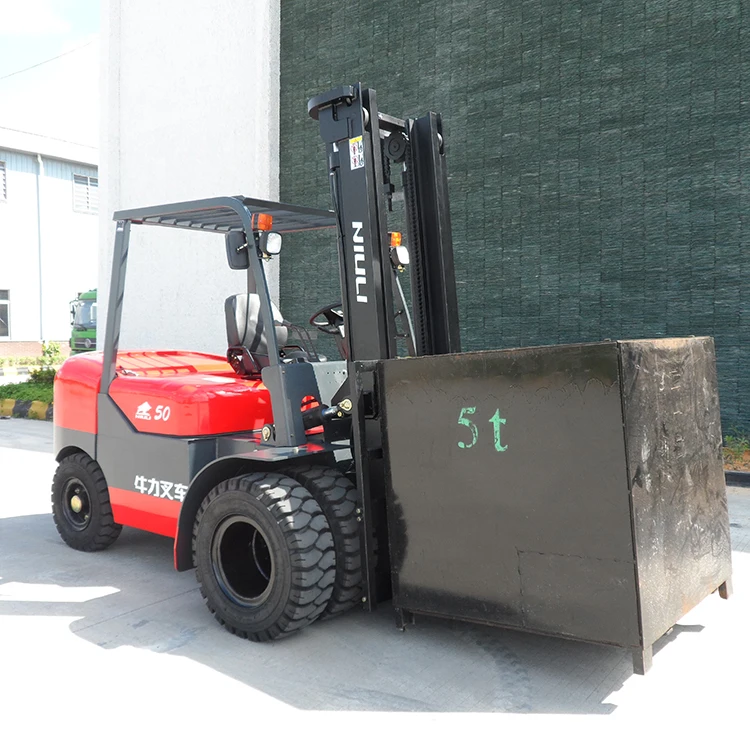

NIULI Transpalet Montacarga 5 ton diesel forklift with Japanese Mitsubishi S6S engine
- Category: >>>
- Supplier: Niuli Machinery Manufacture Co. Ltd.
Share on (60291899806):
Product Overview
Description
Packaging & Shipping
Packaging & Delivery
Packaging Details: LCL: Standard export package FCL: 3 pcs/20'GP, 5 pcs/40'GP
Delivery Detail: Within 20 days, depending on production schedule
-- Great Reliability
-- Innovative Design
-- Simplified Serviceability
-- Enhanced Productivity
-- Wide-view Mast -- offer enhanced forward visibility, thus more efficiency and safty during operation
-- Solid Overhead Guard -- specially designed for additional security
-- Ergonomics Seat -- much more comfortable and fatigue- reliveable after long time operation
-- Powerful Engine -- imported brand engine ensures high performance, safty and efficiency
-- Super low & Non-slip step
| General | 1 | Model | CPCD50 | |||||
| 2 | Power Type | Diesel | ||||||
| 3 | Rated capacity | Kg | 5000 | |||||
| 4 | Load center | mm | 500 | |||||
| Charactertic | 5 | Lifting height | mm | 3000 | ||||
| 6 | Fork size | mm | 1070*150*50 | |||||
| 7 | Mast Tilt Angle | Deg | 6°/12° | |||||
| 8 | Front Overhang(Wheel center to fork face) | mm | 560 | |||||
| 9 | Ground Clearance(Bottom Of Mast) | mm | 160 | |||||
| 10 | Overall Dimension | Overall length(with/without fork) | mm | 4320/3218 | ||||
| 11 | Overall width | mm | 1490 | |||||
| 12 | Mast lowered height | mm | 2245 | |||||
| 13 | MastExtended height(with backrest) | mm | 4260 | |||||
| 14 | Overhead guard height | mm | 2290 | |||||
| 15 | Turning Radius(outside) | mm | 2974 | |||||
| 16 | Min. intersecting aisle | mm | 3100 | |||||
| Performance | 17 | Speed | Travel(Full/Empty load) | km/h | 18/19 | |||
| 18 | Lifting(Full/Empty load) | mm/s | 380/410 | |||||
| 19 | Max.Gradeability | % | 20 | |||||
| Chassis | 20 | Tire | Front | 250-15-18PR | ||||
| 21 | Rear | 7.00-12-12PR | ||||||
| 22 | Wheelbase | mm | 2100 | |||||
| 23 | Self Weight | kg | 6600 | |||||
| Transmission | 24 | Battery | Voltage/Capacity | V/Ah | (12/80)x2 | |||
| 25 | Engine | Model | CY6102BG | S6S | ||||
| 26 | Manufacturer | ChaoChai | Mitsubishi | |||||
| 27 | Rated output/r.p.m | kW/rpm | 81/2500 | 52/2300 | ||||
| 28 | Rated torque/r.p.m | Nm/rpm | 353/1650 | 137.7/1800 | ||||
| 29 | No. of cylinder | 6 | 6 | |||||
| 30 | Bore x Stroke | mm | 102x118 | 94X102 | ||||
| 31 | Displacement | cc | 5795 | 4997 | ||||
| 32 | Fuel Tank capacity | L | 110 | 110 | ||||
| 33 | Transmission | Type | Hydraulic | |||||
| 34 | Operation Pressure for Attachment | Mpa | 518 | |||||
